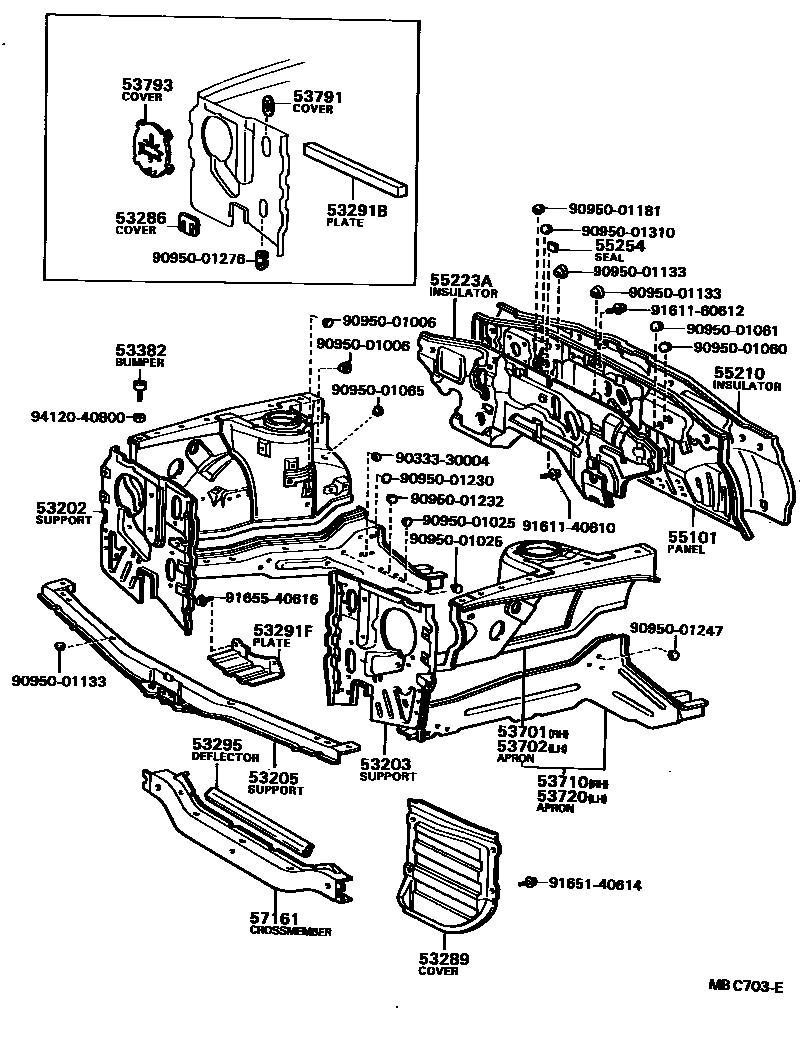

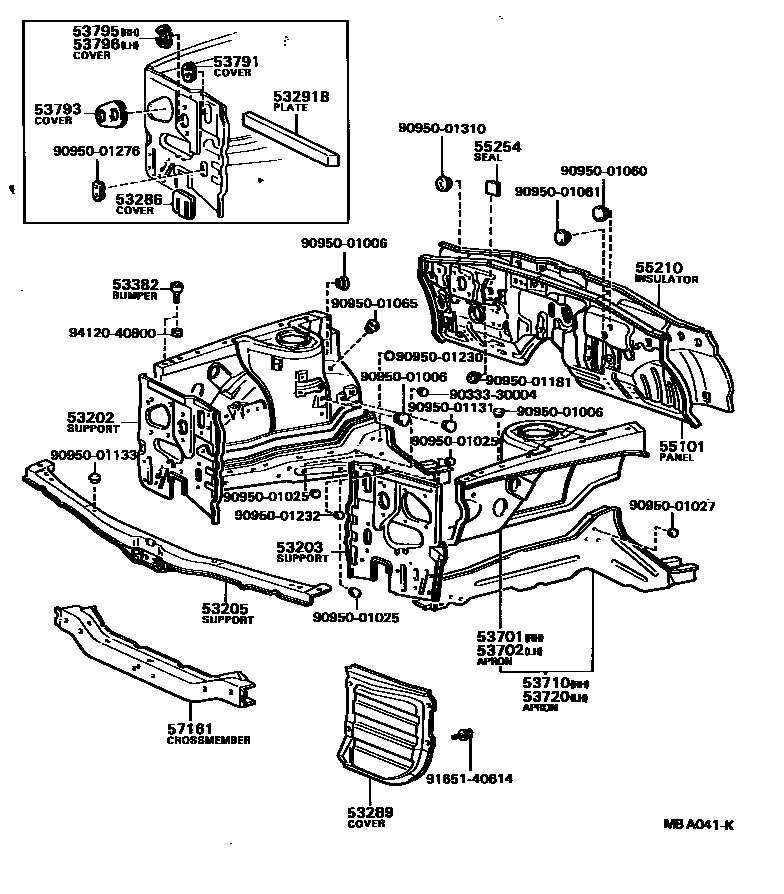

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53202-12140 · 53202-12150 · 53202-12190 · 53211-12100 · 53211-12110 · 53211-12130 |
| 53203 | Radiator left bracket sub-assembly | 53203-12140 · 53203-12141 · 53203-12150 · 53203-12180 · 53212-12080 · 53212-12090 · 53212-12100 |
| 53205 | Radiator upper bracket sub-assembly | 53216-12900 · 53216-12902 |
| 53286 | Front bumper arm hole cover | 53285-12060 · 53285-12070 |
| 53289 | Radiator side baffle cover | 53289-12030 |
| 53291B | Radiator cover | 53291-12030 · 53291-12050 · 53291-12060 |
| 53291F | Radiator support plate | 53291-12070 |
| 53295 | Radiator lower air deflector | 53295-12010 · 53295-12020 |
| 53382 | Engine cover front buffer block | 53382-12040 · 53382-20011 |
| 53701 | Right front fender fender sub-assembly | 53701-12903 · 53701-12908 · 53701-12909 · 53701-12910 |
| 53702 | Left front fender fender sub-assembly | 53702-12904 · 53702-12905 · 53702-12906 · 53702-12910 · 53702-12911 · 53702-12912 · 53702-12915 · 53702-12916 |
| 53710 | Right fender assembly with front longitudinal beam | 53701-12290 · 53701-12330 · 53701-12331 · 53701-12421 · 53701-12481 · 53701-12500 · 53701-12550 · 53701-12560 · 53701-12570 · 53701-12580 |
| 53720 | Left fender assembly with front longitudinal beam | 53702-12300 · 53702-12301 · 53702-12310 · 53702-12311 · 53702-12320 · 53702-12321 · 53702-12330 · 53702-12331 · 53702-12340 · 53702-12341 · 53702-12430 · 53702-12500 · 53702-12510 · 53702-12560 · 53702-12580 · 53702-12590 |
| 53791 | Air conditioner air inlet cover | 53791-12020 · 53791-12030 |
| 53793 | No. 1 headlight wiring harness hole cover | 53793-12010 · 53793-12020 |
| 53795 | Right headlight wiring harness hole cover | 53795-12010 |
| 53796 | Left headlight wiring harness hole cover | 53795-12010 |
| 55101 | Front apron sub-assembly | 55101-12360 · 55101-12370 · 55101-12390 · 55101-12391 · 55101-12500 · 55101-12520 · 55101-12740 |
| 55210 | Front wall insulation pad assembly | 55210-12100 · 55210-12110 · 55210-12120 · 55210-12130 |
| 55223A | Front wall outer heat insulation pad | 55223-12010 |
| 55254 | Clutch harness hole seal | 55255-12010 |
| 57161 | front cross member | 57161-12902 |
