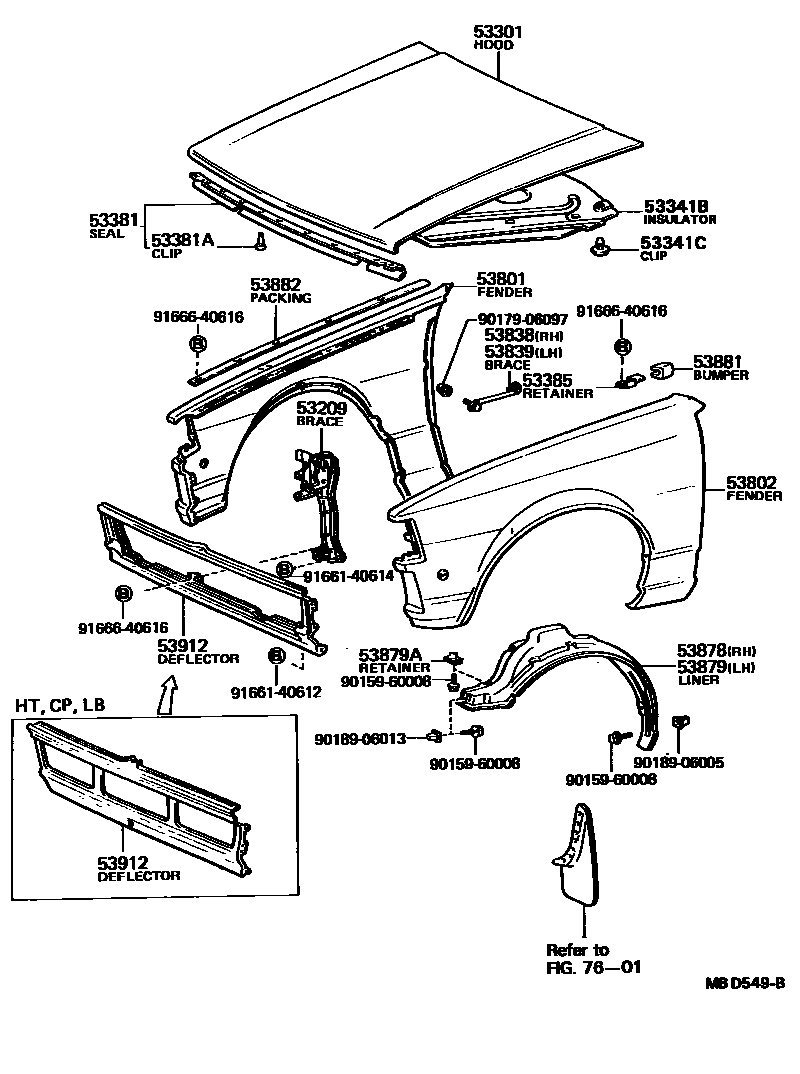

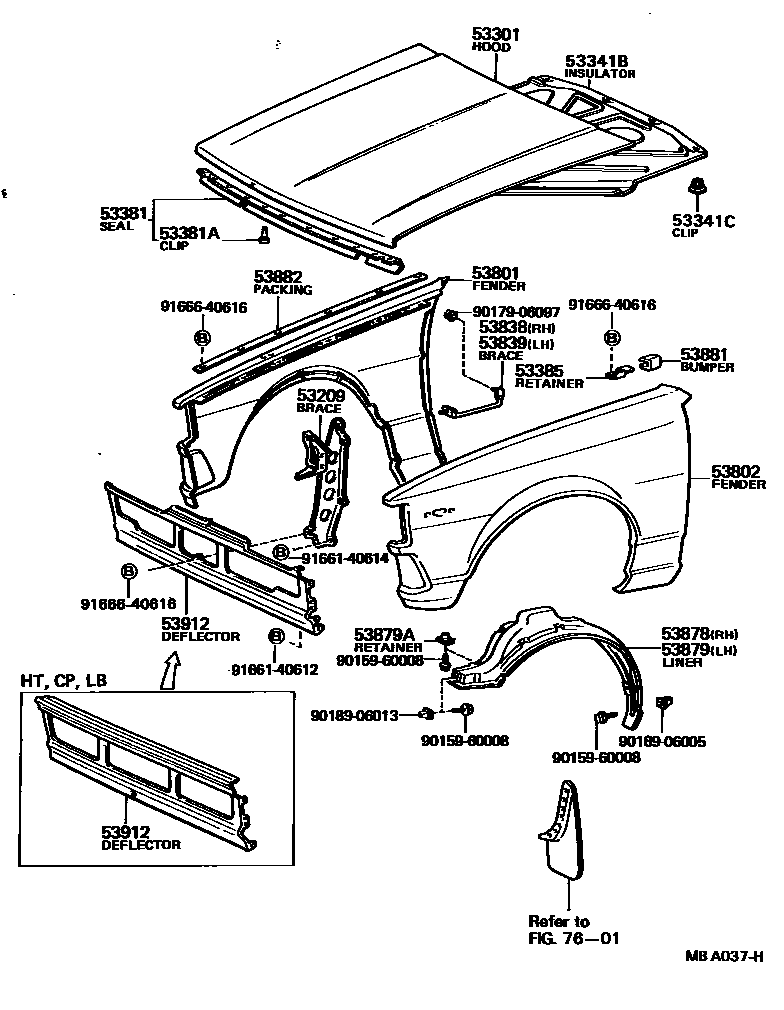

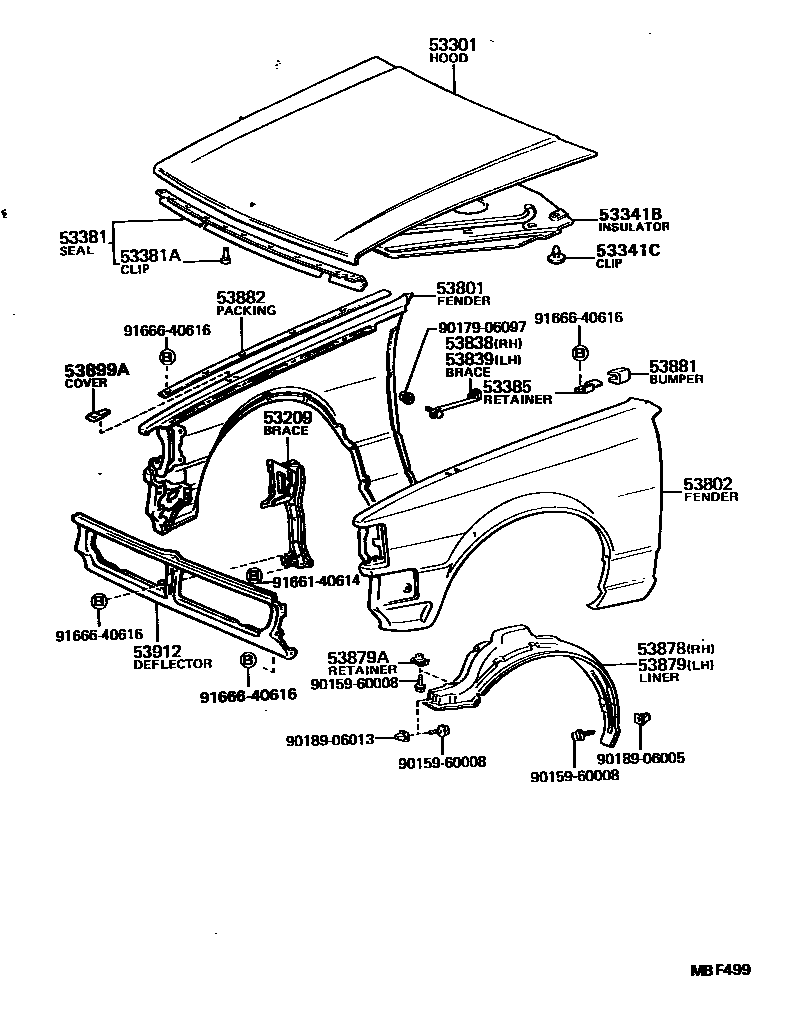

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53209 | Engine cover lock bracket sub-assembly | 53208-12040 · 53208-12050 · 53208-12060 · 53208-12070 · 53208-12120 · 53208-12130 · 53208-12150 · 53208-12160 · 53208-12180 · 53208-12190 · 53208-13010 · 53208-13011 · 53208-13020 · 53208-13021 |
| 53301 | Engine cover sub-assembly | 53301-12200 · 53301-12210 · 53301-12290 · 53301-12310 · 53301-13020 |
| 53341B | engine cover gasket | 53341-12010 · 53341-12020 |
| 53341C | Clip (for engine cover gasket) | 90467-12018 · 90467-22002 |
| 53381 | Engine cover to radiator bracket seal | 53381-12100 · 53381-12110 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08008 · 90467-08011 |
| 53385 | Engine cover buffer block fixing | 53385-14010 · 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-12830 · 53801-12850 · 53801-12860 · 53801-12861 · 53801-13050 · 53801-13051 · 53801-13060 · 53801-13061 · 53801-13070 · 53801-13071 · 53801-1A310 · 53801-1A330 |
| 53802 | Left front fender sub-assembly | 53802-12850 · 53802-12870 · 53802-12871 · 53802-13050 · 53802-13051 · 53802-13060 · 53802-13061 · 53802-1A350 |
| 53838 | Right front fender stay | 53851-12010 · 53851-12020 · 53851-12040 |
| 53839 | Left front fender stay | 53852-12010 · 53852-12020 · 53852-12040 |
| 53878 | Right front fender lining | 53875-12040 · 53875-12050 |
| 53879 | Left front fender lining | 53876-12040 · 53876-12050 |
| 53879A | Front fender lining fixing parts | 53879-22010 |
| 53881 | fender to engine cover buffer block | 53384-14010 · 53384-16010 |
| 53882 | Front fender main seal | 53882-12040 |
| 53899A | Exterior rearview mirror hole cover | 53899-13010 |
| 53912 | Front bumper stone guard | 53901-12060 · 53901-12090 · 53901-13010 · 53911-12100 · 53911-12110 · 53911-12120 · 53911-12130 |
