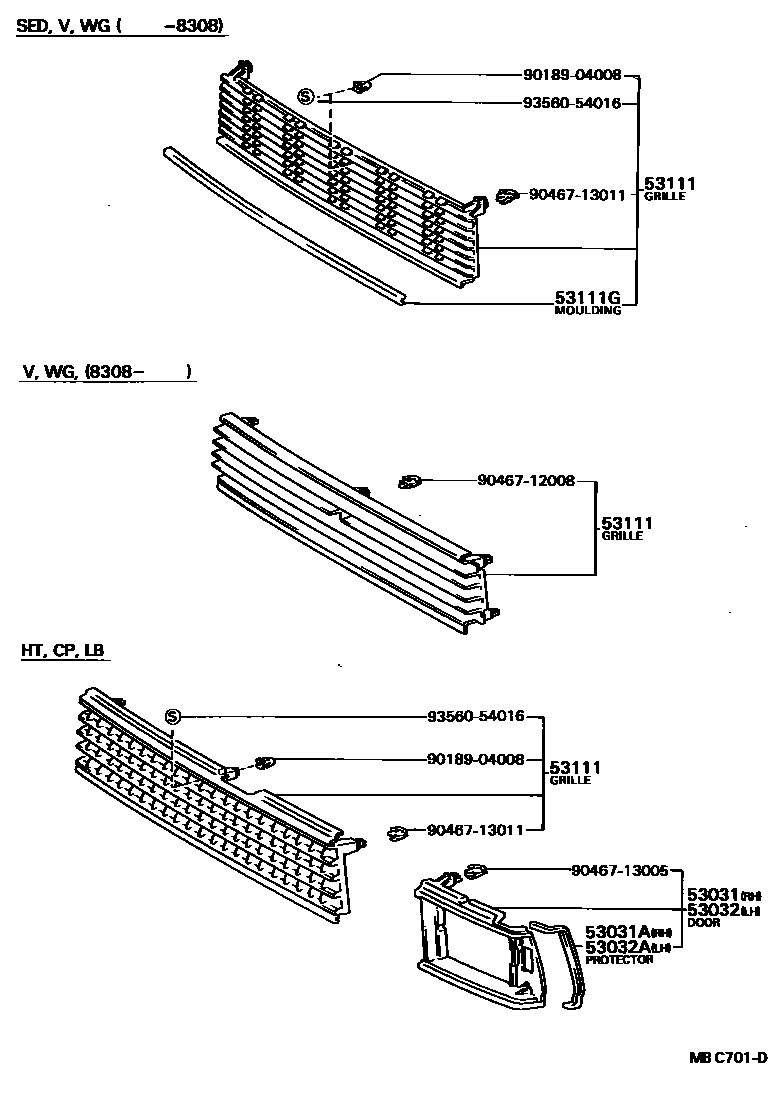

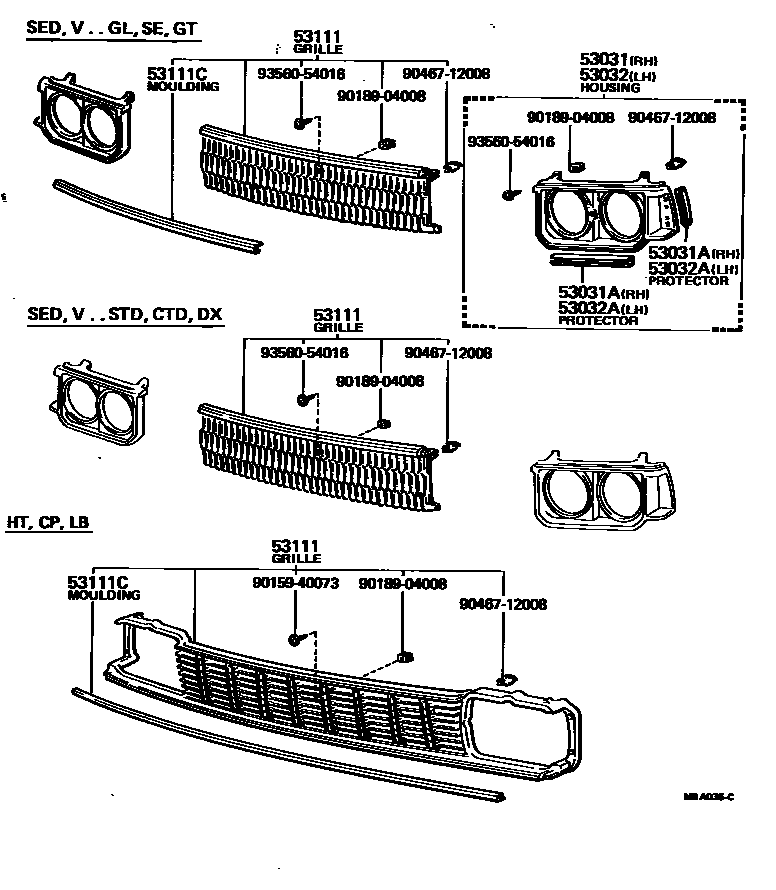

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53031 | Right headlight housing | 53131-12250 · 53131-12260 · 53131-12320 |
| 53031A | Right headlight guard | 53138-12040 · 53139-12060 · 53139-12090 · 53169-12010 |
| 53032 | Left headlight housing | 53132-12160 · 53132-12170 · 53132-12230 |
| 53032A | Left headlight guard | 53139-12060 · 53139-12090 · 53139-12110 · 53169-12010 |
| 53111 | radiator grille | 53100-12090 · 53100-12130 · 53100-12140 · 53100-12150 · 53100-12280 · 53100-13010 · 53100-13011 · 53100-13020 · 53100-13021 · 53101-12440 · 53101-12450 · 53111-12400 · 53111-12530 |
| 53111C | Protective strips on radiator grille | 75511-12100 · 75512-12090 |
| 53111G | Radiator grille lower protective strip | 53121-12120 · 53121-12130 |
