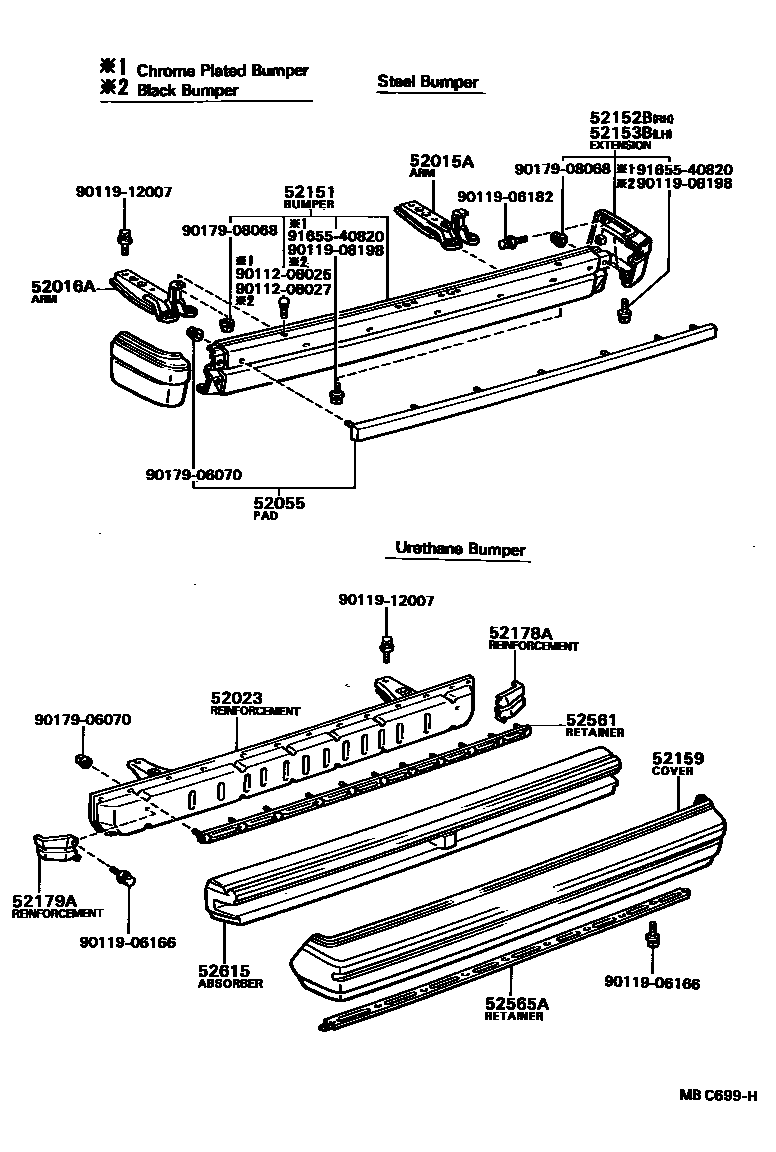

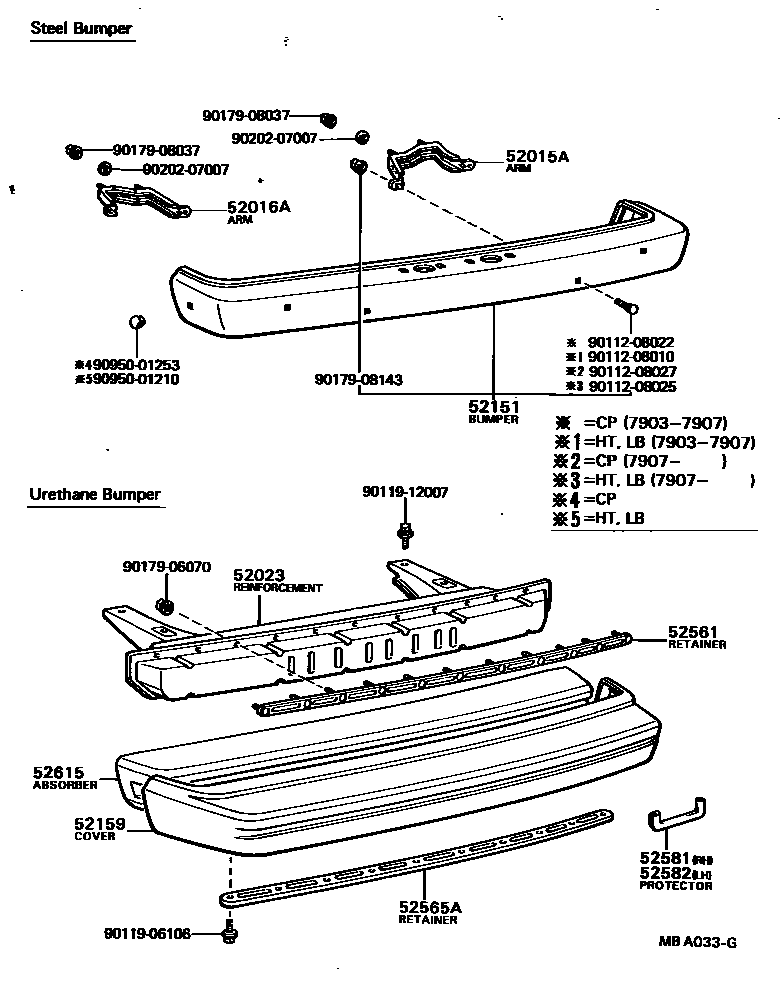

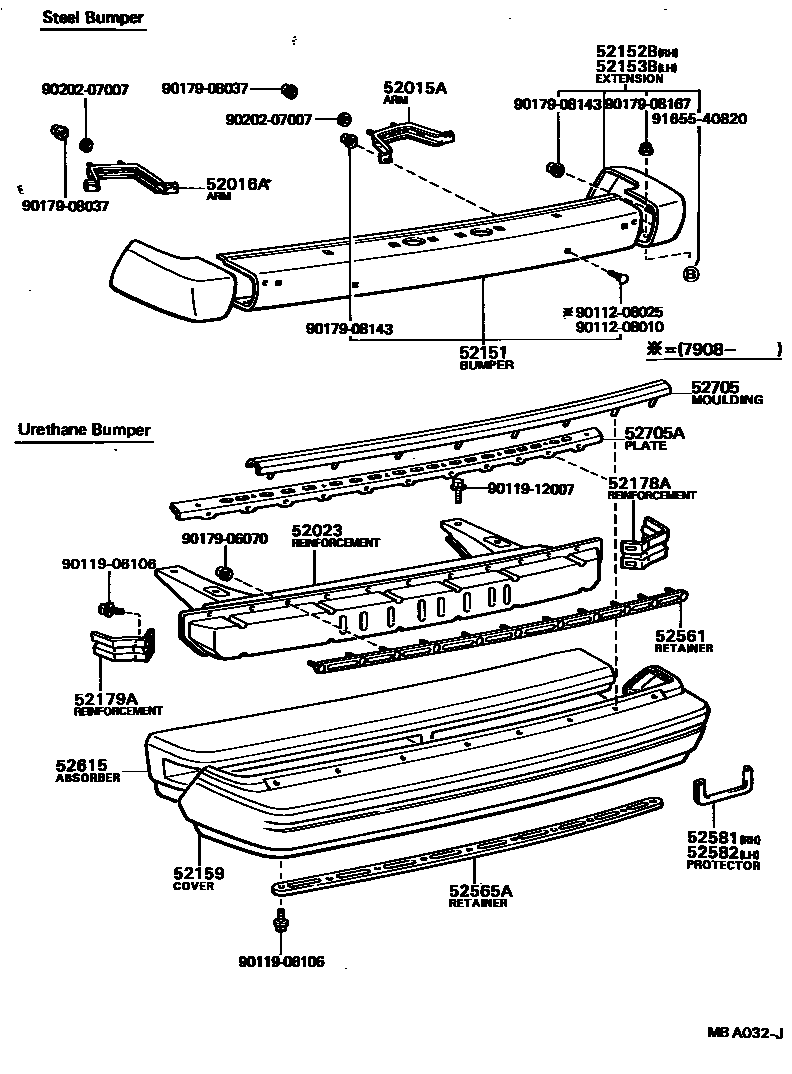

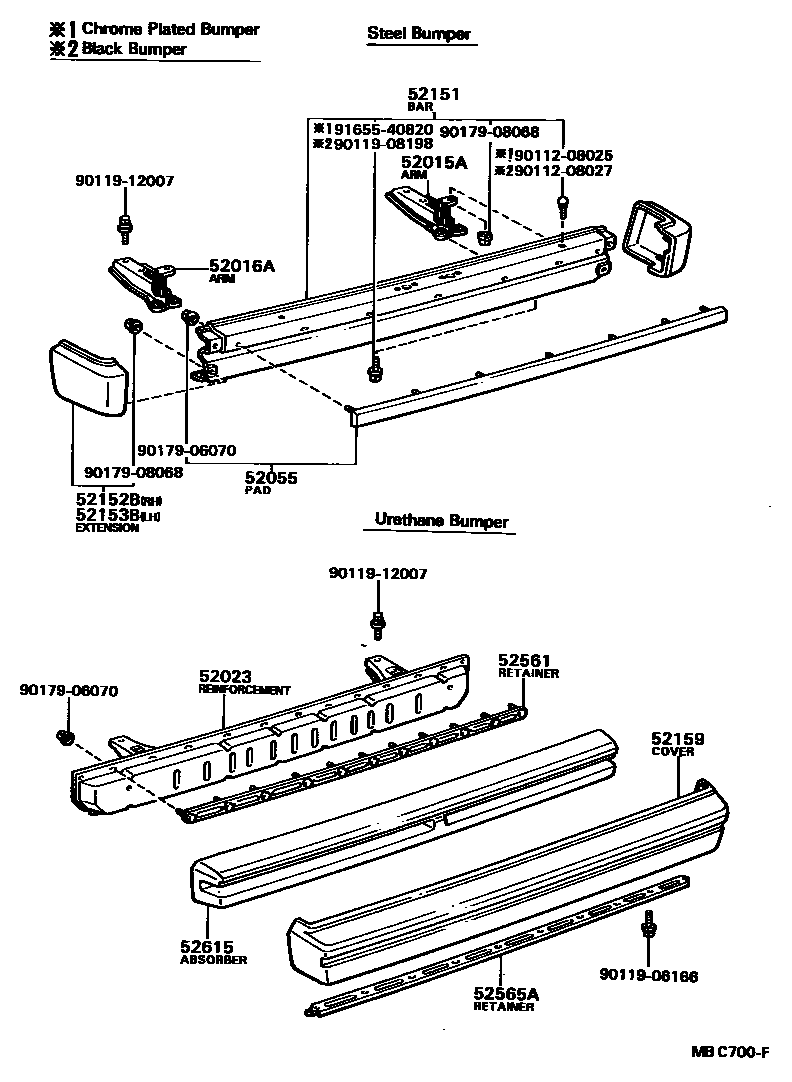

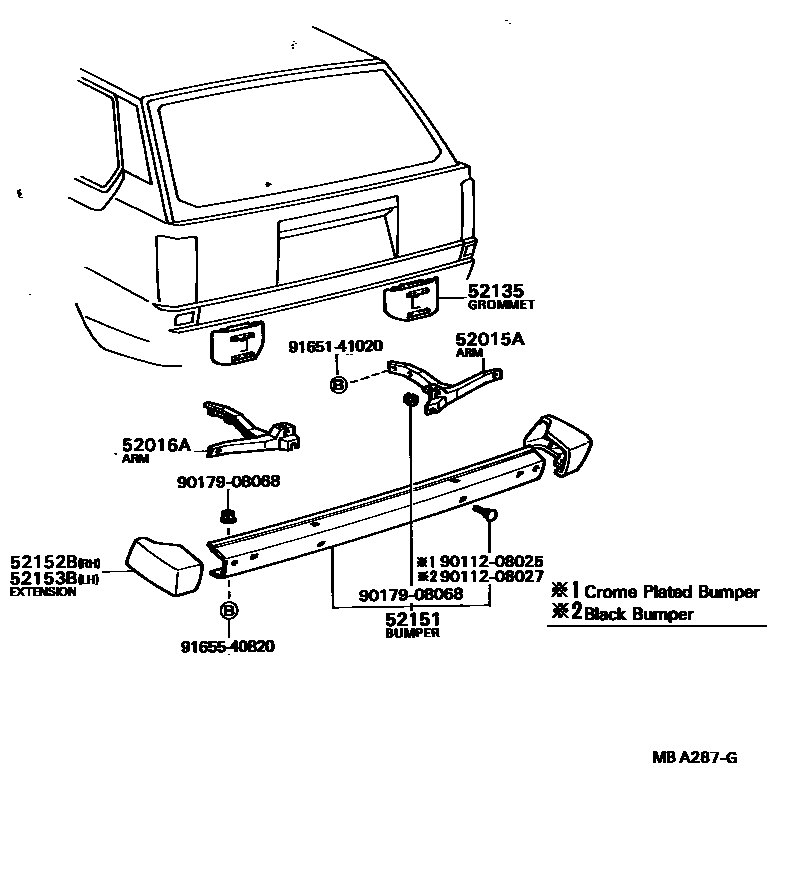

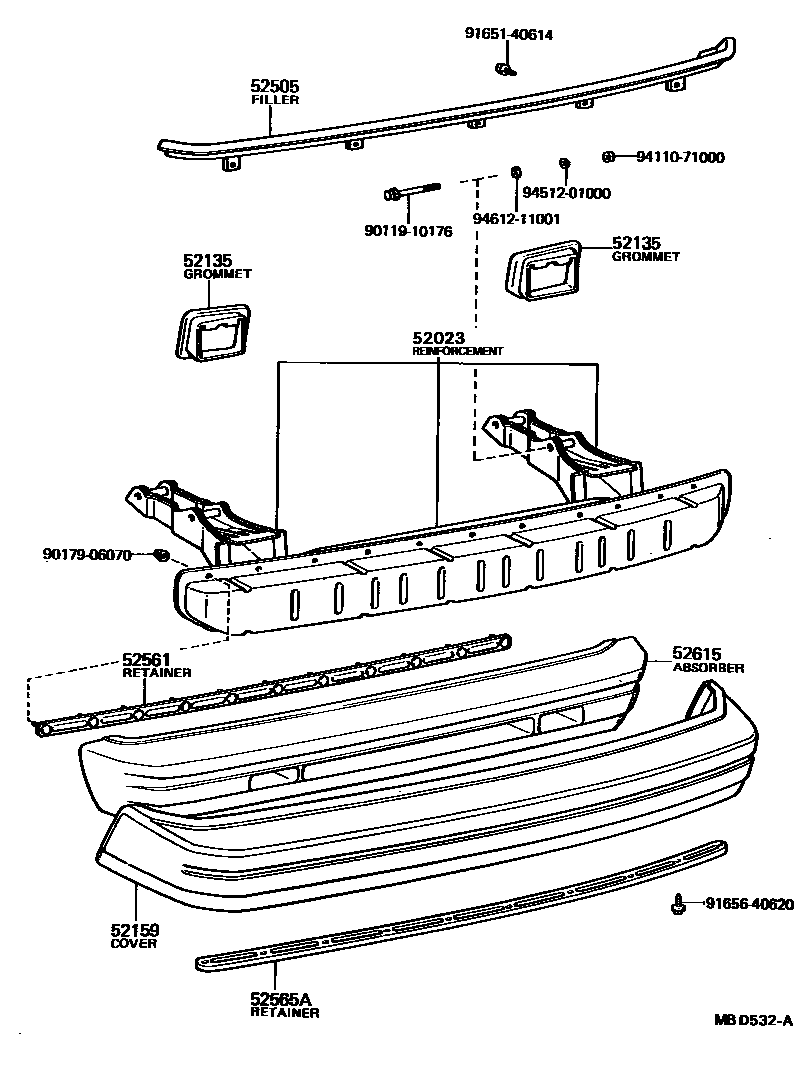

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12080 · 52015-12100 · 52015-13040 · 52015-13041 · 52181-12150 · 52181-12170 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12080 · 52016-12100 · 52016-13040 · 52016-13041 · 52182-12150 · 52182-12170 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12020 · 52023-12021 · 52023-13010 |
| 52055 | Rear bumper gasket sub-assembly | 52055-19105 |
| 52135 | Rear bumper stay gasket | 52191-13060 · 52191-13080 · 52192-13060 · 52192-13070 |
| 52151 | Rear bumper assembly | 52151-13080 · 52151-19565 · 52151-19575 · 52151-19585 · 52151-19605 · 52151-19685 · 52151-19695 · 52151-19705 · 52151-19725 · 52151-19735 · 52151-19765 · 52151-19775 |
| 52152B | Rear bumper right extension | 52106-13011 · 52106-19135 · 52106-19155 · 52106-19225 · 52106-19245 |
| 52153B | Rear bumper left extension | 52107-13011 · 52107-19165 · 52107-19185 · 52107-19255 · 52107-19275 |
| 52159 | rear bumper cover | 52159-12011 · 52159-12020 · 52159-12050 · 52159-12070 · 52159-13010 |
| 52178A | Rear bumper right corner reinforcement | 52178-12010 |
| 52179A | Rear bumper left corner reinforcement | 52179-12010 |
| 52505 | Rear bumper arc filler sub-assembly | 52505-13010 |
| 52561 | Rear bumper upper center fixing bracket | 52561-12010 · 52561-12030 |
| 52565A | Rear bumper lower fixing bracket | 52565-12010 |
| 52581 | Rear bumper right side protector | 52581-12050 |
| 52582 | Rear bumper left protector | 52581-12050 |
| 52615 | Rear bumper energy absorber | 52615-12010 · 52615-12020 · 52615-13010 |
| 52705 | Rear bumper protection strip sub-assembly | 52705-12010 |
| 52705A | Rear bumper protection strip mounting plate | 52198-12010 |
