Toyota COROLLA 前保险杠及附件 — Figure 5201

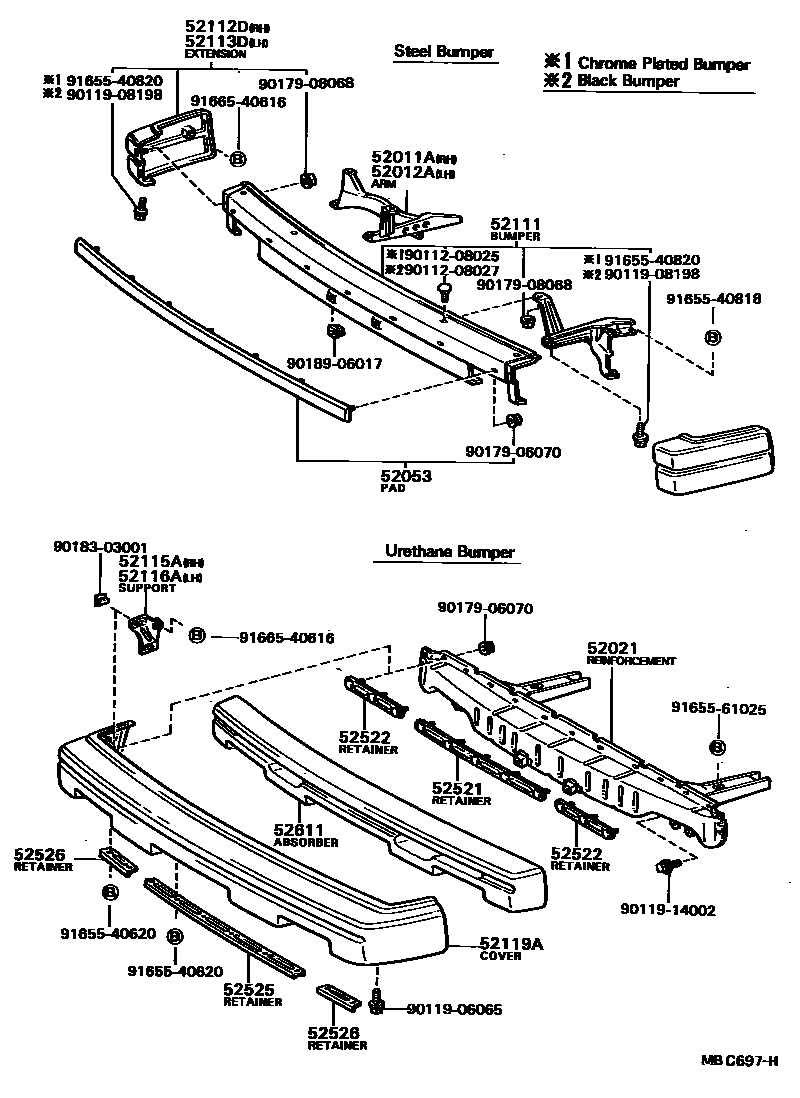

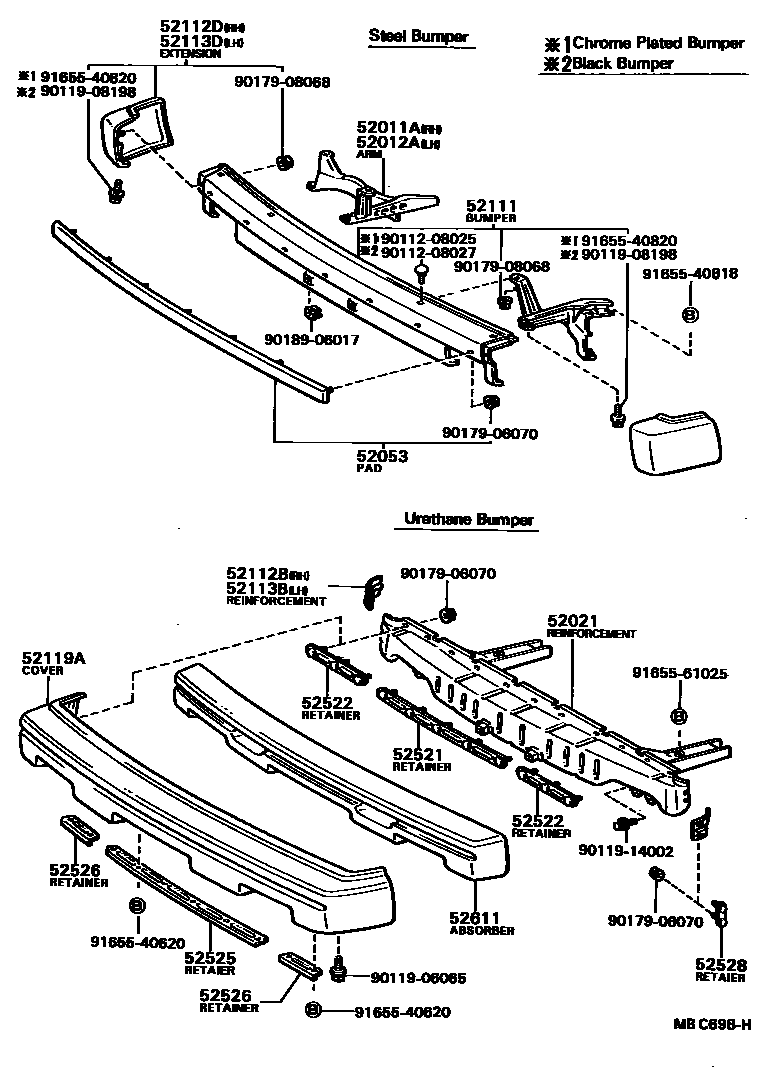

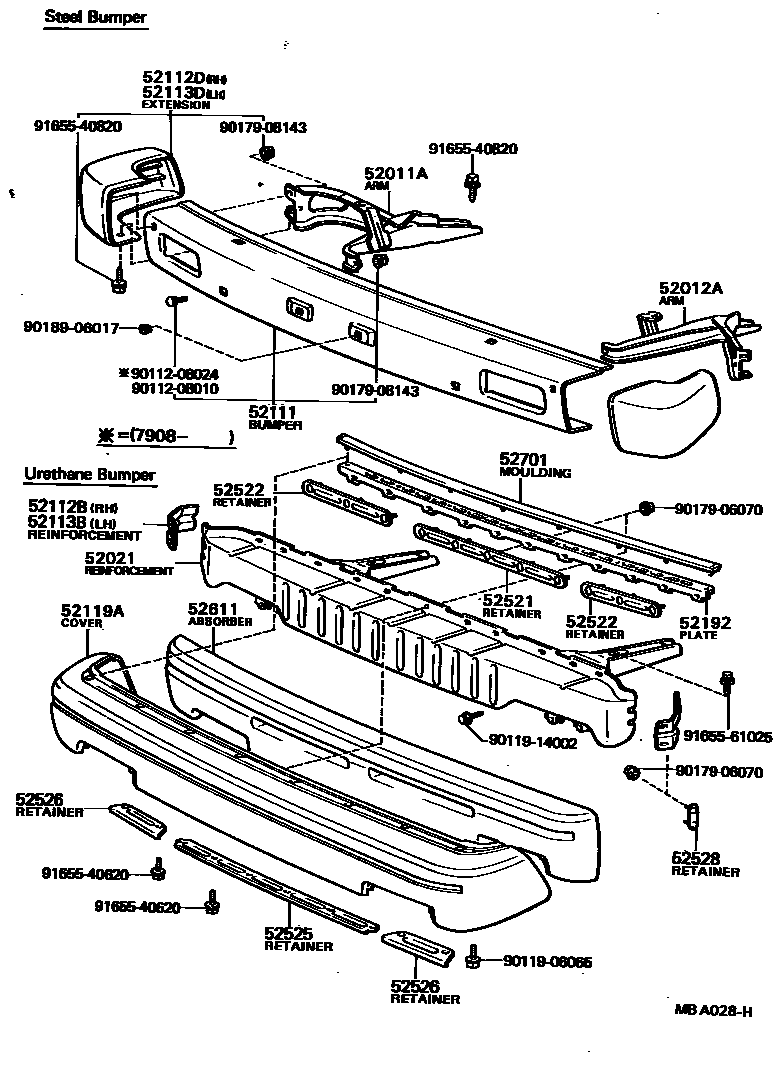

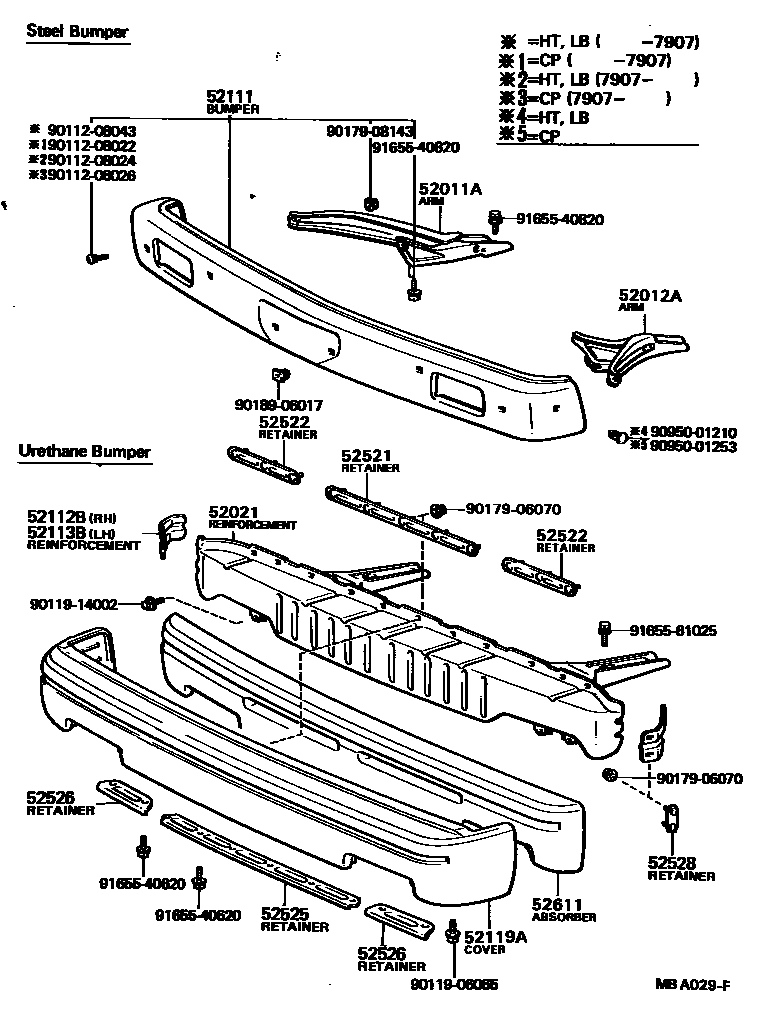

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-12100 · 52011-12120 · 52011-12180 · 52011-12190 · 52011-13010 |
| 52012A | Front bumper left arm sub-assembly | 52012-12100 · 52012-12120 · 52012-12180 · 52012-12190 · 52012-13010 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-12020 · 52021-12040 · 52021-12080 · 52021-12090 |
| 52053 | Front bumper gasket sub-assembly | 52051-19115 · 52051-19125 |
| 52111 | front bumper assembly | 52111-12390 · 52111-19475 · 52111-19485 · 52111-19495 · 52111-19625 · 52111-19635 · 52111-19655 · 52111-19695 · 52111-19705 · 52111-19715 |
| 52112B | Front bumper right side stay reinforcement | 52137-12020 |
| 52112D | Front bumper right extension | 52102-19175 · 52102-19225 · 52102-19235 · 52102-19265 |
| 52113B | Front bumper left stay reinforcement | 52138-12020 |
| 52113D | Front bumper left extension | 52103-19155 · 52103-19205 · 52103-19215 · 52103-19245 |
| 52115A | Front bumper right side bracket | 52115-12100 |
| 52116A | Front bumper left bracket | 52116-12070 |
| 52119A | front bumper cover | 52119-12011 · 52119-12041 · 52119-12050 · 52119-12070 · 52119-12100 |
| 52192 | Front bumper protection strip mounting plate | 52193-12010 |
| 52521 | Front bumper upper center fixing bracket | 52521-12030 · 52521-14020 |
| 52522 | Front bumper upper side fixing bracket | 52522-12020 · 52522-14010 |
| 52525 | Front bumper lower center fixing bracket | 52525-12010 |
| 52526 | Front bumper lower side fixing bracket | 52526-12010 |
| 52528 | Front bumper lower corner fixing parts | 52528-12010 |
| 52611 | front bumper energy absorber | 52611-12010 · 52611-12040 · 52611-12050 · 52611-12070 |
| 52701 | Front bumper protection strip sub-assembly | 52701-12010 |
