Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

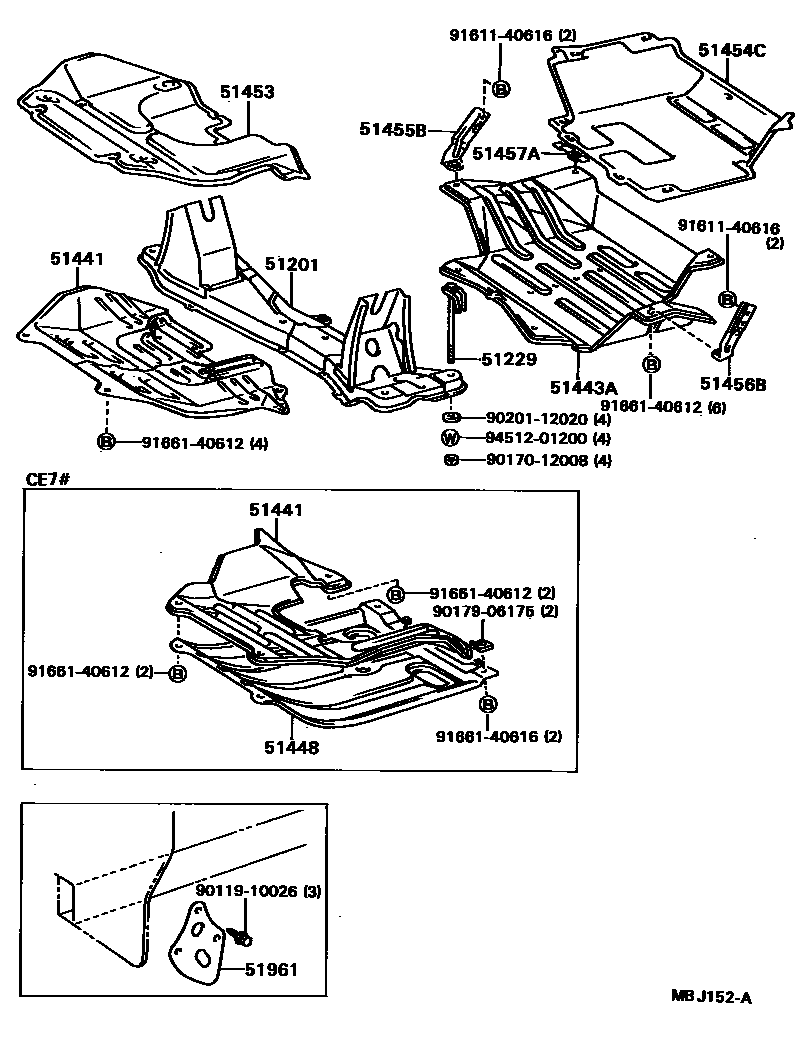

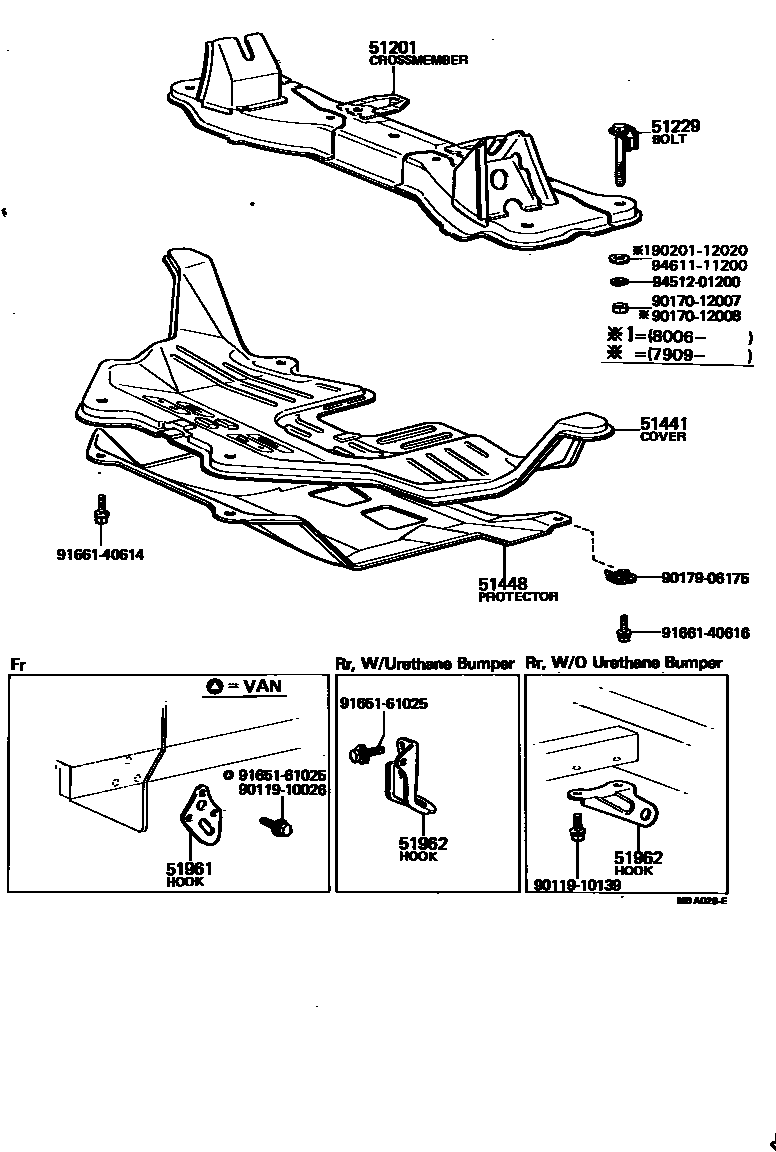

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12070 · 51201-12080 · 51201-12081 · 51201-12090 · 51201-12110 · 51201-12130 · 51201-12160 · 51201-12170 · 51201-12180 · 51201-13010 |
| 51229 | Suspension cross member fixing bolts | 51296-12010 · 51296-12011 |
| 51441 | No. 1 engine bottom cover | 51405-12010 · 51405-12020 · 51405-12030 · 51405-12040 · 51405-12050 · 51405-13010 · 51441-12100 · 51441-13010 |
| 51443A | Engine rear bottom cover | 51443-13010 |
| 51448 | Oil pan protective cover | 51447-12040 · 51447-12050 · 51447-12080 |
| 51453 | Engine front bottom cover silencer panel | 51453-13010 |
| 51454C | Engine rear bottom cover silencer panel | 51454-13010 |
| 51455B | Engine cover right rear bracket | 51407-13010 · 51455-13010 |
| 51456B | Engine cover left rear bracket | 51456-13010 |
| 51457A | Engine bottom cover No. 3 bracket | 51457-13010 |
| 51961 | No. 1 hook | 51963-12050 |
| 51962 | Hook No. 2 | 51967-12010 · 51967-12020 · 51968-12010 |
