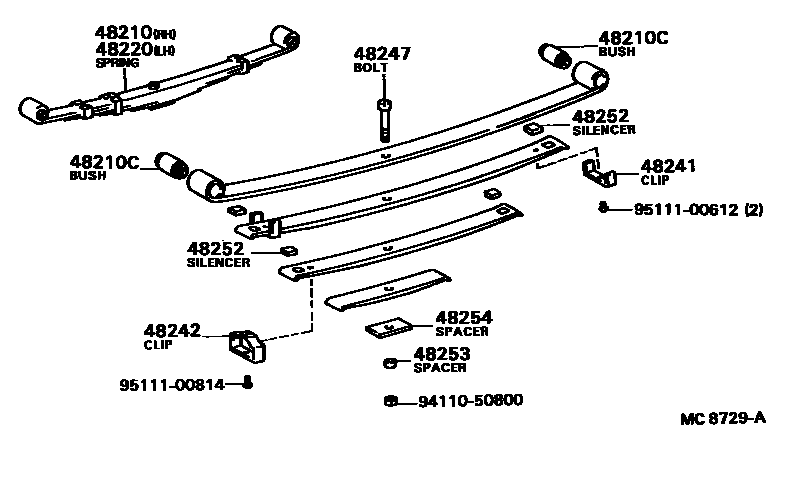

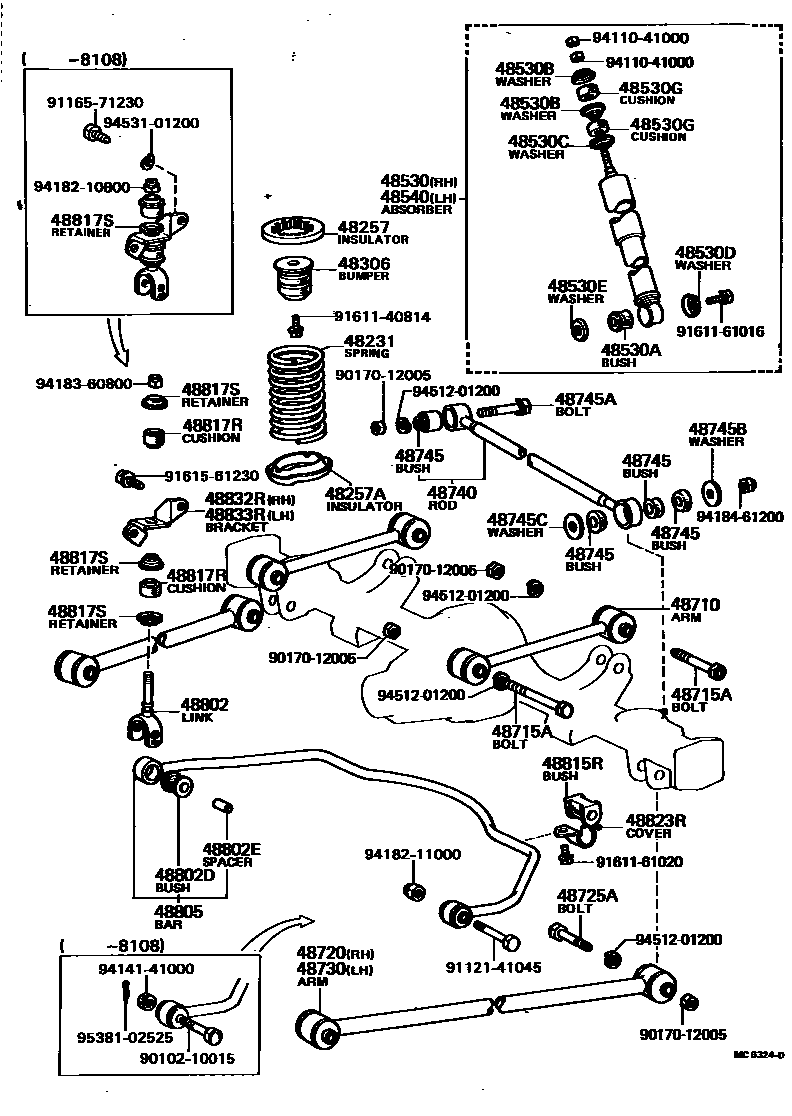

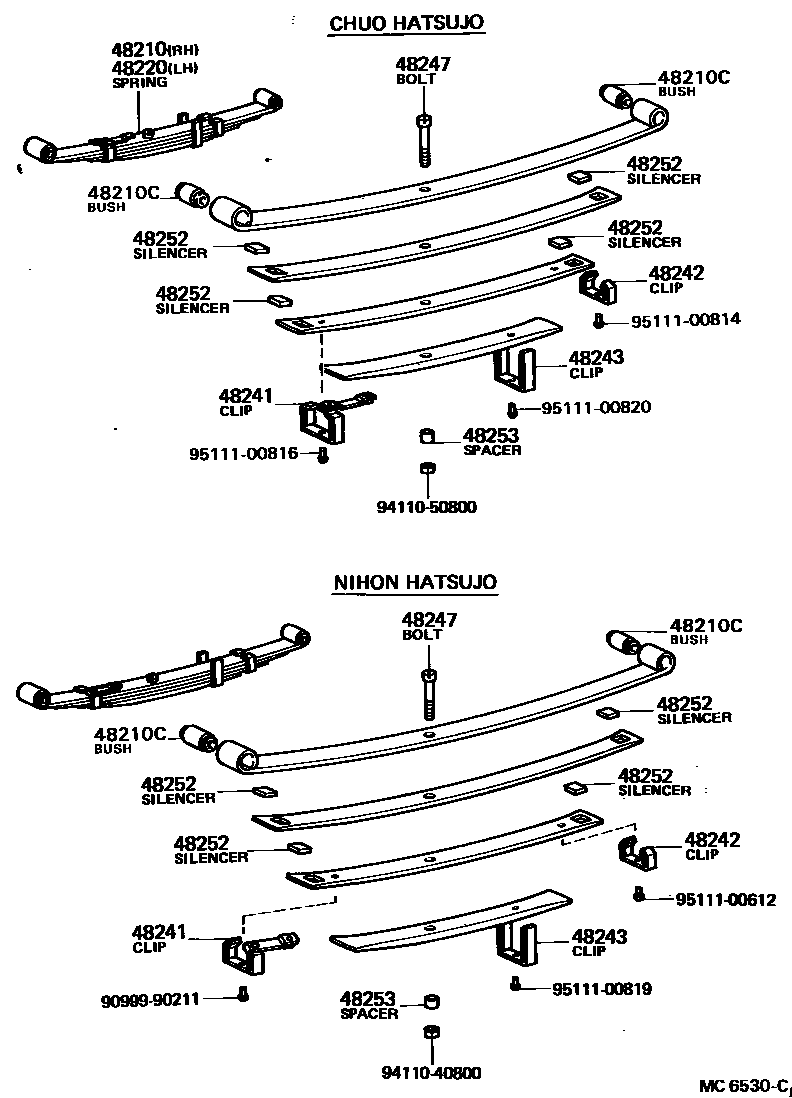

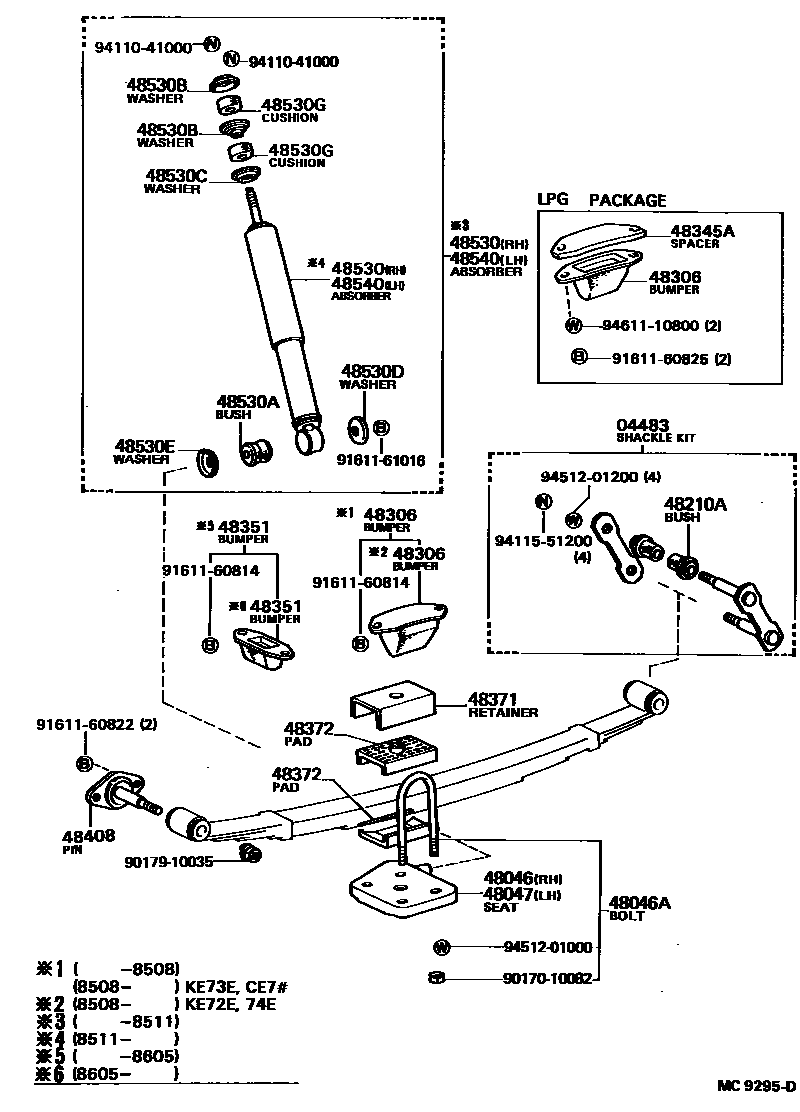

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 4 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483 | Rear spring lifting lug assembly | 04483-20020 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-13060 · 48046-13070 |
| 48046A | U-bolt (for rear spring) | 90118-10183 |
| 48047 | Left spring U-bolt base sub-assembly | 48047-13060 · 48047-13070 |
| 48210 | Right rear spring assembly | 48210-13150 · 48210-13180 · 48210-13200 · 48210-13220 · 48210-13240 |
| 48210A | Upper bushing (for rear spring lug) | 90385-15070 |
| 48210C | Bushing (for rear leaf spring) | 90389-12001 · 90389-14001 |
| 48220 | Left rear spring assembly | 48210-13150 · 48210-13180 · 48210-13200 · 48210-13220 · 48210-13240 |
| 48231 | rear coil spring | 48231-12010 · 48231-12050 · 48231-12130 · 48231-12150 · 48231-12170 · 48231-12180 |
| 48241 | No. 1 rear spring clip | 48241-13051 · 48241-22010 · 48242-13160 |
| 48242 | No. 2 rear spring clip | 48242-12070 · 48243-13050 · 48244-13160 |
| 48243 | No. 3 rear spring clip | 48242-13011 · 48243-13160 |
| 48247 | rear spring center bolt | 48247-13160 · 48247-20100 · 48247-20130 |
| 48252 | rear spring muffler | 48252-21150 · 48252-22020 |
| 48253 | No. 1 rear spring spacer | 48253-20100 · 48254-10050 |
| 48254 | rear leaf spring spacer | 48253-13200 |
| 48257 | Rear coil spring vibration isolation pad | 48257-12020 |
| 48257A | Rear coil spring lower vibration isolation pad | 48258-12010 |
| 48306 | Rear spring buffer block sub-assembly | 48306-14030 · 48341-13080 · 48341-19025 · 48341-19035 |
| 48345A | Spring buffer block spacer | 48345-13010 |
| 48351 | Differential case buffer block | 48351-12020 · 48351-19025 |
| 48371 | Rear spring pad retainer | 48371-13070 · 48371-13081 |
| 48372 | Rear spring pad | 48372-22010 |
| 48408 | Spring bracket pin sub-assembly | 48409-11020 |
| 48530 | Right rear shock absorber assembly | 48531-13130 · 48531-13150 · 48531-19586 · 48531-19595 · 48531-19596 · 48531-19605 · 48531-19606 · 48531-19635 · 48531-19855 · 48531-19865 · 48531-19895 |
| 48530A | Bushing (for rear shock absorber) | 90385-16001 · 90385-16004 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-02002 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-02007 |
| 48530D | Rear shock absorber No. 3 cushion washer | 90948-02047 · 90948-03012 |
| 48530E | Rear shock absorber No. 4 cushion washer | 90948-03004 |
| 48530G | Rear shock absorber No. 1 cushion | 90948-01003 · 90948-01018 |
| 48540 | Left rear shock absorber assembly | 48531-13130 · 48531-13150 · 48531-19586 · 48531-19595 · 48531-19596 · 48531-19605 · 48531-19606 · 48531-19635 · 48531-19855 · 48531-19865 · 48531-19895 |
| 48710 | Upper control arm assembly | 48710-12010 · 48710-12020 · 48710-12031 |
| 48715A | Hex bolt (for upper control arm) | 90101-12044 · 90101-12045 |
| 48720 | Right lower control arm assembly | 48720-12020 |
| 48725A | Bolt (for lower control arm) | 90101-12044 |
| 48730 | Left lower control arm assembly | 48720-12020 |
| 48740 | Rear transverse control rod assembly | 48740-12010 · 48740-12021 |
| 48745 | Lateral control rod bushing | 48706-14010 · 90385-20001 · 90386-20001 |
| 48745A | Hexagonal bolt (for lateral control lever) | 90101-12032 |
| 48745B | Lateral control lever bumper washer | 90201-12010 |
| 48745C | Lateral control lever bumper washer | 94612-12000 |
| 48802 | Stabilizer bar connecting rod sub-assembly | 48802-14020 · 48802-14040 |
| 48802D | Stabilizer bar connecting rod bushing | 90385-11021 |
| 48802E | Spacer (for rear stabilizer bar) | 90560-10275 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-14020 · 48805-14030 · 48805-14090 · 48805-14100 |
| 48815R | Rear stabilizer bar bushing | 48815-14050 · 48815-14060 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-12010 · 48817-30010 |
| 48817S | Crash pad block No. 1 (for rear stabilizer bar) | 90948-02015 · 90948-02024 · 90948-02025 · 90948-02032 |
| 48823R | Stabilizer bar linkage cover (for rear) | 48832-22020 |
| 48832R | Right rear stabilizer bar bracket No. 1 | 48832-12010 · 48832-12011 |
| 48833R | Left rear stabilizer bar bracket No. 1 | 48833-12010 · 48833-12011 |
