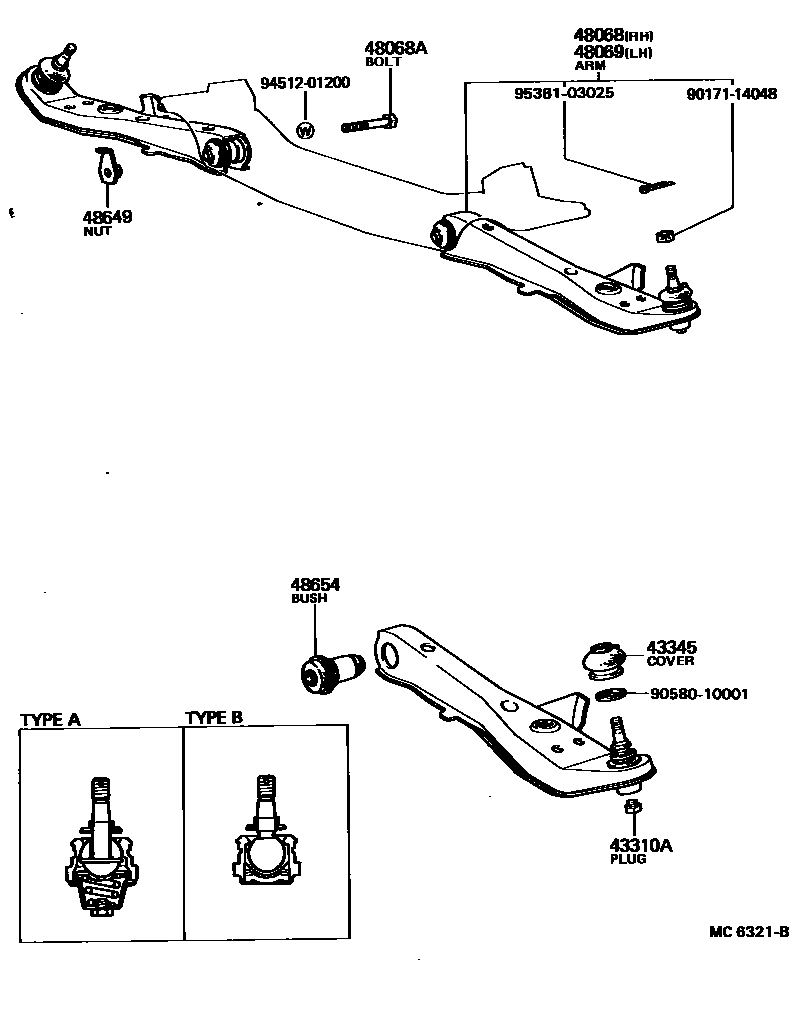

Toyota COROLLA 前桥控制臂和转向节 — Figure 4802
Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43310A | Screw plug (for ball joint) | 90345-06014 |
| 43345 | Lower ball joint dust cover | 43345-12060 · 43345-14020 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-19065 · 48068-19075 · 48068-19085 · 48068-19125 |
| 48068A | Bolt (for front suspension lower arm) | 90101-12291 · 90119-12083 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-19055 · 48069-19065 · 48069-19075 · 48069-19105 |
| 48649 | Lower arm shaft nut | 48649-12040 |
| 48654 | lower arm bushing | 48654-12010 |
