Toyota COROLLA 制动配管和卡箍 — Figure 4708

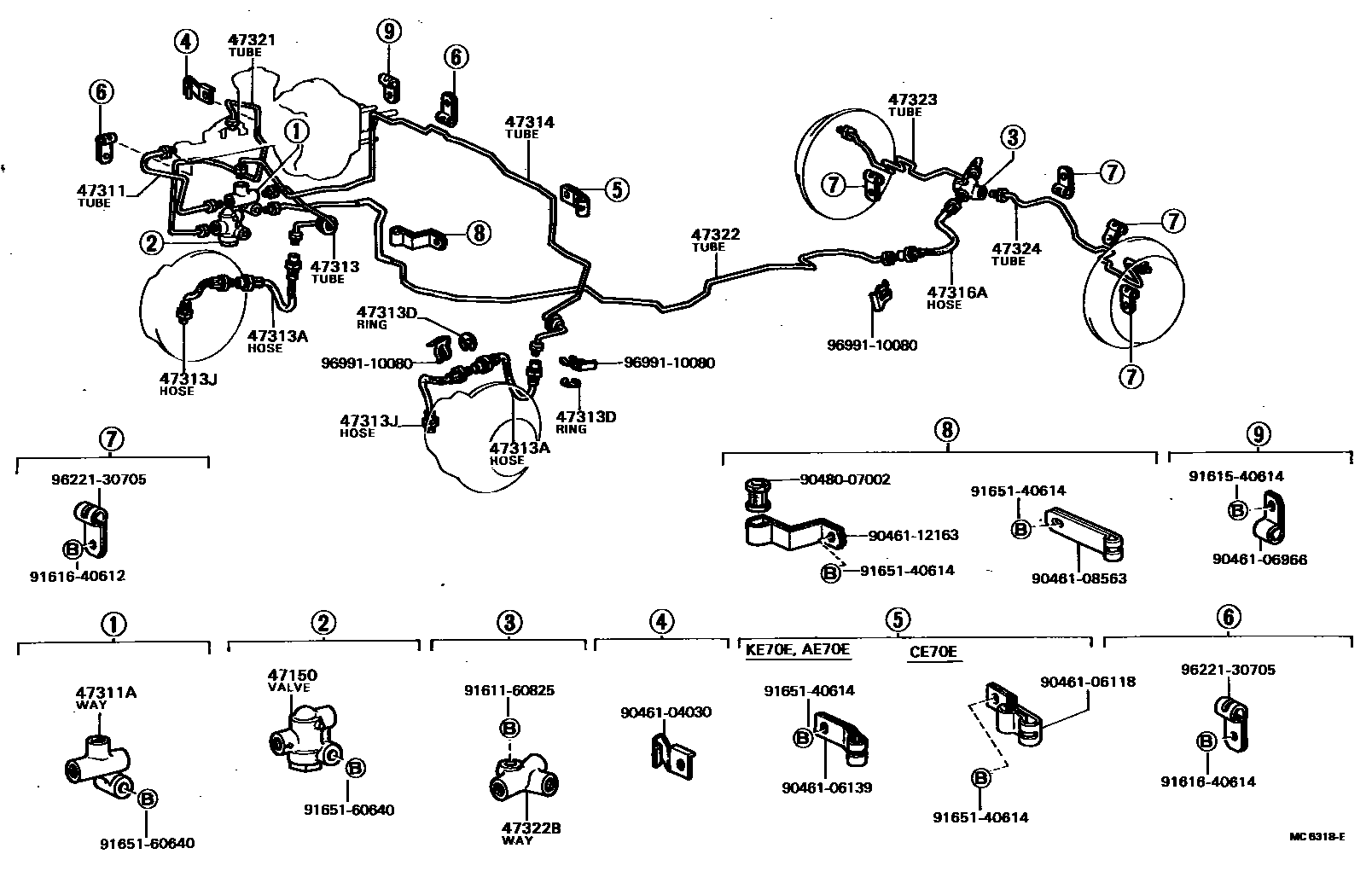

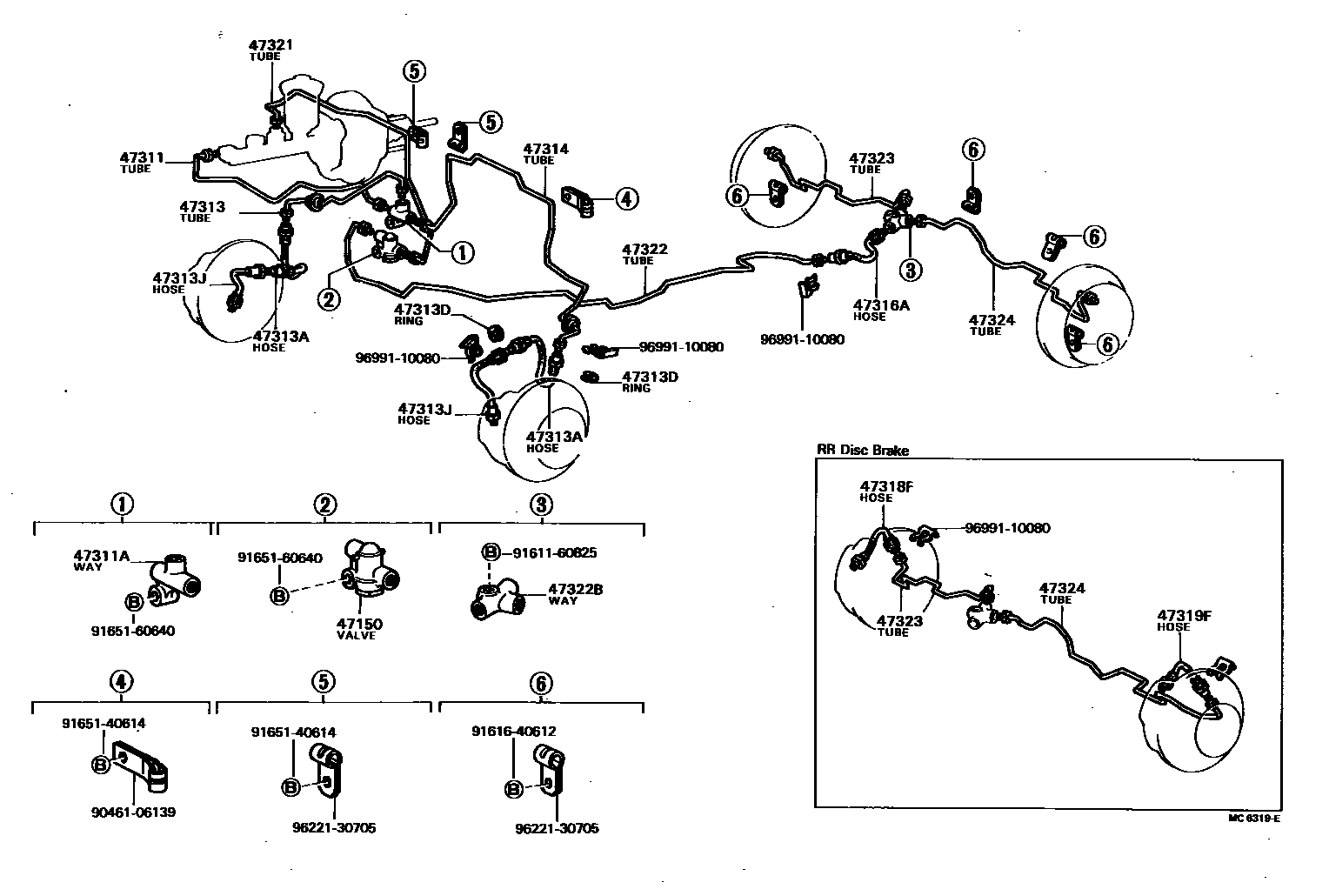

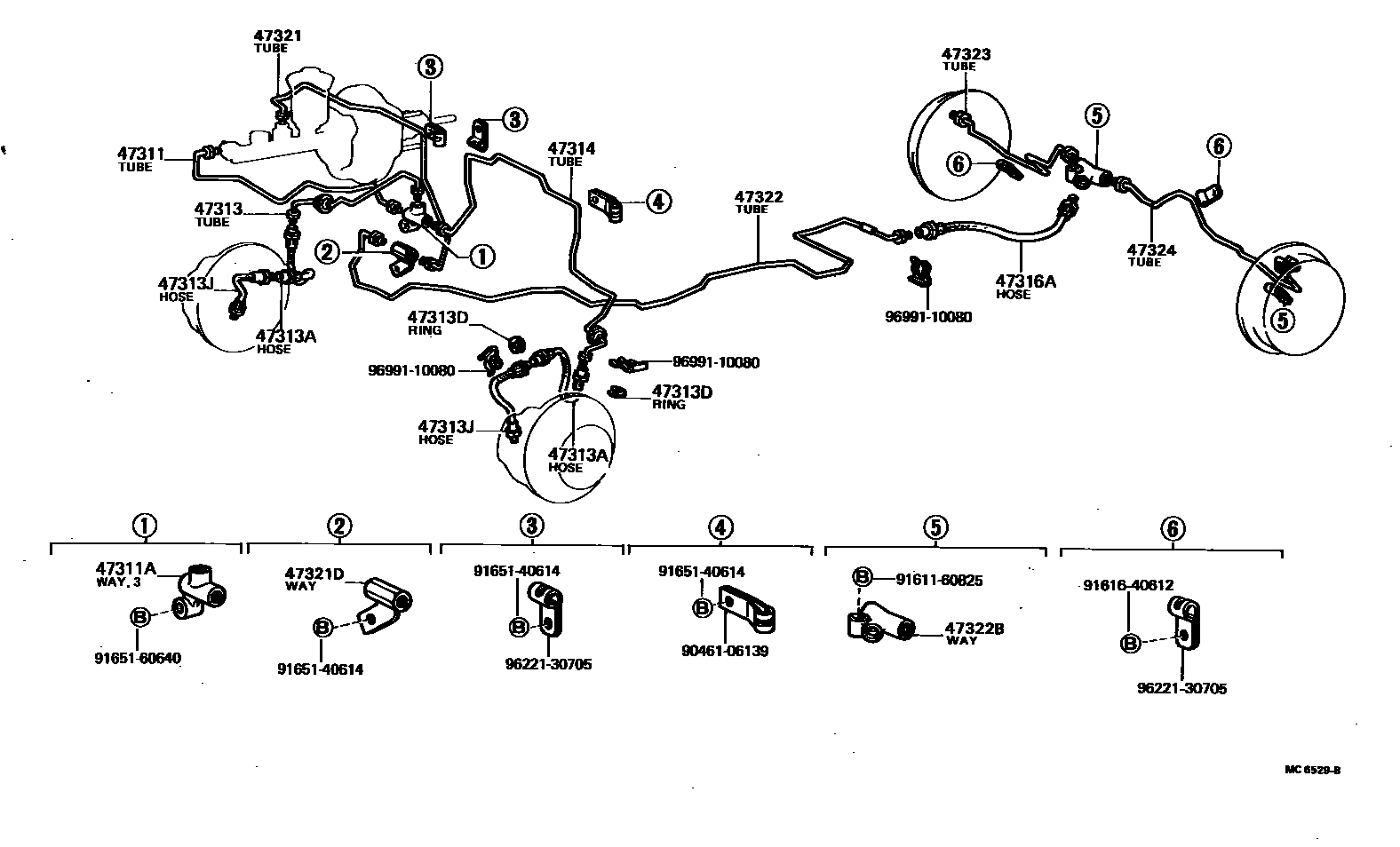

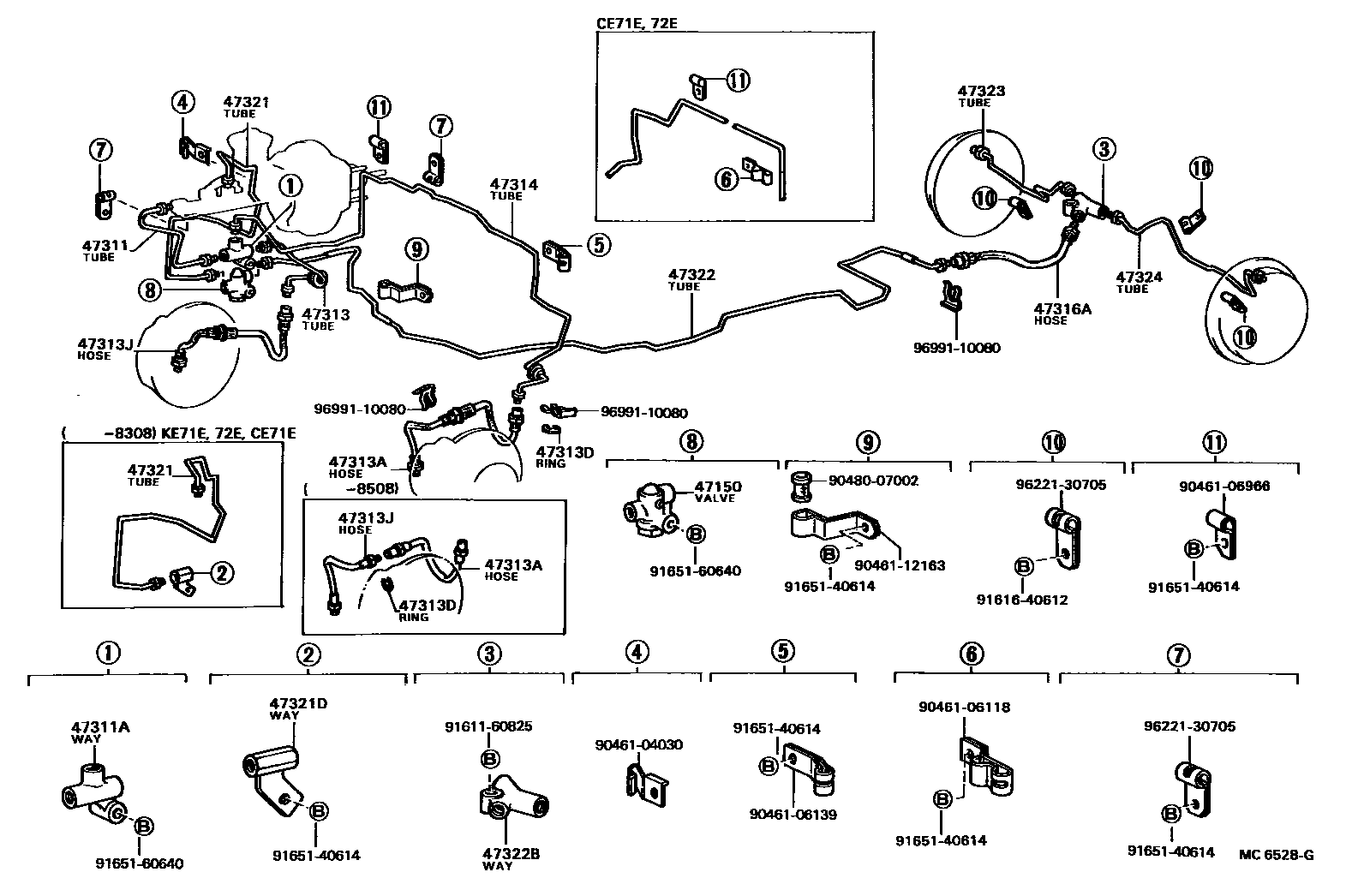

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-12031 · 47150-16010 |
| 47311 | No. 1 front brake pipe | 47312-12030 · 47312-12040 · 47312-12160 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10002 |
| 47313 | No. 3 front brake pipe | 47314-12110 · 47314-12130 · 47314-12160 · 47314-13010 |
| 47313A | No. 1 front flexible hose | 90947-02393 · 90947-02476 |
| 47313D | E-ring (used to secure the front flexible hose) | 96160-01200 |
| 47313J | No. 2 front flexible hose | 90947-02224 |
| 47314 | No. 4 front brake pipe | 47315-12250 · 47315-12260 · 47315-12310 · 47315-13010 · 47315-13020 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02409 · 96940-32805 |
| 47318F | Right rear flexible hose | 96940-32405 |
| 47319F | Left rear flexible hose | 96940-32405 |
| 47321 | No. 1 rear brake pipe | 47322-12010 · 47322-12030 · 47322-12050 · 47322-12080 · 47322-13010 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10001 · 90412-10056 |
| 47322 | No. 2 rear brake pipe | 47323-12010 · 47323-12020 · 47323-12030 · 47323-12040 · 47323-12110 · 47323-12120 · 47323-13010 · 47323-13040 · 47323-13050 · 47323-13051 |
| 47322B | No. 2 pipe joint (for rear brake pipe) | 90413-10029 · 90413-10098 |
| 47323 | No. 3 rear brake pipe | 47324-12010 · 47324-12030 · 47324-12031 · 47324-12051 · 47324-12080 · 47324-12081 · 47324-13010 · 47324-13040 |
| 47324 | No. 4 rear brake pipe | 47325-12010 · 47325-12020 · 47325-12030 · 47325-12031 · 47325-12061 · 47325-12090 · 47325-12091 · 47325-13030 · 47325-13060 |
