Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707

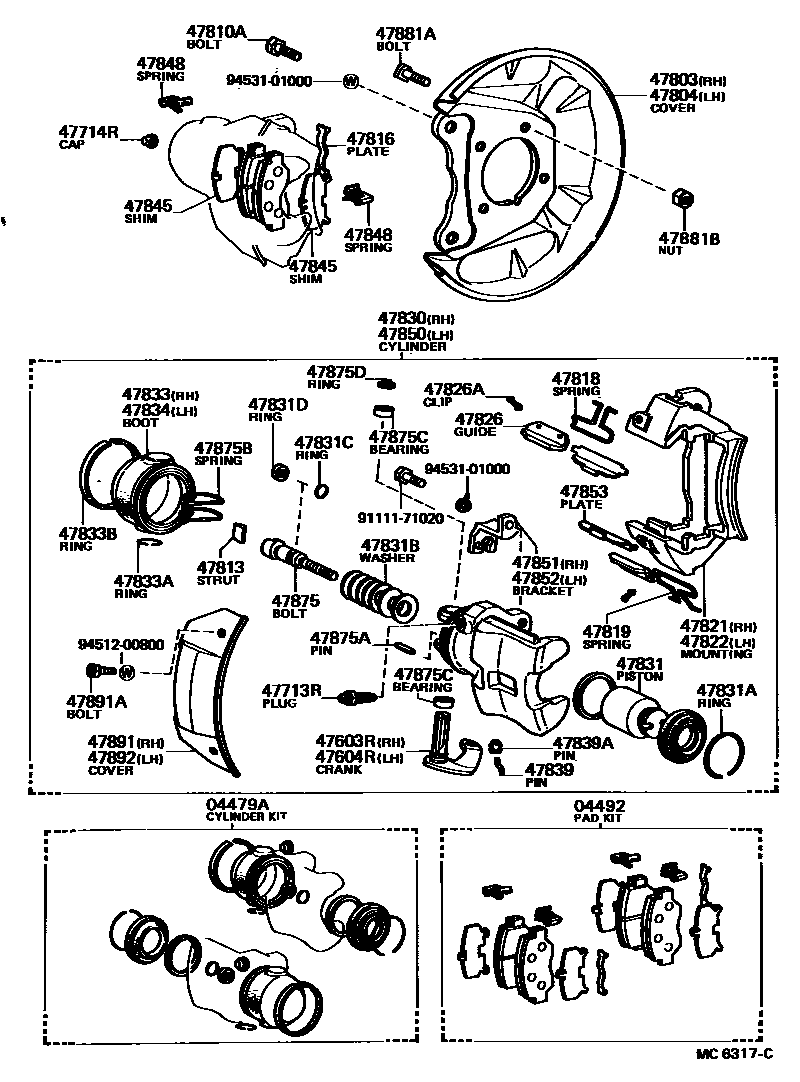

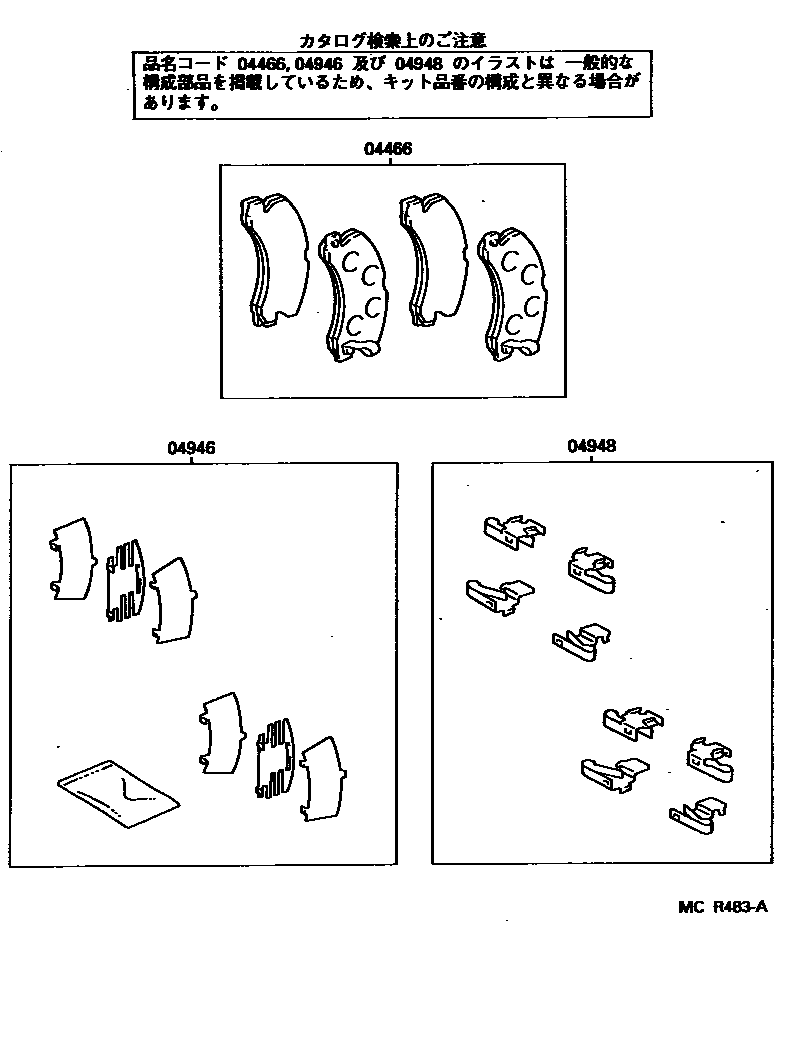

Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-12100 |
| 04479A | Rear disc brake cylinder assembly | 04479-14030 |
| 04492 | Rear disc brake pad assembly | 04492-12020 · 04492-12021 · 04492-14030 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-14010 |
| 04948 | Rear disc brake mounting assembly | 04948-12010 · 04948-12100 |
| 47603R | Right parking brake angle lever sub-assembly (for rear disc brake) | 47603-14010 |
| 47604R | Left parking brake angle lever sub-assembly (for rear disc brake) | 47604-14010 |
| 47713R | Bleed plug (for rear disc brake) | 47547-20010 |
| 47714R | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-14010 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-14010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90101-10059 |
| 47813 | Parking brake shoe push rod (for rear disc brake) | 47613-14020 |
| 47816 | Pad support plate No. 1 (for rear disc brake) | 47716-14040 |
| 47818 | No. 1 brake cylinder bracket spring (for rear disc brake) | 47718-14060 |
| 47819 | No. 2 brake cylinder bracket spring (for rear disc brake) | 47719-14030 |
| 47821 | Right disc brake cylinder retaining bracket | 47721-12040 |
| 47822 | Left disc brake cylinder retaining bracket | 47721-12040 |
| 47826 | Disc brake cylinder guide plate (for rear disc brake) | 47726-14050 |
| 47826A | Catch (for rear disc brake cylinder) | 90468-12134 |
| 47830 | Right rear disc brake cylinder assembly | 47730-12120 · 47730-12121 |
| 47831 | rear disc brake piston | 47701-14010 |
| 47831A | retaining ring (for rear disc brake piston) | 90522-45001 |
| 47831B | Tapered Spring Washer | 90208-11001 |
| 47831C | O-ring | 90301-07002 |
| 47831D | Ring (for rear disc brake) | 90562-08002 |
| 47833 | Right parking brake angle lever dust cover | 47633-14010 |
| 47833A | retaining ring (for rear disc brake angle lever) | 90522-23001 |
| 47833B | Retaining ring (for rear disc brake boot) | 90522-55001 |
| 47834 | Left parking brake angle lever dust cover | 47634-14010 |
| 47839 | Parking brake angle lever limit pin | 47639-14010 |
| 47839A | Slotted spring pin (for angle bar stop pin) | 90254-04010 |
| 47845 | No. 2 silencer gasket (for rear disc brake) | 47744-14030 |
| 47848 | Anti-vibration spring No. 1 (for rear disc brake) | 47748-14040 |
| 47850 | Left rear disc brake cylinder assembly | 47750-12120 · 47750-12121 |
| 47851 | Right cable bracket | 46451-14010 |
| 47852 | Left side cable bracket | 46452-14010 |
| 47853 | Brake cylinder guide plate (for rear disc brake) | 47753-14040 |
| 47875 | Pad adjustment bolt (for rear disc brake) | 47475-14030 |
| 47875A | Slotted spring pin | 90254-02001 |
| 47875B | Torsion spring (for pad adjustment bolt) | 90508-24003 |
| 47875C | Needle roller bearing (for pad adjustment bolt) | 90364-15001 |
| 47875D | Shaft snap ring | 90520-14001 |
| 47881A | Bolt (for dust cover) | 42184-22011 |
| 47881B | Nut (for dust cover) | 94181-11000 |
| 47891 | Right rear disc brake caliper dust cover | 47891-12010 |
| 47891A | Bolt (for rear disc brake caliper boot) | 90101-08045 |
| 47892 | Left rear disc brake caliper dust cover | 47892-12010 |
