Toyota COROLLA Brake Pedal & Bracket — Figure 4701

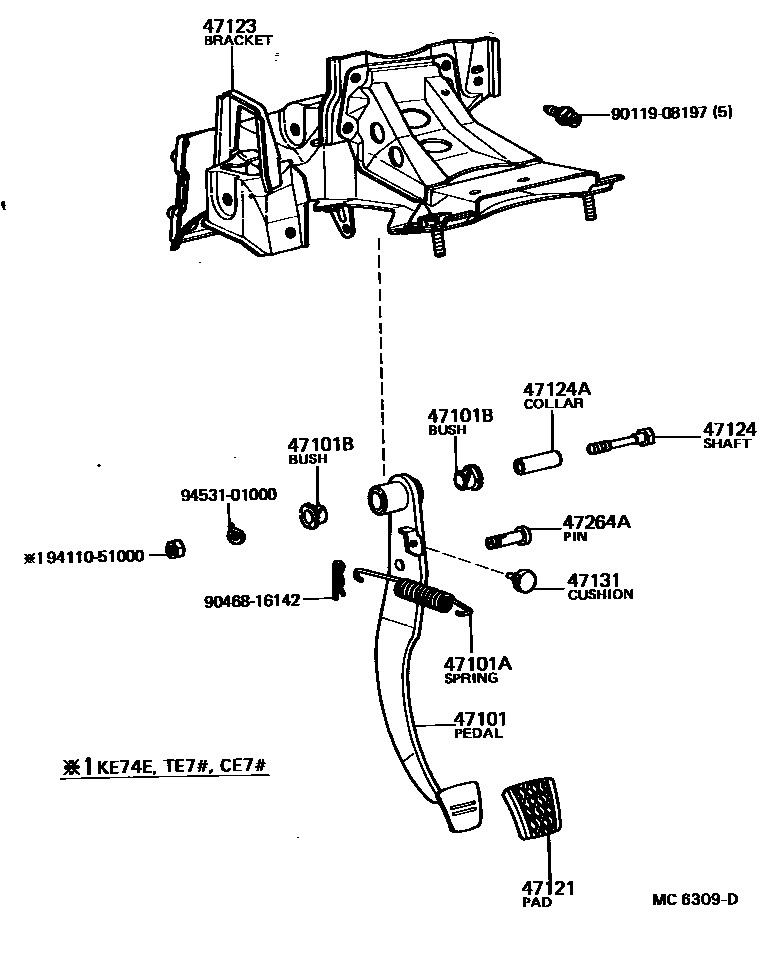

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-12220 · 47101-12230 · 47101-12340 · 47101-13010 |
| 47101A | Spring (for brake pedal return) | 90506-16021 |
| 47101B | Bushing (for brake pedal) | 90386-13007 |
| 47121 | brake pedal pad | 31321-12030 · 47121-12020 |
| 47123 | brake pedal bracket | 55106-12270 · 55106-12280 · 55106-12290 · 55106-12300 · 55106-12310 · 55106-12320 · 55106-12321 · 55106-12330 · 55106-12331 · 55106-12340 · 55106-12350 · 55106-12351 · 55106-12360 · 55106-12370 · 55106-12380 |
| 47124 | brake pedal shaft | 90101-10015 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47131 | Bump pad (for brake light switch) | 90541-06008 |
| 47264A | Pin (for push rod) | 90249-10064 |
