Toyota COROLLA Parking Brake & Cable — Figure 4601

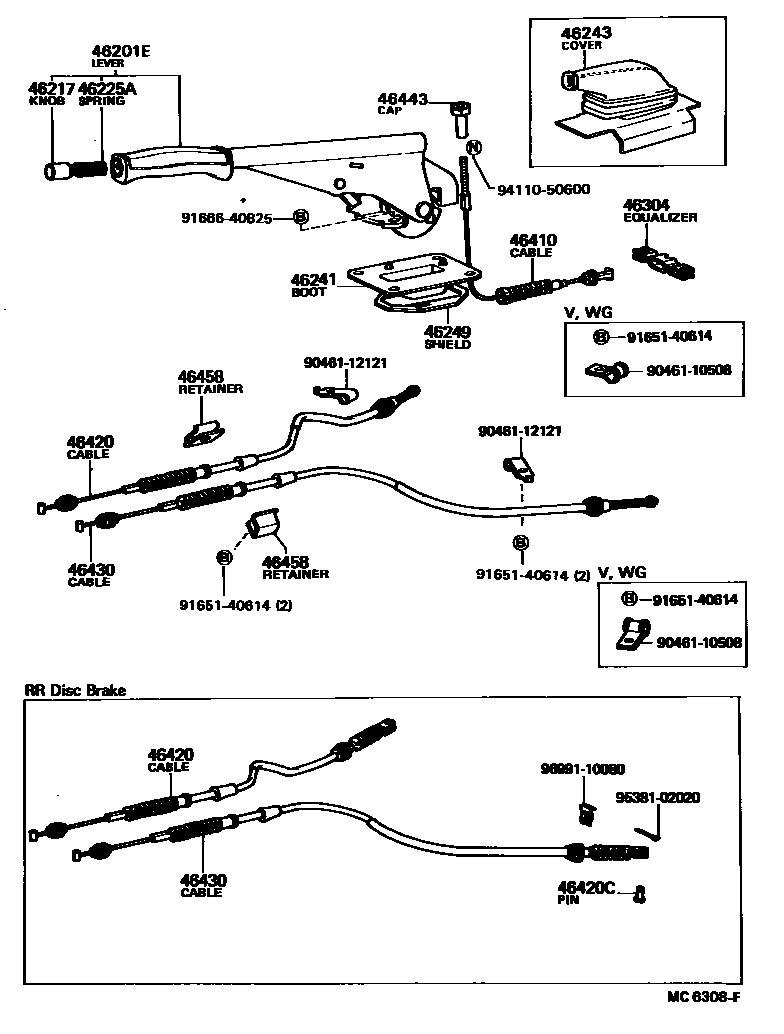

Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46201E | Parking brake lever sub-assembly | 46201-10030 · 46201-12030 · 46201-12031 |
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10745 |
| 46241 | Parking brake lever dust cover | 46241-12050 · 46241-12051 · 46241-12060 |
| 46243 | Parking brake lever cover | 46243-14031 |
| 46249 | Parking brake hole cover | 46249-22020 |
| 46304 | Parking brake balancer sub-assembly | 46341-12010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-12070 · 46410-12090 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12210 · 46420-12230 · 46420-12250 · 46420-13010 · 46420-13011 |
| 46420C | Pin with hole (for parking brake cable) | 90240-08040 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12110 · 46430-12130 · 46430-12150 · 46430-13010 · 46430-13011 |
| 46443 | cable adjustment cover | 46443-12040 |
| 46458 | Cable fixings | 46458-20020 |
