Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 4 images and 12 PNC and OE references.

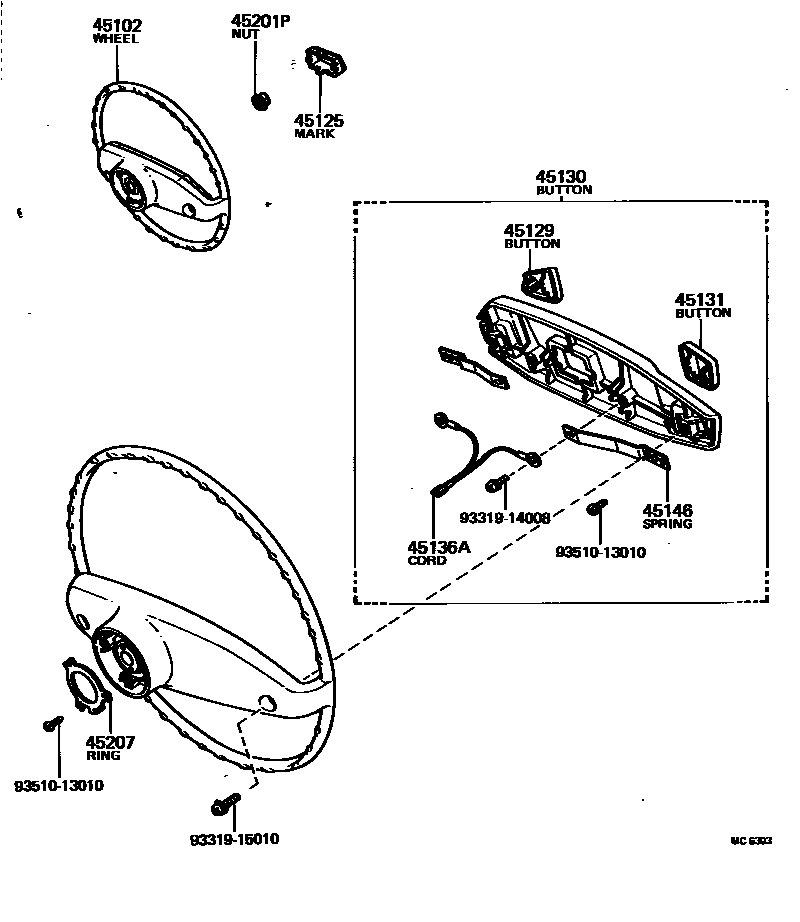

Toyota COROLLA Steering Wheel EPC diagram — MC6303
Steering Wheel — MC6303 (197903 – 198108)

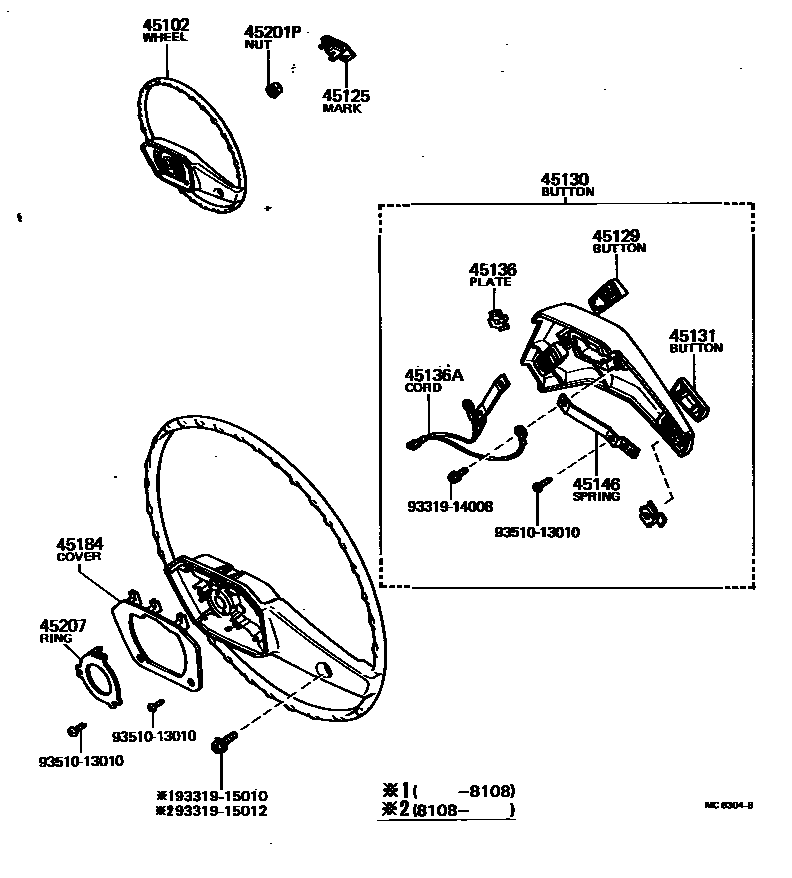

Toyota COROLLA Steering Wheel EPC diagram — MC6304B
Steering Wheel — MC6304B (197903 – 999999)

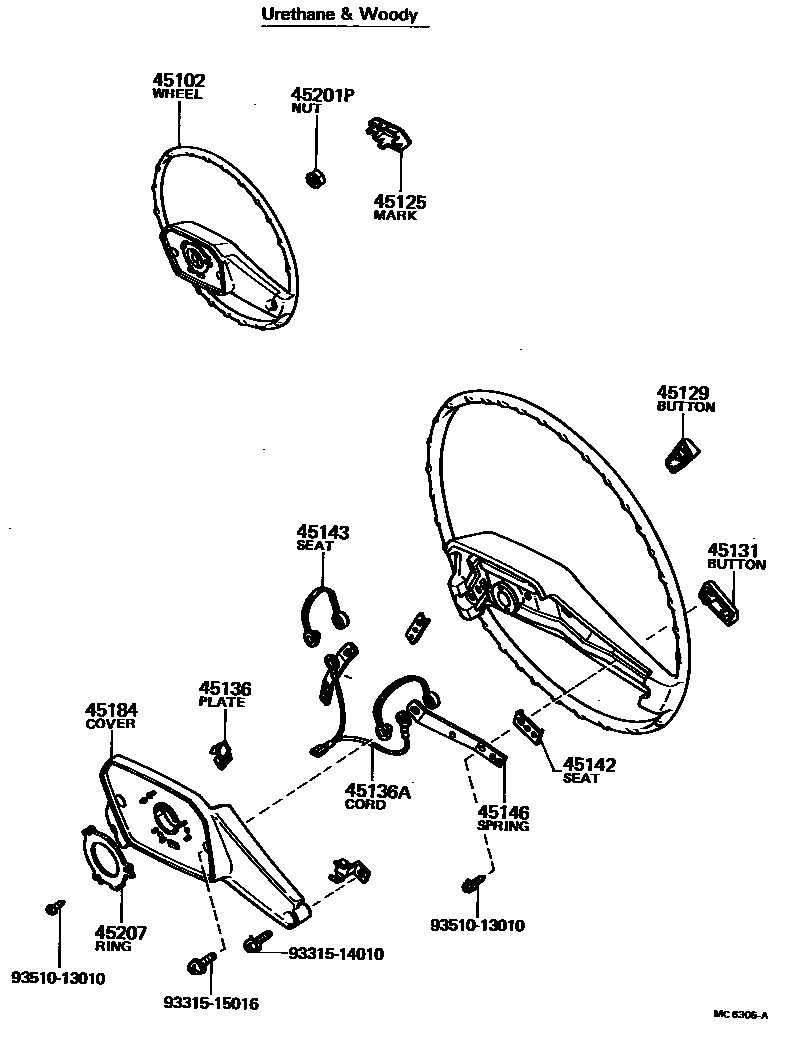

Toyota COROLLA Steering Wheel EPC diagram — MC6305A
Steering Wheel — MC6305A (197903 – 198304)

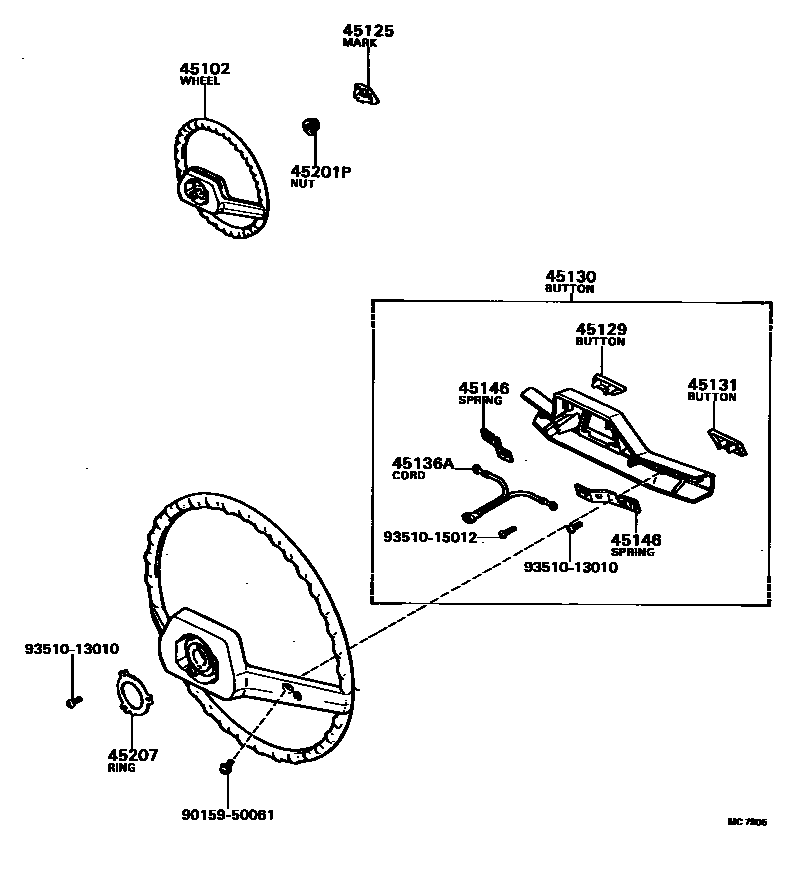

Toyota COROLLA Steering Wheel EPC diagram — MC7905
Steering Wheel — MC7905 (198108 – 999999)

PNC and OE references

PNCPart nameOE numbers
45102Steering wheel sub-assembly45100-12121 · 45100-12310
45125Steering wheel trim cover markings45125-12170
45129Speaker button No. 245131-12061 · 45131-12140 · 45131-12150 · 45131-12160 · 45131-12170 · 45131-12200 · 45131-12210
45130Speaker button assembly45130-12111 · 45130-12220
45131Speaker button No. 145129-12020 · 45129-12040 · 45129-12050 · 45129-12060 · 45129-12070 · 45129-12100 · 45129-12110
45136horn button contact piece45136-12090 · 45136-12100
45136AWire (for speaker contact ring)90945-02026 · 90945-02040 · 90945-02042 · 90945-02061
45142No. 1 horn button contact seat45142-12020
45143No. 2 horn button contact seat45142-12030
45146Horn button contact spring45146-12021 · 45146-12060 · 45146-12070 · 45146-12080
45201PSteering wheel fixing nut90179-12086
45207Speaker contact ring45176-14030 · 45176-20030
