Toyota COROLLA 动力转向配管 — Figure 4503

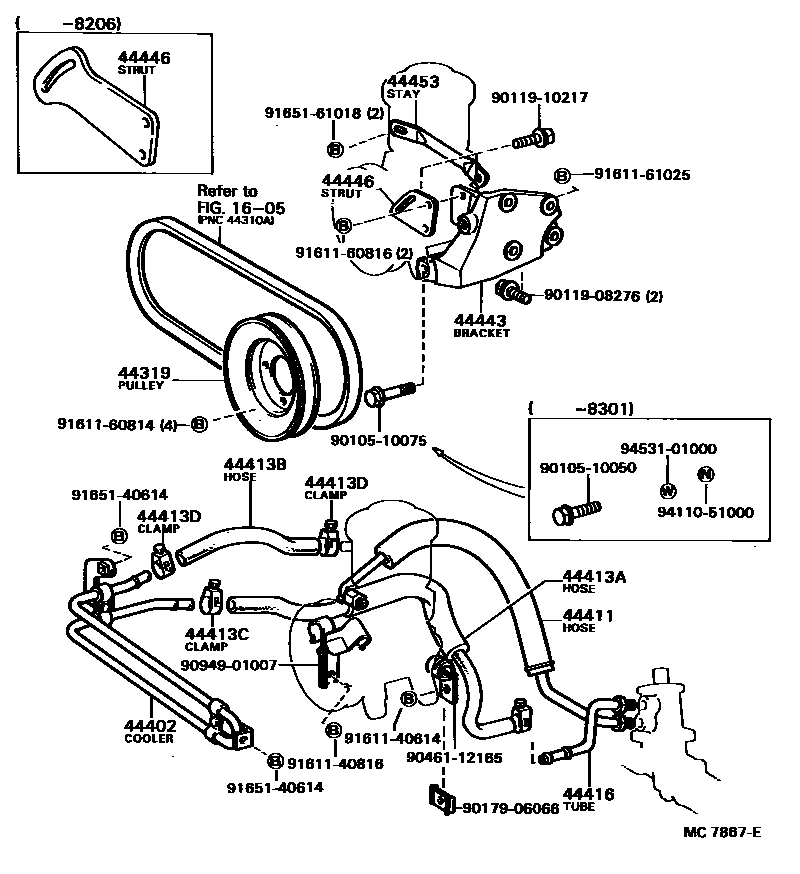

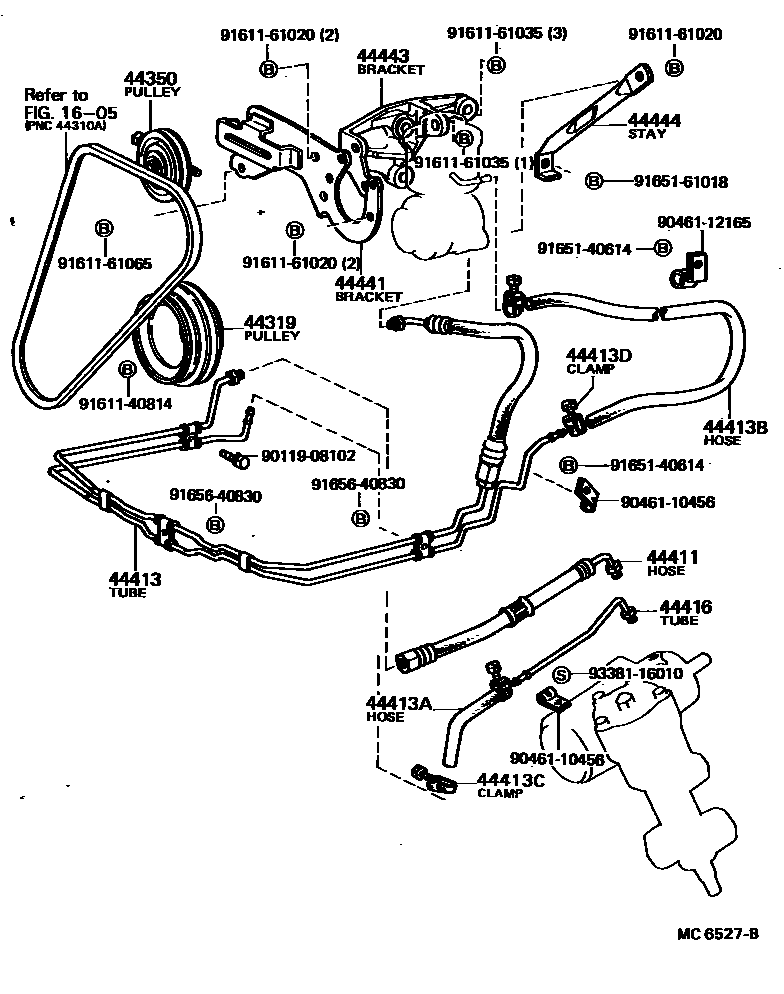

Toyota COROLLA EPC diagram 4503, 动力转向配管, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44319 | Vane pump drive pulley | 13477-18020 · 44319-12010 · 44319-12011 |
| 44350 | Power steering idler assembly | 44350-12020 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-12030 |
| 44411 | pressure supply hose | 44411-12060 · 44415-12010 |
| 44413 | No. 1 pressure supply pipe | 44410-12010 |
| 44413A | Hoses (for return pipe outlet) | 44412-12020 · 90445-18059 |
| 44413B | Hoses (for storage tank inlet) | 90445-18078 · 90445-18092 |
| 44413C | Clamp (for oil return pipe outlet hose) | 90460-01001 |
| 44413D | Clamp (for oil storage tank inlet hose) | 90460-01001 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-12020 · 44416-12040 |
| 44441 | Pump front bracket | 44441-12010 |
| 44443 | pump bracket | 44443-12010 · 44443-12020 · 44443-12021 |
| 44444 | Pump back stay | 44444-12010 |
| 44446 | Adjust the stand | 44446-12010 · 44446-12011 |
| 44453 | Pump front stay | 44453-12010 |
