Toyota COROLLA Steering Column & Shaft — Figure 4501

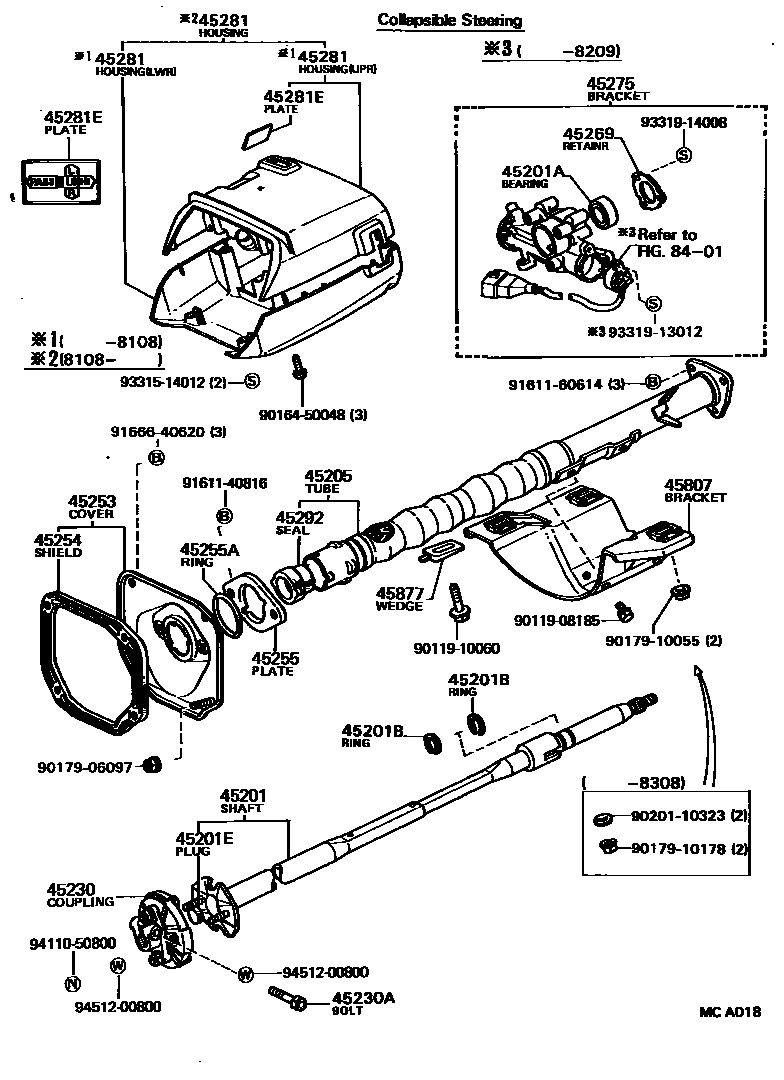

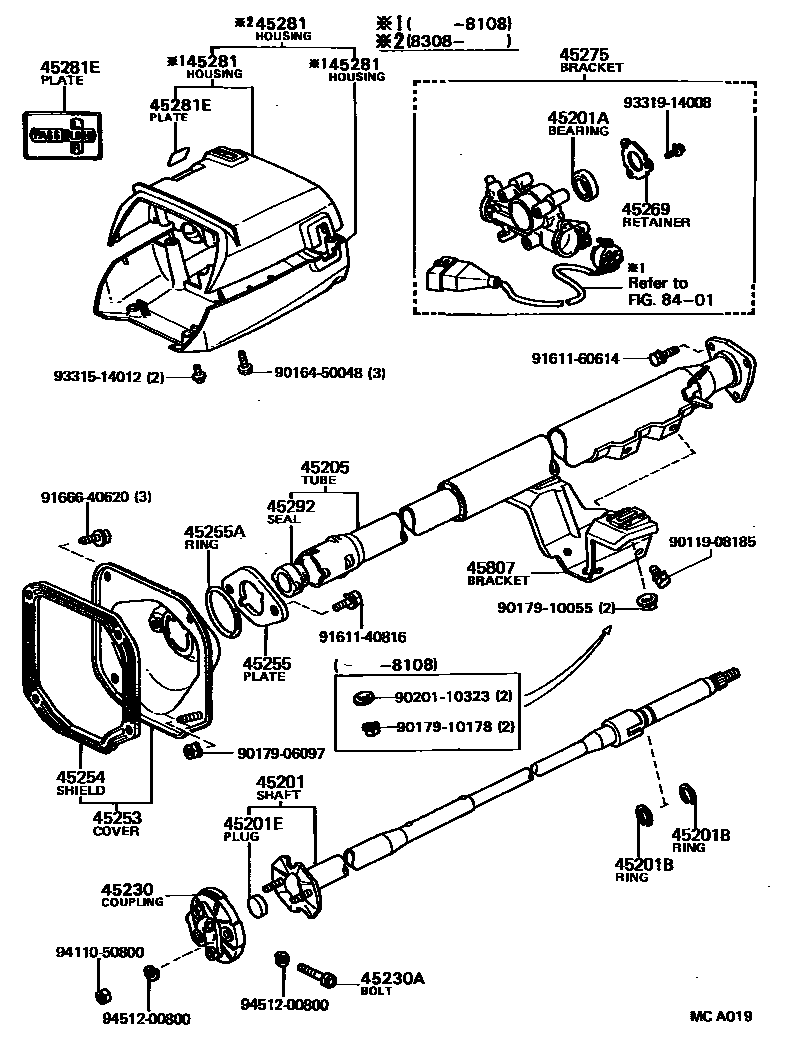

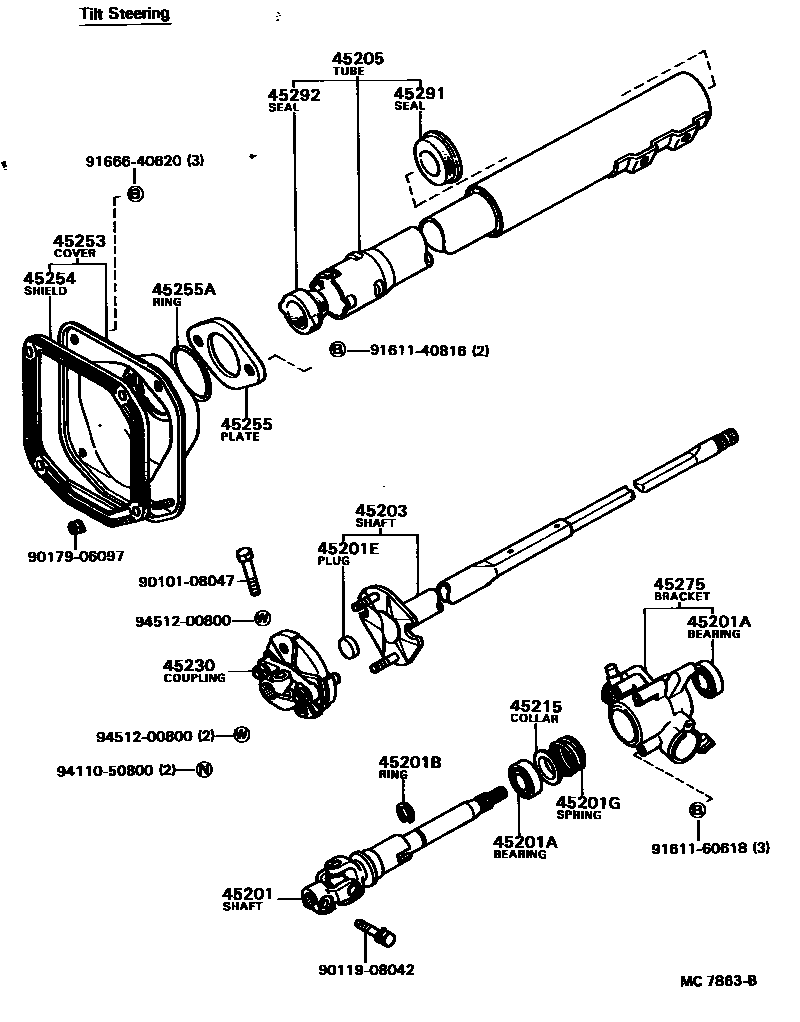

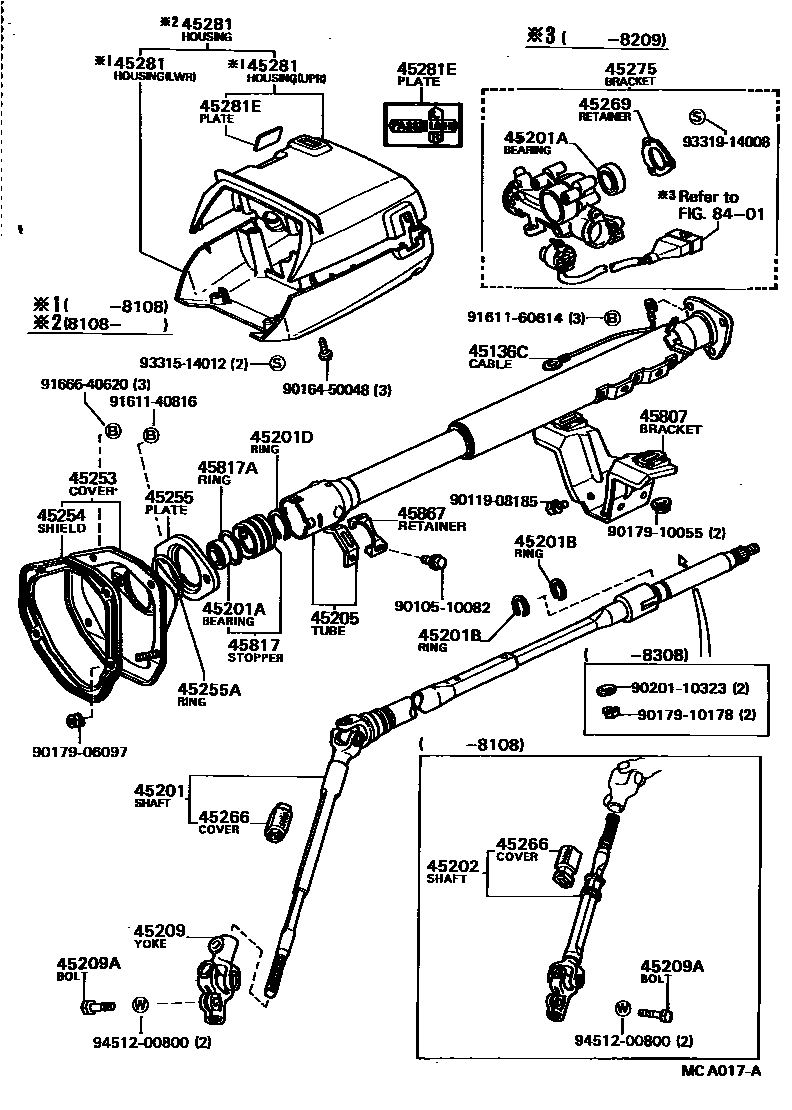

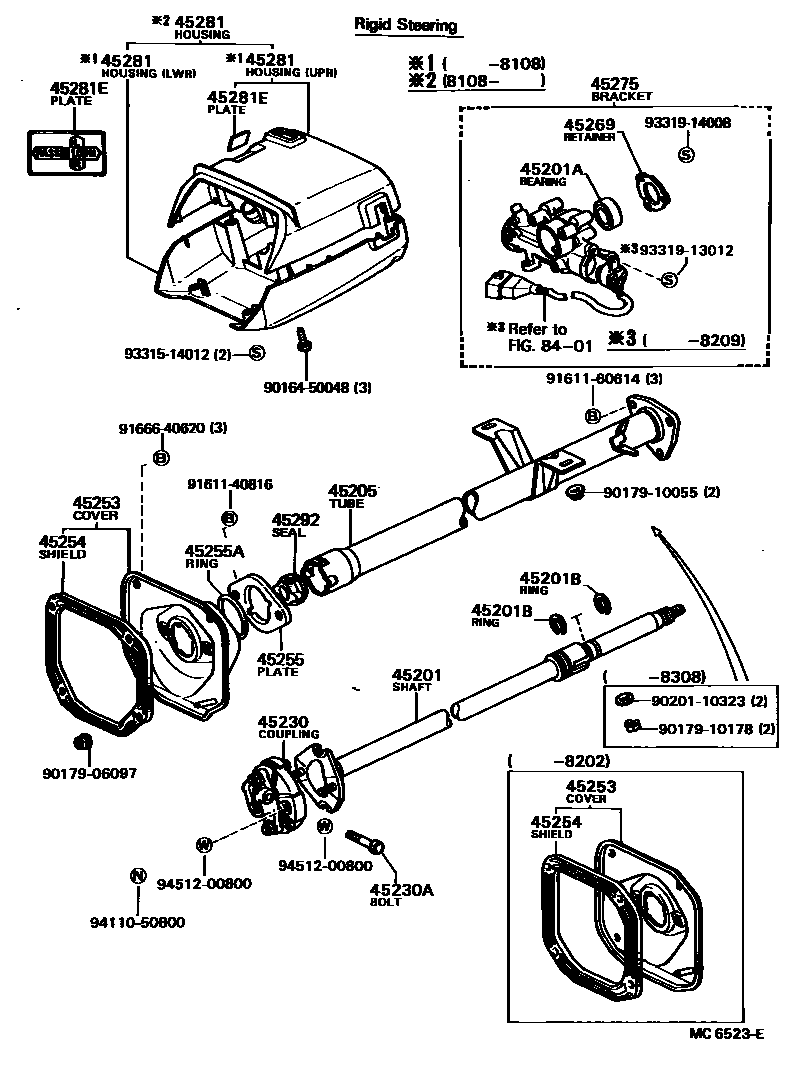

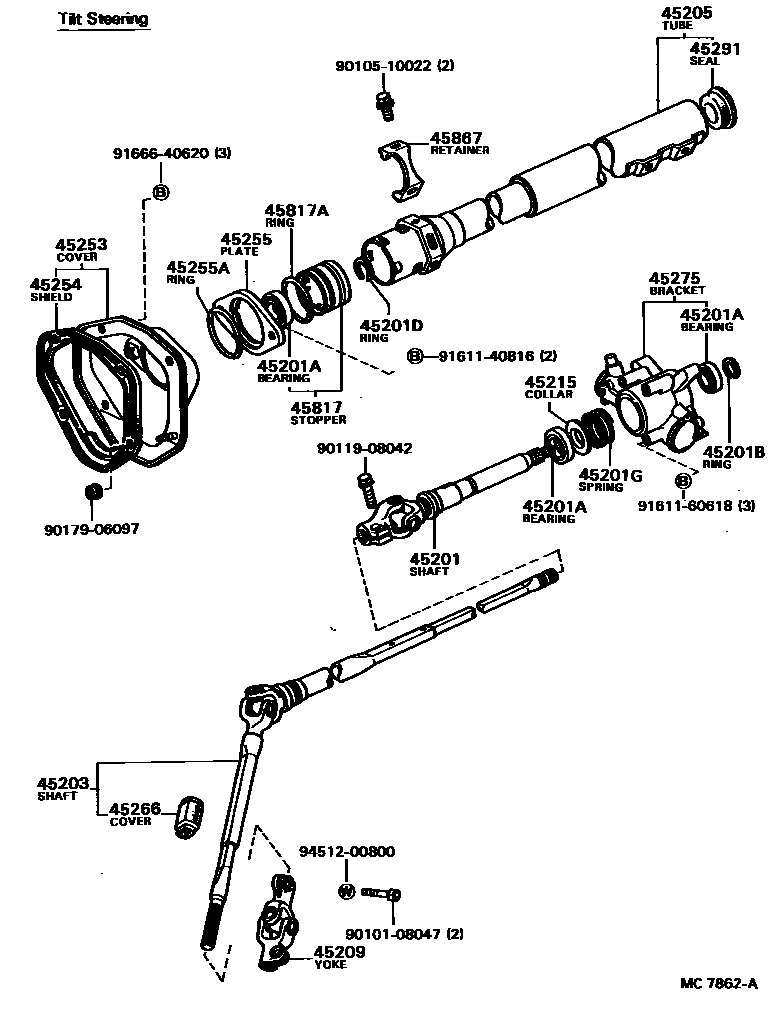

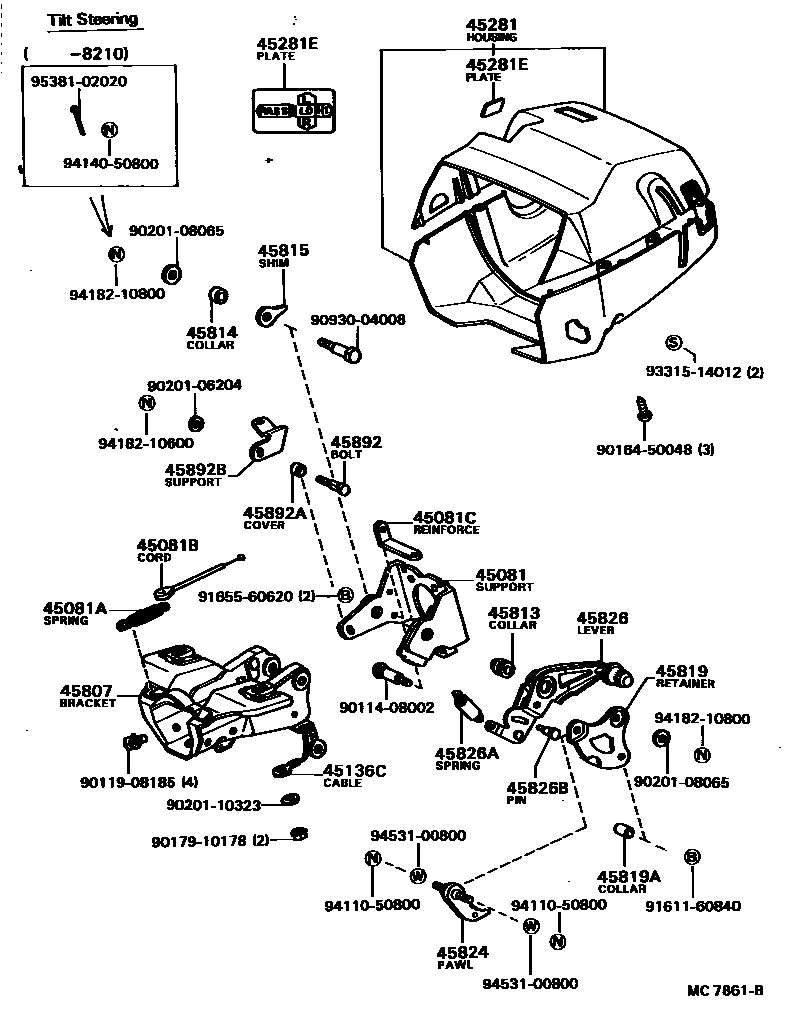

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 7 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44211 | control valve housing | 44211-12010 |
| 45081 | Tilt-adjustable steering bracket sub-assembly | 45081-22020 |
| 45081A | Tension spring (for tilt-adjustable steering column) | 90506-23009 |
| 45081B | Wire (for tilt-adjustable steering column) | 90945-02034 |
| 45081C | Tilt-adjustable steering bracket reinforcement | 45821-22010 |
| 45136C | Connecting cable (for speaker ground) | 90980-07129 · 90980-07195 |
| 45201 | Steering spindle sub-assembly | 45201-12120 · 45201-12190 · 45210-12060 · 45210-12070 · 45210-12090 · 45210-12100 · 45210-12101 · 45210-12170 · 45210-12180 · 45210-22050 |
| 45201A | Bearings (for steering spindle) | 90363-18001 · 90363-18038 · 90363-28001 · 90363-30007 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 |
| 45201D | Ring (for steering spindle) | 96152-00300 |
| 45201E | Plate screw plug (for steering spindle) | 90333-21008 |
| 45201G | Compression spring (for steering spindle) | 90501-45011 |
| 45202 | Steering intermediate shaft sub-assembly | 45260-12010 |
| 45203 | No. 2 steering intermediate shaft sub-assembly | 45220-12050 · 45220-12060 · 45220-12070 · 45220-12080 |
| 45205 | Steering column tube sub-assembly | 45205-12090 · 45205-12091 · 45870-12070 · 45870-12090 · 45870-12100 · 45870-12110 · 45870-12120 |
| 45209 | Steering slip fork sub-assembly | 45209-12030 · 45209-14030 · 45209-32010 |
| 45209A | Hexagonal bolt (for steering fork assembly) | 90101-08047 · 90101-08070 |
| 45215 | Spindle bearing thrust collar | 45215-22011 |
| 45230 | Flexible coupling assembly | 45230-14020 |
| 45230A | Hexagonal bolts (for steering flex coupling assembly) | 90101-08047 · 90101-08070 |
| 45253 | Steering column hole cover | 45025-12030 · 45025-12040 · 45025-12050 · 45025-12090 |
| 45254 | steering column escutcheon | 45254-12020 · 45254-12030 |
| 45255 | Steering column hole cover | 45255-12020 · 45255-12030 |
| 45255A | Seal or O-ring (for steering column clamp) | 90301-45202 · 90301-60122 |
| 45266 | Steering intermediate shaft dust cover | 45266-12010 · 45266-12020 |
| 45269 | Spindle bearing retainer | 45269-10010 · 45269-35010 |
| 45275 | Steering column upper bracket | 45020-12130 · 45280-12020 · 45280-12021 · 45280-12060 |
| 45281E | Safety warning nameplate | 45283-12010 |
| 45291 | Dust-proof sealing ring on spindle | 45282-22010 |
| 45292 | Dust-proof sealing ring under spindle | 45292-12040 · 45292-20020 · 45292-22050 |
| 45807 | Steering column upper bracket sub-assembly | 45082-12010 · 45807-12080 · 45807-12090 · 45807-12110 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-22010 · 45813-22020 · 45813-22030 · 45813-22040 · 45813-22050 |
| 45814 | No. 2 tilt-adjustable steering bracket collar | 45814-22010 · 45814-22020 |
| 45815 | Tilt-adjustable steering rack spacer | 45815-22060 · 45815-22070 · 45815-22080 · 45815-22090 · 45815-22100 |
| 45817 | Steering shaft thrust stop | 45808-12020 · 45808-12030 |
| 45817A | O-ring (for steering shaft thrust stop) | 96710-02053 · 96711-24053 |
| 45819 | Tilt adjustment lever retaining ring | 45819-22011 |
| 45819A | Collar (for tilt adjustment lever retaining ring) | 90387-08002 |
| 45824 | Tilt-adjustable steering pawl | 45890-22050 |
| 45826 | Steering tilt adjustment lever | 45804-22010 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90507-14001 |
| 45826B | Pin (for steering tilt adjustment lever) | 72538-12010 |
| 45867 | Steering spindle limit ring | 45867-12010 |
| 45877 | Caster angle adjustment wedge (used to secure the steering column tube) | 45877-12010 |
| 45892 | Tilt-adjustable steering bracket limit bolt | 45898-22010 |
| 45892A | Tilt-adjustable steering rack stop cover | 45899-22020 |
| 45892B | Tilt-adjustable steering column cover bracket | 45289-12010 |
