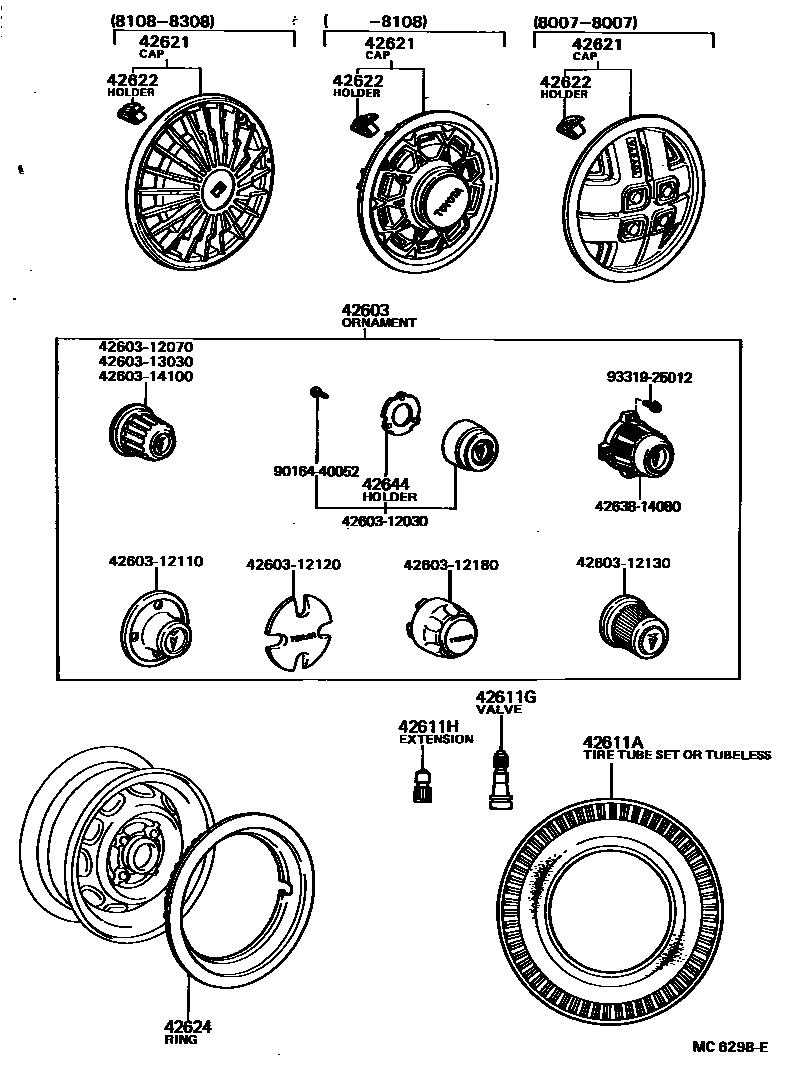

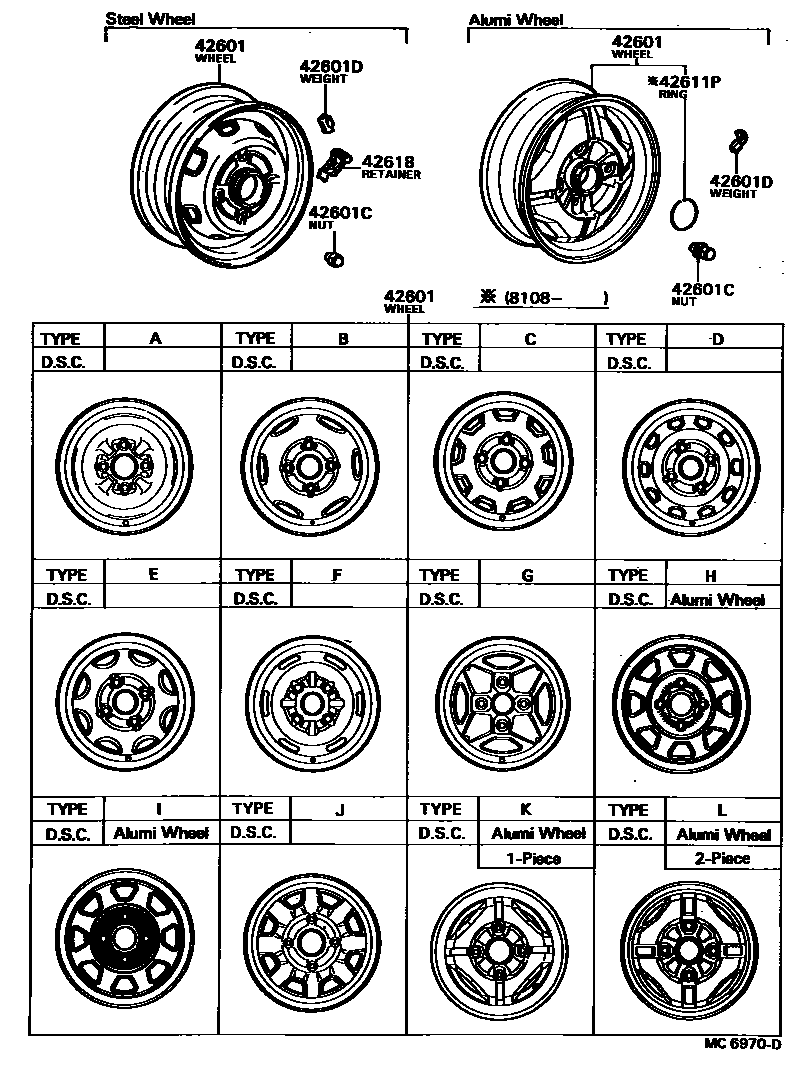

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42601-12010 · 42601-12090 · 42601-12091 · 42611-10120 · 42611-10121 · 42611-11021 · 42611-12241 · 42611-12430 · 42611-12530 · 42611-12570 · 42611-14310 · 42611-14311 · 42611-14330 · 42611-14331 · 42611-14350 · 42611-14470 · 42611-21080 · 42611-21081 · 42611-22121 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01026 · 90942-01027 · 90942-01028 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03092 · 90942-03093 · 90942-03094 · 90942-03095 · 90942-03096 · 90942-03097 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03108 · 90942-03109 · 90942-03119 · 90942-03120 · 90942-03121 · 90942-03122 · 90942-03123 · 90942-03124 · 90942-03125 · 90942-03126 · 90942-03127 · 90942-03128 · 90942-03129 · 90942-03130 · 90942-03131 · 90942-03132 · 90942-03133 · 90942-03163 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-12030 · 42603-12070 · 42603-12110 · 42603-12120 · 42603-12130 · 42603-12180 · 42603-13030 · 42603-14100 · 42638-14080 |
| 42611A | Tubeless tire assembly or tubeless tire | 42605-12190 · 42605-13020 · 42605-16030 · 42652-12220 · 42652-12250 · 42652-12360 · 42652-12410 · 42652-12420 · 42652-12430 · 42652-12460 · 42652-13050 · 42652-14140 · 42652-14180 · 42652-14410 · 42652-16030 · 42652-16120 · 42652-22090 · 98051-50124 · 98058-50124 · 98921-64132 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611H | valve extension | 90942-05006 |
| 42611P | Positioning ring | 90522-64001 |
| 42618 | wheel cover fixings | 42618-12030 |
| 42621 | wheel cover | 42602-12040 · 42602-12060 |
| 42622 | wheel cover fixings | 42622-14010 |
| 42624 | wheel cover ring | 42624-12012 · 42624-14023 · 42624-14024 · 42624-14025 |
| 42644 | Wheel hub trim fixings | 42644-14041 |
