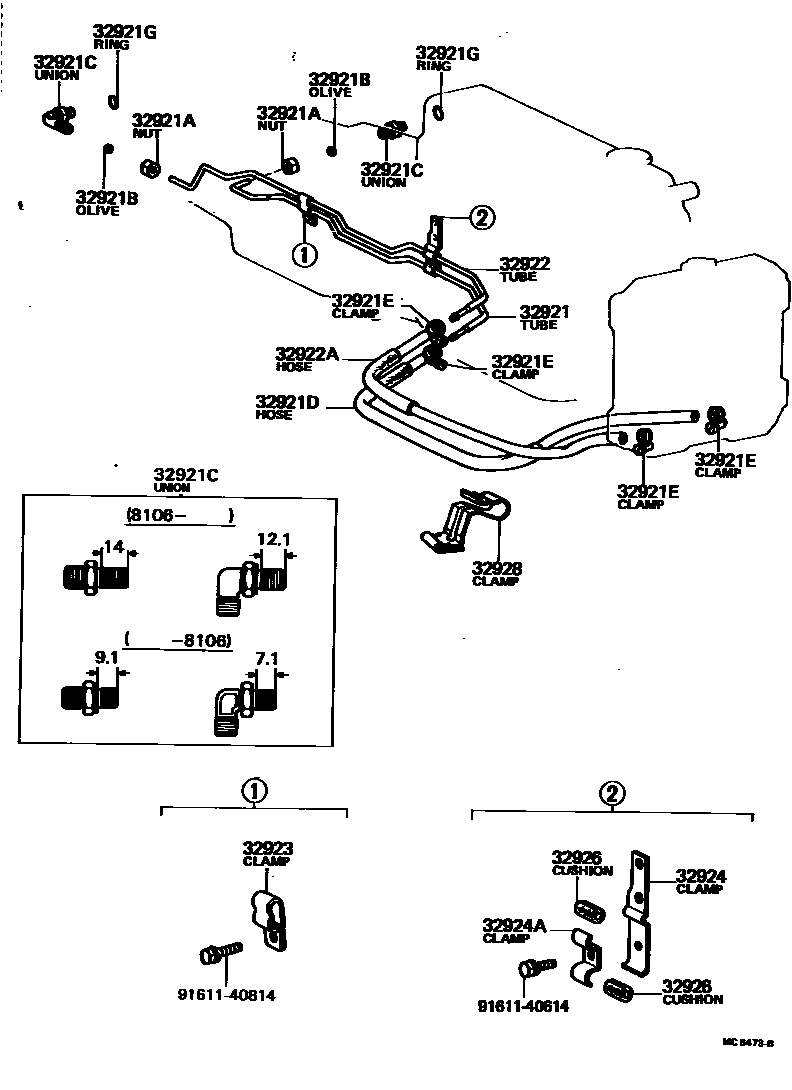

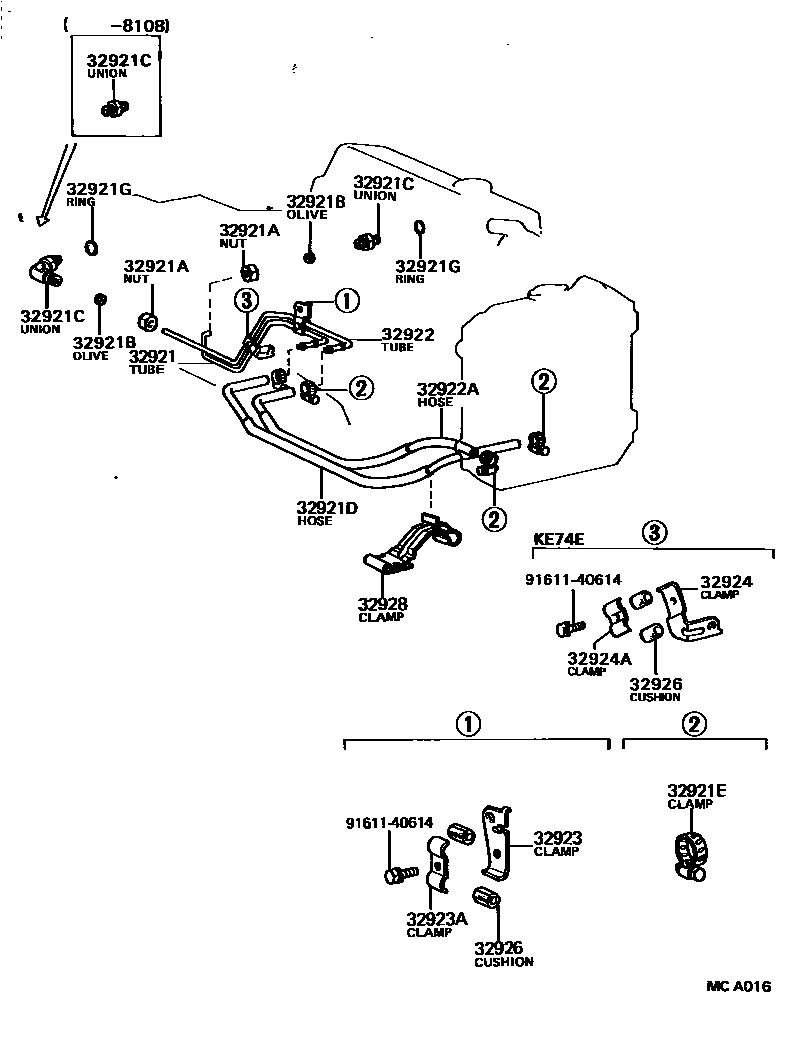

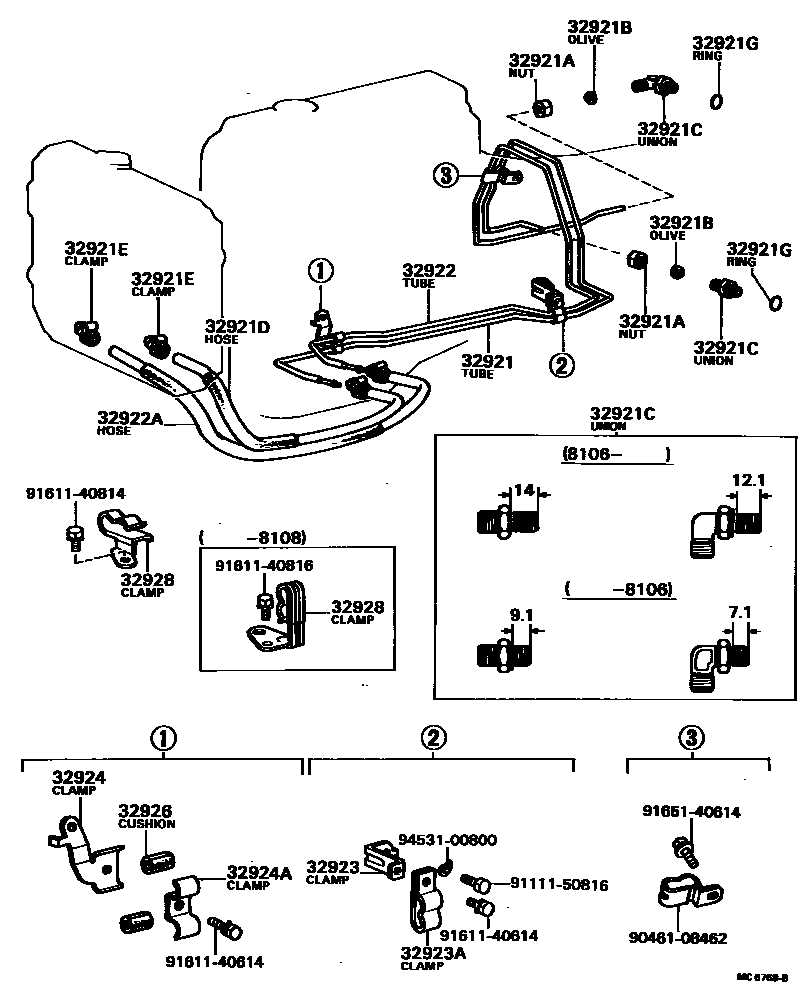

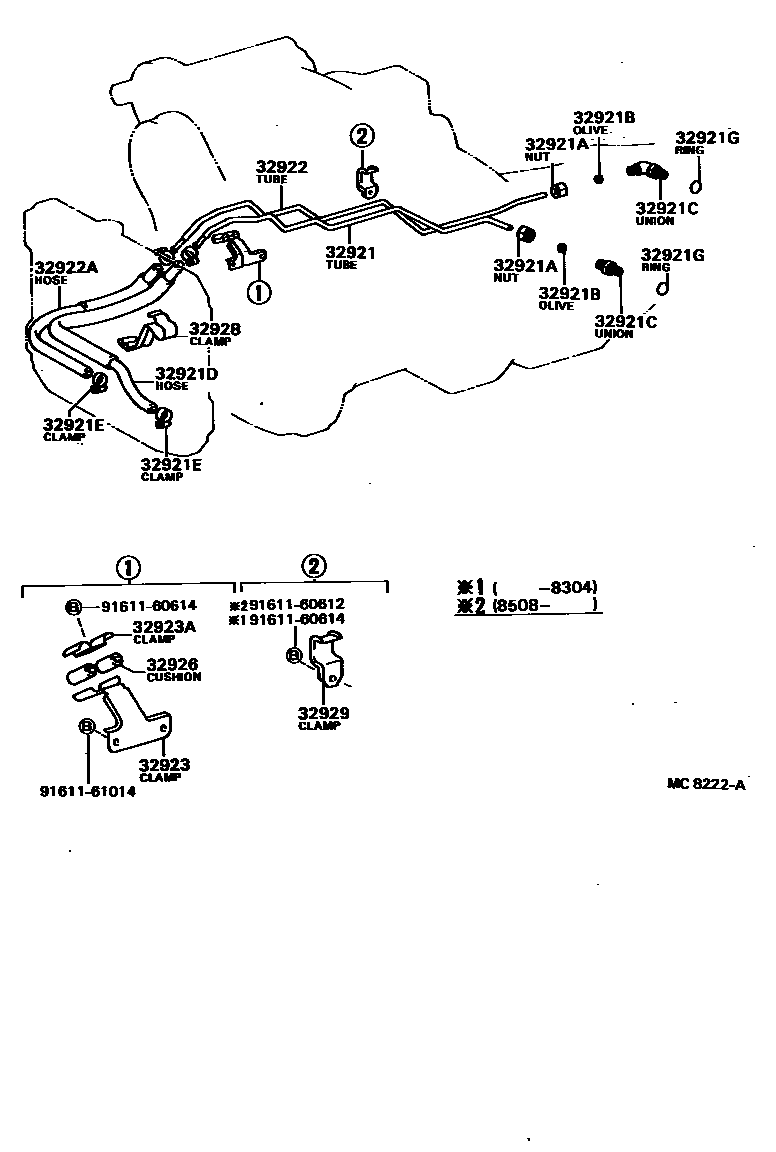

Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514
Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-10021 · 32921-12060 · 32921-12080 · 32921-12120 · 32921-12131 · 32921-12160 · 32921-12330 · 32921-13010 |
| 32921A | Union nut (for transmission oil cooler tube) | 90402-13041 |
| 32921B | Olive-shaped piece (for transmission oil cooler pipe) | 96395-71400 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13003 · 90404-13105 · 90404-13265 · 90407-13002 · 90407-13005 · 90407-13060 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-12020 · 32941-12030 · 32941-12031 · 32941-12041 · 32941-12050 · 32941-12060 · 32941-12120 · 32941-14030 |
| 32921E | Hose clamp (for transmission oil cooler) | 90460-14085 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-10021 · 32922-12050 · 32922-12051 · 32922-12070 · 32922-12110 · 32922-12120 · 32922-12150 · 32922-12260 · 32922-13010 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32941-14013 · 32942-12021 · 32942-12030 · 32942-12040 · 32942-12050 · 32942-12060 · 32942-12110 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32923-10020 · 32923-12031 · 32923-12040 · 90461-08039 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90461-08070 · 90462-12085 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-13010 · 32924-14010 · 32928-12010 |
| 32924A | Clamp (for No. 2 transmission oil cooler tube) | 90462-12085 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30011 |
| 32928 | No. 1 Flexible Hose Clamp | 90461-06141 · 90463-06600 · 90949-01010 · 90949-01048 |
| 32929 | No. 2 Flexible Hose Clamp | 32929-30060 |
