Toyota COROLLA 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

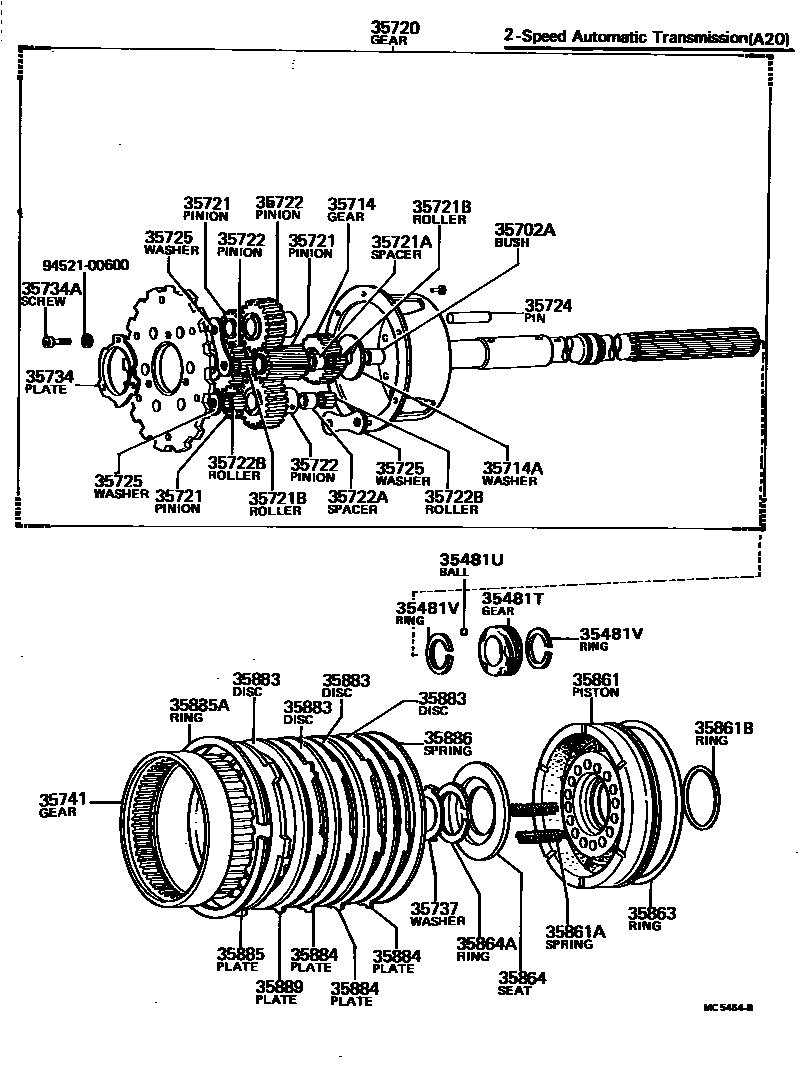

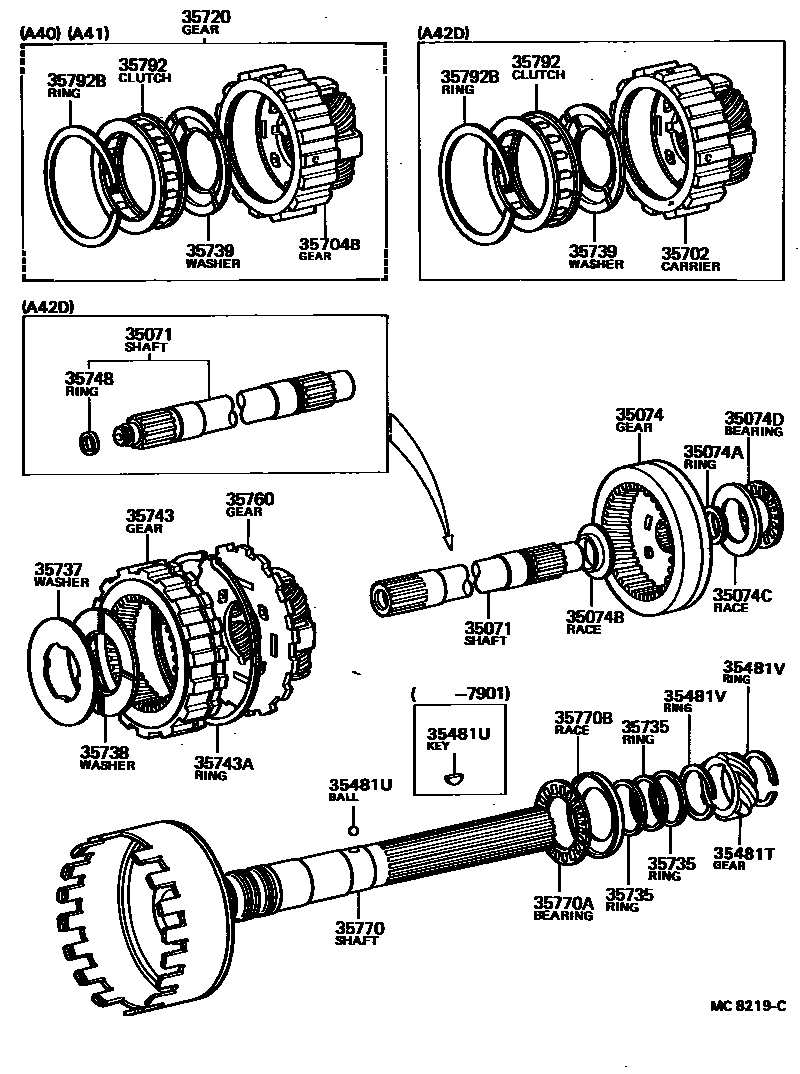

Toyota COROLLA EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35071 | Planetary intermediate shaft sub-assembly | 35708-22010 · 35708-22011 · 35708-30031 |
| 35074 | Rear planetary ring gear sub-assembly | 35074-22010 · 35074-30010 |
| 35074A | Locating ring (for rear planetary ring gear) | 90522-20037 |
| 35074B | Front thrust bearing race (for rear planetary ring gear) | 35789-22050 |
| 35074C | Rear thrust bearing race (for rear planetary ring gear) | 35789-22020 |
| 35074D | Rear thrust bearing (for rear planetary ring gear) | 90374-28014 |
| 35481T | Speedometer driving gear (ATM) | 33481-14010 · 33481-25020 · 33481-25021 · 33481-25030 · 33481-25031 · 33481-26010 |
| 35481U | Speedometer driving gear key or ball (ATM) | 90360-05006 · 90360-06004 |
| 35481V | Ring or spacer (for automatic transmission speedometer drive gear) | 90520-21066 · 90520-28009 |
| 35702 | Locking planetary gear carrier sub-assembly | 35704-22030 · 35704-30020 |
| 35702A | Bimetallic bushing (for planetary gear output shaft) | 90999-73040 |
| 35704B | Front planetary gear sub-assembly | 35704-22020 |
| 35714 | Input shaft sun gear | 35714-12010 |
| 35714A | Thrust washer (for input shaft sun gear) | 90209-10053 |
| 35720 | Front planetary gear assembly | 35720-14010 · 35720-20031 · 35720-22011 · 35720-22012 |
| 35721 | long planetary gear | 35721-12010 |
| 35721A | Spacer (for long planetary gears) | 90560-08220 |
| 35721B | Rollers (for long planetary gears) | 90361-02046 |
| 35722 | short planetary gear | 35722-12010 |
| 35722A | Spacer (for short planetary gears) | 90560-08220 |
| 35722B | Rollers (for short planetary gears) | 90361-02046 |
| 35724 | Short planet gear pin | 35724-12010 |
| 35725 | No. 1 planetary gear thrust washer | 35725-12010 |
| 35734 | Planetary gear pin locking plate | 35734-12010 |
| 35734A | Screw (for planetary gear pin locking plate) | 90154-60006 |
| 35735 | Planetary gear output shaft snap ring | 35735-22010 |
| 35737 | Planetary gear carrier thrust washer | 35737-12010 · 35737-22010 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-22010 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-14010 · 35739-22011 |
| 35741 | reverse gear ring gear | 35741-12010 |
| 35743 | Front planetary ring gear | 35743-22010 · 35743-30010 |
| 35743A | Shaft snap ring (for front planetary gear) | 90520-99121 |
| 35748 | Intermediate shaft sleeve oil protector ring | 35748-30010 |
| 35760 | Rear planetary gear assembly | 35760-22011 · 35760-22020 · 35760-30010 · 35760-30020 |
| 35770 | Output shaft assembly | 35770-14010 · 35770-14020 · 35770-22011 · 35770-22012 |
| 35770A | Thrust bearing (for output shaft) | 90374-38013 |
| 35770B | Thrust bearing race (for output shaft) | 35789-22040 |
| 35792 | No. 2 one-way clutch | 35792-20010 · 35792-30010 · 35792-30011 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90521-79148 |
| 35861 | reverse piston | 35861-20011 |
| 35861A | Compression spring (for reverse piston base) | 90501-10320 |
| 35861B | O-ring (for reverse piston internal seal) | 90301-44104 |
| 35863 | Reverse piston outer oil protection ring | 35863-12010 |
| 35864 | Reverse piston return spring seat | 35864-12010 |
| 35864A | Shaft snap ring (for output) | 90520-40078 |
| 35883 | Reverse clutch plate | 35883-12011 |
| 35884 | No. 2 reverse clutch plate | 35884-12010 |
| 35885 | Reverse clutch pressure plate | 35885-12010 |
| 35885A | Hole snap ring (for clutch plate) | 90521-99094 |
| 35886 | Reverse clutch damping spring | 35886-12010 |
| 35889 | No. 2 reverse clutch plate | 35889-12010 |
