Toyota COROLLA Shift Lever & Retainer — Figure 3312

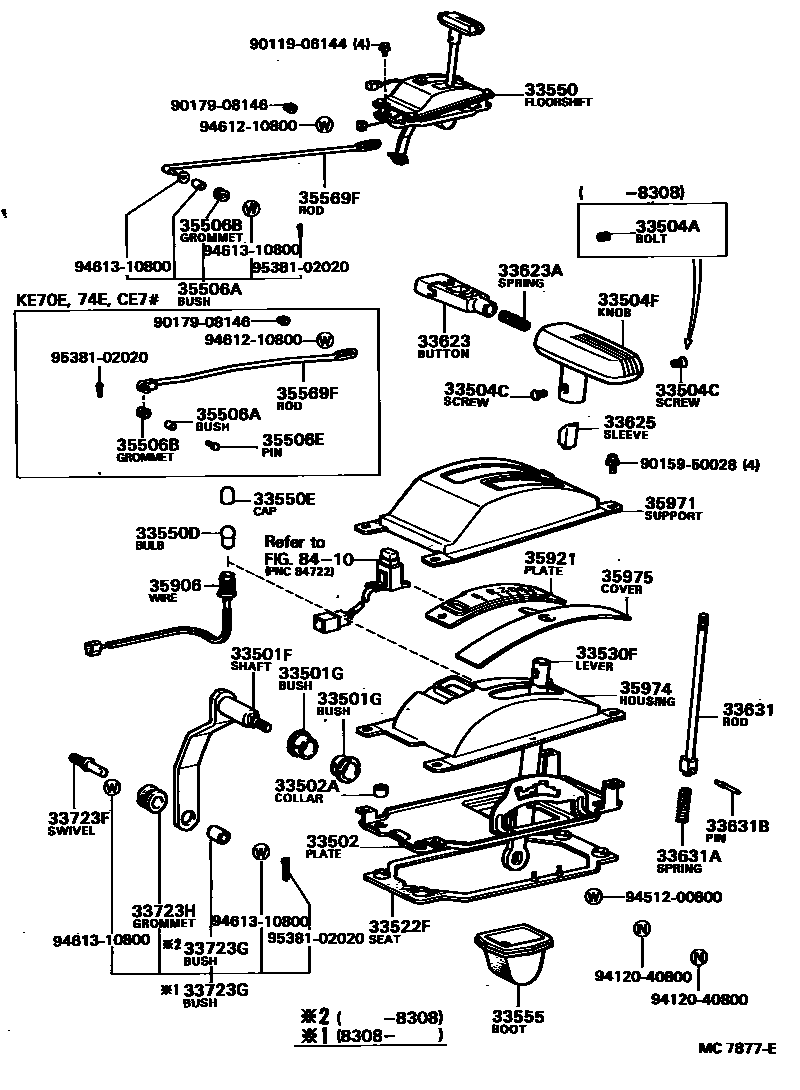

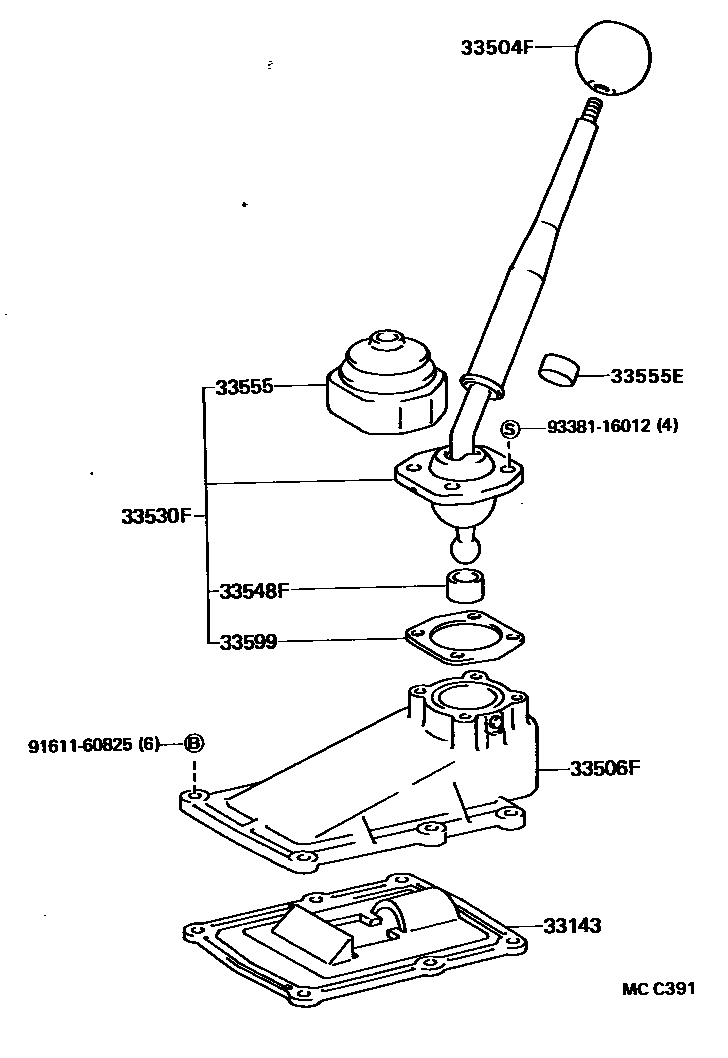

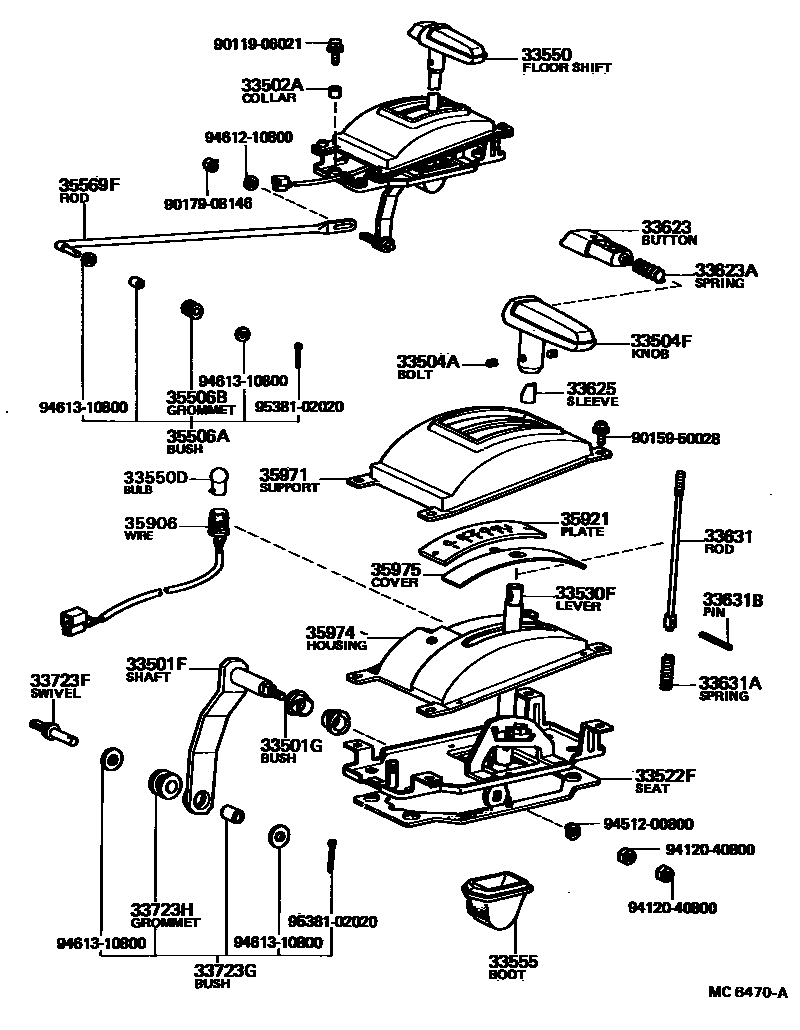

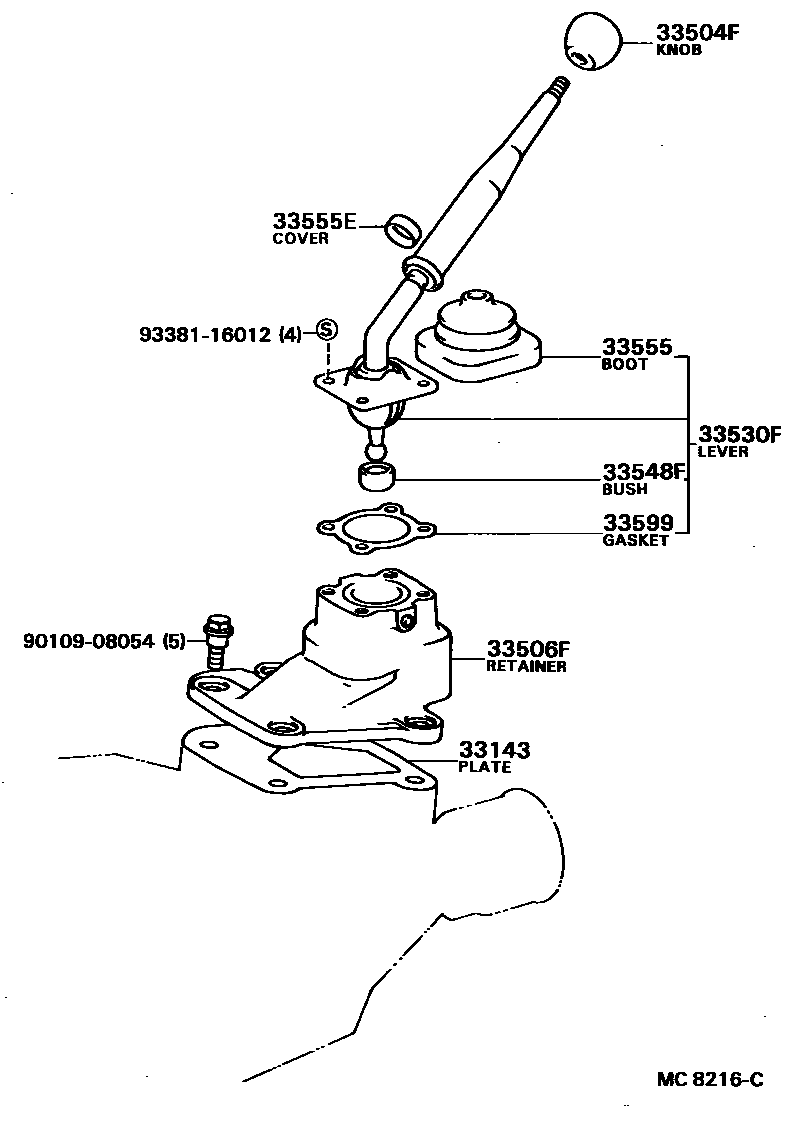

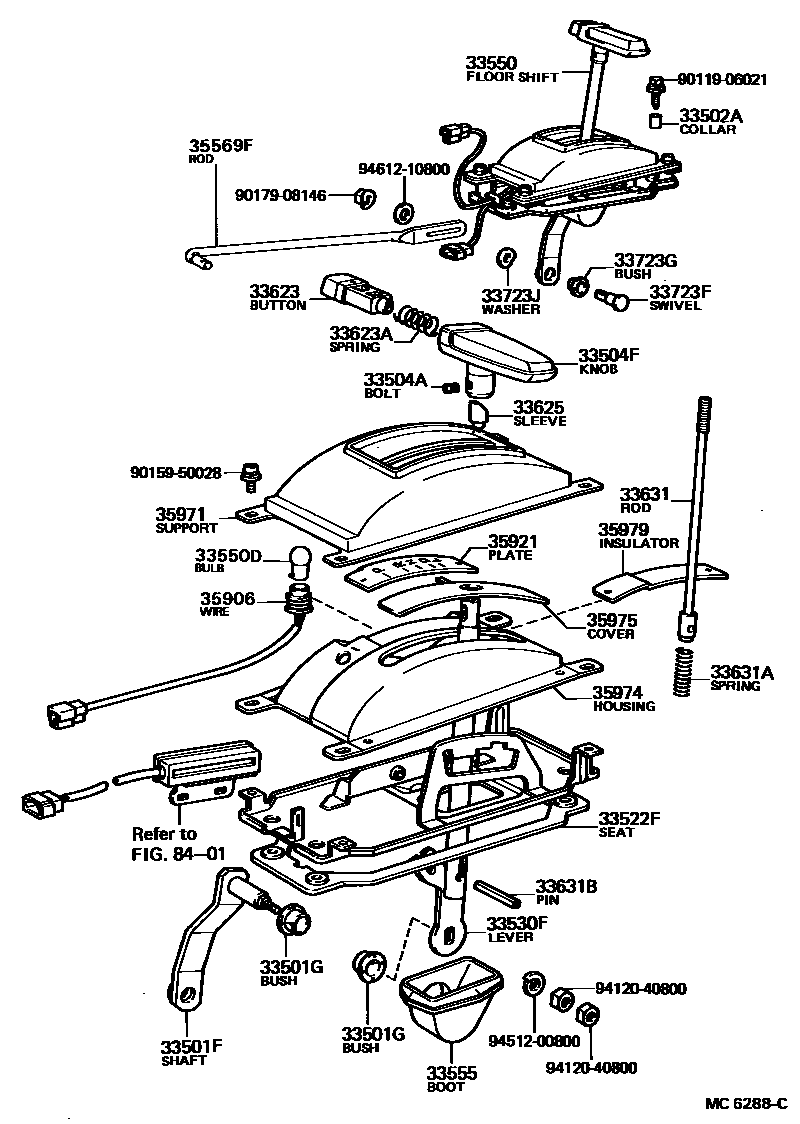

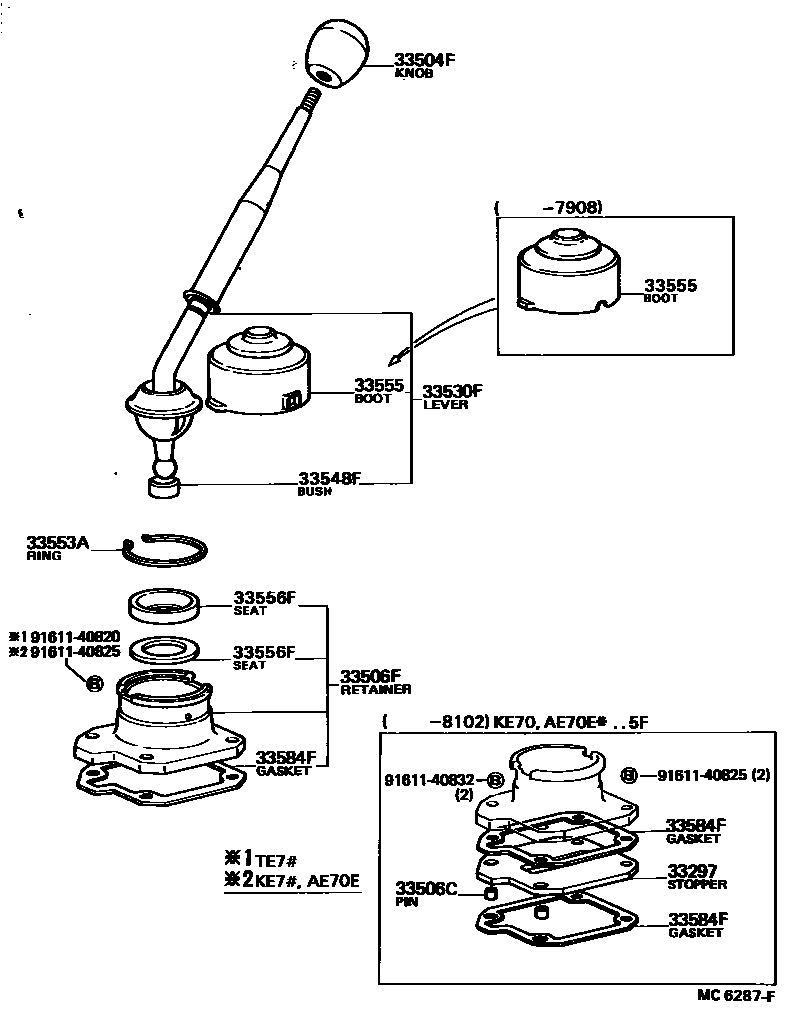

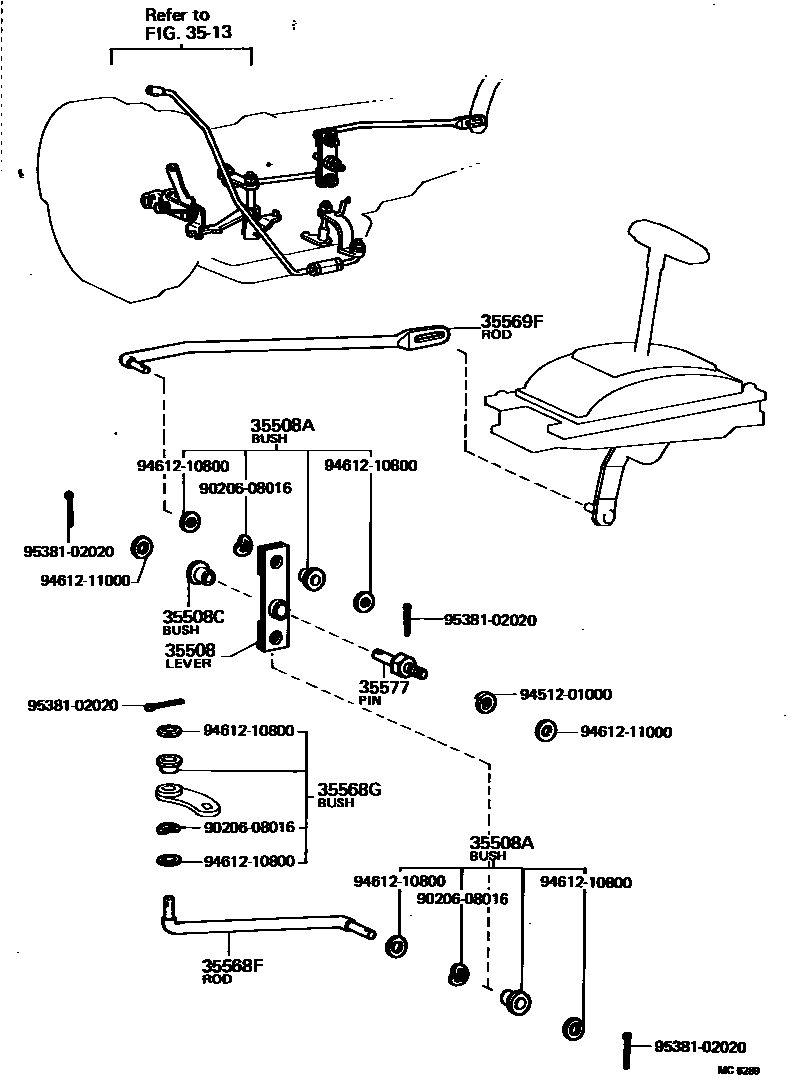

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 7 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33143 | Extended shell oil baffle | 33143-20031 · 33143-22020 |
| 33297 | shift lever block | 33291-12010 |
| 33501F | Control shaft sub-assembly (for floor shift) | 33501-12100 · 33501-12110 · 33501-12130 · 33501-12140 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-16008 · 90385-16045 |
| 33502 | Shift lever base plate sub-assembly | 33502-12230 |
| 33502A | Collar (for securing floor shift) | 90387-06005 |
| 33504A | Bolt or pin (to secure the shifter knob) | 90113-05034 |
| 33504C | Screw (for securing shift lever knob) | 90149-40004 · 90159-40109 |
| 33504F | Shift lever handle sub-assembly | 33504-12120 · 33504-12140 · 33542-12100 |
| 33506C | Shift lever stopper ring pin | 90253-11001 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33570-12020 · 33570-12030 · 33570-14020 · 33570-14021 |
| 33522F | Shift lever base plate holder (for floor shift) | 33522-12050 · 33522-12051 · 33522-12060 |
| 33530F | Shift lever assembly (for floor shift) | 33503-12120 · 33503-12121 · 33503-12130 · 33503-12220 · 33530-12230 · 33530-12231 · 33530-12270 · 33530-12290 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-14010 · 33548-31010 |
| 33550 | Transmission floor shift assembly | 33550-12150 · 33550-12160 · 33550-12161 · 33550-12170 · 33550-12171 · 33550-12220 · 33550-12240 · 33550-12250 · 33550-12270 · 33550-12400 |
| 33550D | position indicator light bulb | 99132-11017 |
| 33550E | position indicator cover | 90339-09001 |
| 33553A | Snap ring (for shift lever spring seat) | 90521-49002 · 90521-49003 |
| 33555 | Gear shift lever dust cover | 33555-12080 · 33555-12090 · 33555-20060 · 33555-22050 · 33555-31011 |
| 33555E | shift lever cover | 33555-12110 · 33555-12120 |
| 33556F | Transmission shift lever ball seat | 33556-14010 · 33556-14020 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-12040 · 33584-20010 |
| 33599 | No. 2 shift lever stopper gasket | 33584-22020 · 33584-31020 |
| 33623 | Shift lever handle button | 33623-12031 · 33623-12050 · 33623-22060 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 · 90501-09009 |
| 33625 | Shift lever handle sleeve | 33625-22020 |
| 33631 | Locking lever | 33631-12050 · 33631-12051 · 33631-28021 |
| 33631A | Compression spring (for locking lever) | 90501-07005 |
| 33631B | Slotted spring pin (for locking lever) | 90254-04017 · 90256-04001 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 · 33723-30030 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90386-12101 · 90389-08005 · 90999-99017 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 90480-17177 |
| 33723J | Wave washer (for securing floor-mounted shift lever) | 90206-12013 |
| 35506A | Bushing (for manual valve stem shaft) | 90387-08022 · 90999-99017 |
| 35506B | Retaining ring (for manual valve stem shaft) | 90480-17013 · 90480-17177 |
| 35506E | Pin with hole (for manual valve stem) | 90240-08043 |
| 35508 | Control lever joint rod sub-assembly | 35508-12030 |
| 35508A | Bushing (for control rod joint rod) | 90999-99001 |
| 35508C | Bushing (for control rod joint rod pin) | 90386-10011 |
| 35568F | Second gear shift lever | 35568-12010 |
| 35568G | Bushing (for second gear shift lever) | 90999-99001 |
| 35569F | Transmission first gear lever (for floor shift) | 33675-12030 · 33702-12010 · 33702-12030 · 35569-12050 |
| 35577 | Control lever joint lever pin | 35577-12010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12030 |
| 35921 | control position indicator board | 35921-12100 · 35921-12110 · 35921-12111 · 35921-12150 · 35921-12200 · 35921-12220 · 35921-12240 |
| 35971 | position indicator bracket | 35971-12050 |
| 35974 | Position indicator light lower shell | 35974-12040 · 35974-12060 |
| 35975 | Slide cover (for position indicator light) | 35975-12070 · 35975-12071 · 35975-12090 |
| 35979 | Neutral start switch vibration isolation pad | 35979-12010 |
