Toyota COROLLA 速度表从动齿轮(MTM) — Figure 3304

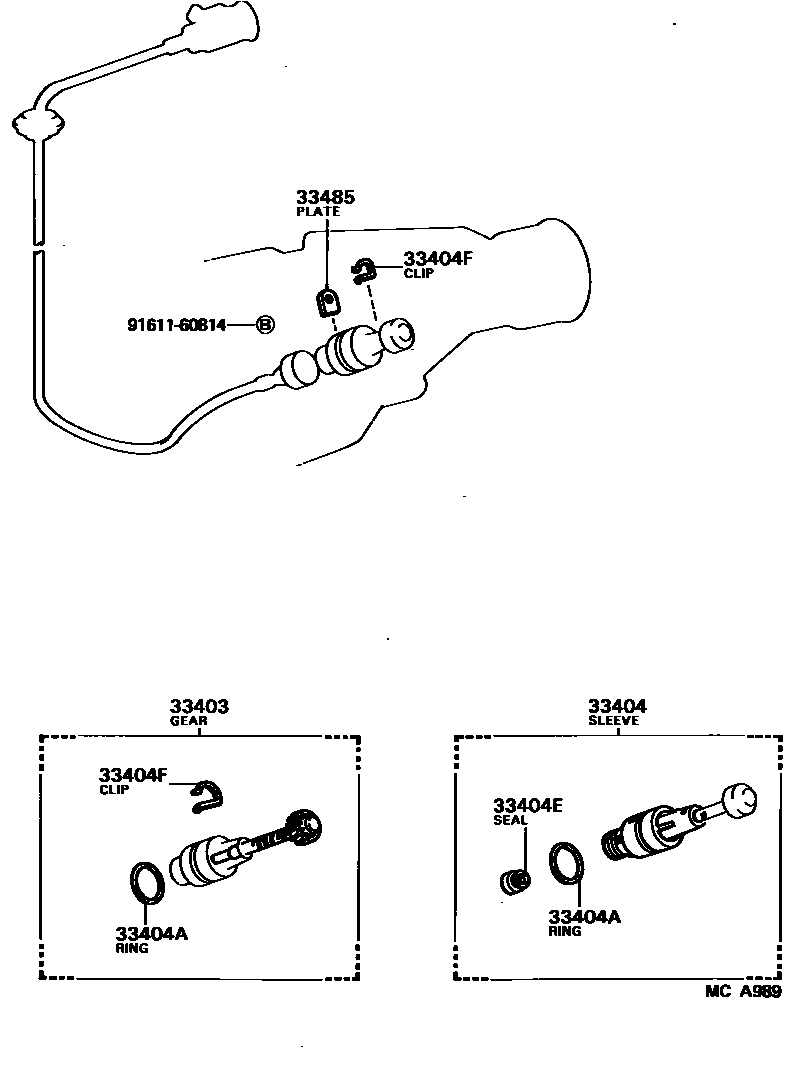

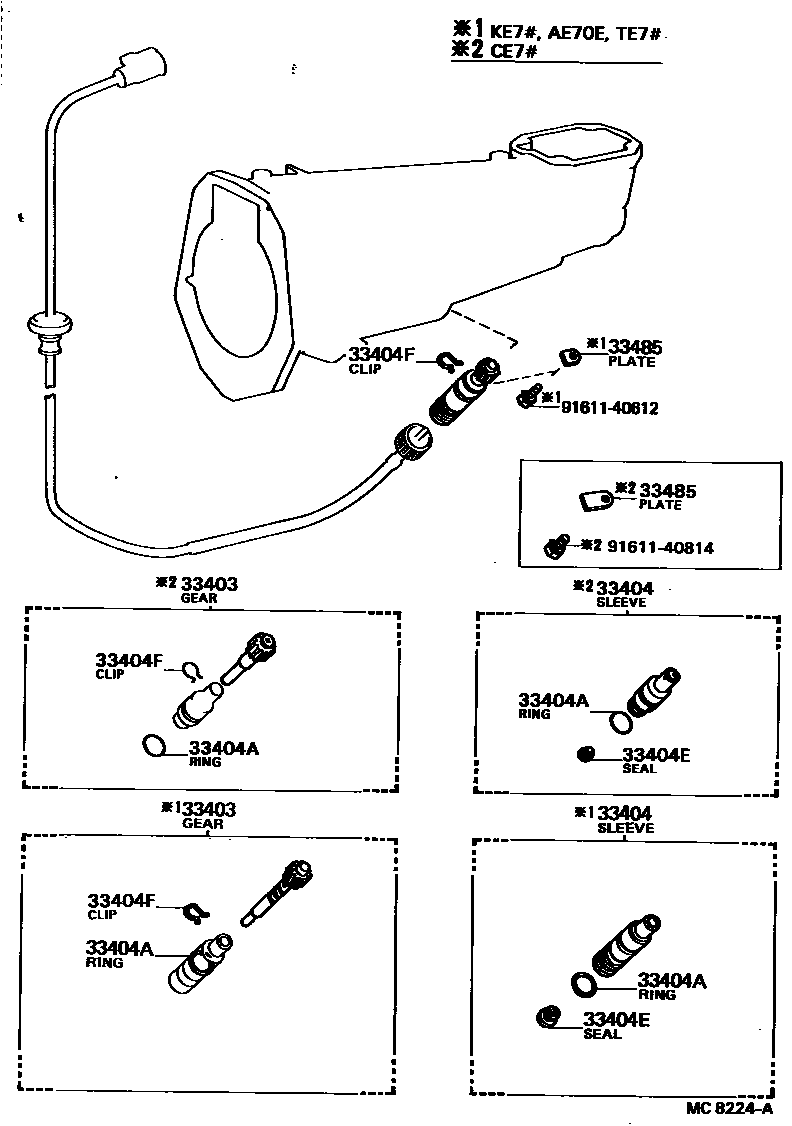

Toyota COROLLA EPC diagram 3304, 速度表从动齿轮(MTM), with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33403 | Speedometer driven gear sub-assembly (MTM) | 33403-19135 · 33403-19145 · 33403-19155 · 33403-19165 · 33403-19175 · 33403-19185 · 33403-19195 · 33403-29125 · 33403-29135 · 33482-29055 · 33482-39025 · 33482-39035 · 33482-39045 · 33482-39085 · 33482-39135 |
| 33404 | Speedometer shaft sleeve sub-assembly (MTM) | 33404-16010 · 33404-22010 · 33404-35010 |
| 33404A | O-ring (for manual transmission speedometer shaft sleeve) | 90301-18018 · 96710-02018 · 96711-24018 · 96711-24030 |
| 33404E | Oil seal (for manual transmission speedometer shaft sleeve) | 90310-09001 |
| 33404F | Clamp (for manual transmission speedometer shaft sleeve) | 90468-12005 |
| 33485 | Speedometer sleeve locking plate (MTM) | 33485-14010 · 33485-16010 · 33485-30020 |
