Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

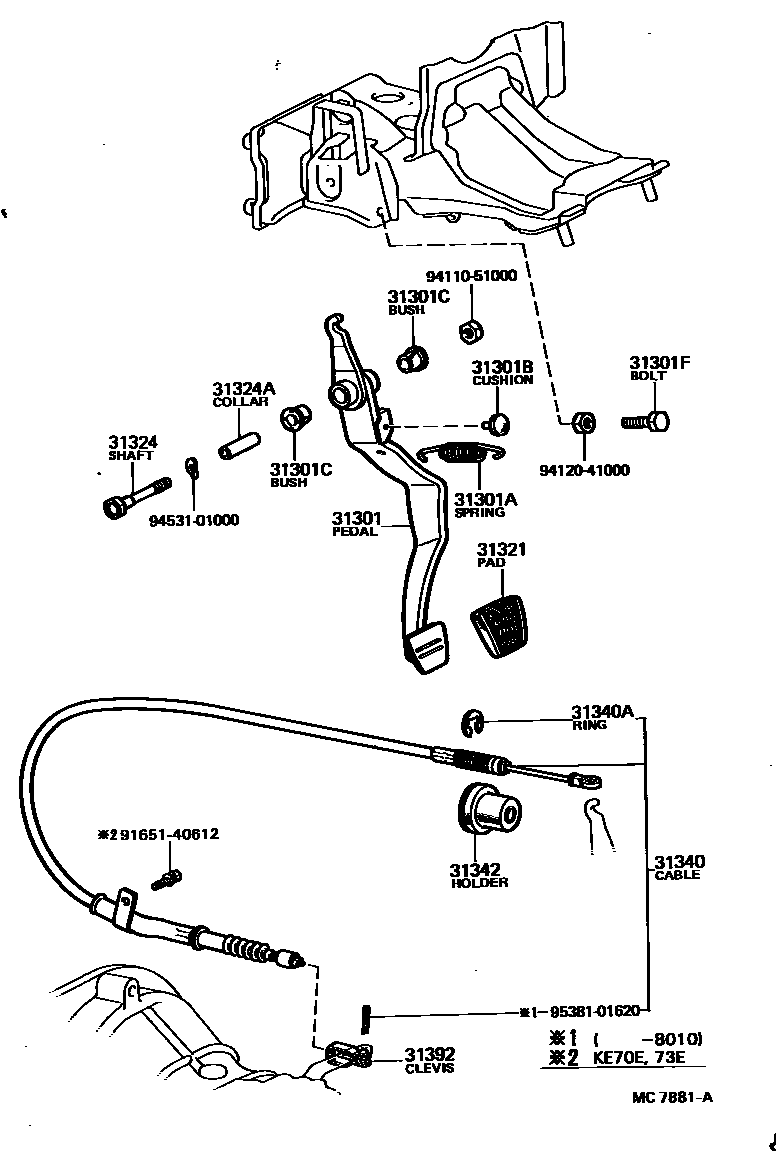

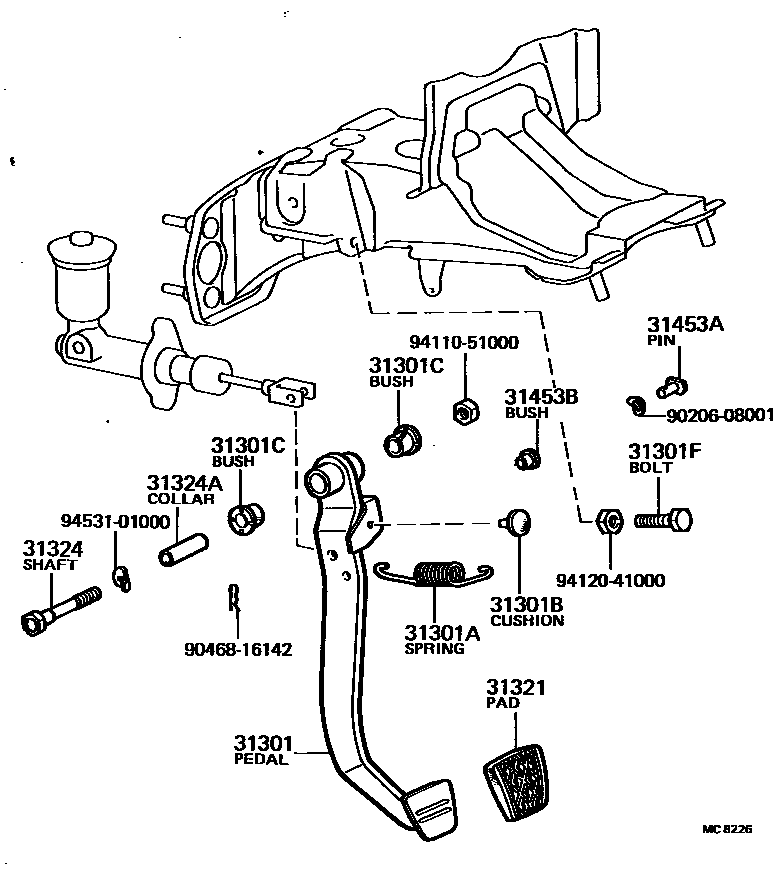

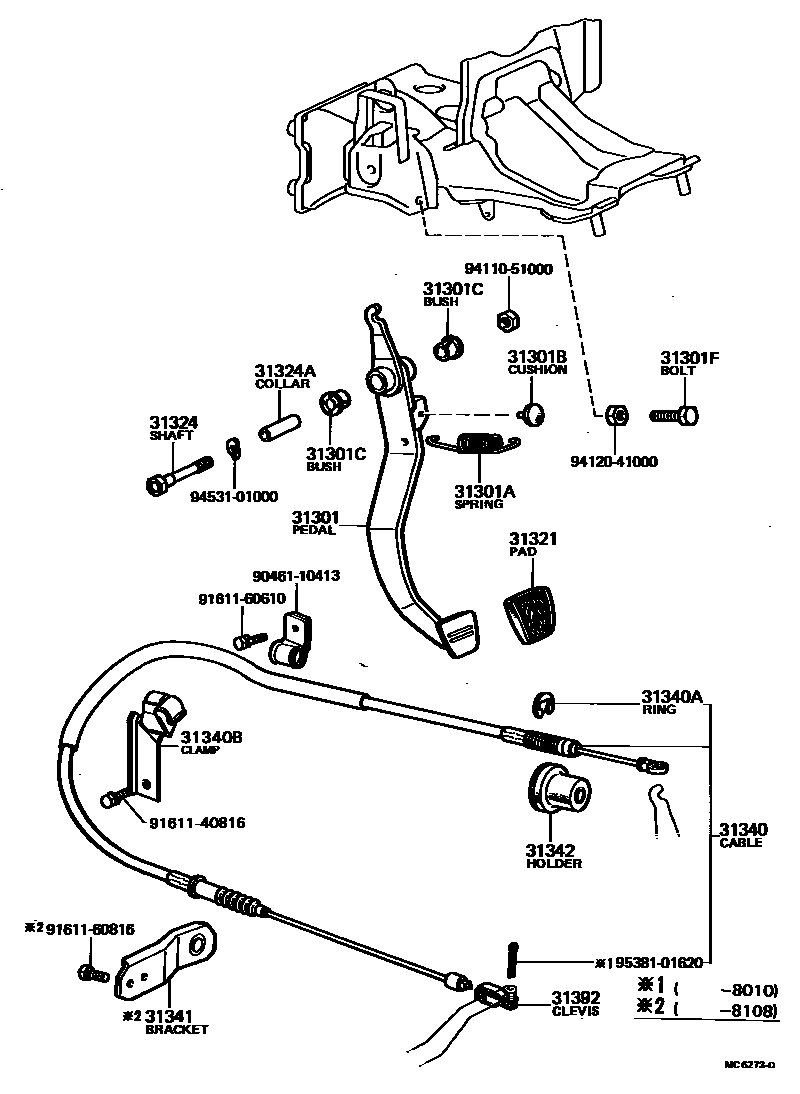

| 31301 | Clutch pedal sub-assembly | 31301-12120 · 31301-12140 · 31301-12160 · 31301-12180 · 31301-12190 |
| 31301A | Spring (for clutch pedal) | 90507-14003 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06008 |
| 31301C | Bushing (for clutch pedal) | 90386-13007 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31321 | clutch pedal pad | 31321-12030 |
| 31324 | clutch pedal shaft | 90101-10015 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31340 | Clutch release cable assembly | 31340-19205 · 31340-19215 · 31340-19216 · 31340-19217 · 31340-19235 · 31340-19255 |
| 31340A | E-ring (for clutch release cable) | 96160-01200 |
| 31340B | Clamp (for clutch release cable) | 90949-01007 |
| 31341 | clutch cable bracket | 31341-12010 · 31341-12011 · 31341-12012 |
| 31342 | Clutch cable internal retainer | 31342-12901 · 31342-12902 |
| 31392 | Clutch cable clevis | 31392-10010 · 31392-12010 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90240-08006 · 90240-08027 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |

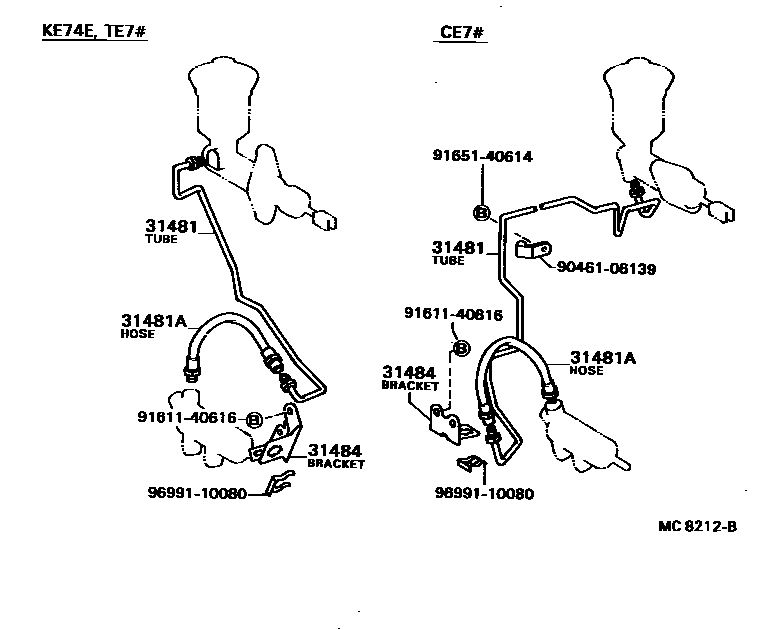

| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12050 · 31481-12070 |
| 31481A | No. 1 clutch hose | 96940-32404 |
| 31484 | Flexible hose bracket (for clutch) | 31484-12030 · 31484-14050 |
