Toyota COROLLA 燃油泵和燃油管 — Figure 2301

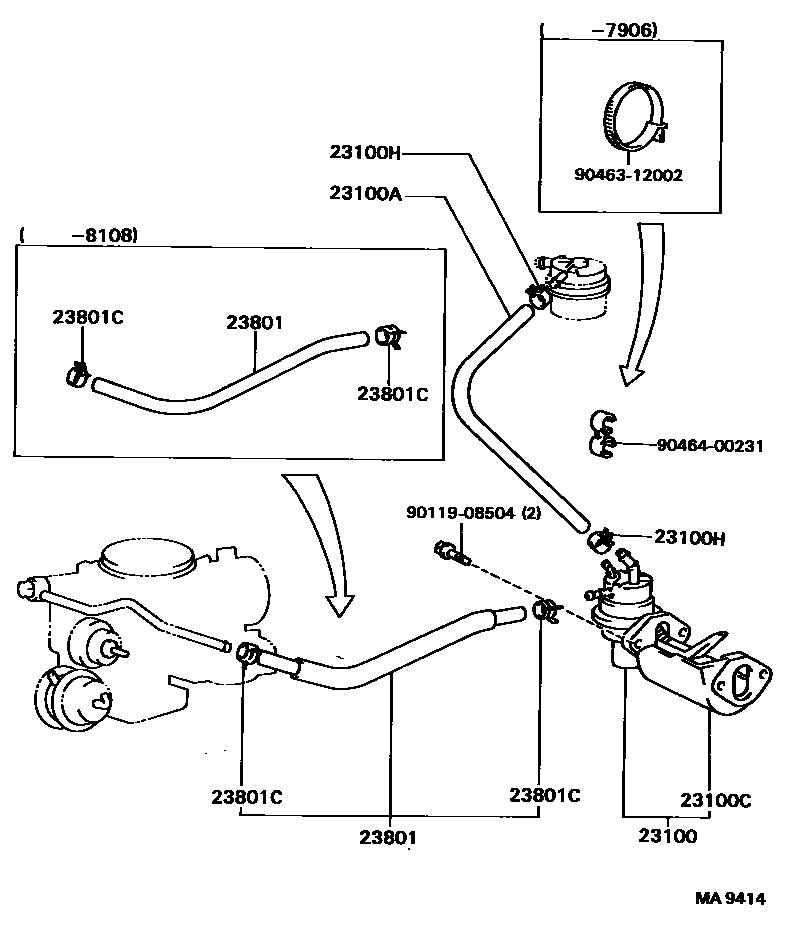

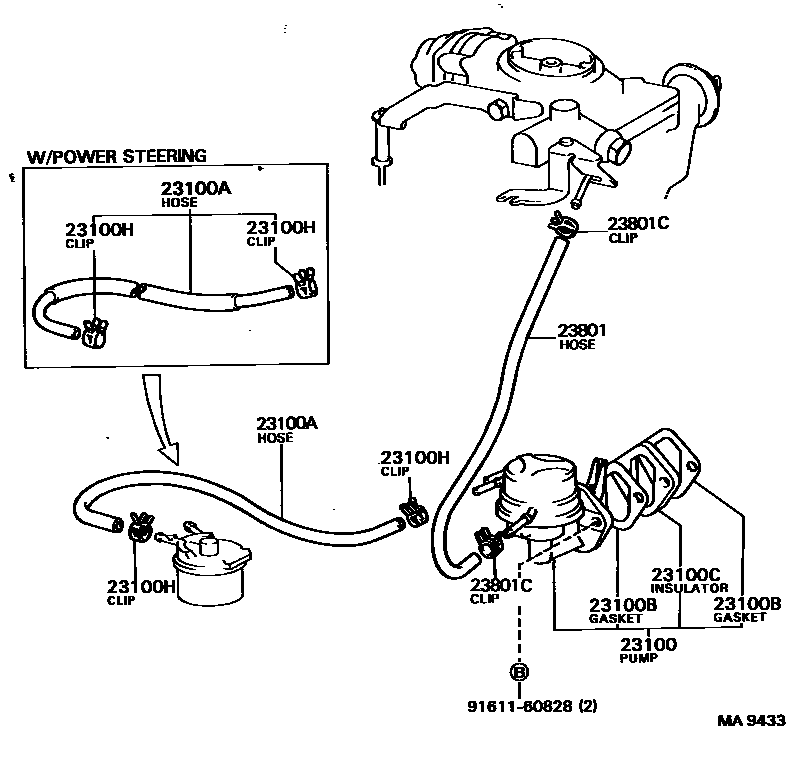

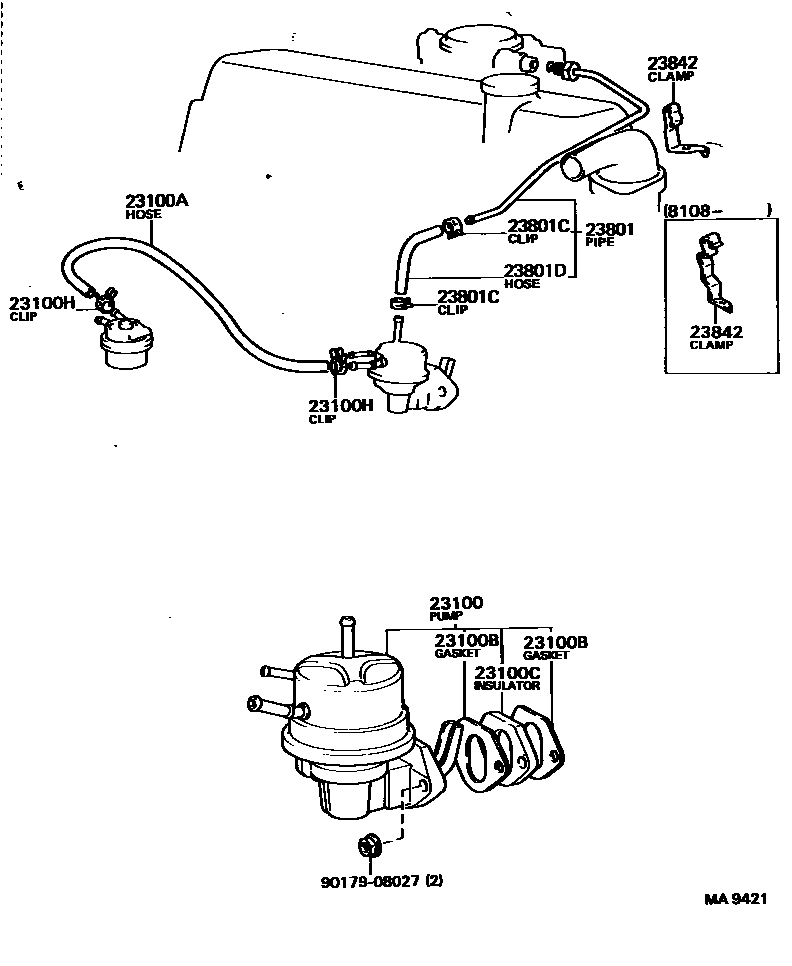

Toyota COROLLA EPC diagram 2301, 燃油泵和燃油管, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-19075 · 23100-19085 · 23100-19086 · 23100-19087 · 23100-19105 · 23100-19106 · 23100-19125 · 23100-19205 · 23100-29305 |
| 23100A | fuel hose | 23271-18020 · 95332-06030 · 95332-06040 · 95333-06032 · 95333-06040 |
| 23100B | fuel pump gasket | 90923-05005 · 90923-05006 |
| 23100C | Fuel pump vibration isolation pad | 23915-15010 · 90923-06001 · 90923-06003 |
| 23100H | Clamp (for fuel hose) | 96132-30600 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23271-15010 · 23801-13030 · 23801-13050 · 23801-13120 · 23801-24061 · 95332-06030 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 |
| 23801D | No. 1 fuel line hose | 90447-12093 |
| 23842 | No. 2 fuel pipe (hose) clamp | 23841-13020 · 90461-08528 · 90461-08532 |
