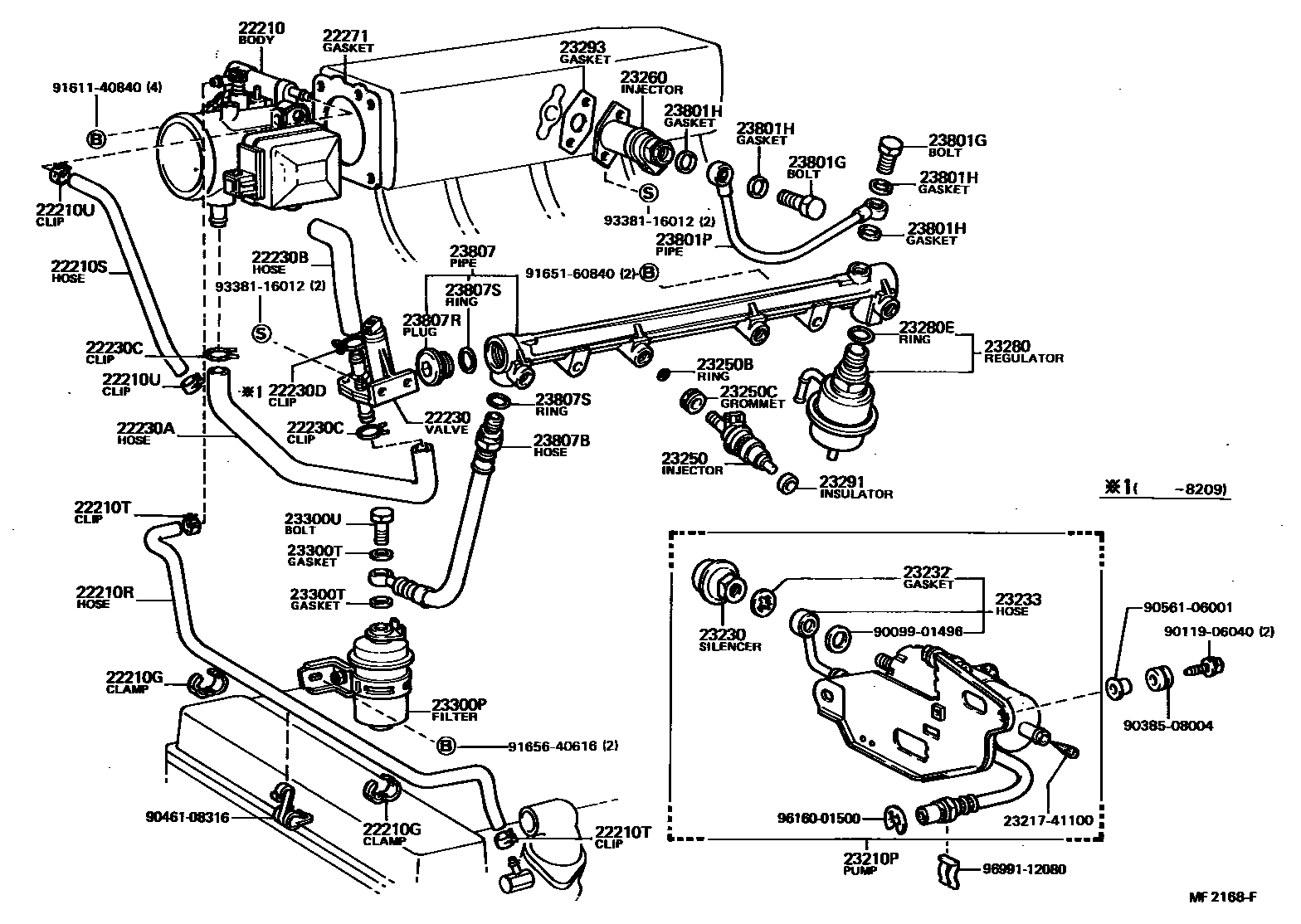

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 1 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-26030 |
| 22210G | Clip or clip (for throttle body hose) | 22172-88260 |
| 22210R | No. 1 throttle body hose | 22232-88262 |
| 22210S | No. 2 throttle body hose | 22231-88261 |
| 22210T | Catch (for No. 1 throttle body) | 90467-13001 |
| 22210U | Catch (for No. 2 throttle body) | 90467-13001 |
| 22230 | Auxiliary air valve assembly | 22230-26011 · 22230-26020 · 22230-28020 |
| 22230A | No. 1 auxiliary air valve hose | 22233-88261 · 22233-88262 |
| 22230B | No. 2 auxiliary air valve hose | 22234-88261 |
| 22230C | No. 1 auxiliary air valve hose clip | 90467-20020 |
| 22230D | No. 2 auxiliary air valve hose clip | 90467-21152 |
| 22271 | Throttle body gasket | 22271-88261 |
| 23210P | Water pump assembly with motor and bracket | 23210-26090 |
| 23230 | Muffler assembly | 23230-26080 |
| 23232 | Gasket (for fuel pump hose) | 23232-26080 |
| 23233 | fuel pump hose | 23233-29055 · 90999-99073 · 90999-99102 |
| 23250 | Fuel injector assembly | 23250-41041 · 23250-45011 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23260 | Cold start injector assembly | 23260-26030 · 23260-34040 |
| 23280 | Fuel pressure regulator assembly | 23280-26020 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-15001 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23293 | Cold start injector gasket | 23293-34020 |
| 23300P | Fuel filter (for EFI) | 23300-26070 |
| 23300T | Gasket (for fuel filter) | 90430-12005 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801G | Connector bolt (for fuel pipe) | 90401-10008 |
| 23801H | Gasket (for fuel lines) | 90099-01459 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-88260 |
| 23807 | Oil pipe sub-assembly | 23807-88263 · 23807-88266 |
| 23807B | Fuel line hose | 90923-01204 |
| 23807R | Oil pipe plug | 90072-34110 · 90341-24002 |
| 23807S | O-ring (for oil pipe) | 90072-30117 · 90301-11003 |
