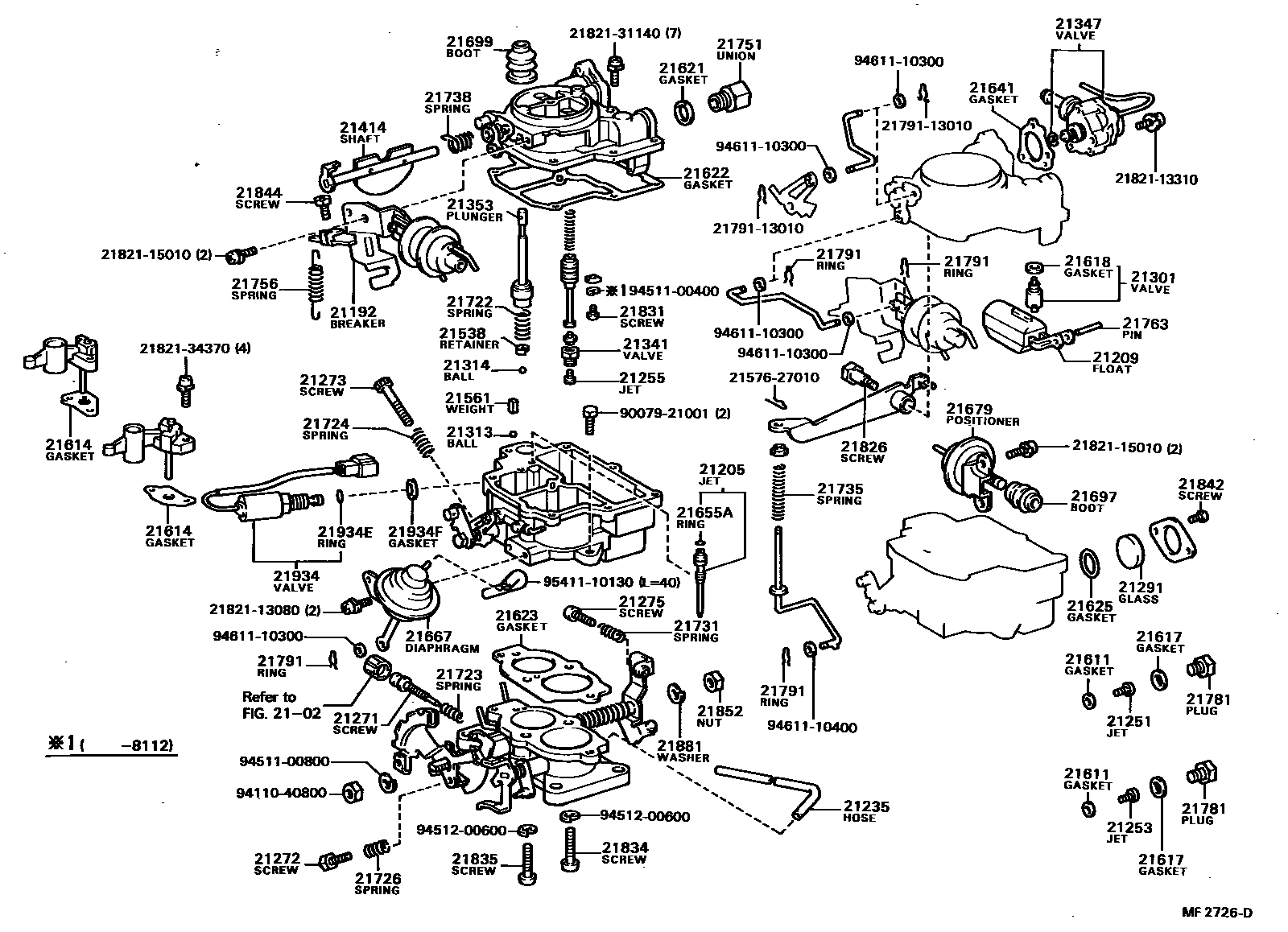

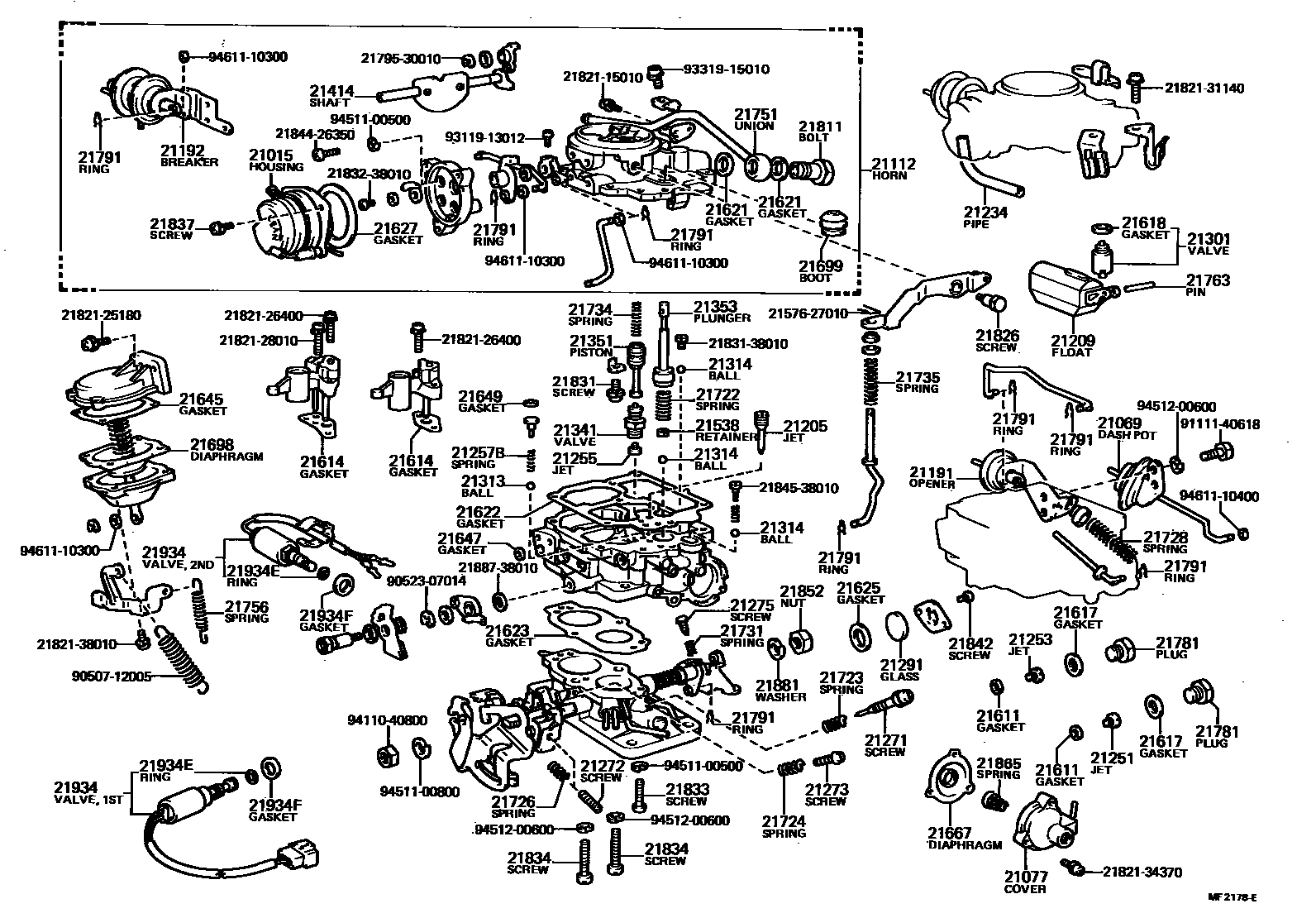

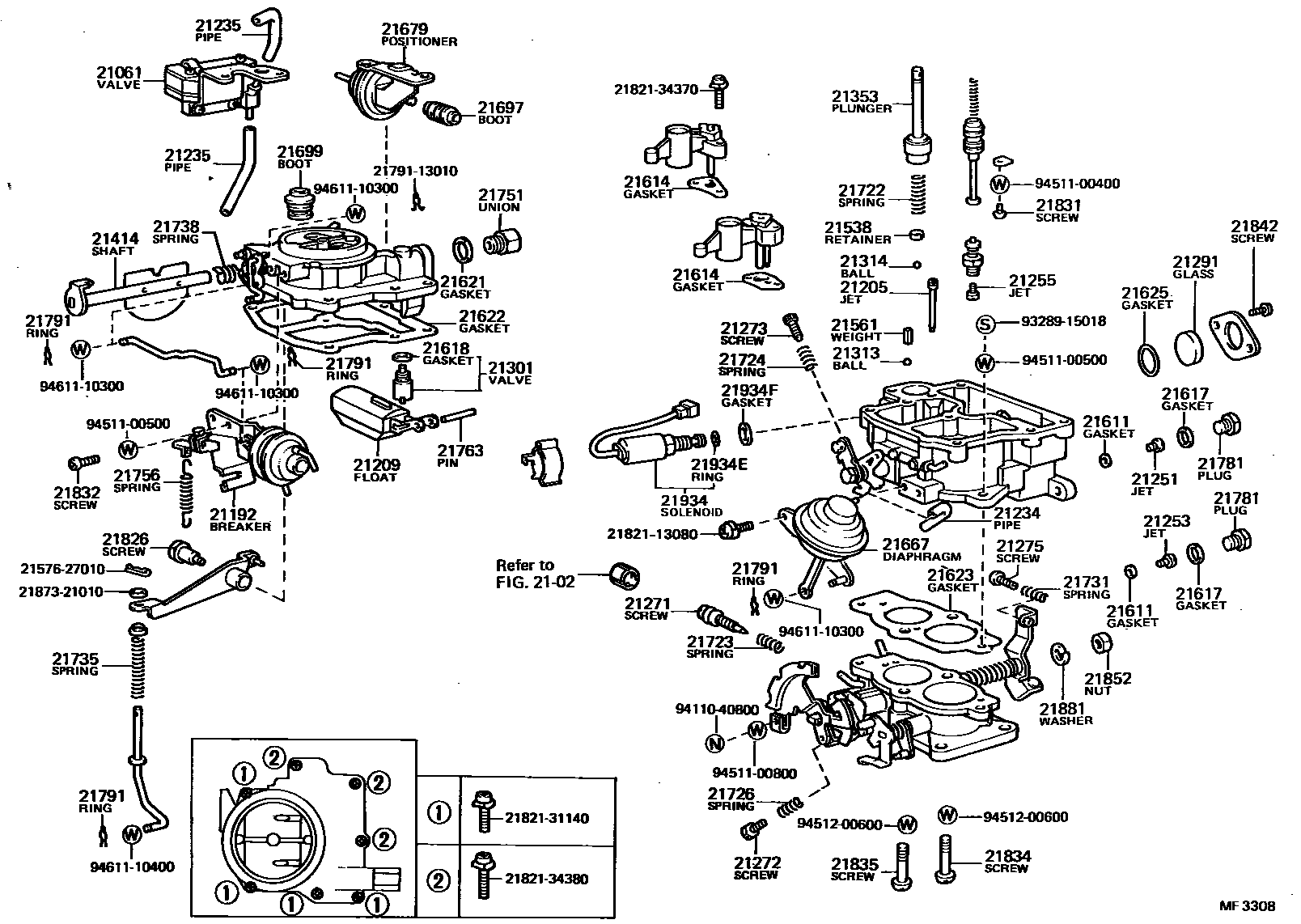

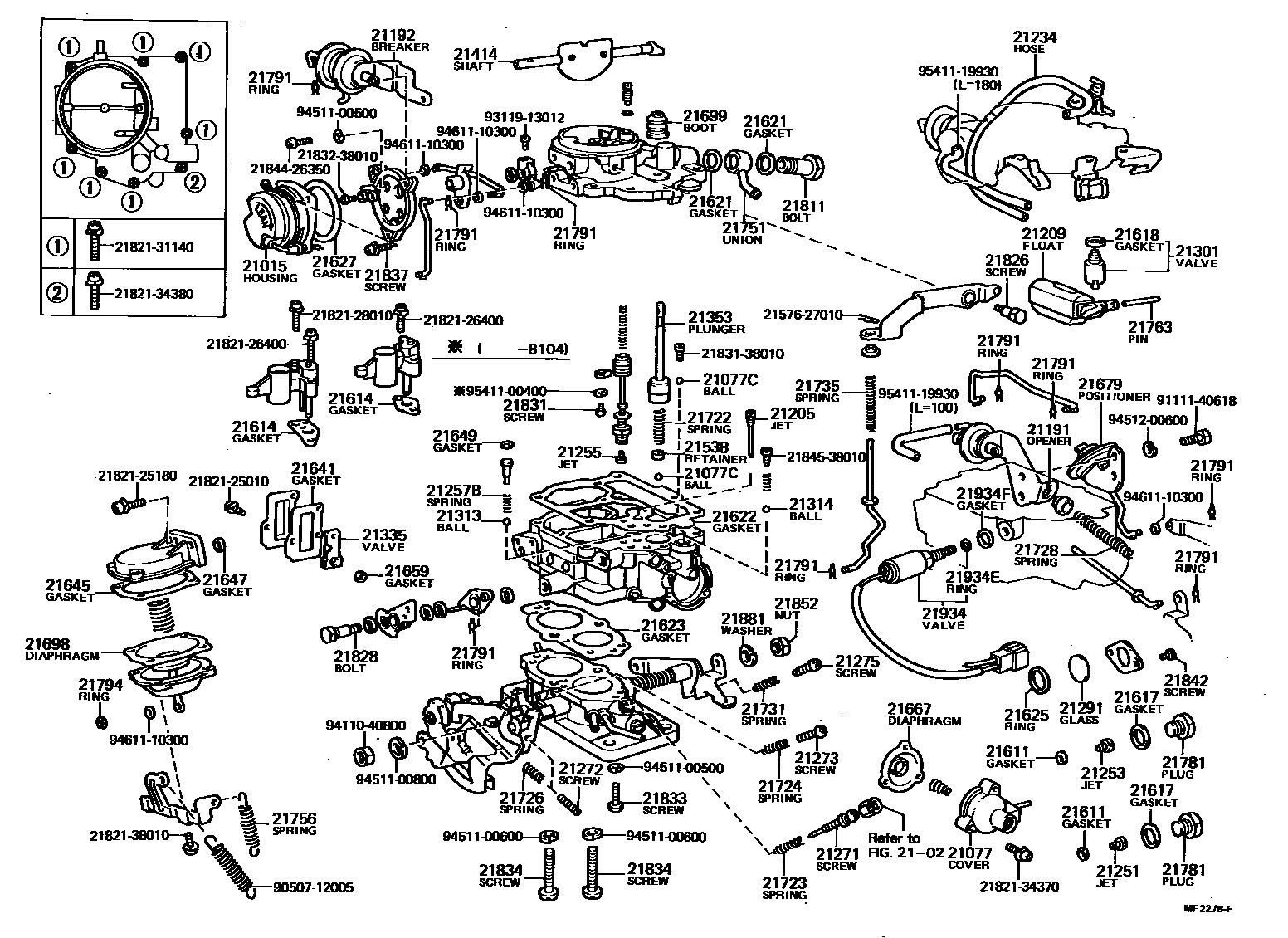

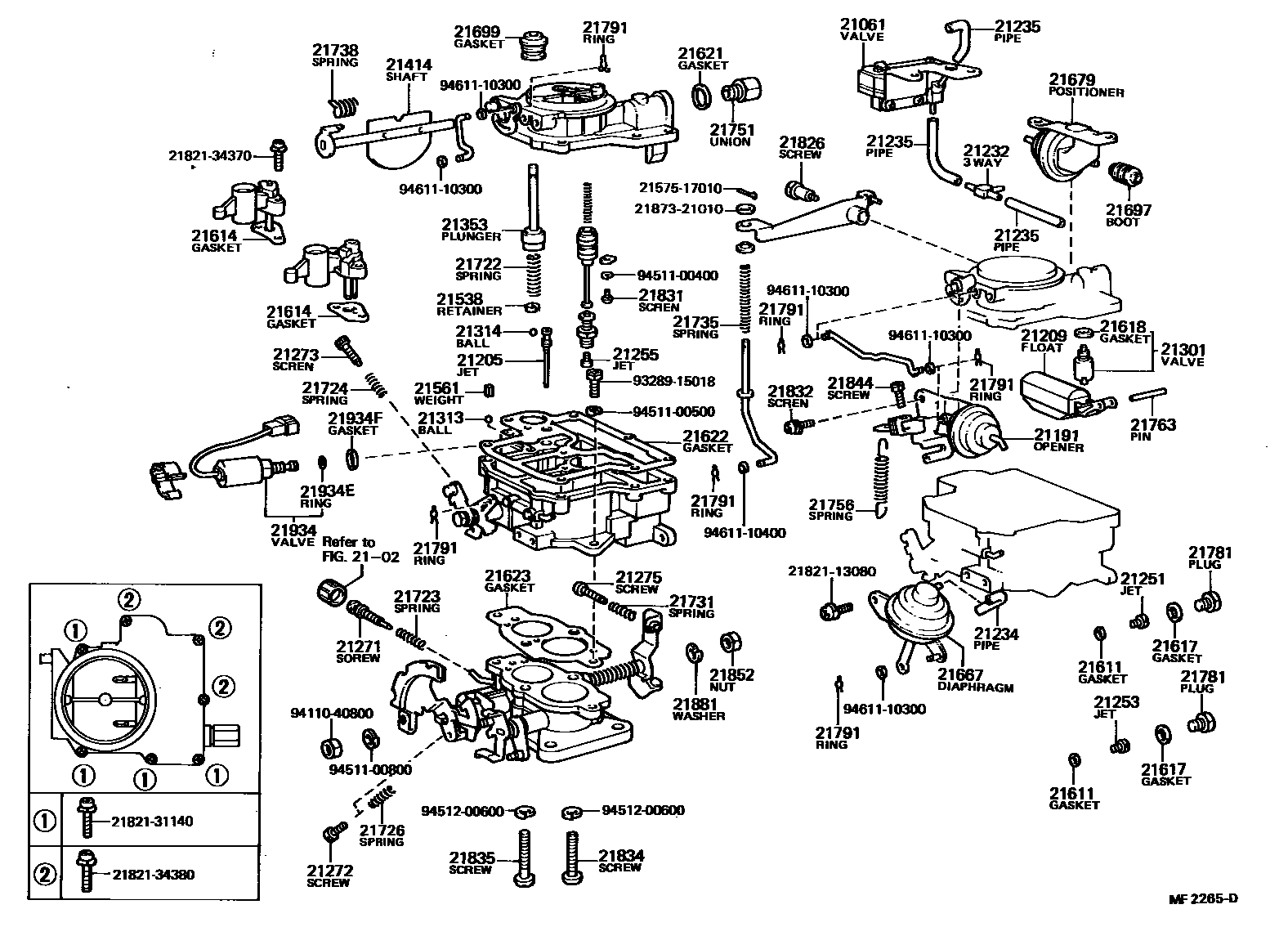

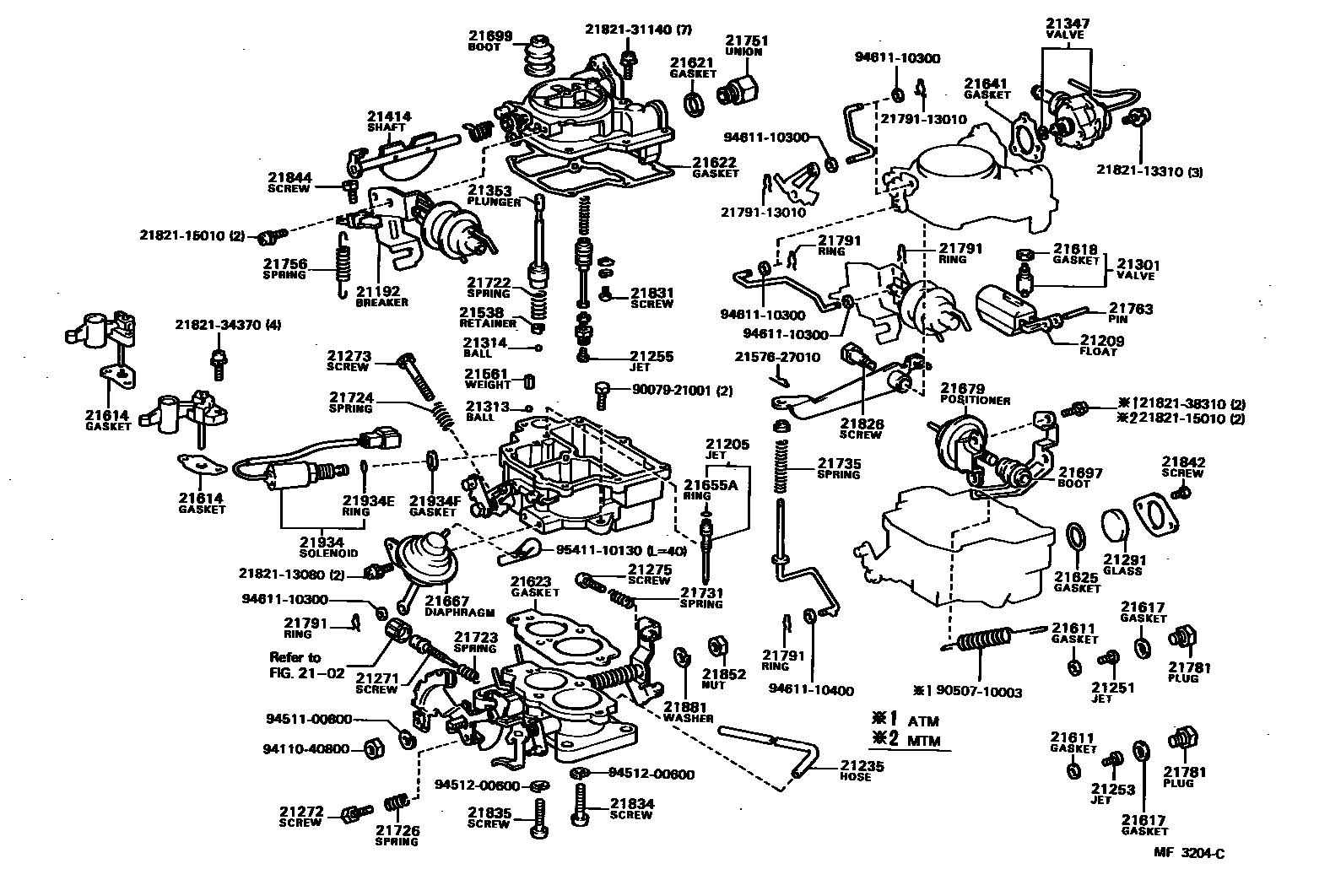

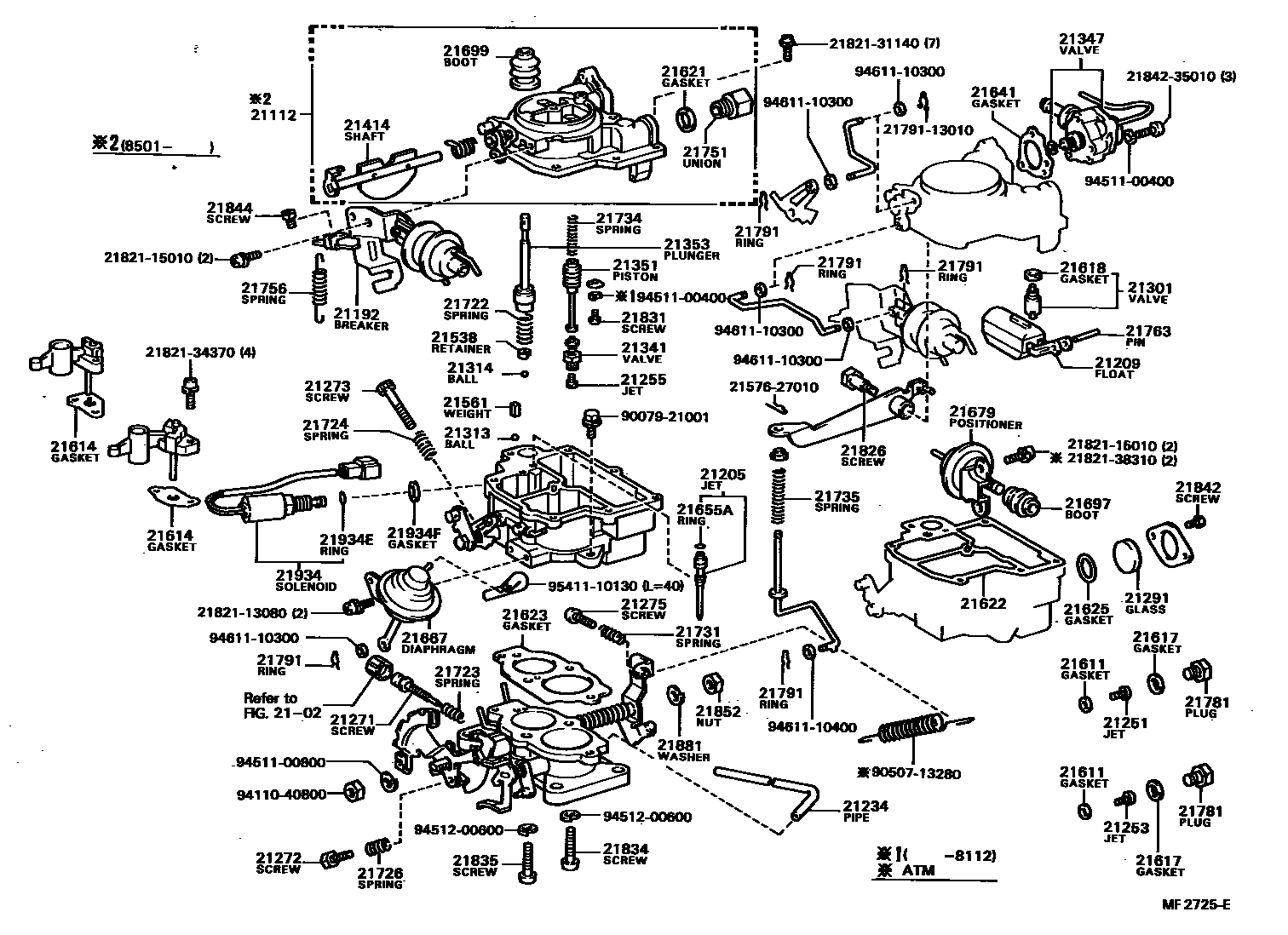

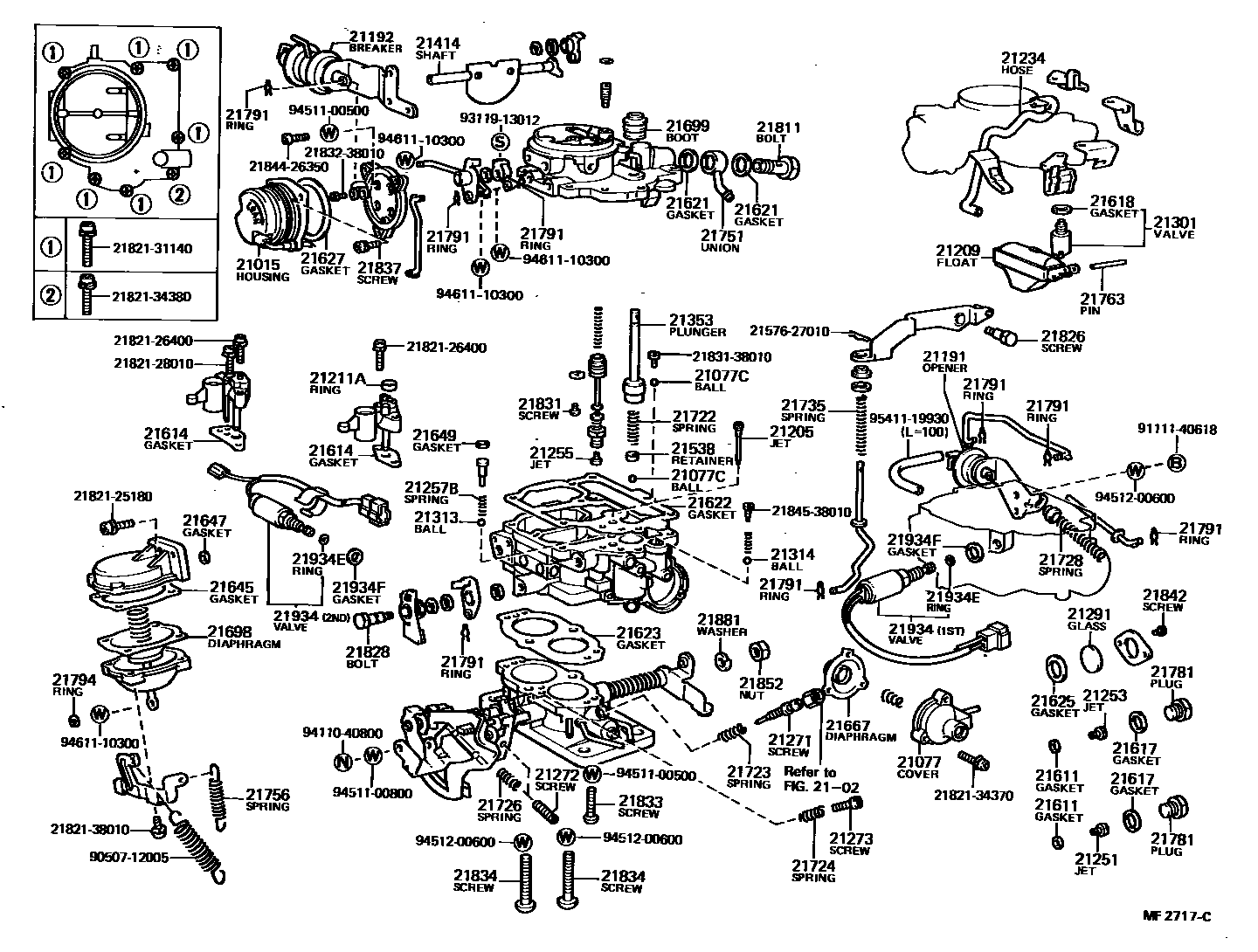

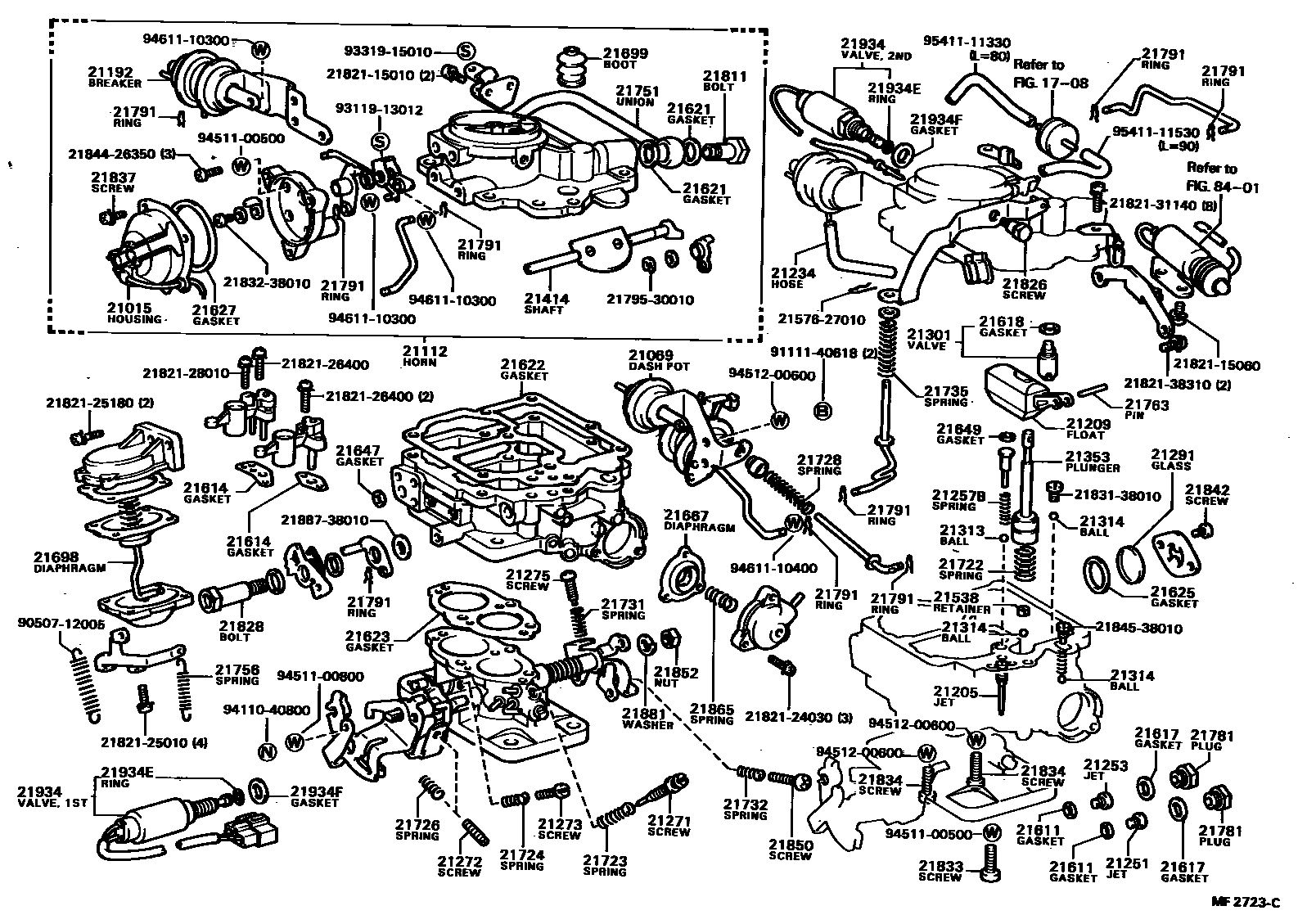

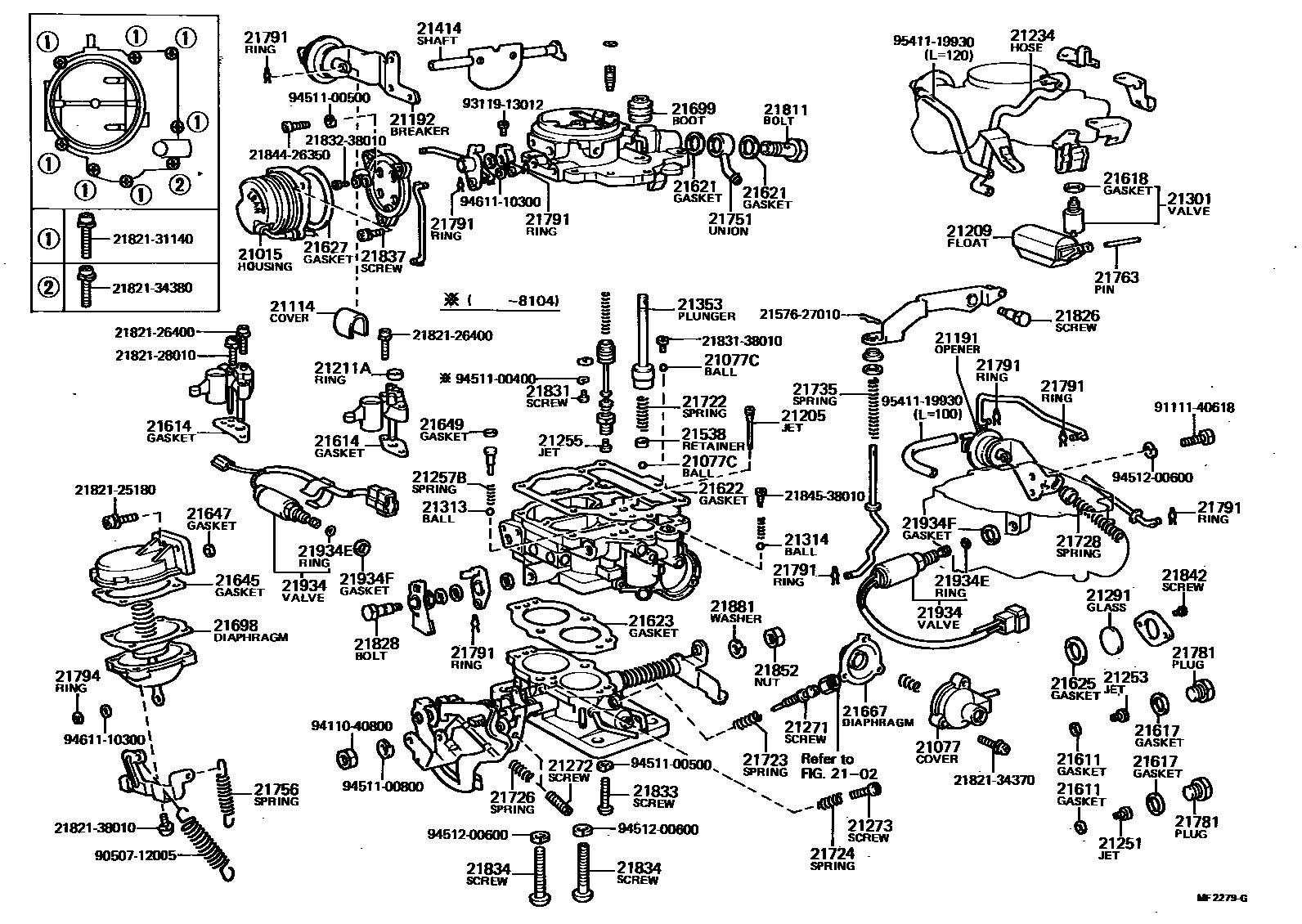

Toyota COROLLA 化油器 — Figure 2103
Toyota COROLLA EPC diagram 2103, 化油器, with 10 images and 89 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-15230 · 21015-18060 · 21015-27040 · 21015-27100 |
| 21061 | Thermostat valve sub-assembly | 21061-13080 · 21061-24500 |
| 21069 | Deceleration buffer sub-assembly | 21069-15020 · 21679-15230 |
| 21077 | Cover (for auxiliary accelerator pump) | 21077-15020 · 21077-26350 |
| 21077C | Steel ball (for auxiliary accelerator pump) | 21314-11020 |
| 21112 | Air intake bell mouth | 21112-13281 · 21112-15022 · 21112-15023 · 21112-15230 |
| 21114 | Hood (for choke lever) | 21115-18060 |
| 21191 | opener | 21191-13140 · 21191-15010 · 21191-15160 · 21191-18040 · 21191-24500 · 21191-28120 |
| 21192 | breaker | 21192-13010 · 21192-13080 · 21192-13280 · 21192-15020 · 21192-18040 · 21192-18080 · 21192-18100 · 21192-18131 · 21192-27040 |
| 21205 | Idle speed measuring hole assembly | 21205-13011 · 21205-13080 · 21205-13140 · 21205-13270 · 21205-13280 · 21205-13450 · 21205-15010 · 21205-15011 · 21205-26390 · 21205-27040 |
| 21209 | Float sub-assembly | 21209-15020 · 21209-24480 · 21209-27040 |
| 21211A | Ring (for small venturis) | 21659-38110 |
| 21232 | tube | 21232-13050 |
| 21234 | pipe or hose | 21234-13280 · 21234-18080 · 21234-24361 · 95411-10130 · 95411-19930 |
| 21235 | Connecting pipe or connecting hose | 21234-13010 · 21234-13140 · 21235-13050 · 21235-13051 · 21235-13080 · 21235-13310 · 21235-13311 · 21235-24231 |
| 21251 | first main measuring hole | 90999-41083 · 90999-41084 · 90999-41094 · 90999-41098 · 90999-41099 · 90999-41104 · 90999-41105 · 90999-41108 · 90999-41117 · 90999-41119 · 90999-41121 · 90999-41123 |
| 21253 | Deputy main measuring hole | 90999-42150 · 90999-42153 · 90999-42156 · 90999-42159 · 90999-42162 · 90999-42165 · 90999-42177 · 90999-42180 |
| 21255 | Power measuring hole | 90999-43044 · 90999-43047 · 90999-43050 · 90999-43053 · 90999-43060 · 90999-43068 |
| 21257B | Spring (for accelerating the nozzle) | 21864-27010 · 21864-38010 |
| 21271 | Idle speed adjustment screw | 21271-13270 · 21271-13271 · 21271-15230 · 21271-24470 · 21271-25201 · 21271-26371 |
| 21272 | First gear idle speed adjustment screw | 21814-33010 · 21828-25180 |
| 21273 | Throttle adjustment screw | 21273-13390 · 21273-24230 · 21273-24231 · 21844-33010 |
| 21275 | Adjustment screw | 21275-24360 · 21275-24361 · 21842-28090 · 21844-25010 · 21844-26030 · 21844-33010 |
| 21291 | oil level gauge glass | 21291-34320 · 21291-60200 |
| 21301 | Needle valve sub-assembly | 21301-13080 · 21301-14010 · 21301-15020 · 21301-15080 · 21301-24360 · 21301-24500 · 21301-24501 · 21301-26350 |
| 21313 | No. 1 steel ball (for oil drain counterweight) | 21313-11020 |
| 21314 | No. 2 steel ball (for pump plunger) | 21314-11020 · 21314-60010 |
| 21335 | thermostat valve | 21335-25010 |
| 21341 | enrichment valve | 21304-30010 · 21341-24230 |
| 21347 | Solenoid valve | 21347-13310 |
| 21351 | enrichment piston | 21351-24230 · 21351-33080 |
| 21353 | pump plunger | 21305-22011 · 21353-13280 · 21353-13400 · 21353-13450 · 21353-33010 |
| 21414 | choke shaft | 21054-13010 · 21054-15230 · 21054-24010 · 21054-26401 |
| 21538 | One way ball fixing | 21538-31010 |
| 21561 | Pump drain counterweight | 21561-22010 |
| 21611 | Main gage hole gasket | 21611-22010 |
| 21614 | Venturi gasket | 21614-22010 · 21614-24360 · 21614-33010 · 21614-33080 |
| 21617 | Main oil gallery plug gasket | 21617-30010 |
| 21618 | Needle seat gasket | 21618-14010 · 21618-24030 |
| 21621 | Oil pipe joint gasket | 21633-24030 |
| 21622 | Air intake bell gasket | 21622-13280 · 21622-24360 · 21622-26510 |
| 21623 | Body hem pads | 21623-13080 · 21623-15230 · 21623-24360 · 21623-25180 |
| 21625 | oil level gauge gasket | 21655-60200 |
| 21627 | Coil housing gasket | 21627-28090 · 21627-34080 |
| 21641 | Gasket (for thermostat valve cover) | 21641-13310 · 21641-23012 |
| 21645 | Diaphragm cover gasket | 21645-33080 |
| 21647 | Diaphragm housing cover gasket | 21649-33080 |
| 21649 | Gasket (for pump drain weight stop) | 21641-33011 · 21655-11040 |
| 21655A | O-ring (for idle speed measuring hole) | 21655-44101 |
| 21659 | O-ring (for thermostat valve) | 21641-24030 |
| 21667 | Diaphragm | 21667-13010 · 21667-13280 · 21667-13290 · 21667-24360 · 21667-38011 · 21667-38310 |
| 21679 | locator | 21679-13011 · 21679-13140 · 21679-13290 · 21679-27080 |
| 21697 | Dust boot (for sliding link) | 21699-24360 · 21699-41010 |
| 21698 | Diaphragm | 21669-15230 · 21669-25010 |
| 21699 | Dust boot (for pump plunger) | 21699-21061 · 21699-28150 |
| 21722 | Pump damping spring | 21722-22010 |
| 21723 | Idle speed adjustment spring | 21723-21030 |
| 21724 | Throttle valve adjustment spring | 21723-21030 · 21864-24230 |
| 21726 | First gear idle speed adjustment spring | 21723-15260 · 21723-21030 · 21726-40010 |
| 21728 | Throttle return spring | 21756-25181 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21723-10010 · 21723-21030 · 21864-24010 |
| 21732 | Throttle valve adjustment spring | 21723-21030 |
| 21734 | Thickening piston spring | 21734-13280 · 21734-15010 · 21734-22050 |
| 21735 | Pump rod spring | 21735-15010 · 21735-18060 · 21735-21032 · 21735-22010 · 21735-24360 |
| 21738 | Choke pressure reducing spring | 21738-13010 · 21738-24030 |
| 21751 | Oil pipe joint | 21751-24033 · 21751-24034 · 21894-15010 · 21894-15011 · 21894-15081 · 21894-26350 · 90405-06003 |
| 21756 | Return spring (for throttle shaft) | 21756-15010 · 21756-15080 · 21756-33080 · 21864-13010 · 21864-13080 · 21864-13140 · 21864-13290 |
| 21763 | floating lever pin | 21763-26350 · 21763-38010 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-15230 · 21781-30020 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-60010 |
| 21794 | No. 1 retaining ring (for throttle shaft) | 21794-40070 |
| 21811 | Oil pipe joint bolt | 21811-11060 |
| 21826 | Pump rod fixing screw | 21826-24470 · 21826-31012 |
| 21828 | First gear idle speed fixing screw | 21845-15230 · 21845-26400 |
| 21831 | Enrichment piston limit screw | 21821-15060 · 21842-33010 |
| 21832 | Screw (for choke lever adapter assembly) | 21821-15010 · 21832-44010 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21833-33010 |
| 21834 | No. 2 fixing screw (for carburetor body assembly) | 21834-31010 · 21834-31140 · 21844-26400 |
| 21835 | No. 3 fixing screw (for carburetor body assembly) | 21835-40010 |
| 21837 | Coil housing fixing screws | 21821-25010 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21842-33010 |
| 21844 | Choke lever screw | 21844-24230 |
| 21850 | Throttle switch adjustment screw | 21844-15230 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21865 | spring | 21865-15230 · 21865-26350 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 |
| 21934 | Throttle solenoid valve | 21062-13280 · 21062-13310 · 21062-15020 · 21062-15230 · 21062-18040 · 21062-24360 · 21062-25180 · 21062-37050 · 21072-15011 · 21072-15230 · 21072-26800 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21617-10010 · 21649-38010 |
