Toyota COROLLA 点火线圈和火花塞 — Figure 1901

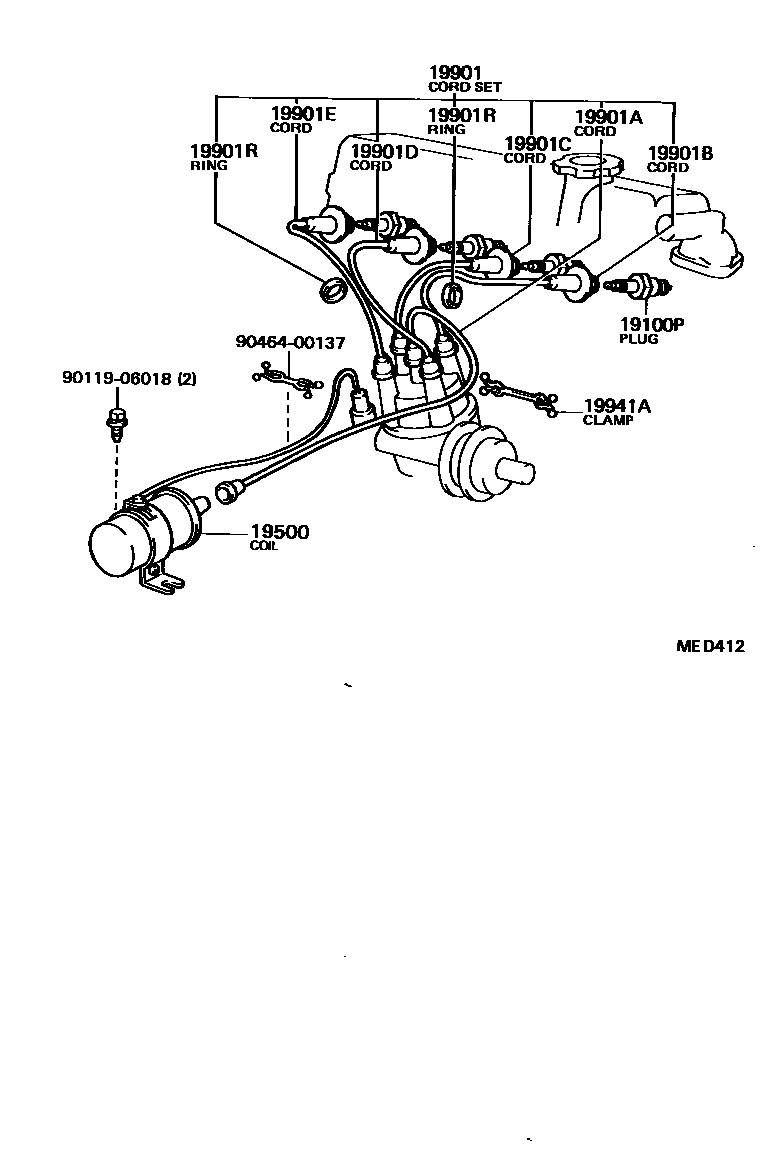

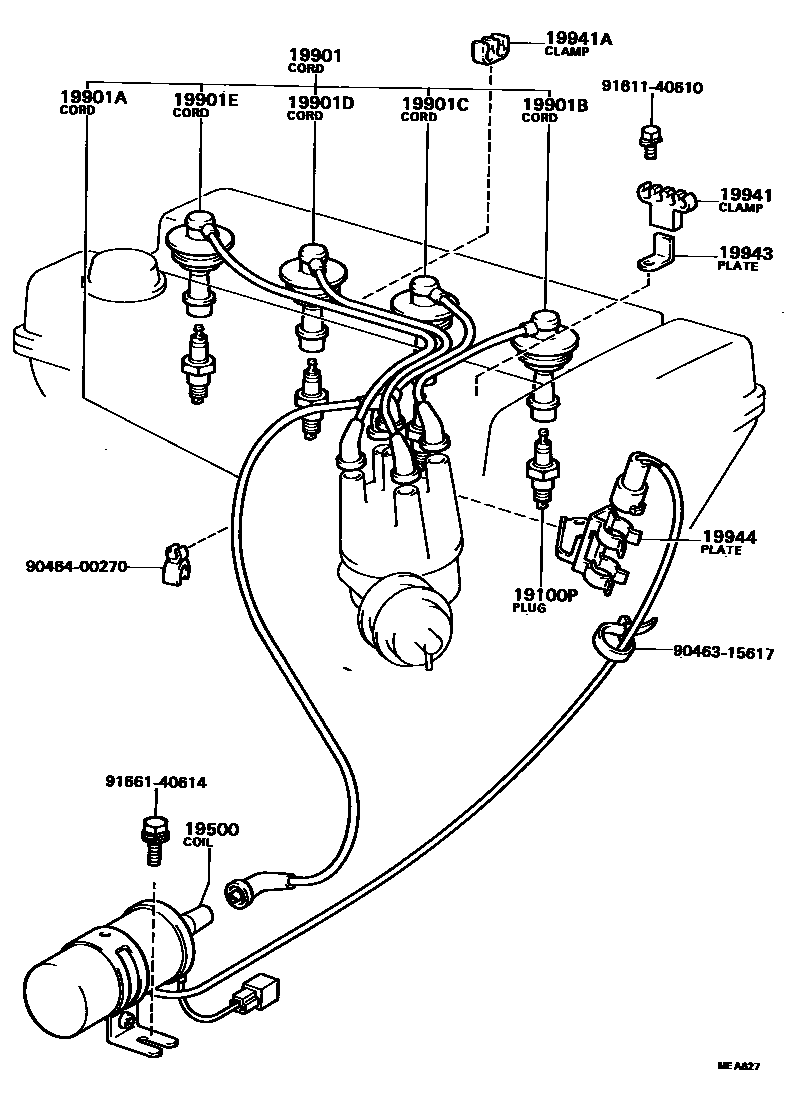

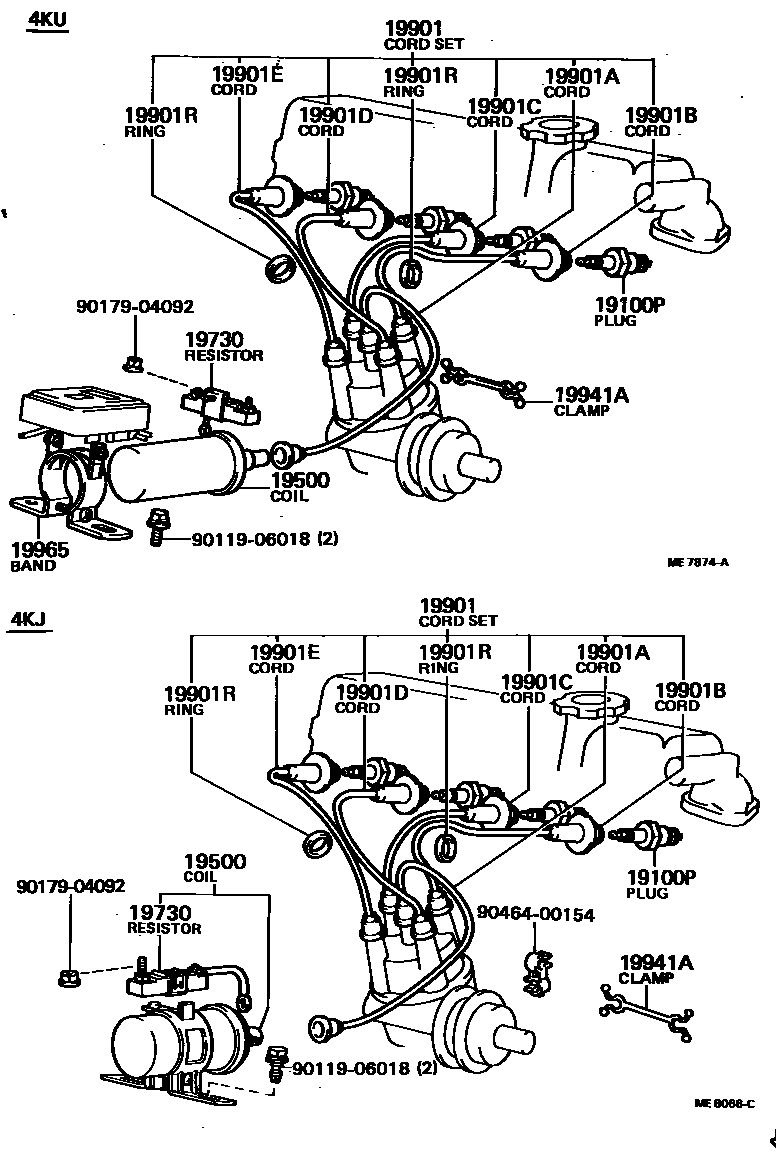

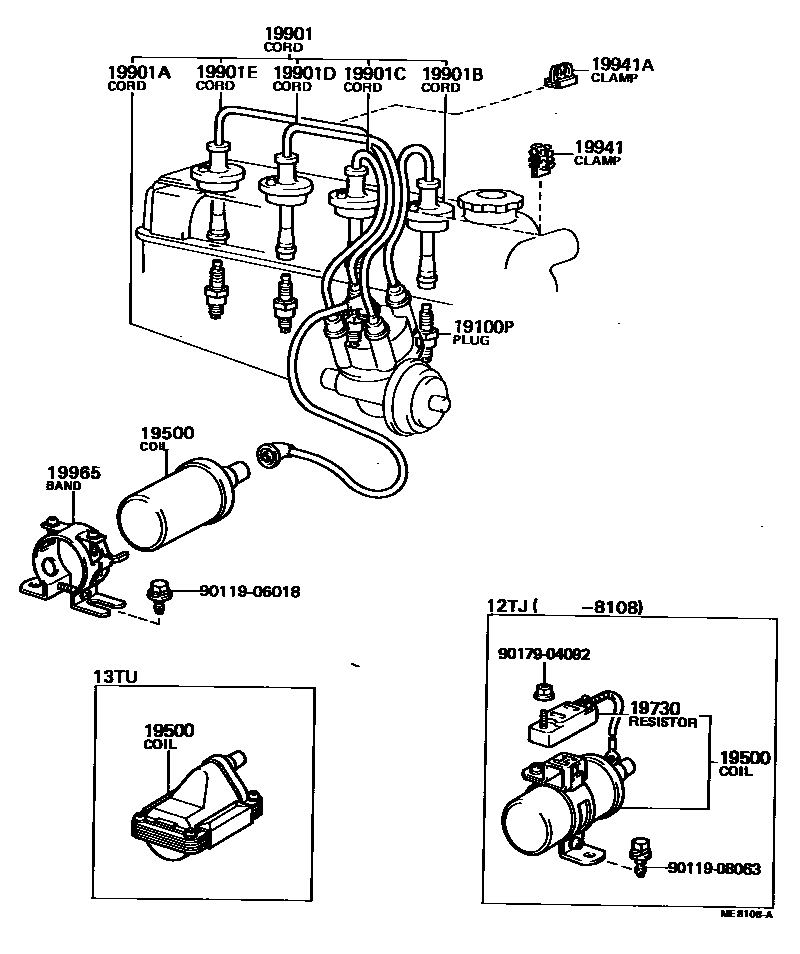

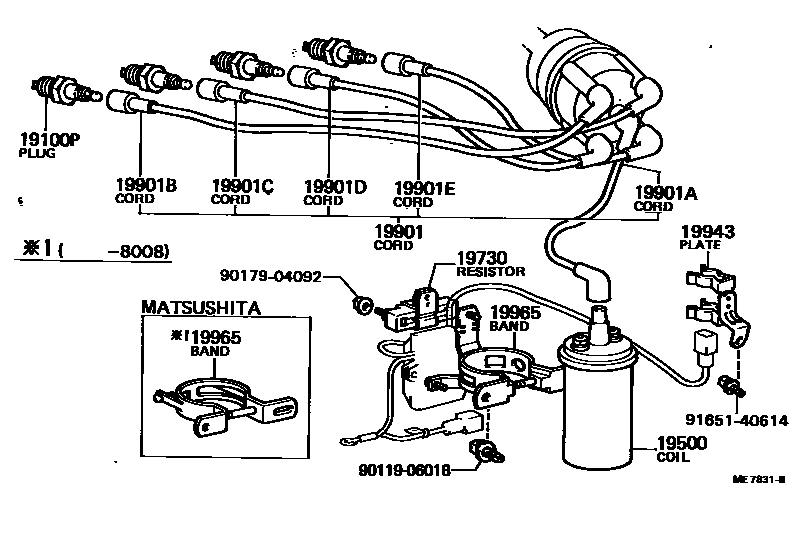

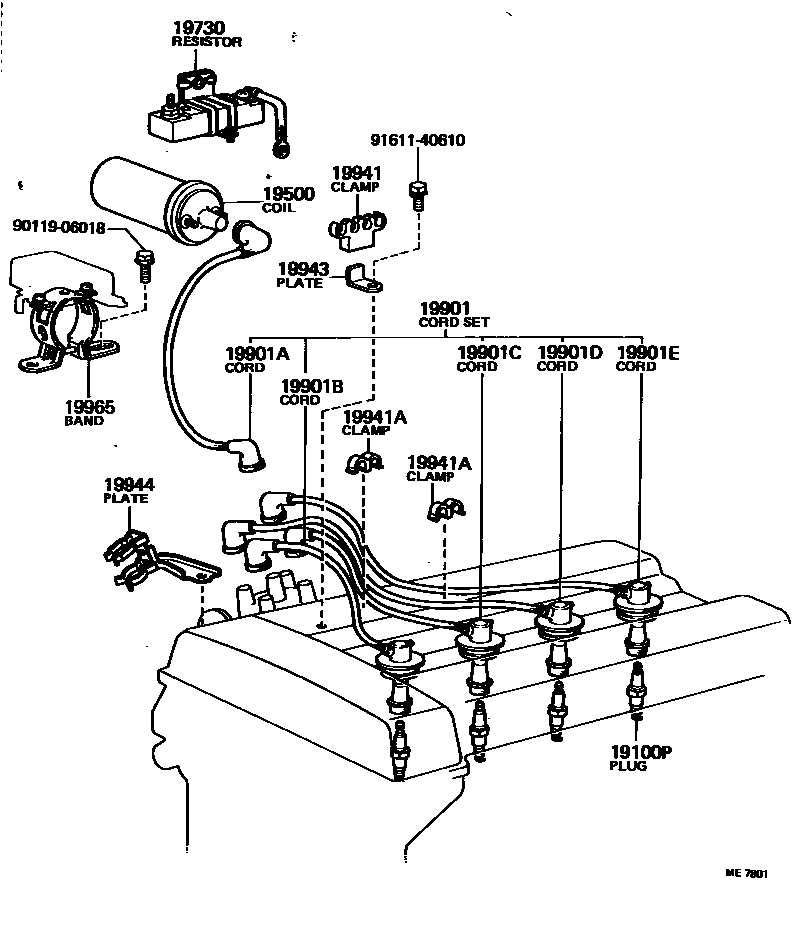

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 7 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01059 · 90919-01064 · 90919-01085 · 90919-01087 · 90919-01090 · 90919-01091 · 90919-01095 · 90919-01096 · 90919-01102 · 90919-01104 · 90919-01117 · 90919-01118 |
| 19500 | Ignition coil assembly | 90919-02083 · 90919-02098 · 90919-02103 · 90919-02106 · 90919-02117 · 90919-02131 · 90919-02132 · 90919-02147 |
| 19730 | Ignition coil resistor | 90919-04017 · 90919-04026 · 90919-04027 · 90919-04030 · 90919-04031 · 90919-04037 |
| 19850 | Glow plug assembly | 19850-64010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64010 · 19871-64021 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21070 · 90919-21120 · 90919-21203 · 90919-21217 · 90919-21268 |
| 19901A | coil damping line | 90919-13023 · 90919-13048 · 90919-13105 · 90919-13170 · 99254-21028 |
| 19901B | No. 1 spark plug damper wire | 90072-76848 · 90919-12084 · 90919-12149 · 90919-12352 · 99242-21037 |
| 19901C | No. 2 spark plug damper wire | 90072-76849 · 90919-12083 · 90919-12150 · 90919-12353 · 99242-21032 |
| 19901D | No. 3 spark plug damper wire | 90072-76850 · 90919-12083 · 90919-12151 · 90919-12354 · 99242-21018 |
| 19901E | No. 4 spark plug damper wire | 90072-76851 · 90919-12084 · 90919-12152 · 90919-12355 · 99242-21020 |
| 19901R | Rubber spark plug damping wire ring | 90202-11067 |
| 19941 | No. 1 damping wire clip | 19941-88260 · 90464-00053 |
| 19941A | Clamp (for damping wire) | 90464-00001 · 90464-00073 · 90464-00208 |
| 19943 | No. 1 damping wire clip support plate | 19943-15010 · 19943-15011 · 19943-88260 |
| 19944 | No. 2 damping wire clip support plate | 19944-88260 · 19944-88261 |
| 19965 | No. 1 ignition coil band | 90919-03061 · 90919-03066 · 90919-03074 · 90919-03075 |
