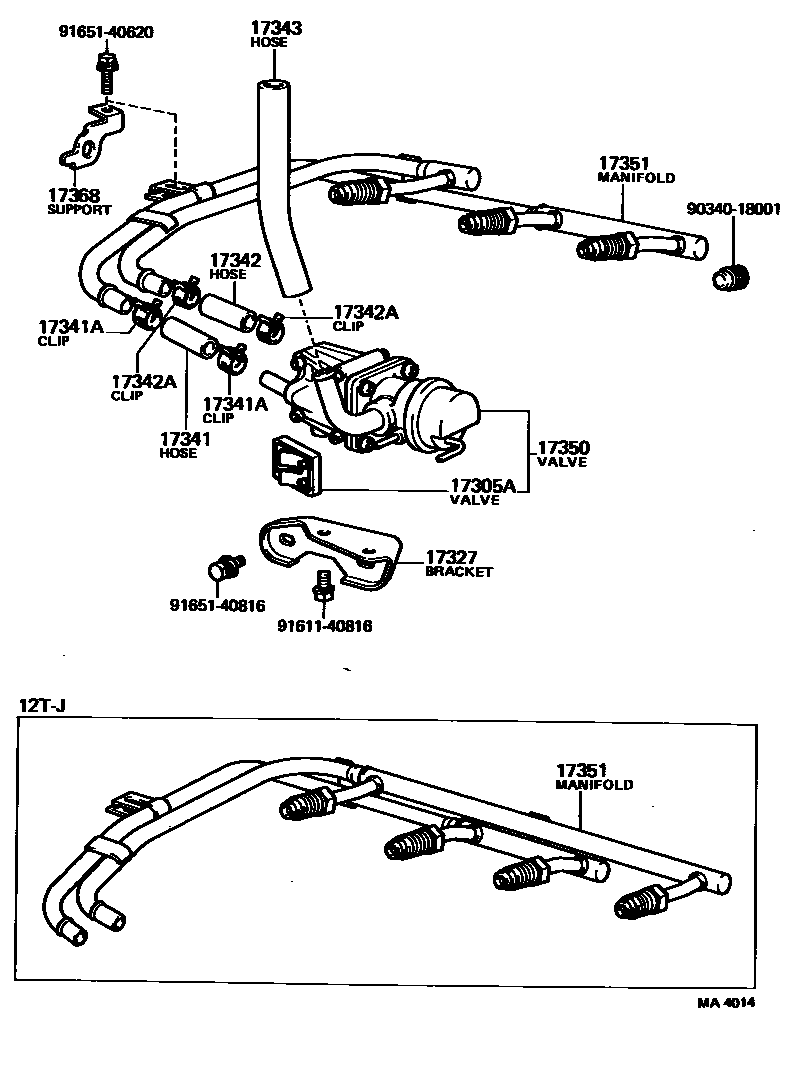

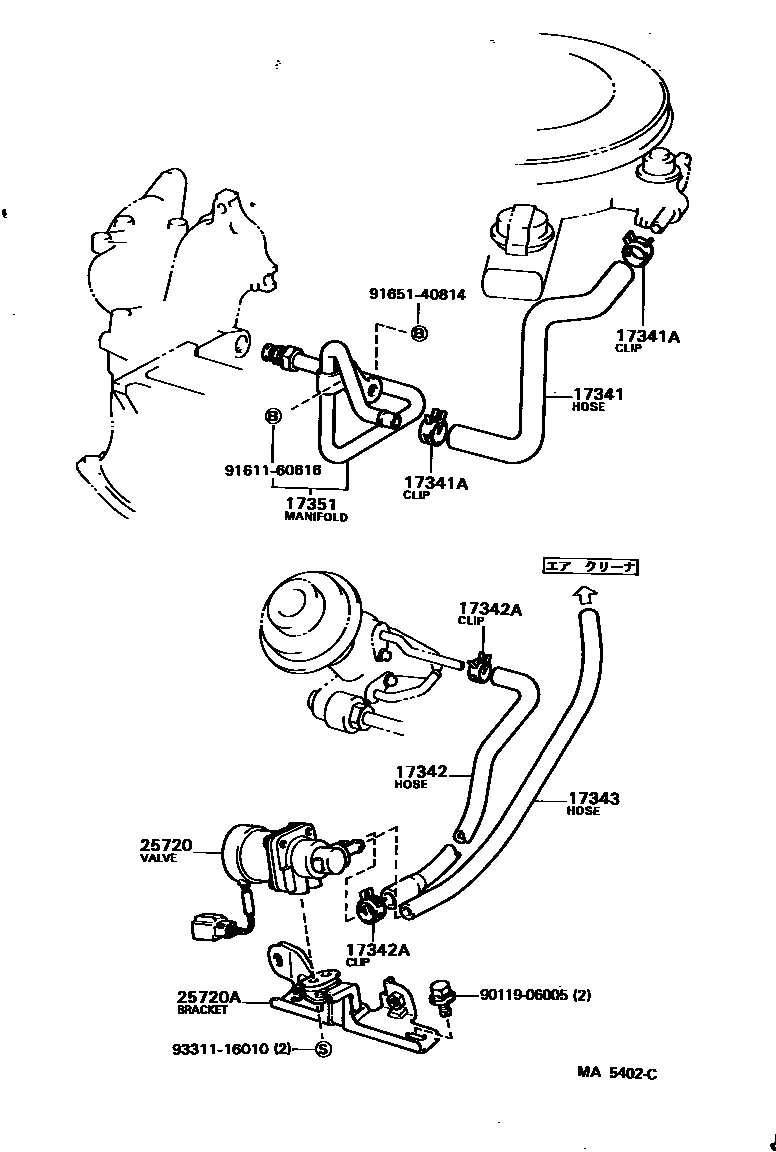

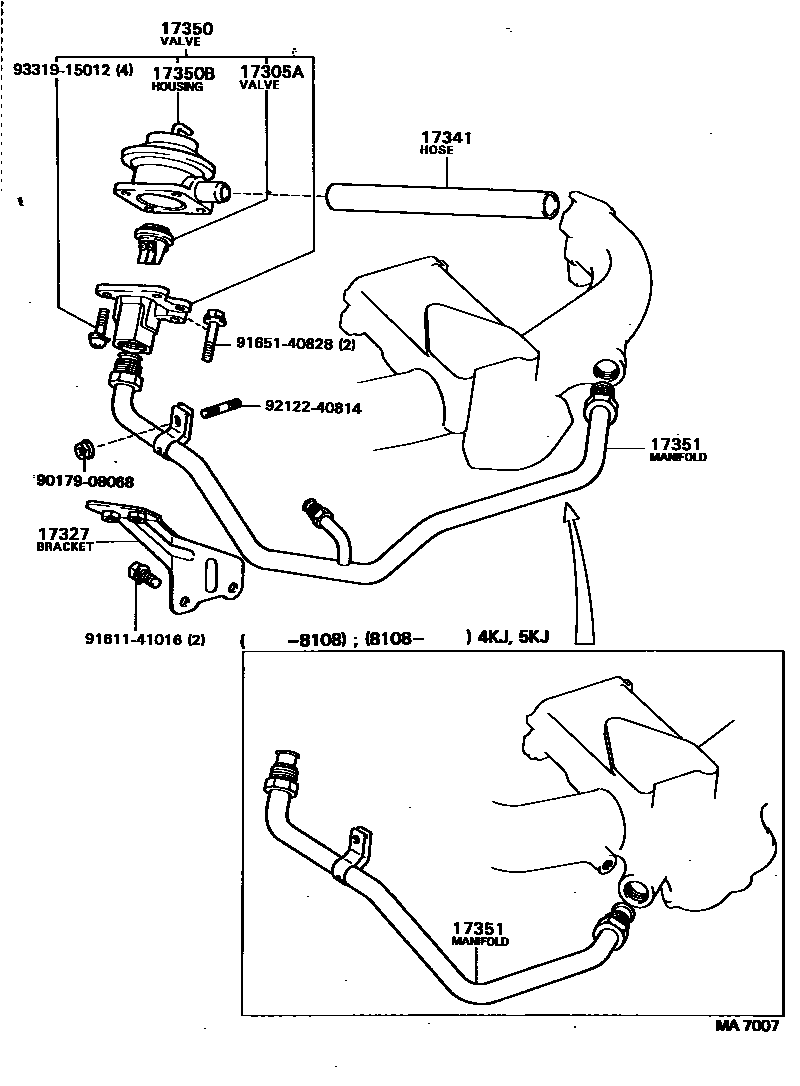

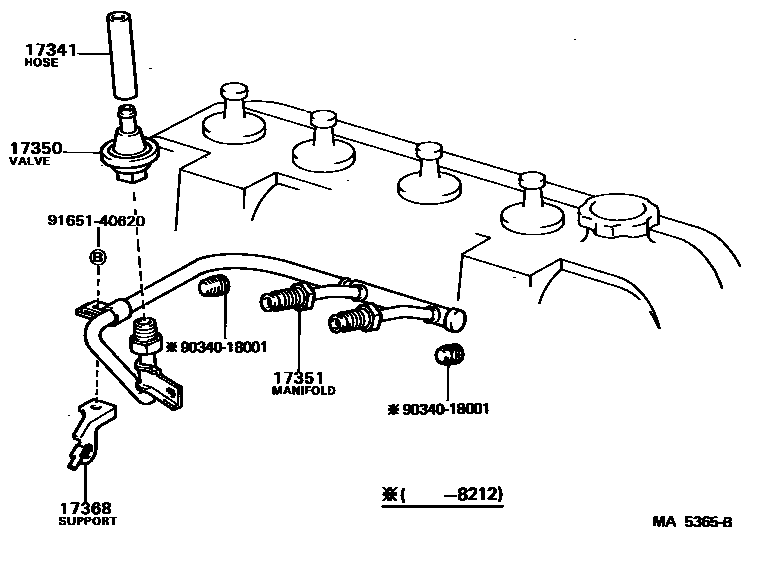

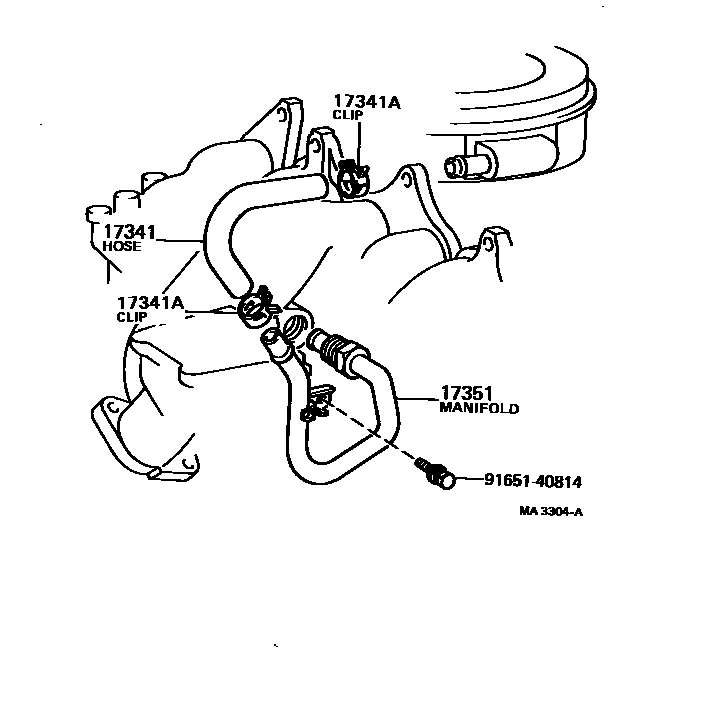

Toyota COROLLA 歧管喷气系统 — Figure 1706
Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17305A | Reed valve sub-assembly | 17305-13010 · 17305-13030 · 17305-18010 |
| 17327 | Reed valve bracket | 17327-13011 · 17327-18010 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-15030 · 17341-15050 · 90445-25018 · 90445-27011 · 90445-31010 · 90445-31014 · 90910-05154 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-21001 · 90467-23003 · 90467-28001 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-15010 · 90445-27011 |
| 17342A | No. 2 clip or clip (for No. 2 air injection system hose) | 90467-13007 · 90467-21001 · 96132-31000 |
| 17343 | No. 3 hose (for air injection system) | 90445-14085 · 90445-31012 |
| 17350 | Reed valve assembly | 17350-13020 · 17350-13040 · 17350-13050 · 17350-13060 · 17350-18010 · 17350-27040 |
| 17350B | Diaphragm housing sub-assembly | 25703-13020 · 25703-13040 · 25703-13050 |
| 17351 | jet manifold | 17306-13011 · 17306-13020 · 17306-13030 · 17306-15010 · 17306-15030 · 17351-27050 · 17351-27080 · 17351-27100 |
| 17368 | Air tube support | 17368-18040 · 17368-26020 |
| 25720 | Electronic air control valve assembly | 25704-15010 |
| 25720A | Electronic air control valve bracket | 25724-15020 |
