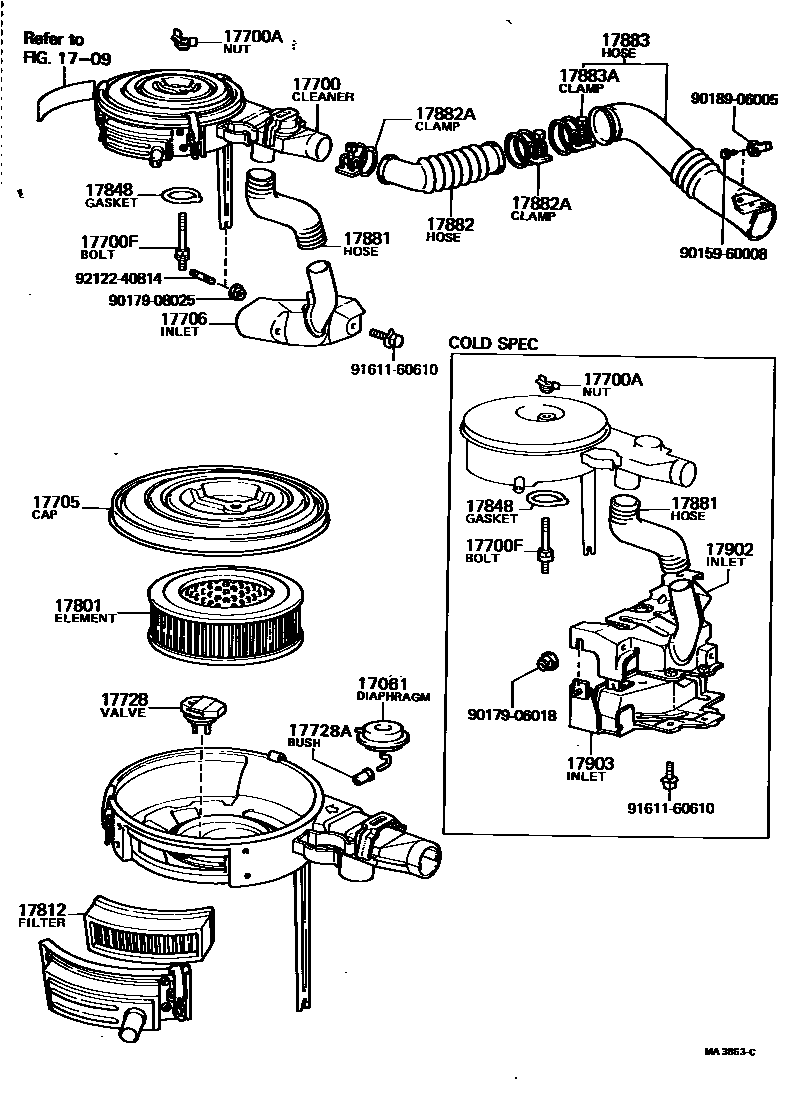

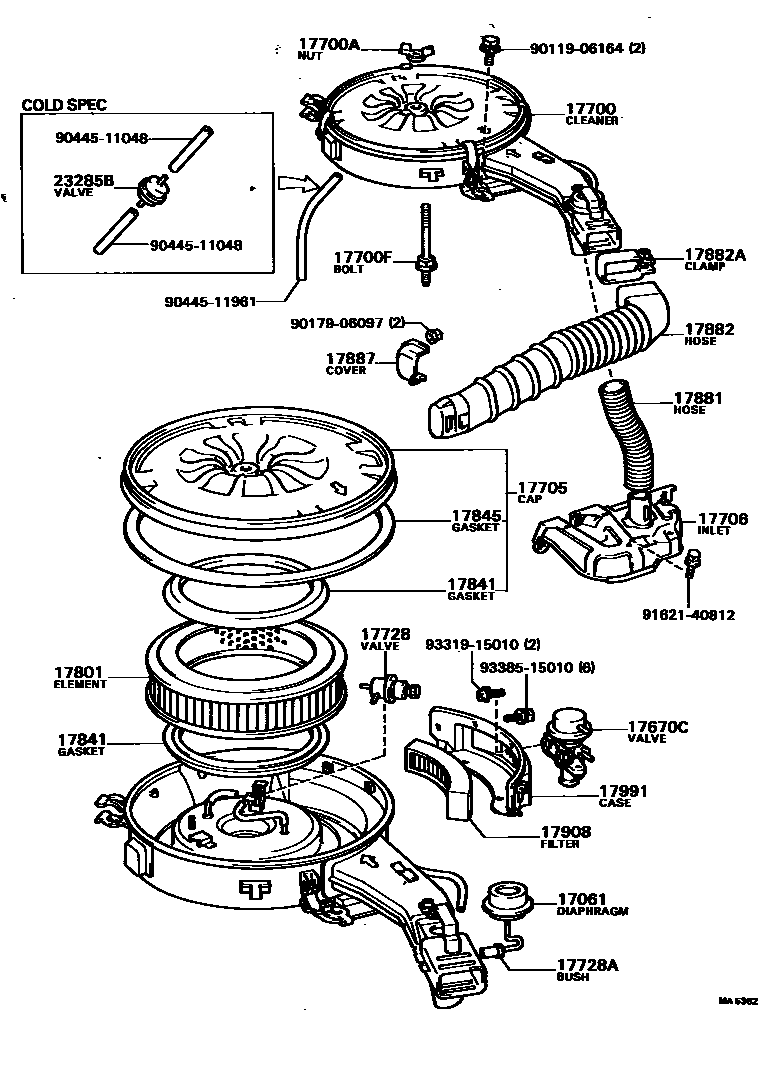

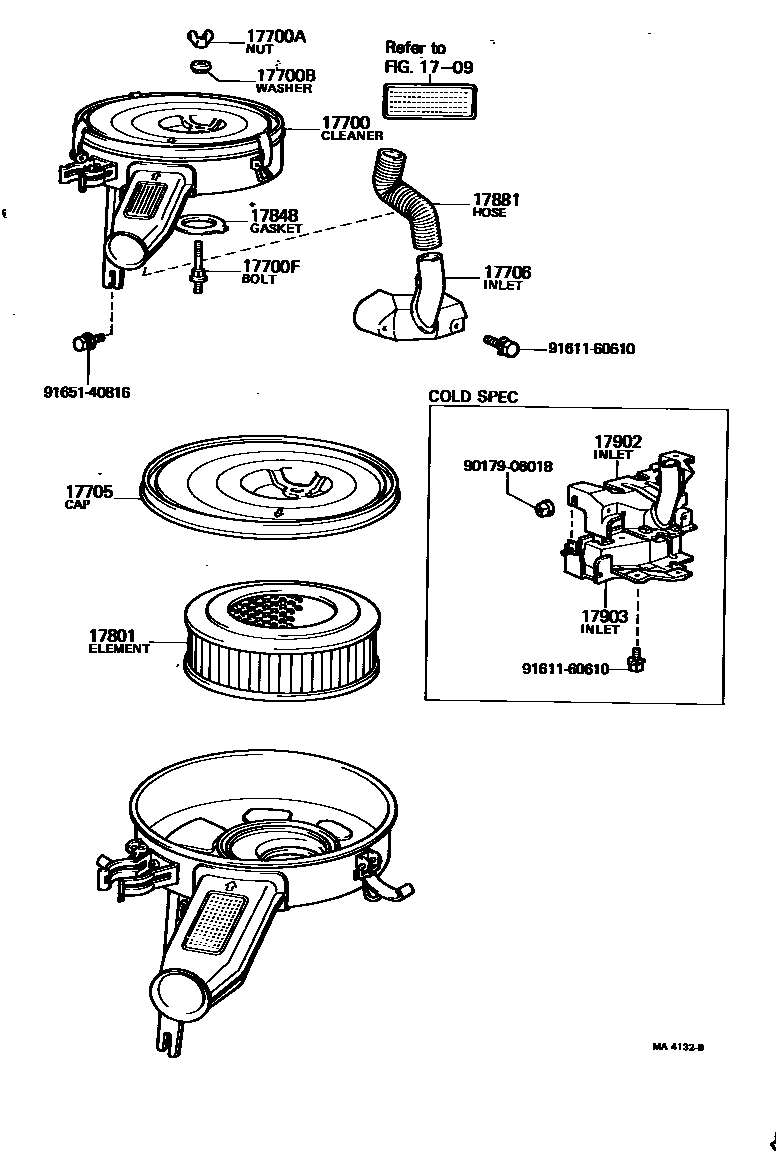

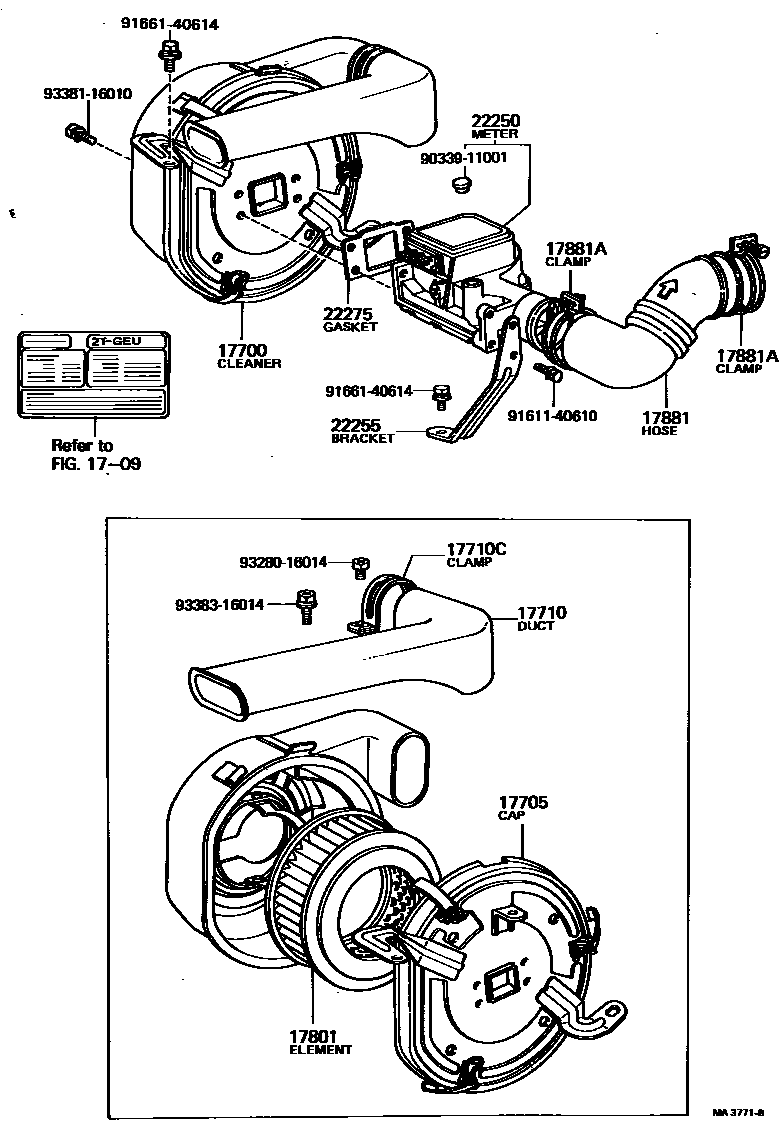

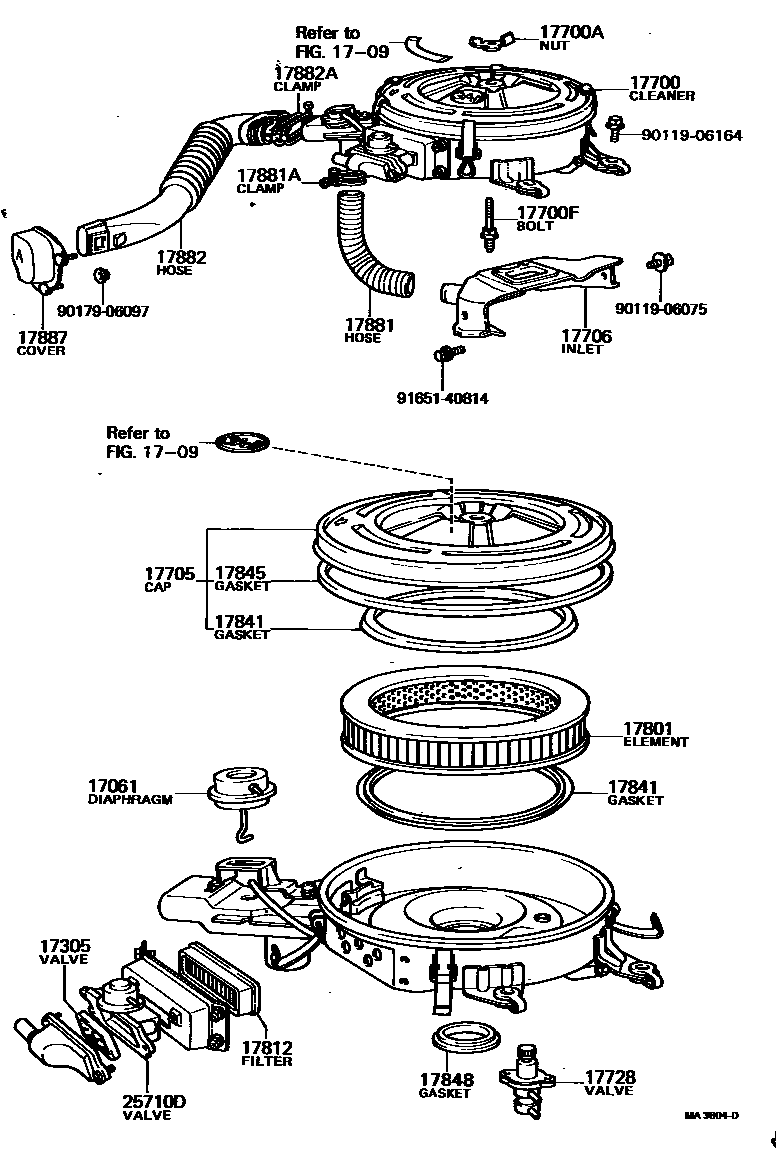

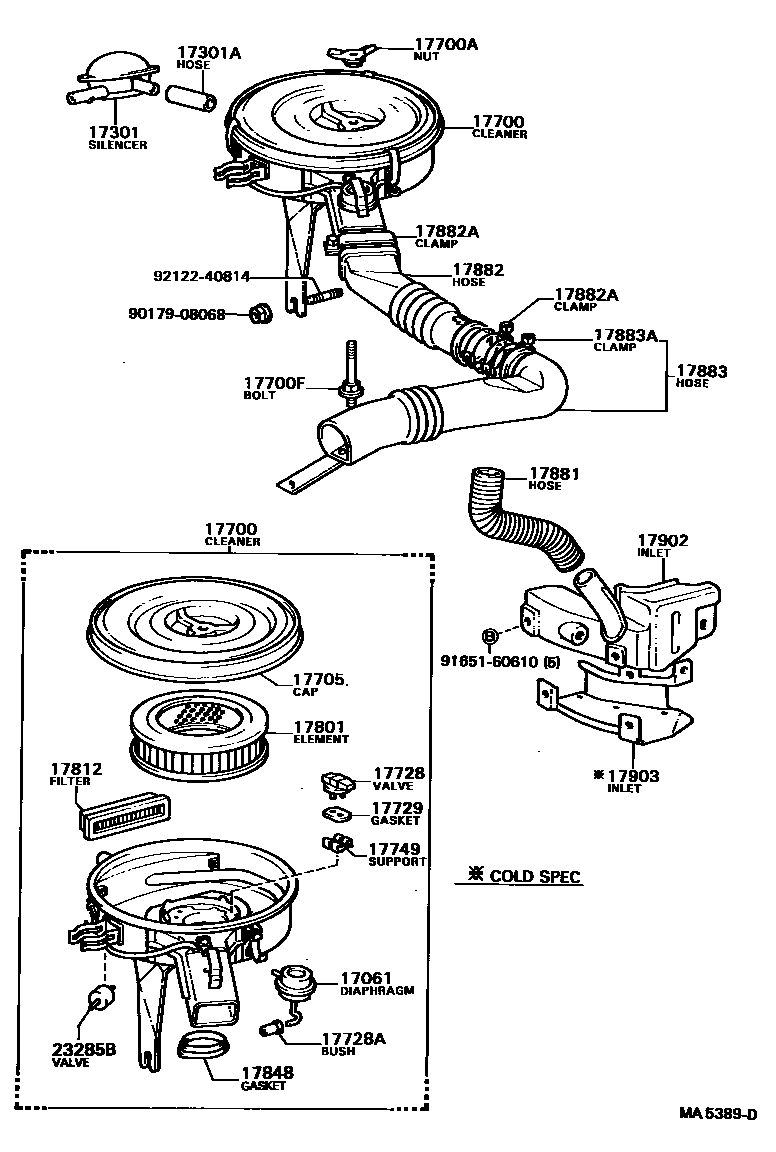

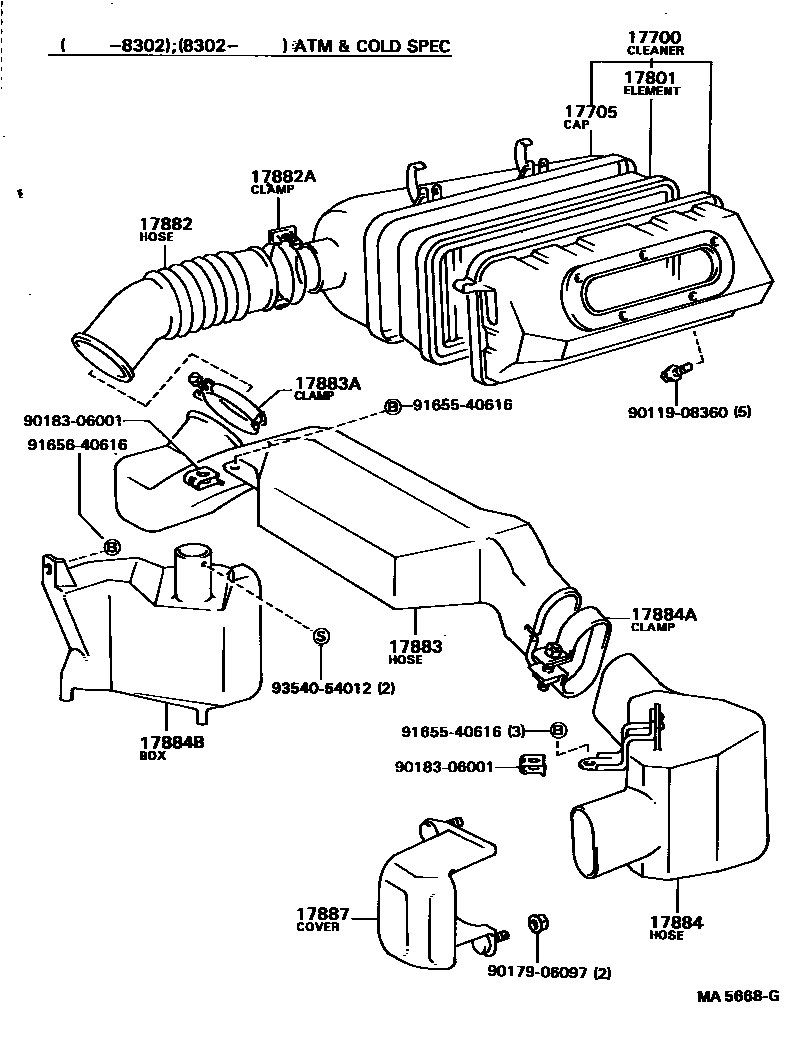

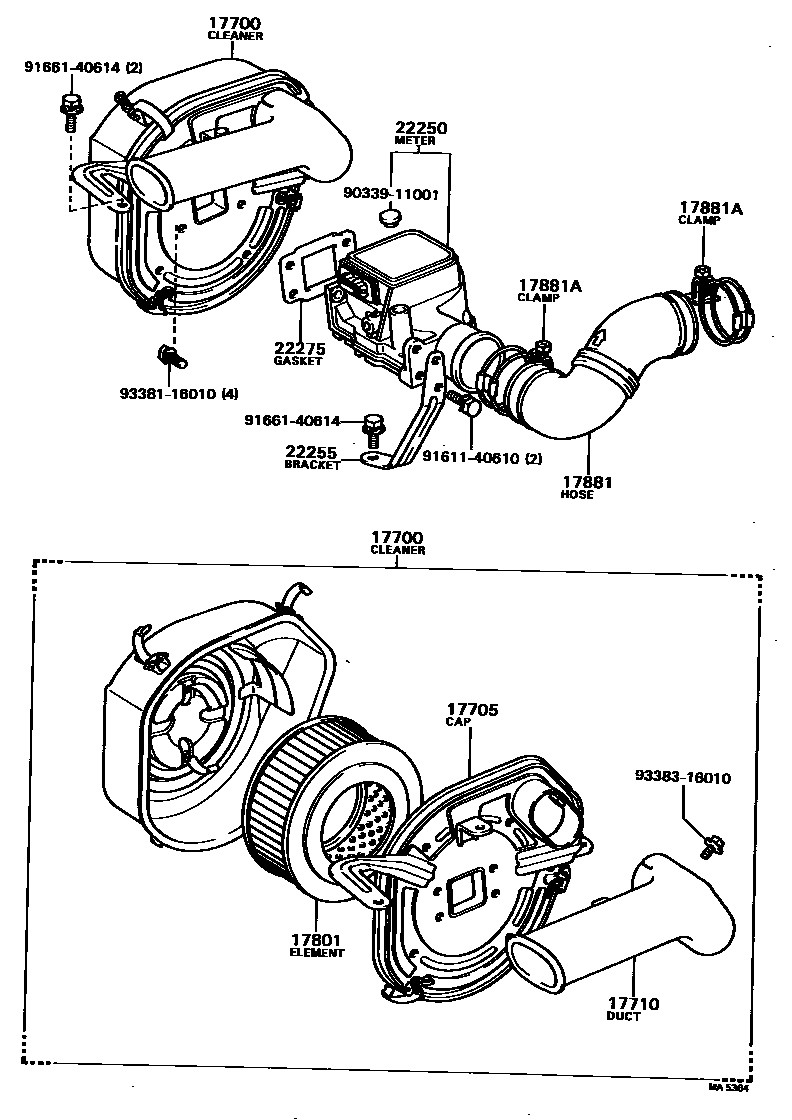

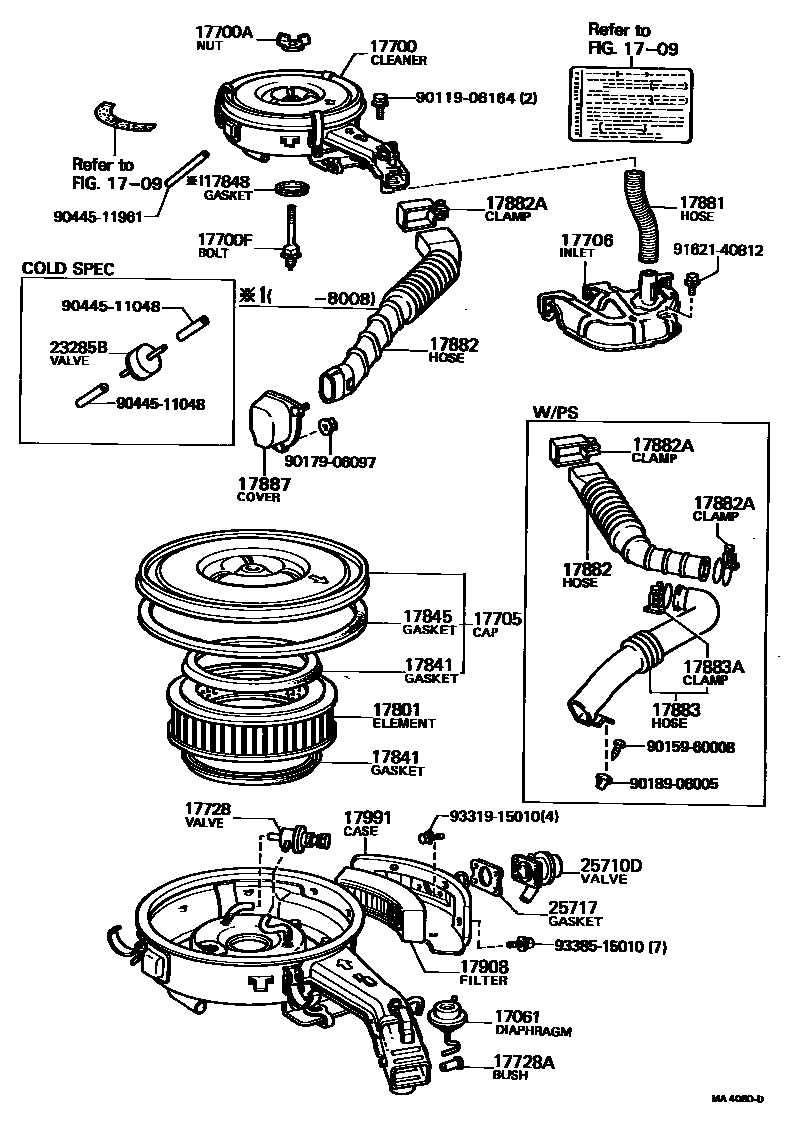

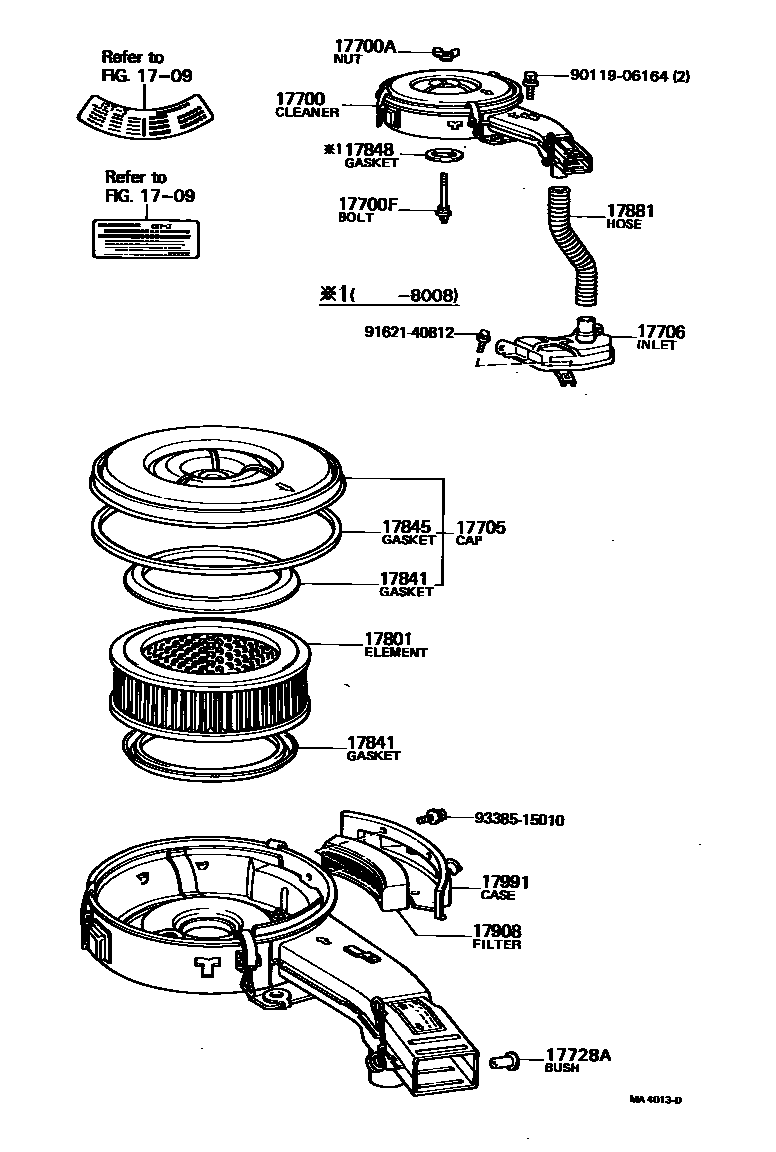

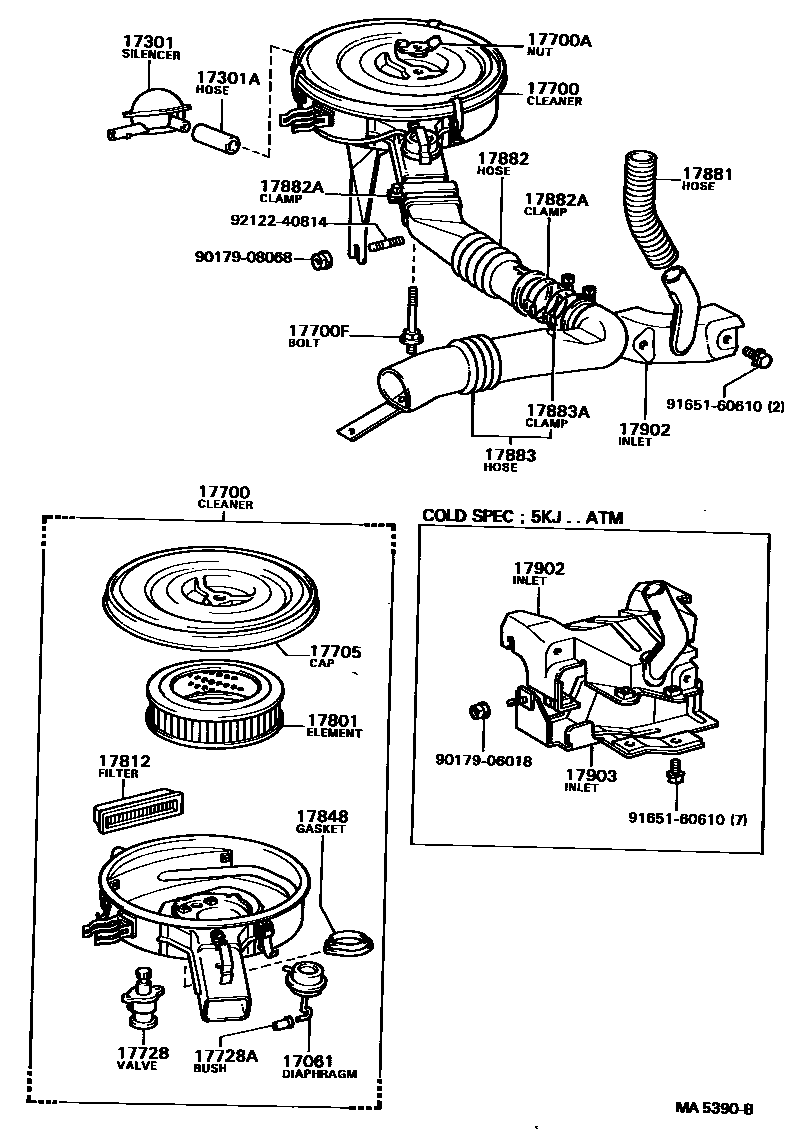

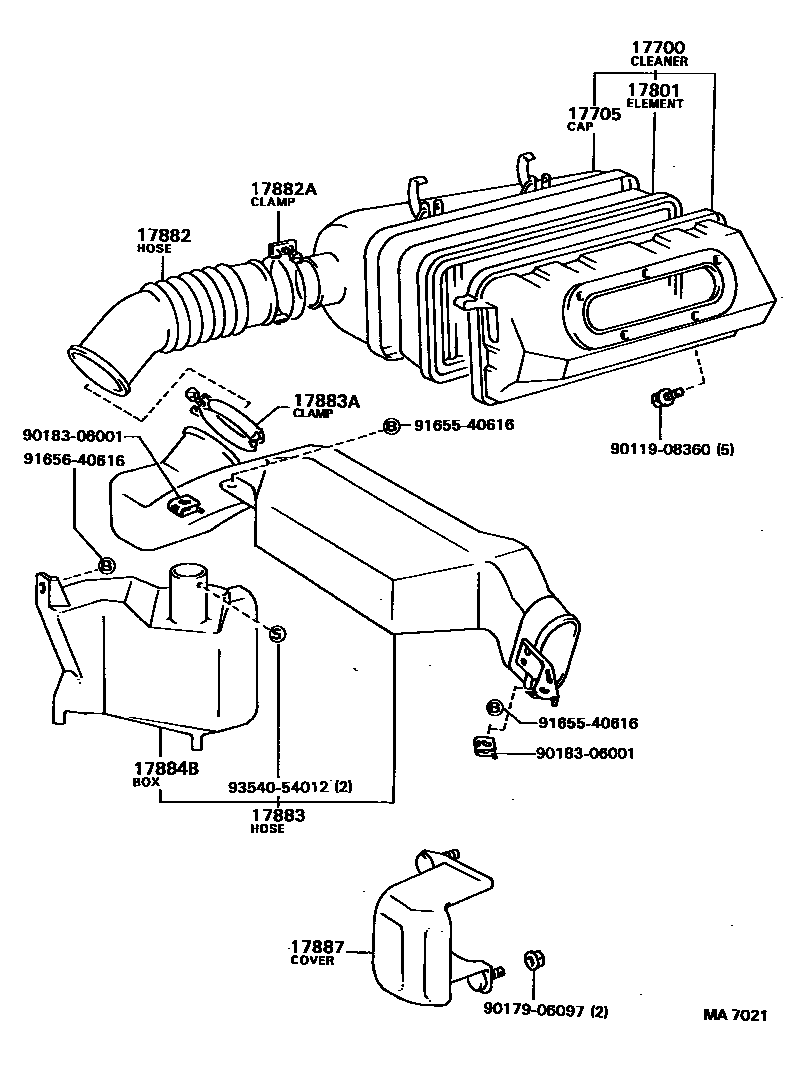

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 12 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-13010 · 17061-13020 · 17061-26010 |
| 17301 | Suction muffler sub-assembly | 17301-13020 |
| 17301A | Hoses (for air cleaner to muffler) | 90445-31014 · 90910-05154 |
| 17305 | Reed valve sub-assembly | 17305-15010 · 17305-15030 |
| 17670C | Air bypass valve assembly | 17670-27010 |
| 17700 | air filter assembly | 17700-13070 · 17700-13071 · 17700-13072 · 17700-13080 · 17700-13081 · 17700-13082 · 17700-13140 · 17700-13210 · 17700-13211 · 17700-13260 · 17700-13261 · 17700-13262 · 17700-13510 · 17700-13540 · 17700-15020 · 17700-15080 · 17700-26240 · 17700-26310 · 17700-27110 · 17700-27111 · 17700-27120 · 17700-27121 · 17700-27122 · 17700-27130 · 17700-64010 · 17700-64020 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 94271-00600 |
| 17700B | Gasket (for air cleaner) | 90210-06023 |
| 17700F | Stud bolt (for securing air filter) | 90116-06106 · 90116-06142 · 90116-06222 · 90116-06230 |
| 17705 | Air filter cover sub-assembly | 17705-13031 · 17705-13050 · 17705-13060 · 17705-15020 · 17705-15030 · 17705-25012 · 17705-25013 · 17705-26050 · 17705-26070 · 17705-64010 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17752-27020 · 17895-13010 · 17902-15010 · 17902-15050 · 17902-27031 · 17902-27032 |
| 17710 | No. 1 air filter air inlet pipe sub-assembly | 17751-26020 · 17751-34040 |
| 17710C | Clamp (for air filter inlet duct) | 90461-10355 |
| 17728 | thermostat valve | 17728-13020 · 17728-15030 · 17728-15040 · 17728-24011 · 17728-27010 |
| 17728A | Bushing | 90386-03001 |
| 17729 | thermostat valve gasket | 17729-34010 |
| 17749 | Thermostat valve bracket | 17749-34010 |
| 17801 | Air filter element sub-assembly | 17801-13010 · 17801-13040 · 17801-15010 · 17801-24010 · 17801-25010 · 17801-64010 · 17801-64020 |
| 17812 | No. 2 air filter element | 17812-13010 · 17812-15010 · 17812-31010 |
| 17841 | filter liner | 17841-15010 · 17841-31020 |
| 17845 | air cleaner cover gasket | 17845-15020 · 17845-25010 · 17845-42010 |
| 17848 | Gasket from air cleaner to carburetor | 17848-13010 · 17848-24010 · 90430-63001 · 90430-63187 |
| 17881 | No. 1 air cleaner hose | 17881-13050 · 17881-26010 · 17881-26020 · 17881-26031 · 17881-34040 · 17881-34071 · 17881-63010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10460 · 96111-10710 |
| 17882 | No. 2 air cleaner hose | 17881-12030 · 17881-12040 · 17881-13030 · 17881-15030 · 17881-27030 · 17881-28020 · 17881-64010 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01003 · 90460-01005 · 90460-01022 · 90460-47036 · 90460-65001 · 96111-10560 |
| 17883 | No. 3 air cleaner hose | 17880-64020 · 17882-12010 · 17882-13030 · 17882-13031 · 17882-64010 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-60001 · 90460-65001 |
| 17884 | No. 4 air cleaner hose | 17883-64010 · 17883-64020 |
| 17884A | Clamp (for No. 4 air cleaner hose) | 17781-64010 |
| 17884B | No. 1 air filter housing | 17884-64010 |
| 17887 | air cleaner hose cover | 17887-15010 · 17887-27010 · 17887-64010 |
| 17902 | No. 1 hot air intake sub-assembly | 17167-13010 · 17167-13020 · 17895-13010 |
| 17903 | No. 2 hot air intake sub-assembly | 17168-13010 · 17168-13020 |
| 17908 | Secondary air suction filter sub-assembly | 17908-27010 |
| 17991 | Secondary air suction filter housing | 17991-27070 · 17991-27080 · 17991-27090 · 17991-28010 · 17991-28020 |
| 22250 | Intake air flow meter assembly | 22250-26011 |
| 22255 | Air flow meter bracket | 22255-26030 |
| 22275 | air flow meter gasket | 22275-26020 · 22275-26021 |
| 23285B | No. 1 one-way valve | 90917-10049 · 90917-10053 |
| 25710D | Air switch valve assembly | 25710-15010 · 25710-15011 · 25710-18030 · 25710-18031 · 25710-63010 |
| 25717 | air switch valve gasket | 25717-18010 |
