Toyota COROLLA Exhaust Pipe — Figure 1702

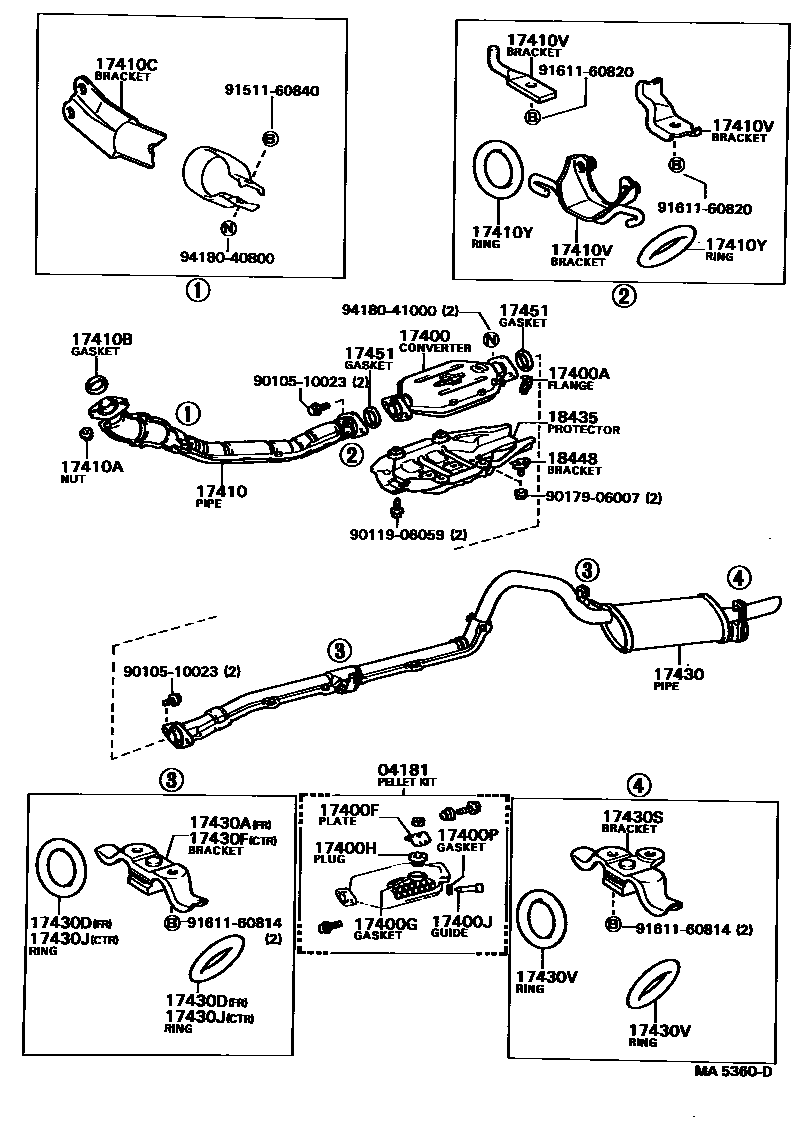

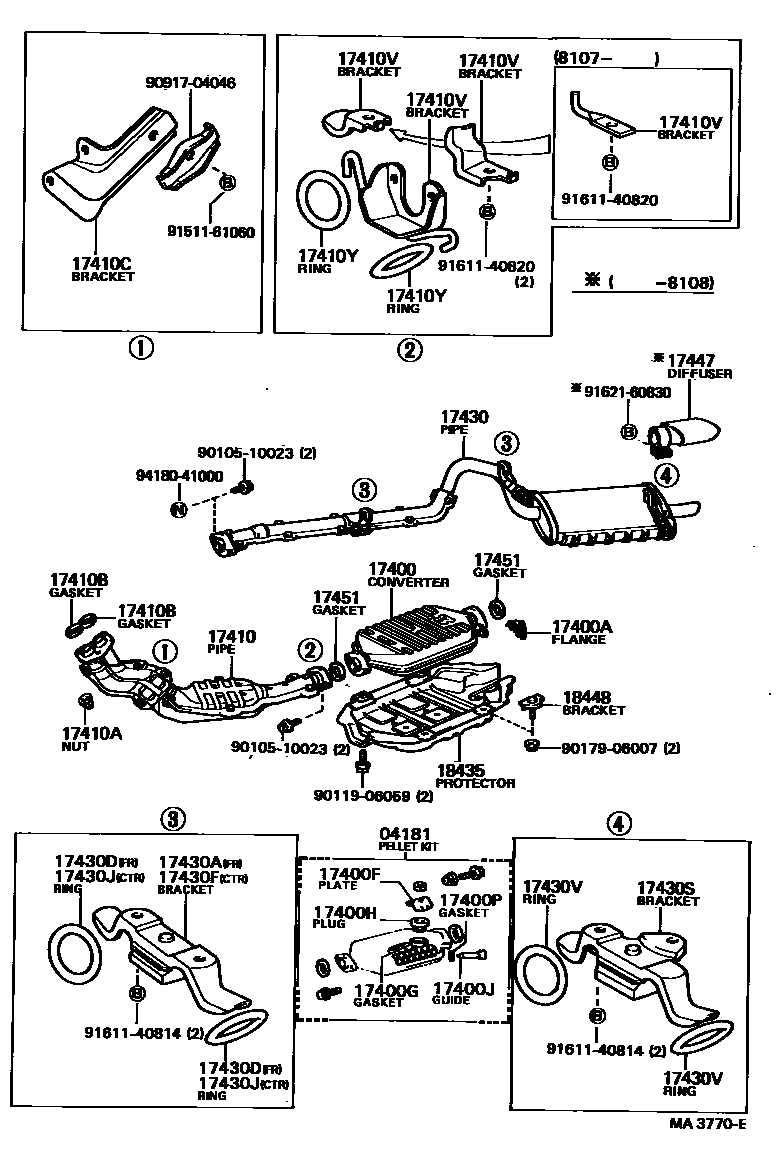

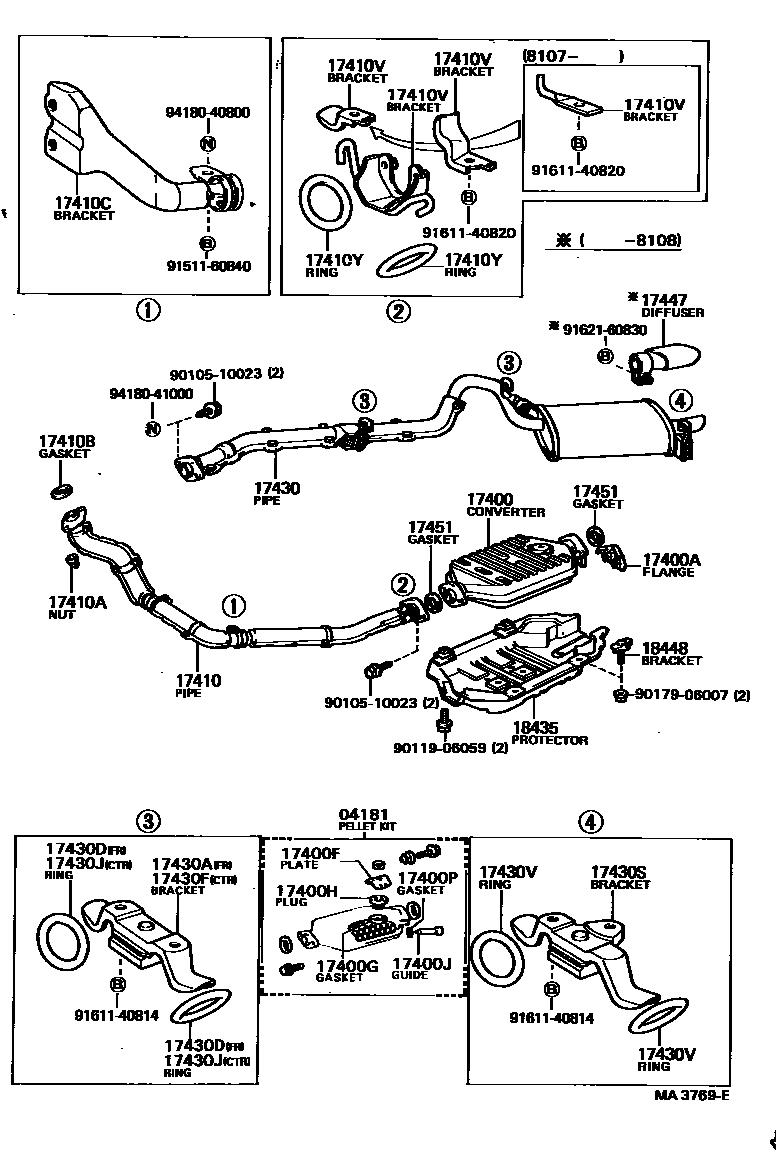

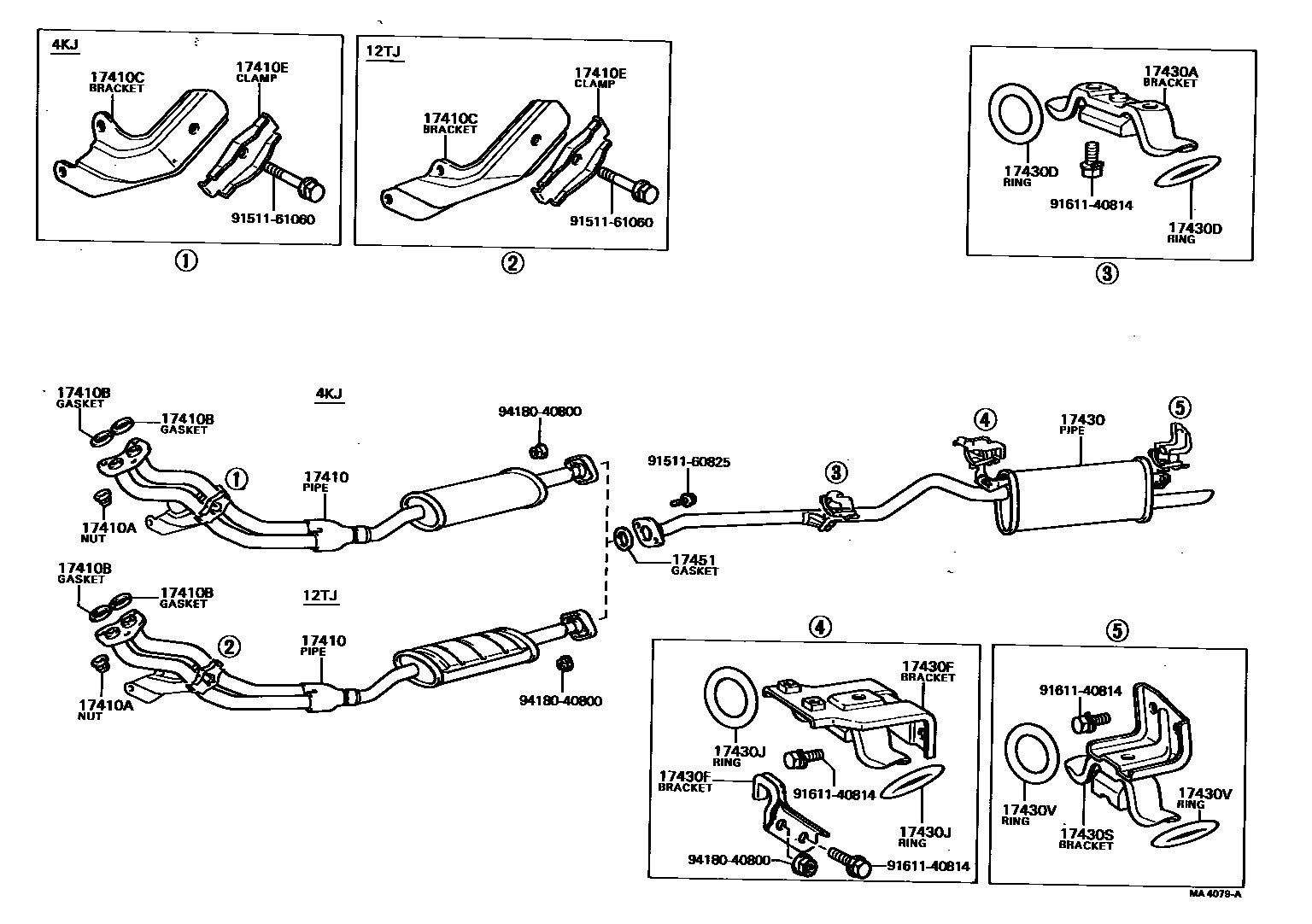

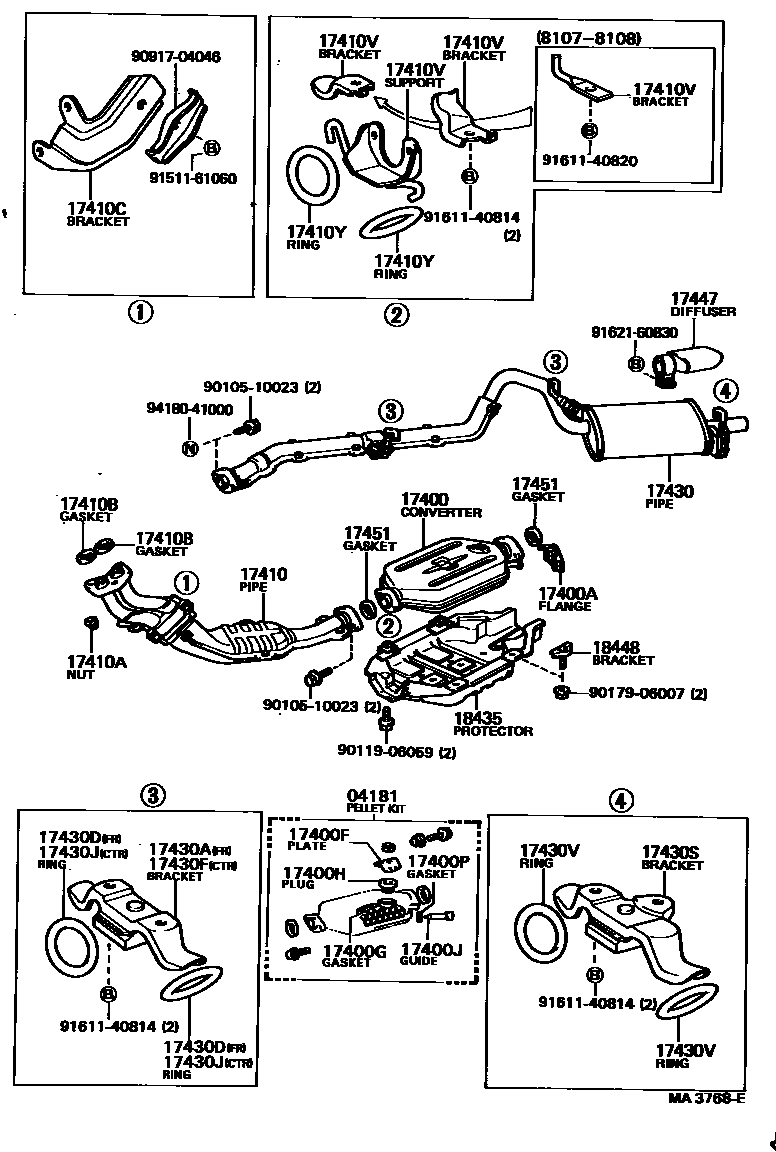

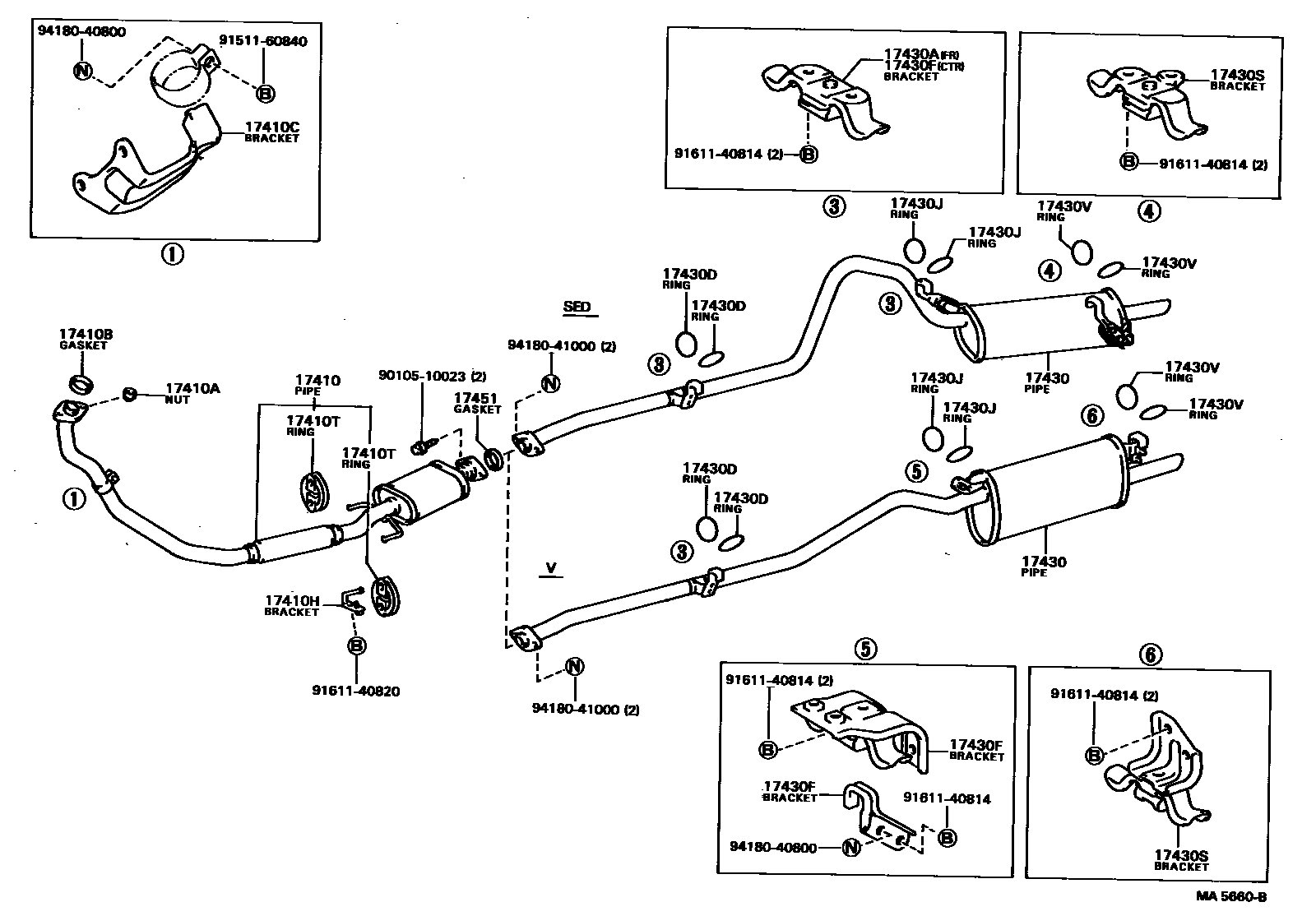

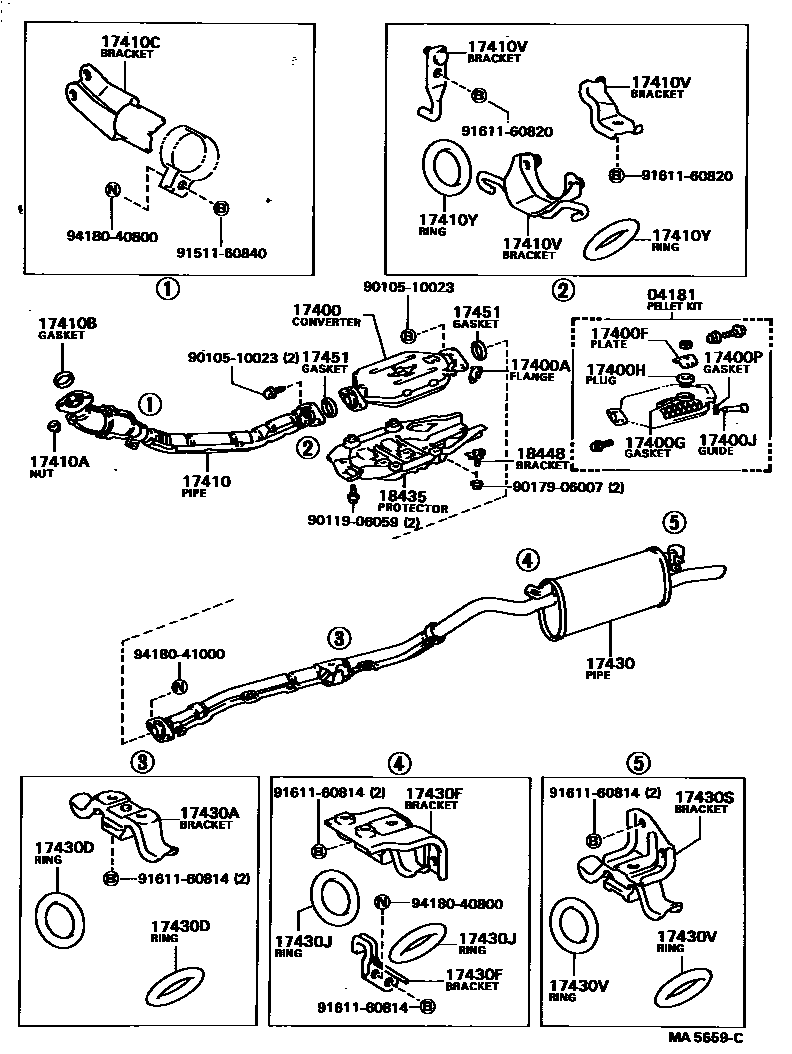

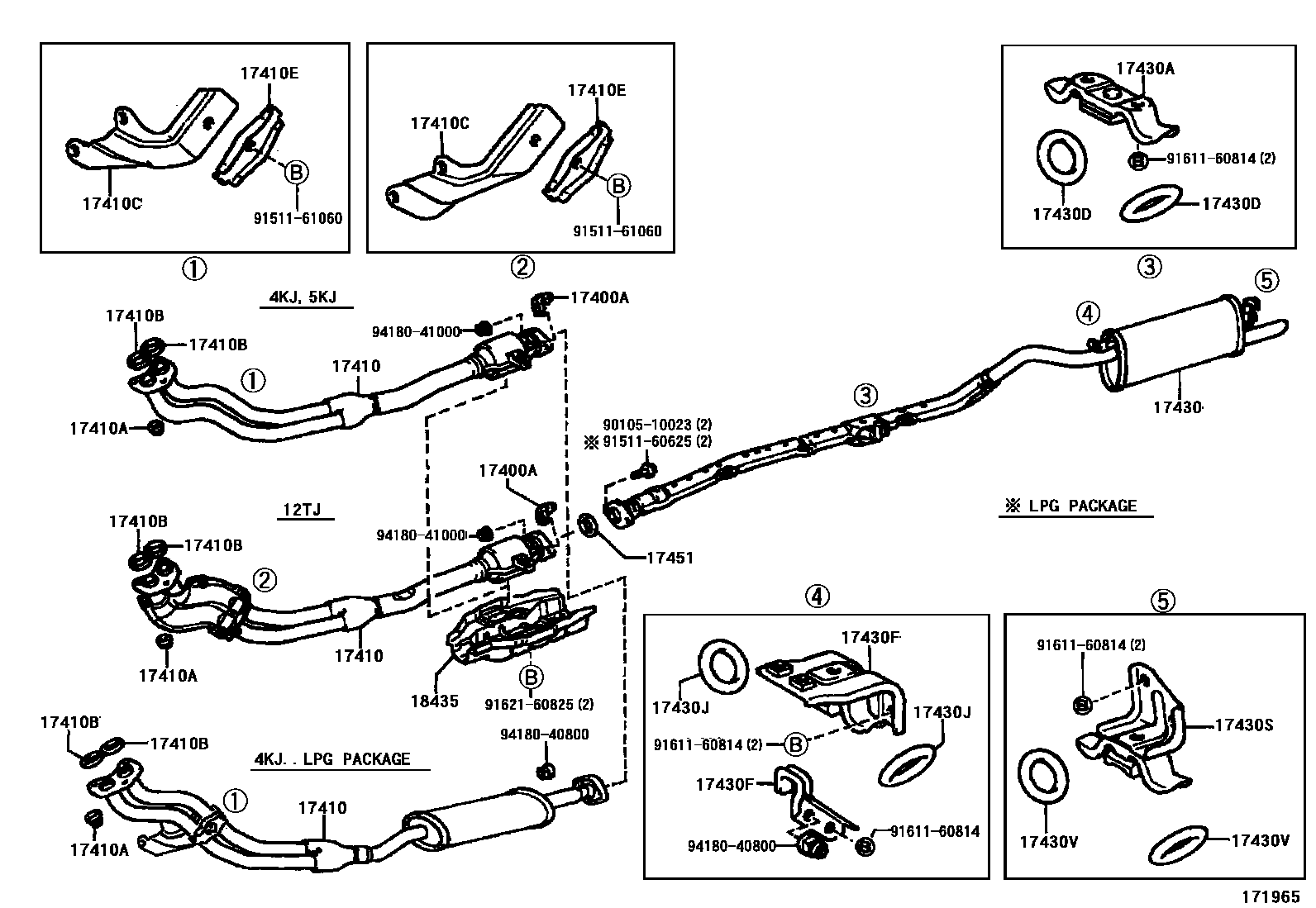

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 8 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04181 | Granular Catalyst Components | 04181-41030 · 04181-44011 |
| 17400 | Three-way catalytic converter assembly with catalyst | 17040-26070 · 17040-27010 · 17040-28040 · 17040-31012 · 17040-31022 · 17400-13020 · 17400-13021 · 17400-13030 · 17400-13050 · 17400-13060 |
| 17400A | Thermal sensor air inlet flange | 18491-18010 · 18491-34010 |
| 17400F | Catalyst air inlet plug locking plate | 18493-38011 |
| 17400G | Catalyst air inlet gasket | 18494-38010 |
| 17400H | Headed straight thread plug (for catalyst inlet) | 90341-24093 |
| 17400J | Three-way catalytic converter sensor guide | 18492-45010 |
| 17400P | Gasket (for three-way catalytic converter sensor guide) | 90430-08252 |
| 17410 | Front exhaust pipe assembly | 17410-13050 · 17410-13060 · 17410-13120 · 17410-13130 · 17410-13131 · 17410-15020 · 17410-15070 · 17410-26250 · 17410-26260 · 17410-26330 · 17410-64030 · 17410-64031 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 · 90917-06006 · 90917-06028 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-13050 · 17571-13090 · 17571-15020 · 17571-15060 · 17571-26160 · 17571-64030 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 90917-04046 |
| 17410H | Front exhaust pipe bracket (for center) | 17588-64010 |
| 17410T | Front exhaust pipe bolt or ring (for center) | 17505-64010 · 17505-64011 |
| 17410V | Front exhaust pipe bracket (for rear) | 17503-15021 · 17505-13020 · 17505-13030 · 17505-13040 · 17505-15020 · 17587-13020 · 17587-13030 · 17588-13020 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 90301-34207 · 90301-36001 |
| 17430 | Exhaust tailpipe assembly | 17430-13040 · 17430-13070 · 17430-13080 · 17430-13120 · 17430-13121 · 17430-13160 · 17430-13190 · 17430-15080 · 17430-26440 · 17430-26670 · 17430-64040 · 17430-64050 · 17430-64130 |
| 17430A | Exhaust tailpipe bracket (for front) | 17506-13020 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90301-34207 · 90301-36001 |
| 17430F | Exhaust tailpipe bracket (for center) | 17506-13020 · 17507-24020 · 17507-64010 · 17562-13030 · 17562-64050 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 90301-34207 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17508-13010 · 17508-24040 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 90301-34207 |
| 17447 | exhaust diffuser | 17406-26010 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06008 · 90917-06012 · 90917-06018 · 90917-06026 |
| 18435 | Three-way catalytic converter protection device | 18407-25011 · 18407-26011 · 18407-27010 |
| 18448 | Three-way catalytic converter protection device central bracket | 18448-26020 |
