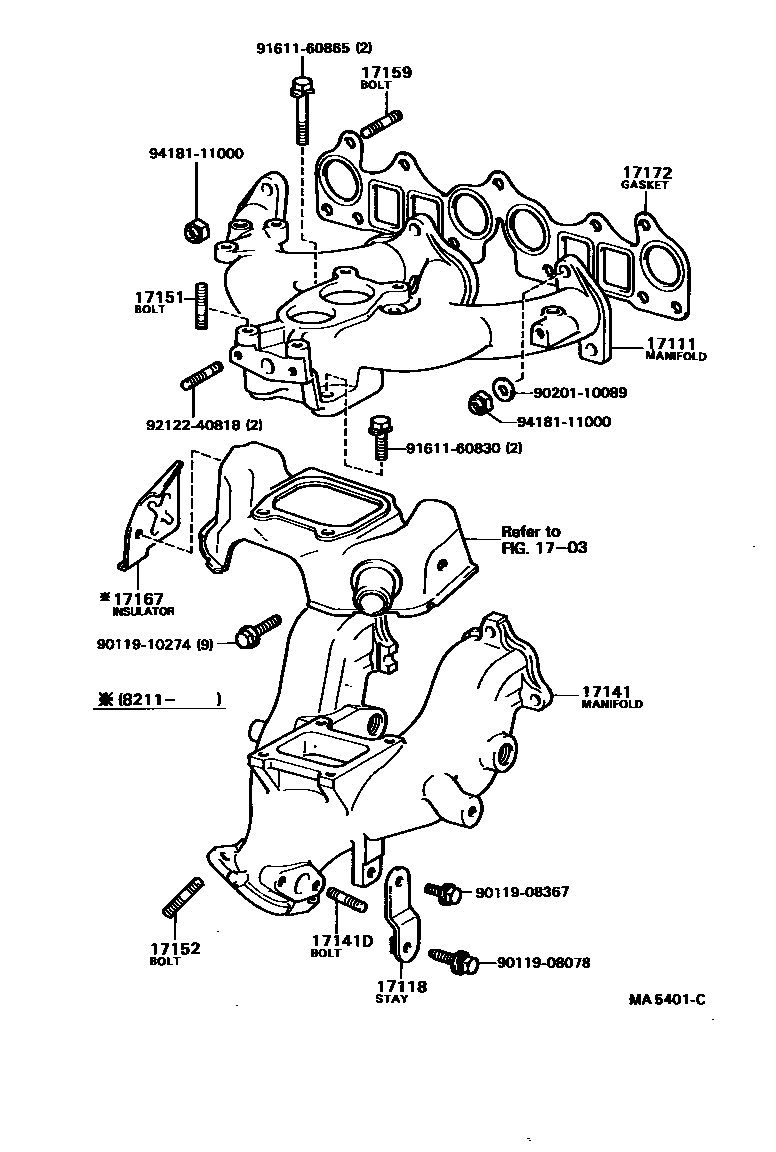

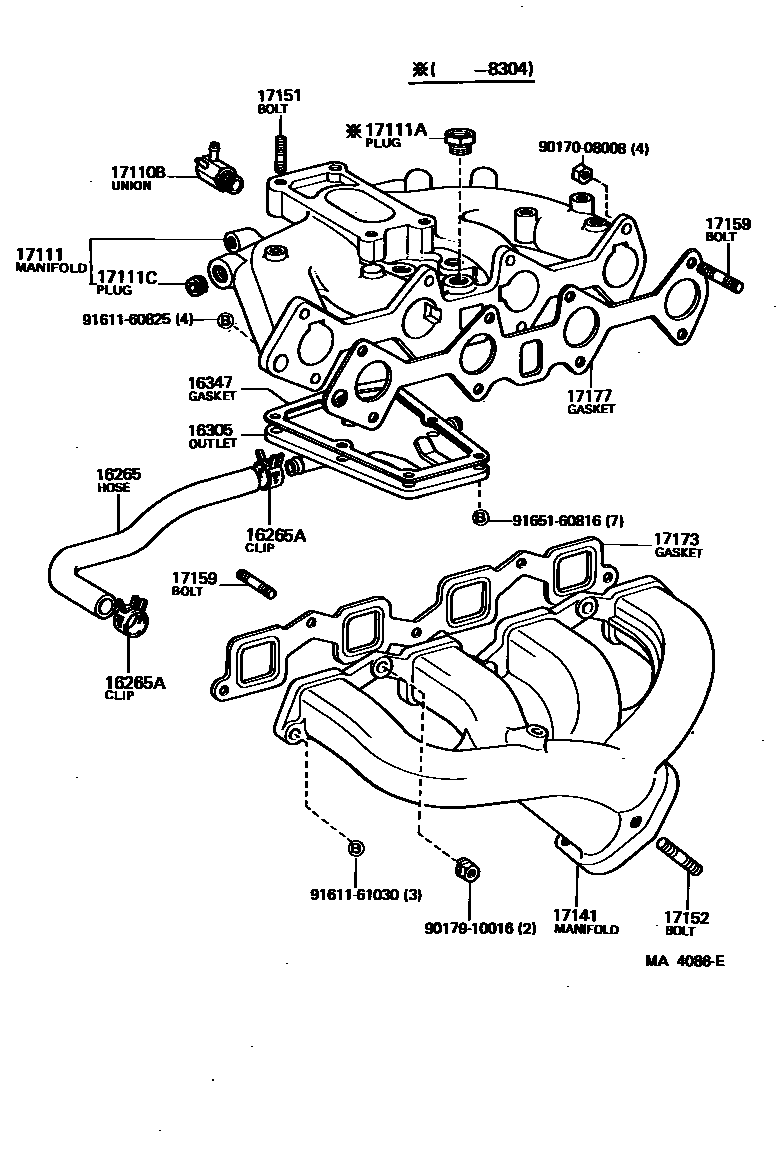

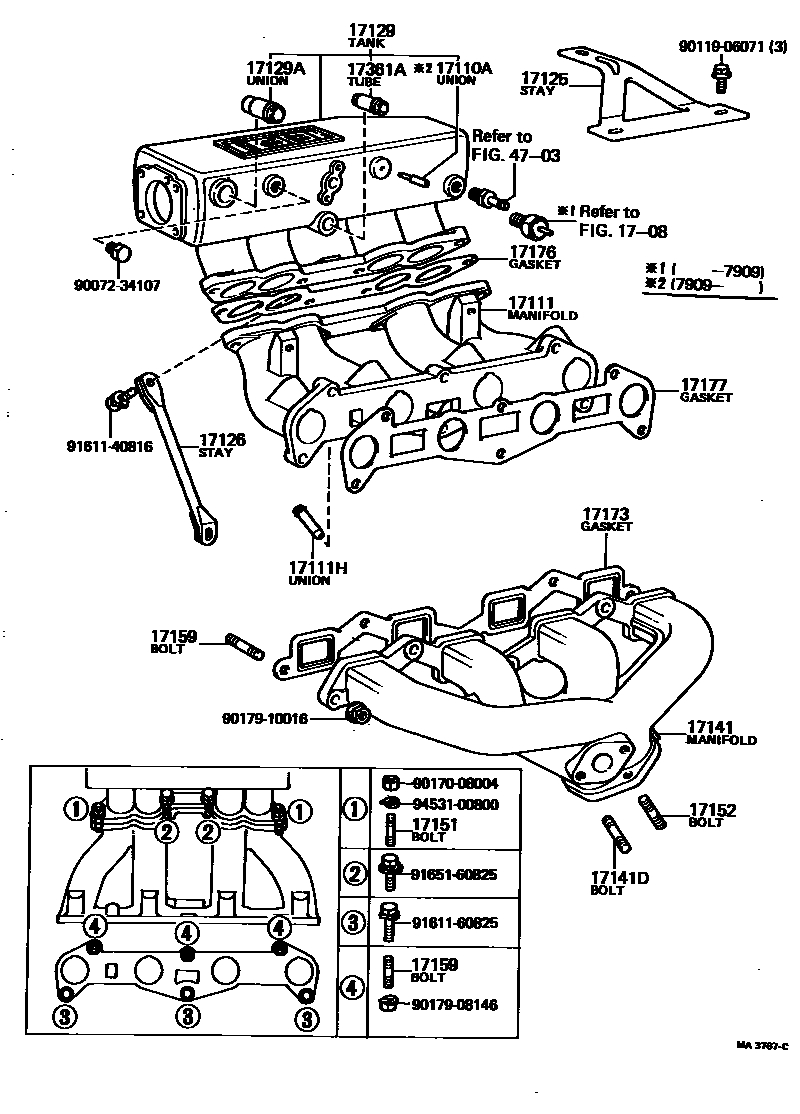

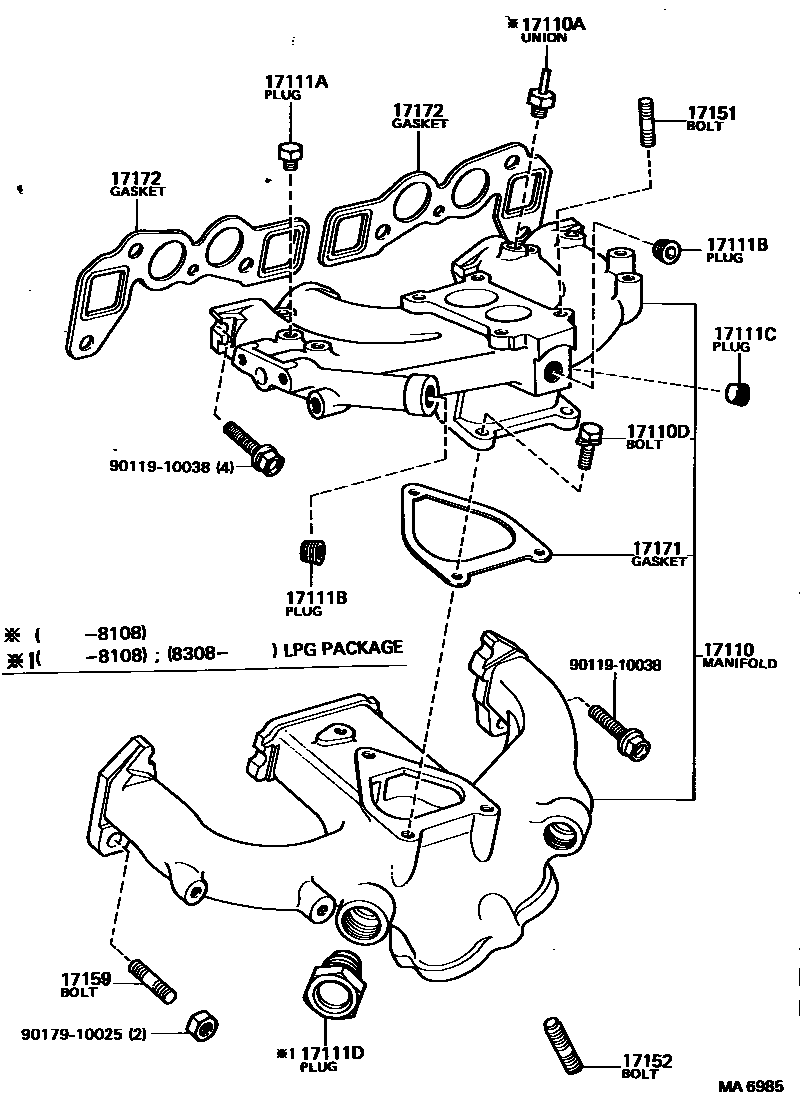

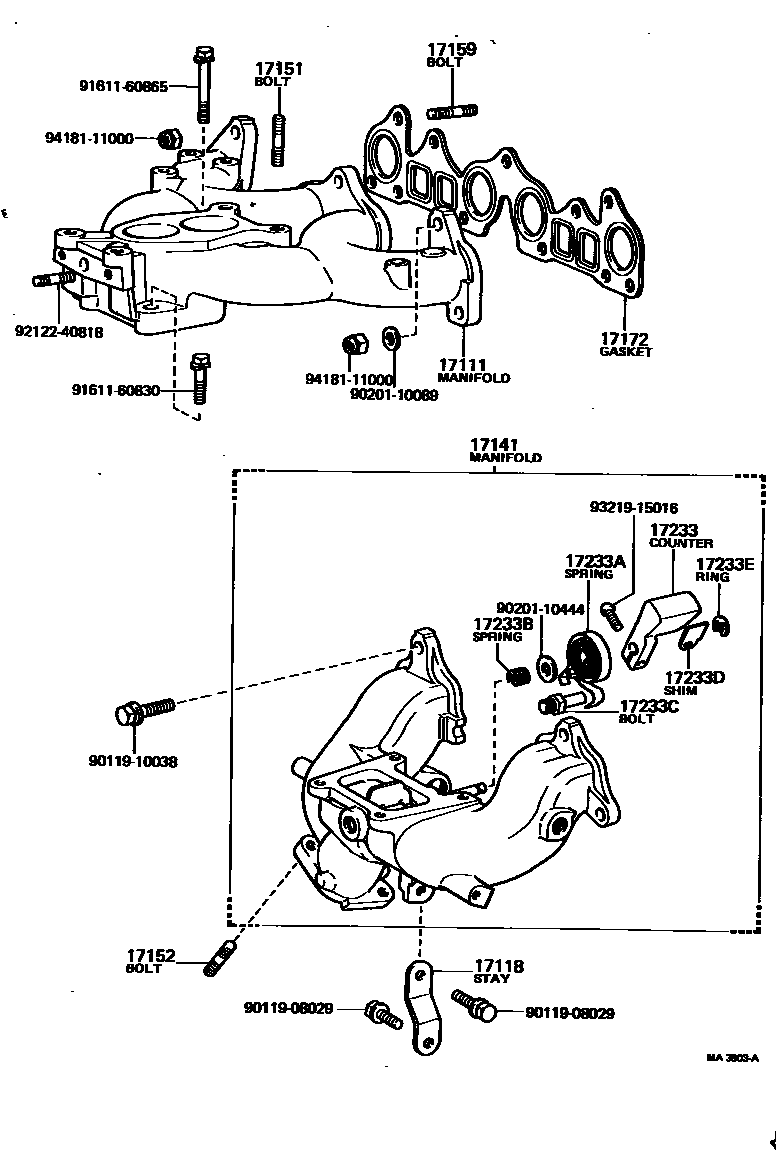

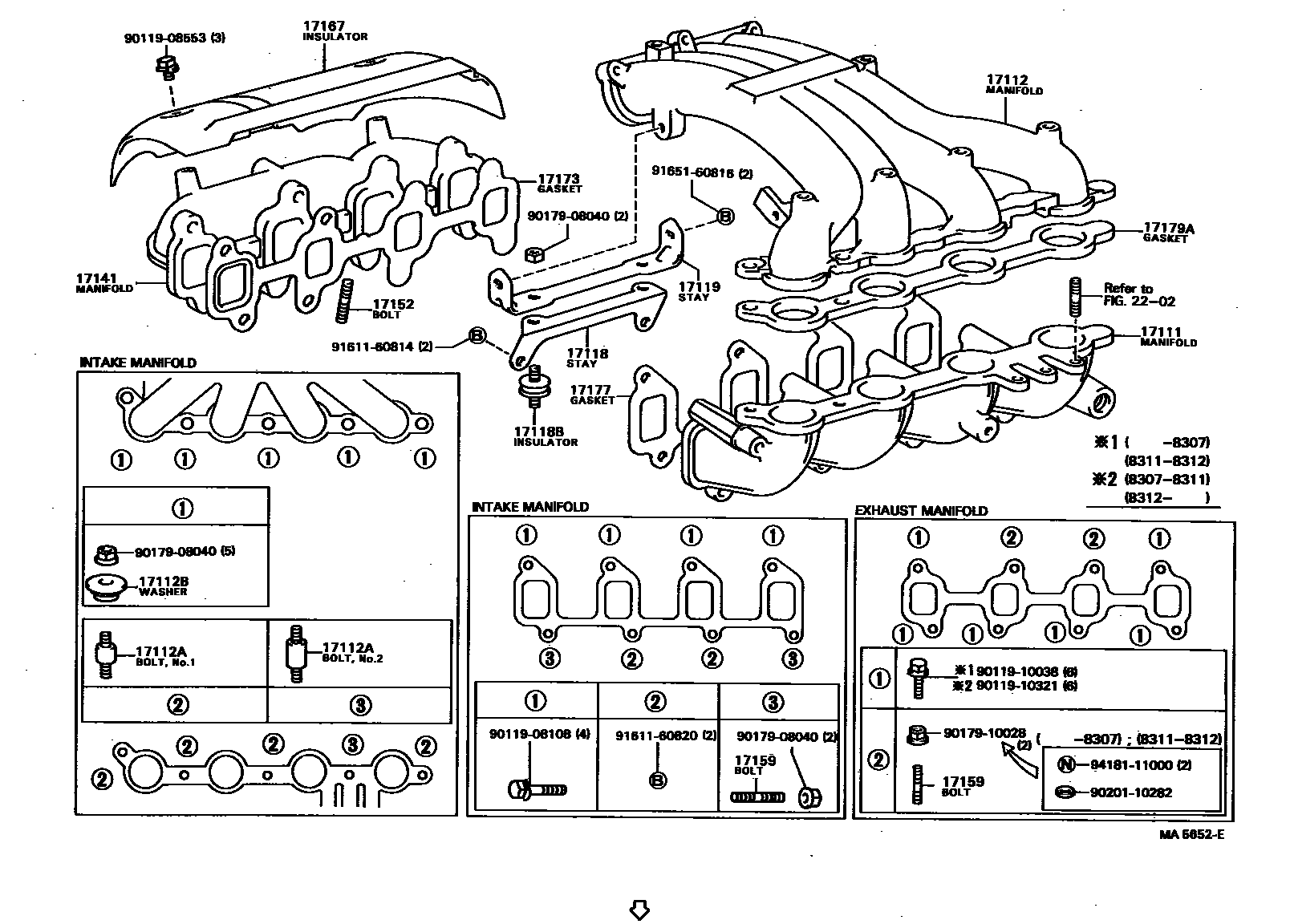

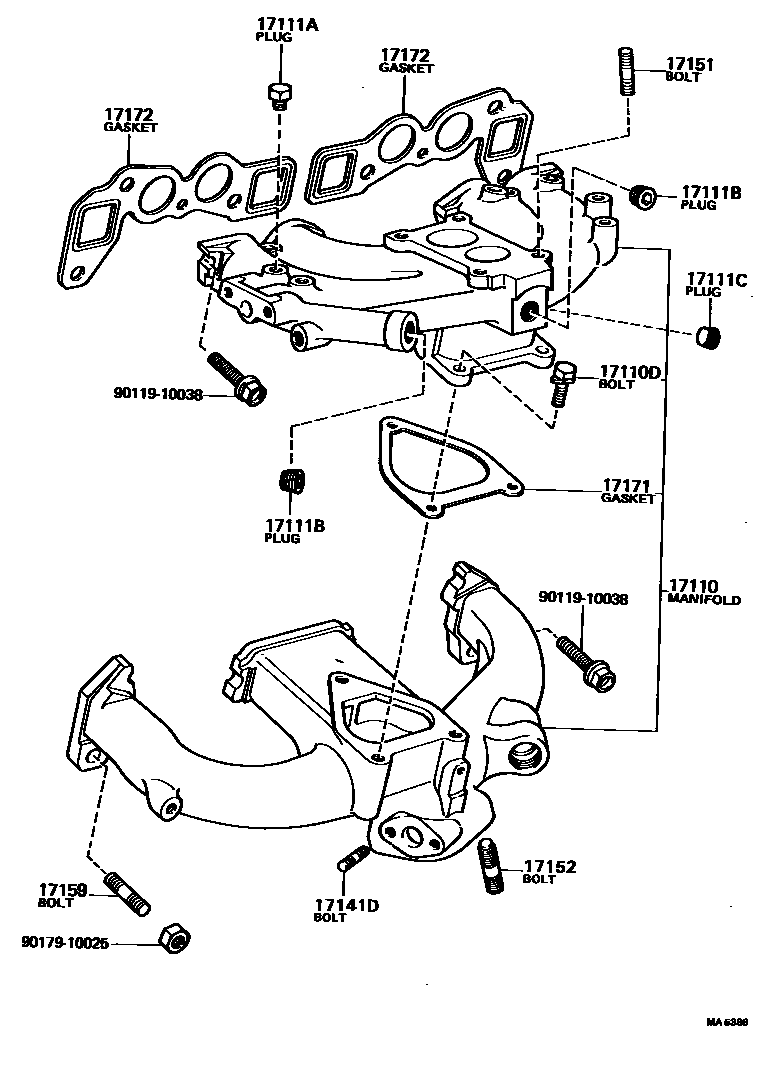

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 7 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16265 | Intake manifold water hose | 90445-21611 |
| 16265A | Hose clamp or clip (for intake manifold water hose) | 90467-20004 · 90467-20005 |
| 16305 | Water bypass outlet sub-assembly | 16305-25011 |
| 16347 | water bypass liner | 16347-25011 · 16347-25012 |
| 17110 | Manifold assembly | 17110-13040 · 17110-13041 · 17110-13090 · 17110-13091 · 17110-13130 |
| 17110A | Vacuum hose connector | 90404-51010 · 90406-04001 · 90406-04002 |
| 17110B | Fitting (for vent hose to manifold) | 90404-53018 · 90404-53036 · 90407-09001 |
| 17110D | Bolts (for intake manifold to exhaust manifold) | 91611-60822 |
| 17111 | Intake Manifold | 17111-15020 · 17111-15021 · 17111-26901 · 17111-64010 · 17111-88262 · 17111-88265 |
| 17111A | No. 1 screw plug | 90345-51025 · 90345-53002 · 90345-53007 |
| 17111B | No. 2 screw plug | 90344-52003 · 90344-52013 |
| 17111C | No. 3 screw plug | 90344-52003 · 90344-52013 · 90344-53008 |
| 17111D | No. 4 screw plug | 90341-28002 |
| 17111H | Connector (for water-cooled intake manifold) | 90072-40625 |
| 17112 | No. 2 intake manifold | 17112-64010 |
| 17112A | Stud bolts (used to secure the No. 2 intake manifold) | 90116-08148 · 90116-08149 |
| 17112B | Sealing gasket (used to secure the No. 2 intake manifold) | 90210-08021 |
| 17118 | Manifold stays | 17118-15020 · 17118-15030 · 17118-64010 |
| 17118B | Intake manifold heat shield | 17853-64010 |
| 17119 | No. 2 manifold stay | 17139-64010 |
| 17125 | No. 1 pressure tank stay | 17125-88260 |
| 17126 | No. 2 pressure tank stay | 17126-88260 |
| 17129 | Intake pressure tank | 17109-88262 · 17109-88263 |
| 17129A | Connector No. 1 | 90072-40624 |
| 17141 | exhaust manifold | 17140-15020 · 17141-15060 · 17141-26080 · 17141-27011 · 17141-64010 · 17141-64011 |
| 17141D | Studs (for oxygen sensor) | 90116-08045 · 90116-08128 |
| 17151 | Studs (for manifold to carburetor) | 90116-08010 · 90116-08023 · 90116-08201 · 92112-40832 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10056 · 90116-10058 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08035 · 90116-08201 · 90116-10095 · 92112-61032 · 92112-61035 · 92122-41028 · 92122-60820 · 92122-61025 · 92122-61032 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-15020 · 17167-64020 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-13040 · 17171-24010 |
| 17172 | Gasket (manifold to cylinder head) | 17172-13020 · 17172-13021 · 17172-15010 · 17172-24011 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-25012 · 17173-64020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-88260 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-25030 · 17177-64010 · 17177-88260 |
| 17179A | No. 2 intake manifold gasket | 17179-64020 |
| 17233 | Counterweight | 17233-15010 |
| 17233A | No. 1 coil spring (for counterweight) | 90510-06001 · 90510-06002 |
| 17233B | No. 2 coil spring (for counterweight) | 90501-08022 |
| 17233C | Bolt (for counterweight) | 90109-10045 |
| 17233D | Spacers (for counterweight) | 90910-10005 |
| 17233E | E-ring (for counterweight) | 96160-00800 |
| 17361A | Air tube (for EFI) | 90072-40617 |
