Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 2 images and 5 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — AS0100C
Oil Filter — AS0100C (197903 – 999999)

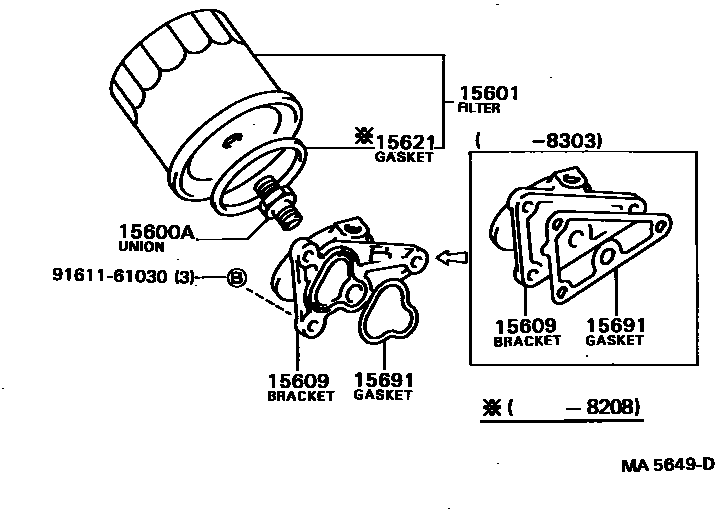

Toyota COROLLA Oil Filter EPC diagram — MA5649D
Oil Filter — MA5649D (198202 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19001 · 90404-19003 · 90404-19004 · 90404-20173
15601Oil filter sub-assembly15600-25010 · 15601-13010 · 15601-13011
15609Oil filter bracket sub-assembly15671-13040 · 15677-64010 · 15677-64030 · 15677-64031
15621Oil filter body gasket15621-22010 · 15621-41010
15691oil filter gasket15691-22010 · 15691-22011 · 15691-64011 · 15691-64020 · 15691-64030
