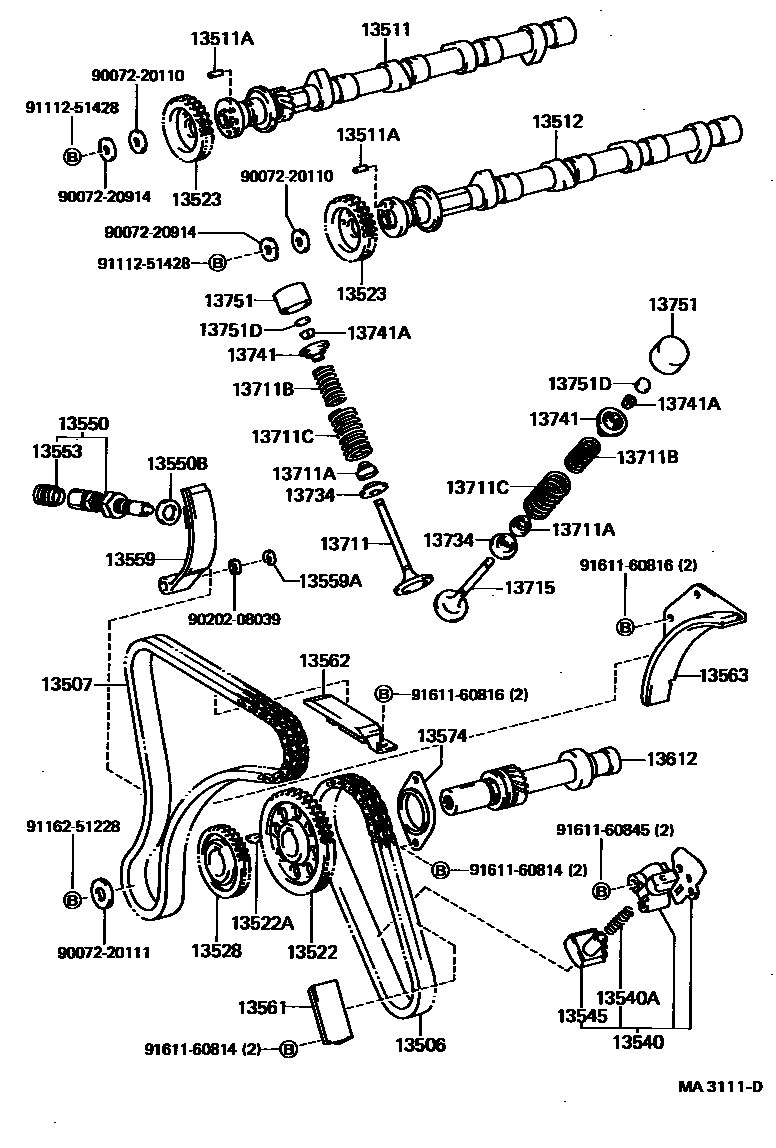

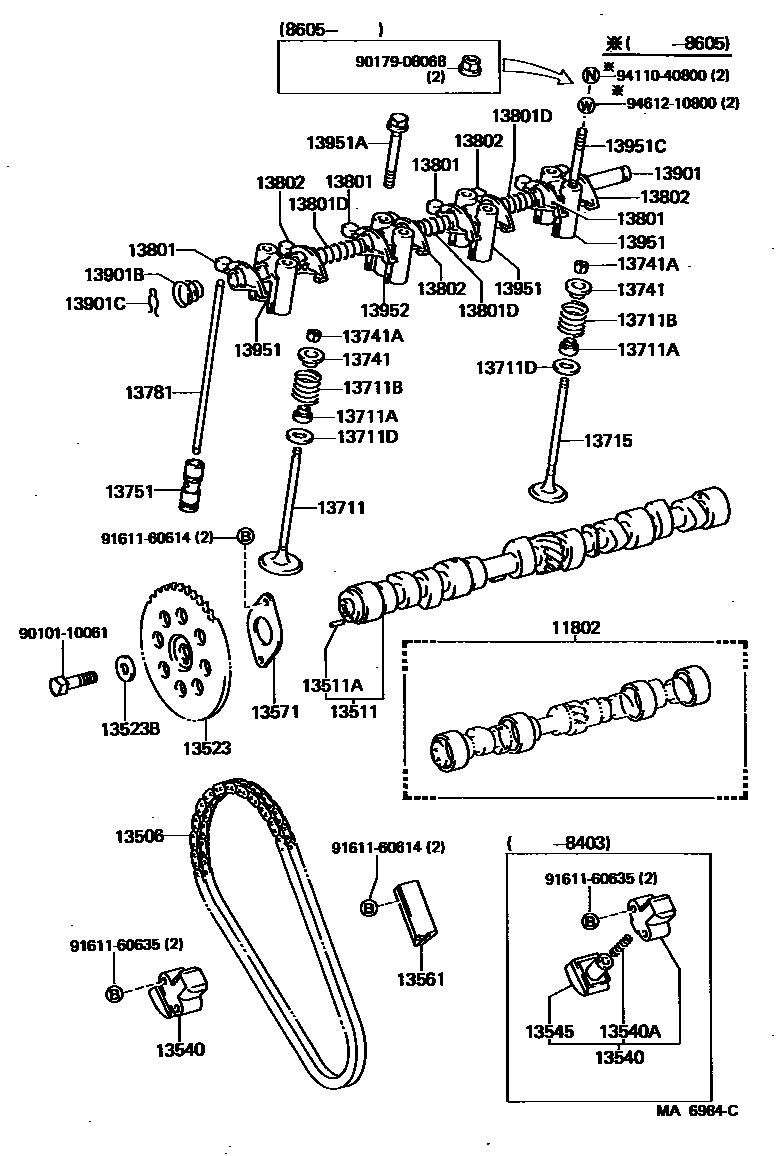

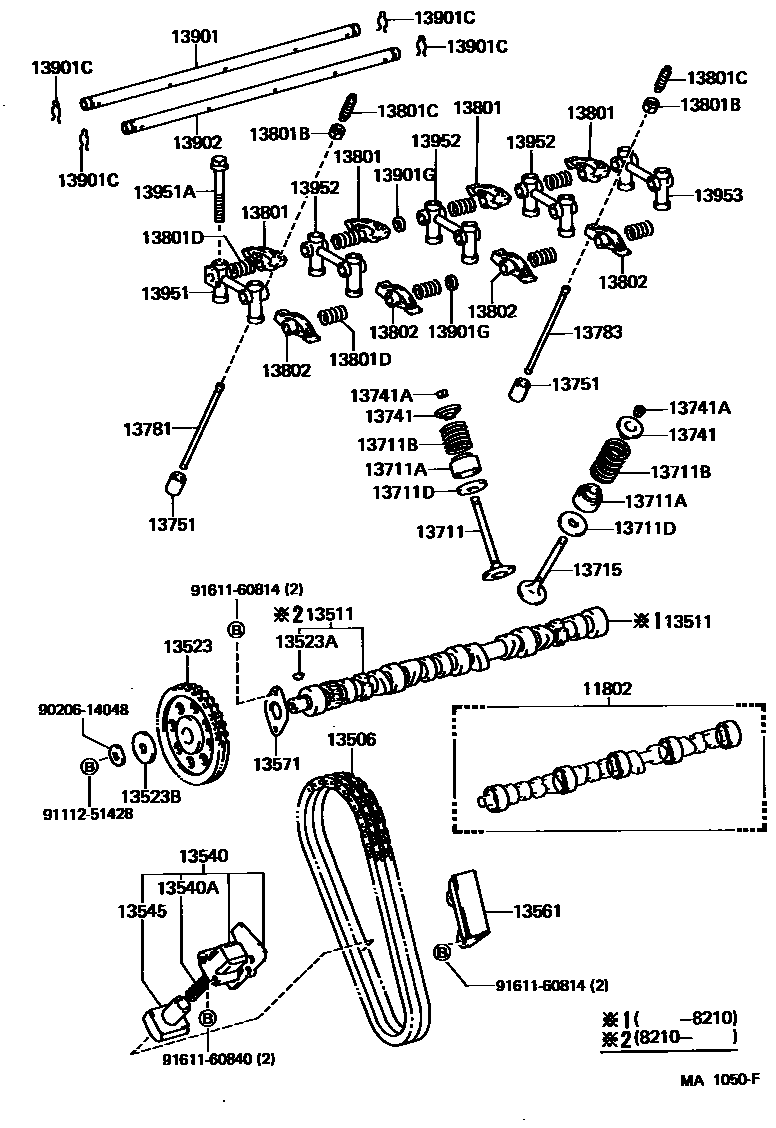

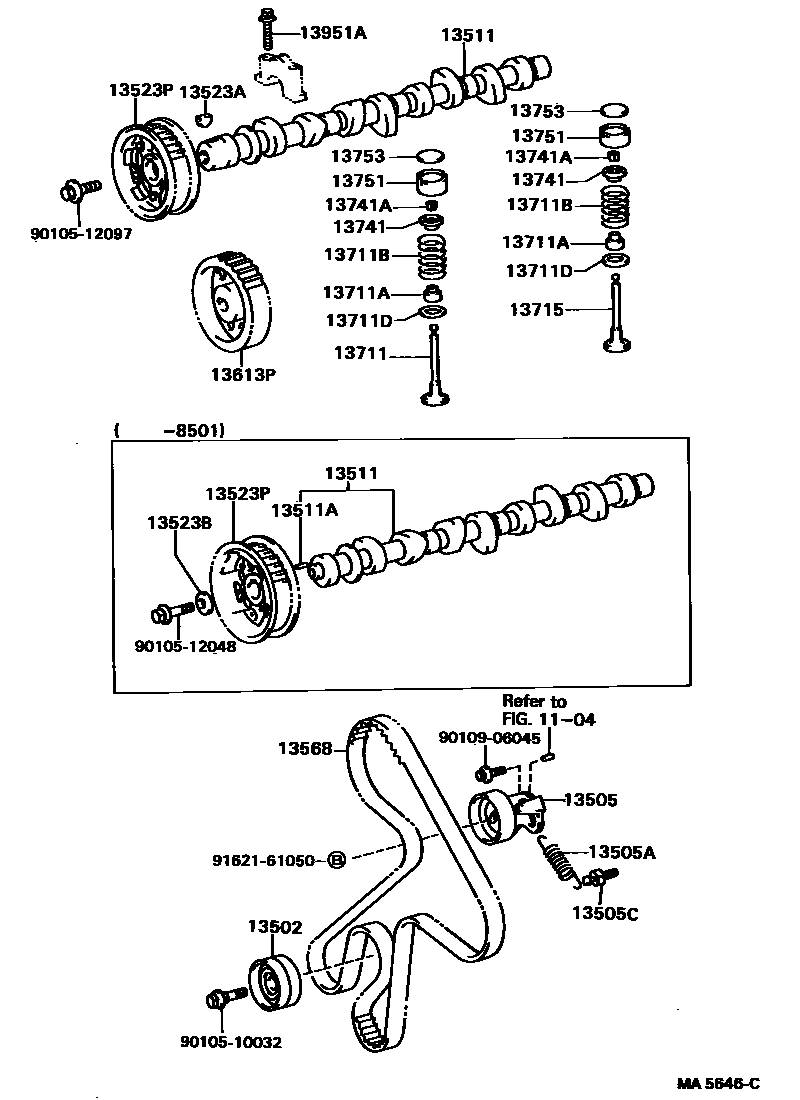

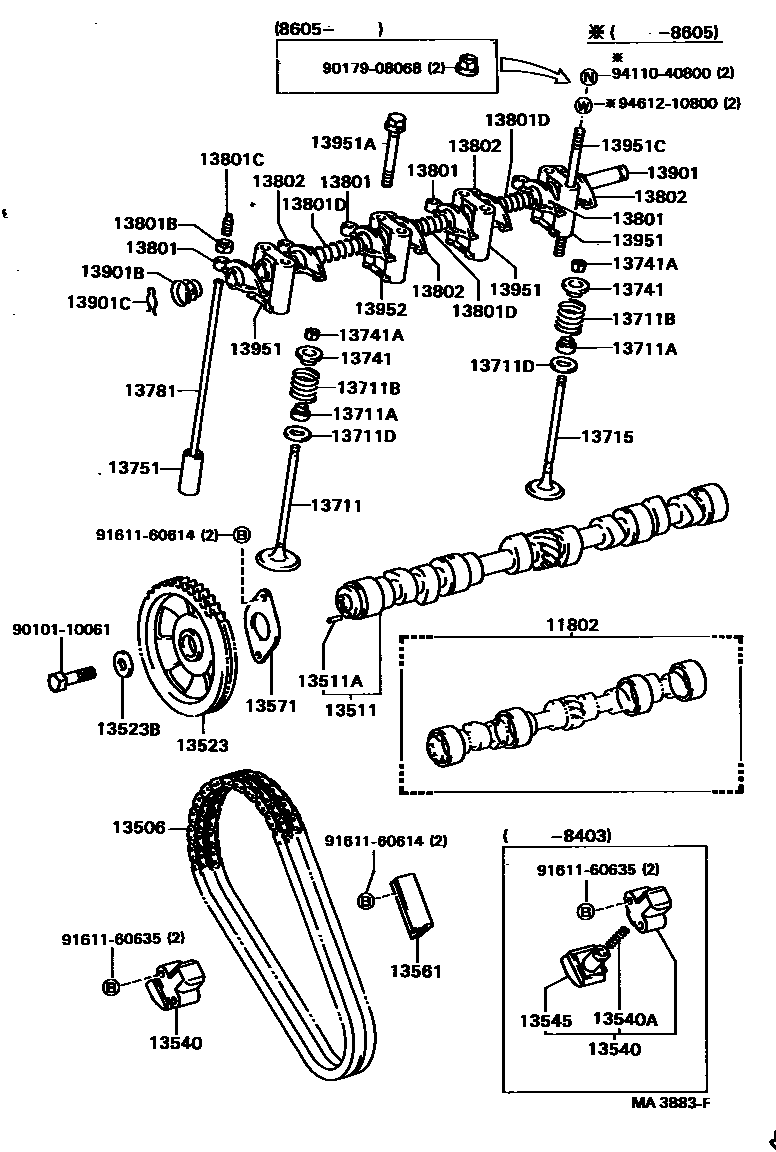

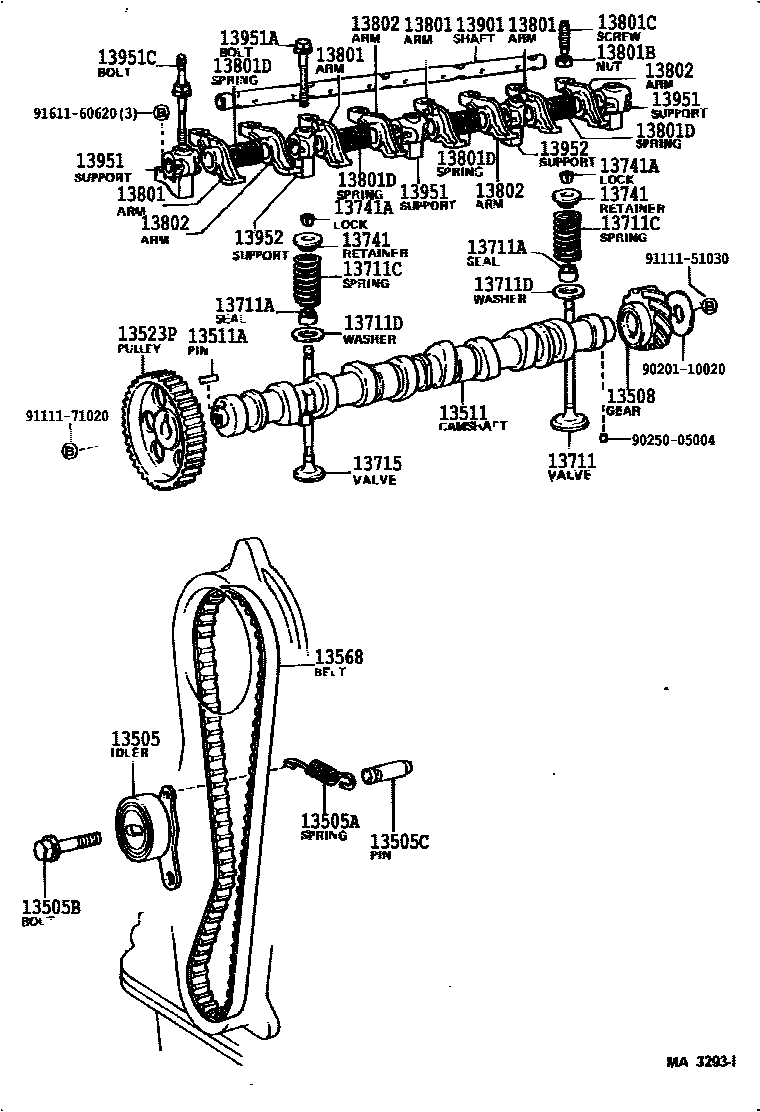

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 6 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11802 | Camshaft bearing assembly | 11802-13020 · 11802-22010 · 11802-22011 · 11802-25010 · 11802-25011 · 11803-13020 · 11803-22010 · 11803-22011 · 11803-25010 · 11803-25011 · 11804-13020 · 11804-22010 · 11804-22011 · 11804-25010 · 11804-25011 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-64020 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-15020 · 13505-15040 · 13505-64020 · 13505-64021 |
| 13505A | Tension spring (for idler pulley) | 90506-14016 · 90507-18006 |
| 13505B | Flange bolts (for idler gear) | 91511-61040 · 91511-61045 · 91511-61050 |
| 13505C | Pin (for idler tension spring) | 13575-64010 · 90249-06006 |
| 13506 | Chain sub-assembly | 13506-13020 · 13506-13021 · 13506-22010 · 13506-25010 |
| 13507 | No. 2 chain sub-assembly | 13507-88210 |
| 13508 | Distributor driving gear sub-assembly | 13508-15010 |
| 13511 | camshaft | 13501-13010 · 13501-13011 · 13501-13040 · 13501-13041 · 13501-88261 · 13501-88262 · 13511-14010 · 13511-25030 · 13511-27010 · 13511-27900 · 13511-64010 · 13511-64011 · 13511-64030 |
| 13511A | Direct pin (for camshaft locking pin) | 90072-25005 · 90250-05121 |
| 13512 | Camshaft No. 2 | 13502-88261 · 13502-88262 |
| 13522 | pump drive shaft gear | 13522-33010 |
| 13522A | Half-moon pin (for pump drive shaft gear) | 90280-05001 |
| 13523 | Camshaft timing gear or sprocket | 13522-33010 · 13523-13030 · 13523-22010 · 13523-88220 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 · 90280-05010 |
| 13523B | Flat washer (for timing gear) | 90201-10019 · 90201-10489 · 90201-13019 · 90201-14293 |
| 13523P | Camshaft timing pulley | 13051-64010 · 13051-64011 · 13523-14010 |
| 13528 | Camshaft driving gear | 13528-33010 |
| 13540 | No. 1 chain tensioner assembly | 13540-13010 · 13540-13011 · 13540-22012 · 13540-25010 · 13540-88221 |
| 13540A | Compression spring (for chain tensioner) | 90072-50129 · 90501-09593 · 90501-10595 |
| 13545 | chain tensioner plunger | 13545-13010 · 13545-22010 · 13545-25010 |
| 13550 | No. 2 chain tensioner assembly | 13550-88210 · 13550-88270 |
| 13550B | Chain Tensioner Pad No. 2 | 90430-22135 |
| 13553 | Chain tensioner dust cover | 13553-88210 |
| 13559 | chain tensioner guide plate | 13559-88220 · 13559-88260 |
| 13559A | E-ring (for chain tensioner guide) | 96160-00700 |
| 13561 | No. 1 chain shock absorber | 13561-13020 · 13561-22010 · 13561-25010 |
| 13562 | No. 2 chain shock absorber | 13562-88210 · 13562-88280 |
| 13563 | No. 3 chain shock absorber | 13563-88220 |
| 13568 | timing belt | 13568-15010 · 13568-64010 · 13568-64011 |
| 13571 | Camshaft thrust plate | 13571-13010 · 13571-51010 |
| 13574 | Oil pump drive shaft plate | 13571-51010 |
| 13612 | Fuel injection pump drive shaft | 13612-88260 |
| 13613P | Fuel injection pump drive pulley | 13613-64010 · 13613-64011 |
| 13711 | intake valve | 13711-15010 · 13711-24011 · 13711-25011 · 13711-64010 · 13711-64011 · 13711-64020 · 13711-88224 |
| 13711A | Oil seal or O-ring (for valve stem) | 90072-72206 · 90913-02023 · 90913-02038 · 90913-02053 · 90913-02056 · 90913-02057 · 90913-02058 |
| 13711B | Compression spring (for inner side) | 90072-50137 · 90501-42008 · 90501-42010 · 90501-42293 · 90501-43003 · 90501-47540 |
| 13711C | Compression spring (for outside) | 90072-50136 · 90501-42004 |
| 13711D | Flat washer (for valve spring seat) | 90201-15387 · 90201-16002 · 90201-16010 · 90201-21002 |
| 13715 | exhaust valve | 13715-15010 · 13715-24012 · 13715-24013 · 13715-25011 · 13715-64010 · 13715-64030 · 13715-88222 |
| 13734 | Valve spring seat | 13734-88211 |
| 13741 | Valve spring seat ring | 13741-15010 · 13741-24020 · 13741-25012 · 13741-43010 · 13741-88211 |
| 13741A | Valve spring seat lock plate | 90913-03005 · 90913-03010 · 90913-03014 · 90913-03017 · 90913-03022 |
| 13751 | valve lifter | 13750-13020 · 13751-22013 · 13751-22014 · 13751-31020 · 13751-64010 · 13751-64011 · 13755-22013 · 13755-22014 · 13755-31020 |
| 13751D | valve adjustment pad | 90072-72601 · 90072-72603 · 90072-72605 · 90072-72607 · 90072-72609 · 90072-72611 · 90072-72613 · 90072-72615 · 90072-72617 · 90072-72619 · 90072-72621 · 90072-72623 · 90072-72625 · 90072-72627 · 90072-72629 · 90072-72631 · 90072-72633 · 90072-72635 · 90072-72637 · 90072-72639 · 90072-72641 · 90072-72643 · 90072-72645 · 90072-72647 · 90072-72649 · 90072-72651 · 90072-72653 · 90072-72655 · 90072-72657 · 90072-72659 · 90072-72661 · 90072-72663 · 90072-72665 · 90072-72667 · 90072-72669 · 90072-72671 · 90072-72673 · 90072-72675 · 90072-72677 · 90072-72679 · 90072-72681 · 90072-72683 · 90072-72685 · 90072-72687 · 90072-72689 · 90072-72691 · 90072-72693 · 90072-72695 · 90072-72697 · 90072-72699 · 90072-72702 |
| 13753 | valve adjustment gasket | 13753-64010 · 13753-64030 · 13753-64050 · 13753-64070 · 13753-64090 · 13753-64110 · 13753-64130 · 13753-64150 · 13753-64170 · 13753-64190 · 13753-64210 · 13753-64230 · 13753-64250 · 13753-64270 · 13753-64290 · 13753-64310 · 13753-64330 · 13753-64350 · 13753-64370 · 13753-64390 · 13753-64410 · 13753-64430 · 13753-64450 · 13753-64470 · 13753-64490 |
| 13781 | valve pushrod | 13781-13010 · 13781-13040 · 13781-13080 · 13781-13081 · 13781-13090 · 13781-25011 |
| 13783 | No. 2 valve pushrod | 13783-25011 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-13010 · 13811-15010 · 13811-22011 · 13811-25011 |
| 13801B | Hex nut (for valve adjustment) | 90170-07001 · 90170-08005 · 90170-08094 |
| 13801C | valve adjustment screw | 90913-05013 · 90913-05018 · 90913-05020 |
| 13801D | Compression spring (for rocker arm) | 90501-11008 · 90501-12008 · 90501-14025 · 90501-14064 |
| 13802 | No. 2 valve rocker arm sub-assembly | 13812-13010 · 13812-15010 · 13812-22011 · 13812-25010 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-15010 · 13901-22011 · 13901-25010 |
| 13901B | Conical spring (for valve rocker arm shaft) | 90502-14022 |
| 13901C | Stop spring (for valve rocker arm shaft) | 90524-13009 |
| 13901G | Rocker shaft washer | 90201-16172 |
| 13902 | No. 2 valve rocker arm shaft sub-assembly | 13902-25010 |
| 13951 | No. 1 valve rocker arm bracket | 13951-15010 · 13951-25010 · 13952-24012 |
| 13951A | Bolts (for rocker arm bracket assembly) | 90105-08028 · 90109-08029 · 90910-02040 · 91621-60840 · 91651-60845 |
| 13951C | Stud bolts (for rocker arm bracket) | 90109-08028 · 90116-08082 · 90116-08127 |
| 13952 | No. 2 valve rocker arm bracket | 13952-15010 · 13952-24012 · 13952-25010 |
| 13953 | No. 3 valve rocker arm bracket | 13953-25010 |
