Toyota COROLLA Ventilation Hose — Figure 1201

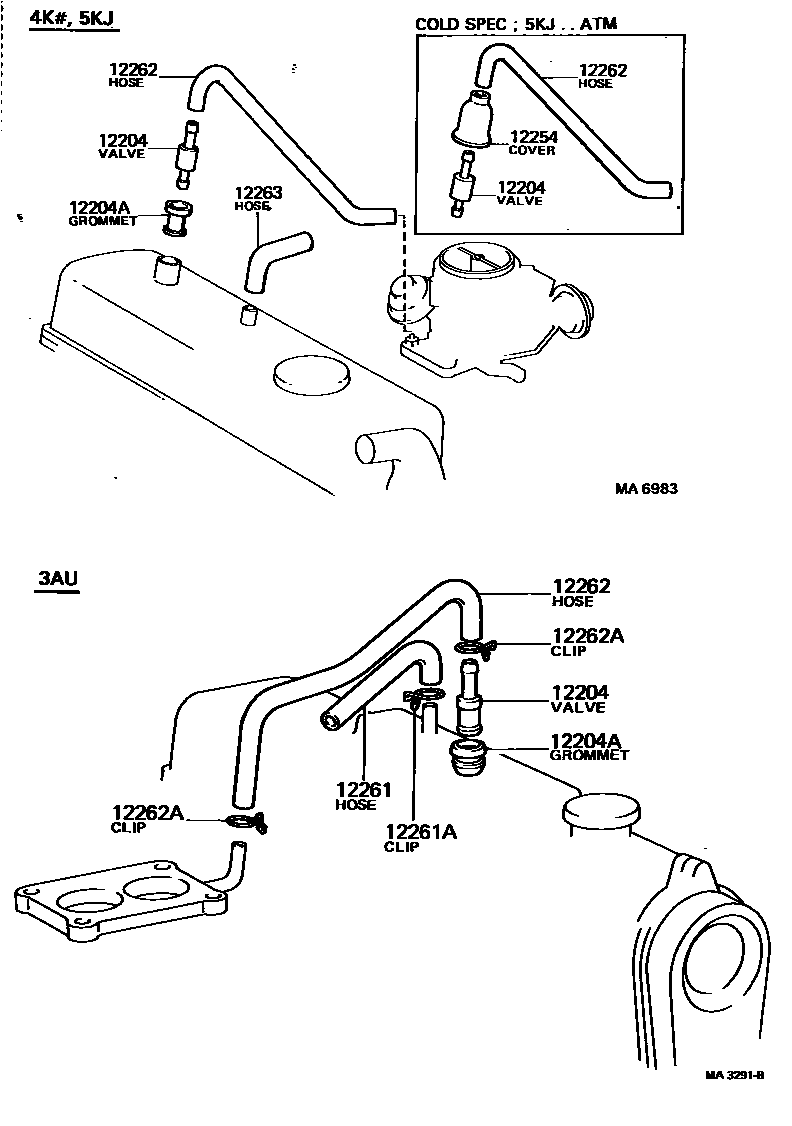

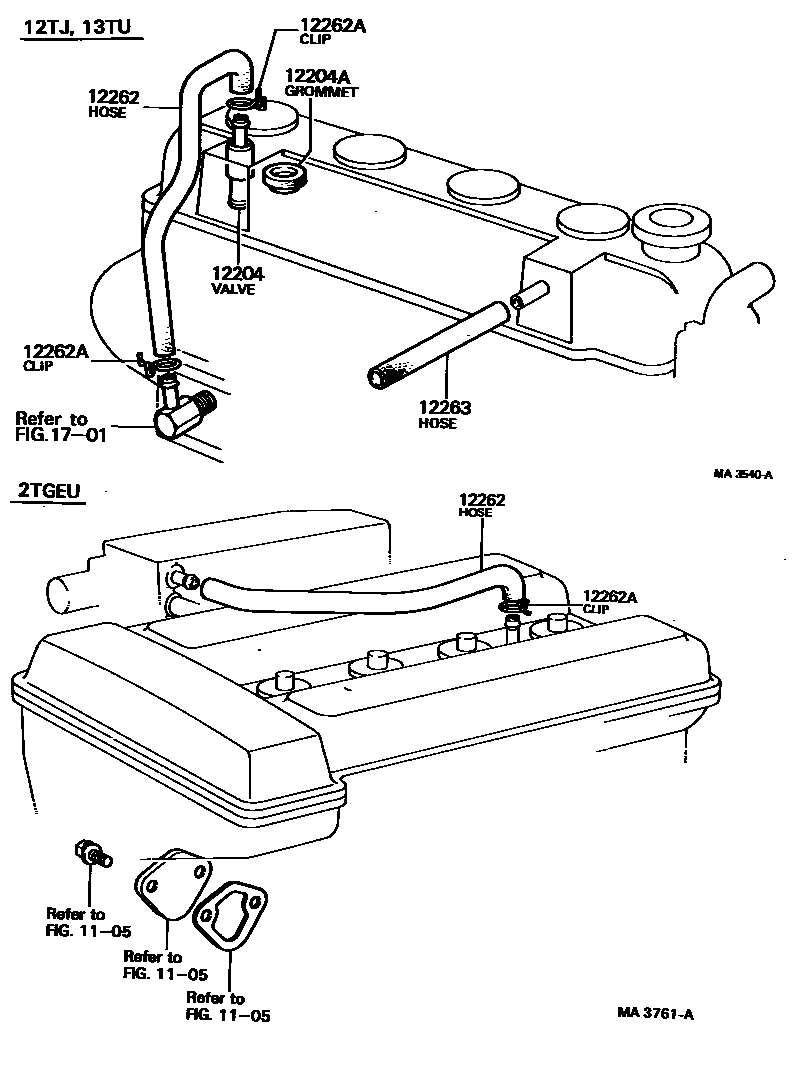

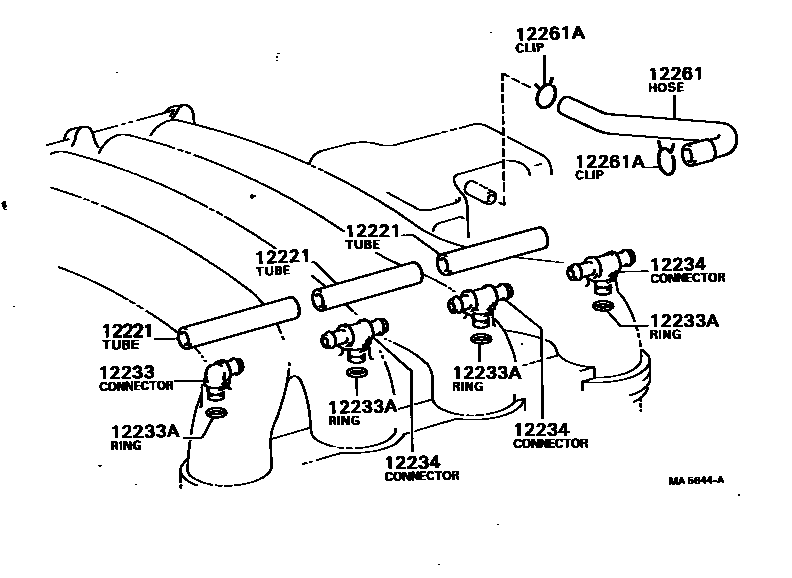

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-13020 · 12204-13021 · 12204-13030 · 12204-13060 · 12204-15020 · 12204-15021 · 12204-15022 · 12204-28010 |
| 12204A | Gasket (for ventilation system) | 90480-16003 · 90480-18001 · 90480-18180 |
| 12221 | Ventilation duct No. 1 | 12221-64010 |
| 12233 | Ventilation Connector No. 1 | 12233-64010 |
| 12233A | O-ring (for vent connector) | 96711-19008 |
| 12234 | Ventilation Connector No. 2 | 12234-64010 |
| 12254 | Ventilation valve cover | 12236-24010 |
| 12261 | Ventilation Hose | 12261-15010 · 12261-64010 |
| 12261A | Clip or clip (for vent hose) | 90467-15120 · 90467-16010 |
| 12262 | Ventilation hose No. 2 | 12261-13030 · 12261-24021 · 12261-25012 · 12261-88260 · 12262-15010 |
| 12262A | Clamp (for vent hose No. 2) | 90467-13103 · 90467-16010 · 90467-21026 |
| 12263 | No. 3 ventilation hose | 90445-20012 · 90910-05130 |
