Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

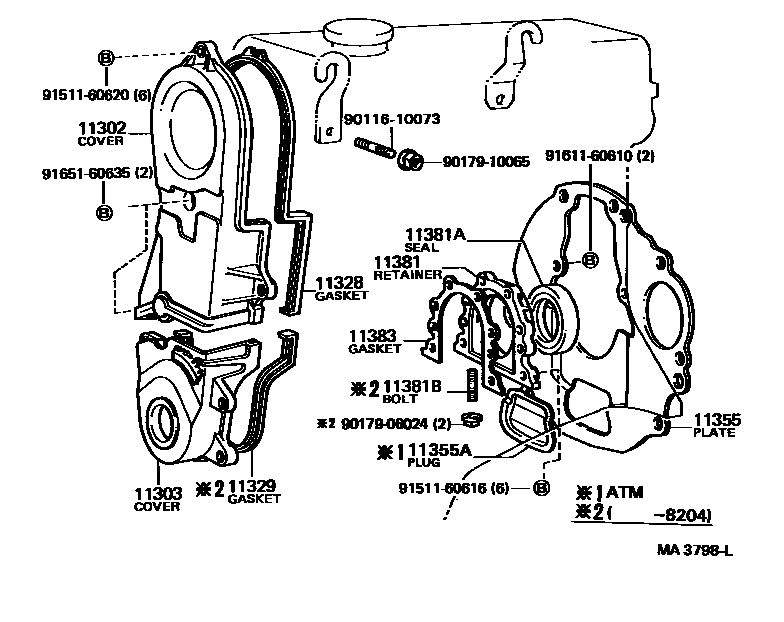

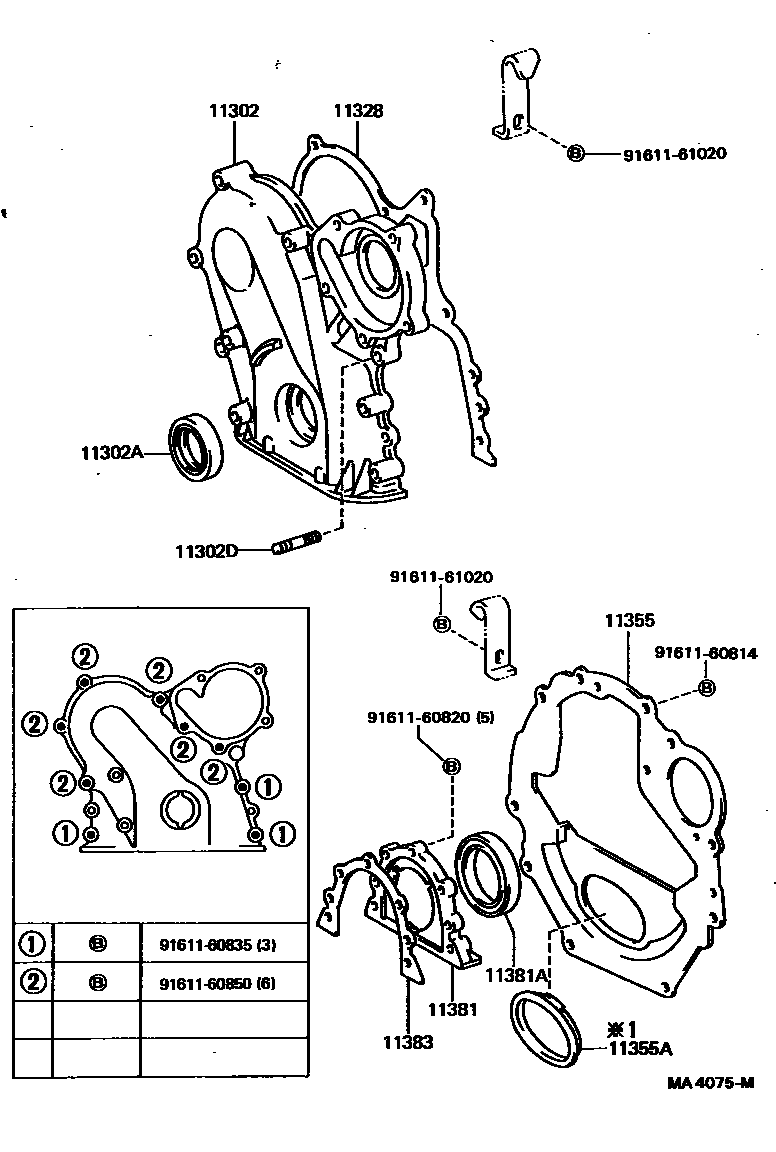

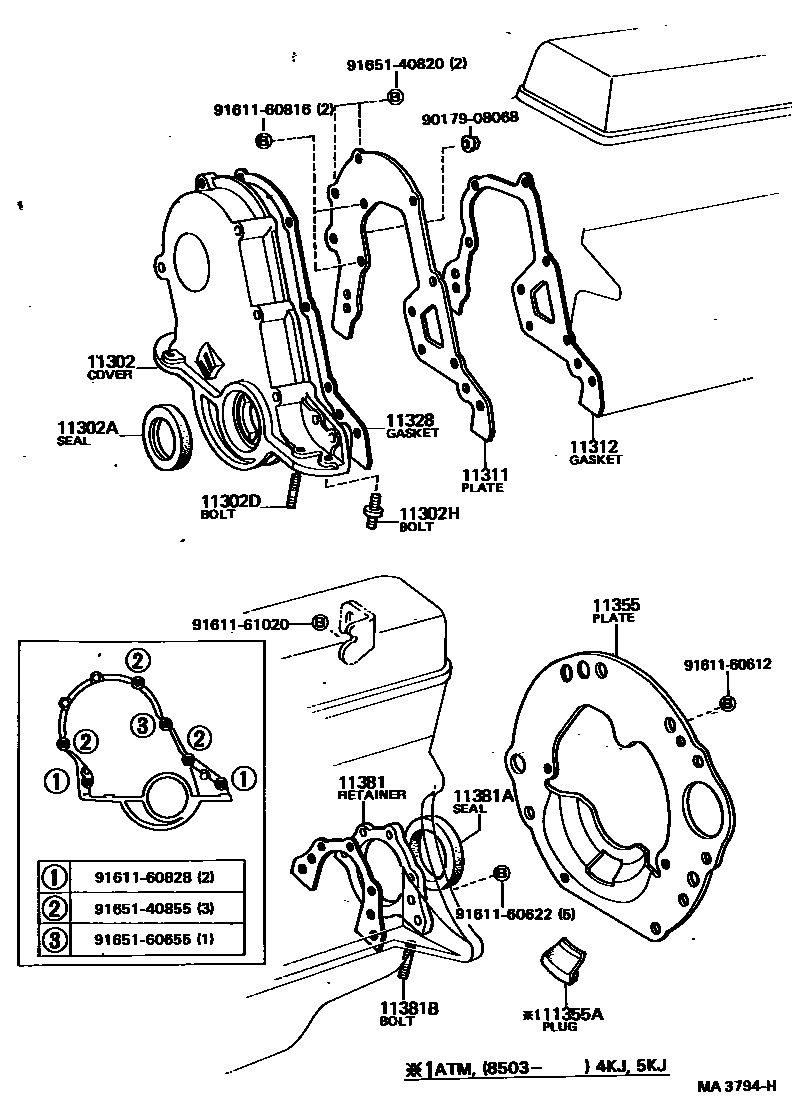

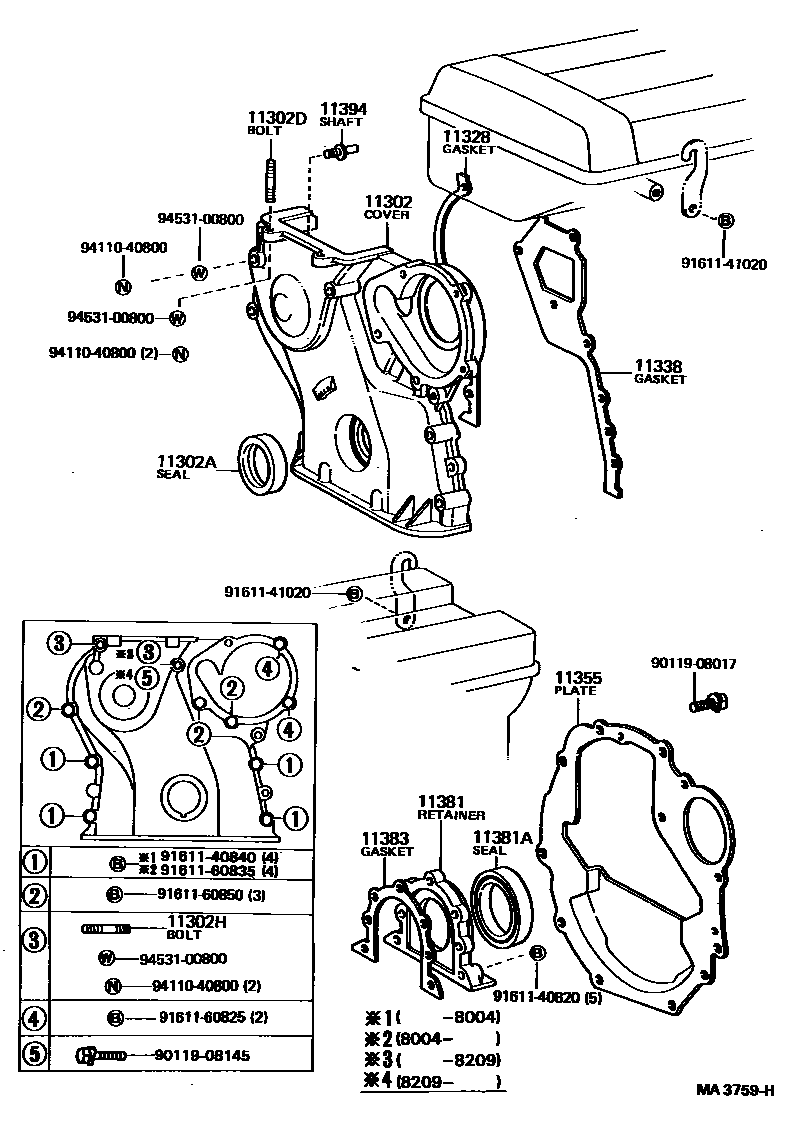

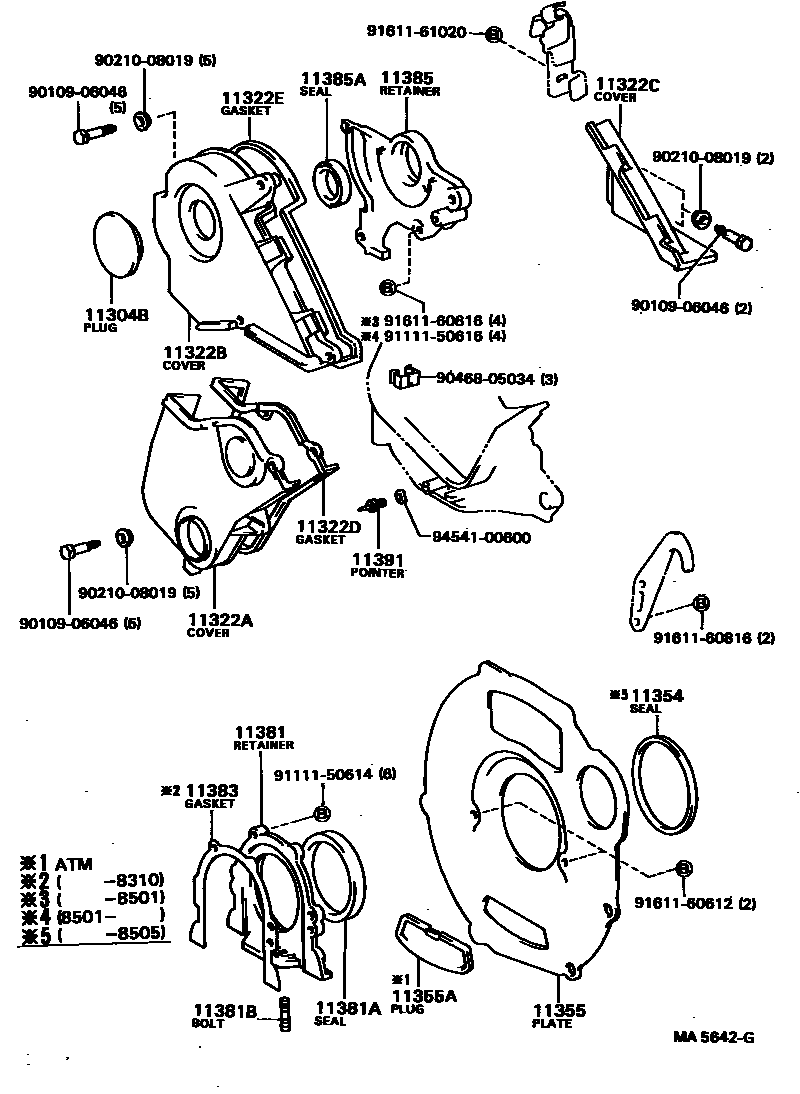

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-15010 · 11321-13030 · 11321-13040 · 11321-13041 · 11321-13042 · 11321-28010 · 11321-88220 · 11321-88221 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-38013 · 90311-38022 · 90311-38111 |
| 11302D | Studs (for timing gear cover) | 90116-06012 · 90116-08015 · 90116-08057 |
| 11302H | Studs (for timing gear cover) | 90072-11618 · 90116-06006 |
| 11303 | Crankshaft gear or crankshaft pulley cover sub-assembly | 11303-15010 · 11303-15020 |
| 11304B | Half-round plug (for No. 2 timing chain cover) | 90950-01357 |
| 11311 | front board | 11311-13010 |
| 11312 | front panel gasket | 11312-13010 · 11312-13011 · 11312-13030 · 11312-13040 |
| 11322A | No. 1 timing belt cover | 11321-64010 |
| 11322B | No. 2 timing belt cover | 11322-64010 |
| 11322C | No. 3 timing belt cover | 11323-64010 · 11323-64011 |
| 11322D | No. 1 timing belt cover gasket | 11328-64020 |
| 11322E | No. 2 timing belt cover gasket | 11329-64020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-13010 · 11328-13011 · 11328-15010 · 11328-25011 · 11328-25012 · 11328-88220 |
| 11329 | Timing gear rear cover gasket | 11329-15010 |
| 11338 | No. 2 timing chain cover gasket | 11338-88220 |
| 11354 | Flywheel housing dust seal | 11354-64010 |
| 11355 | rear end plate | 11305-13010 · 11355-13010 · 11355-13011 · 11355-13012 · 11355-15020 · 11355-15021 · 11355-15030 · 11355-15031 · 11355-24041 · 11355-24042 · 11355-24043 · 11355-25011 · 11355-25012 · 11355-25023 · 11355-26020 · 11355-26030 · 11355-64010 · 11355-64011 · 11355-64020 · 11355-64021 |
| 11355A | Hole plug (for rear end plate) | 90950-01160 · 90950-01215 · 90950-01264 · 90950-01343 · 90950-01358 · 90950-01548 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-13010 · 11381-13011 · 11381-15010 · 11381-25010 · 11381-64010 · 11381-64011 · 11381-64012 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-70001 · 90311-70004 · 90311-75113 · 90311-90002 · 90311-90003 |
| 11381B | Stud bolts (for engine rear oil seal race) | 90116-06033 · 90116-06035 · 92122-60612 |
| 11383 | Engine rear oil seal seat gasket | 11383-13010 · 11383-15010 · 11383-25010 · 11383-64010 |
| 11385 | Camshaft oil seal race | 11382-64010 · 11382-64011 |
| 11385A | Oil seal (for camshaft) | 90311-38017 · 90311-38025 |
| 11391 | Timing pointer | 11391-64010 |
| 11394 | timing chain tensioner shaft | 11394-34010 |
