Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 2 PNC and OE references.

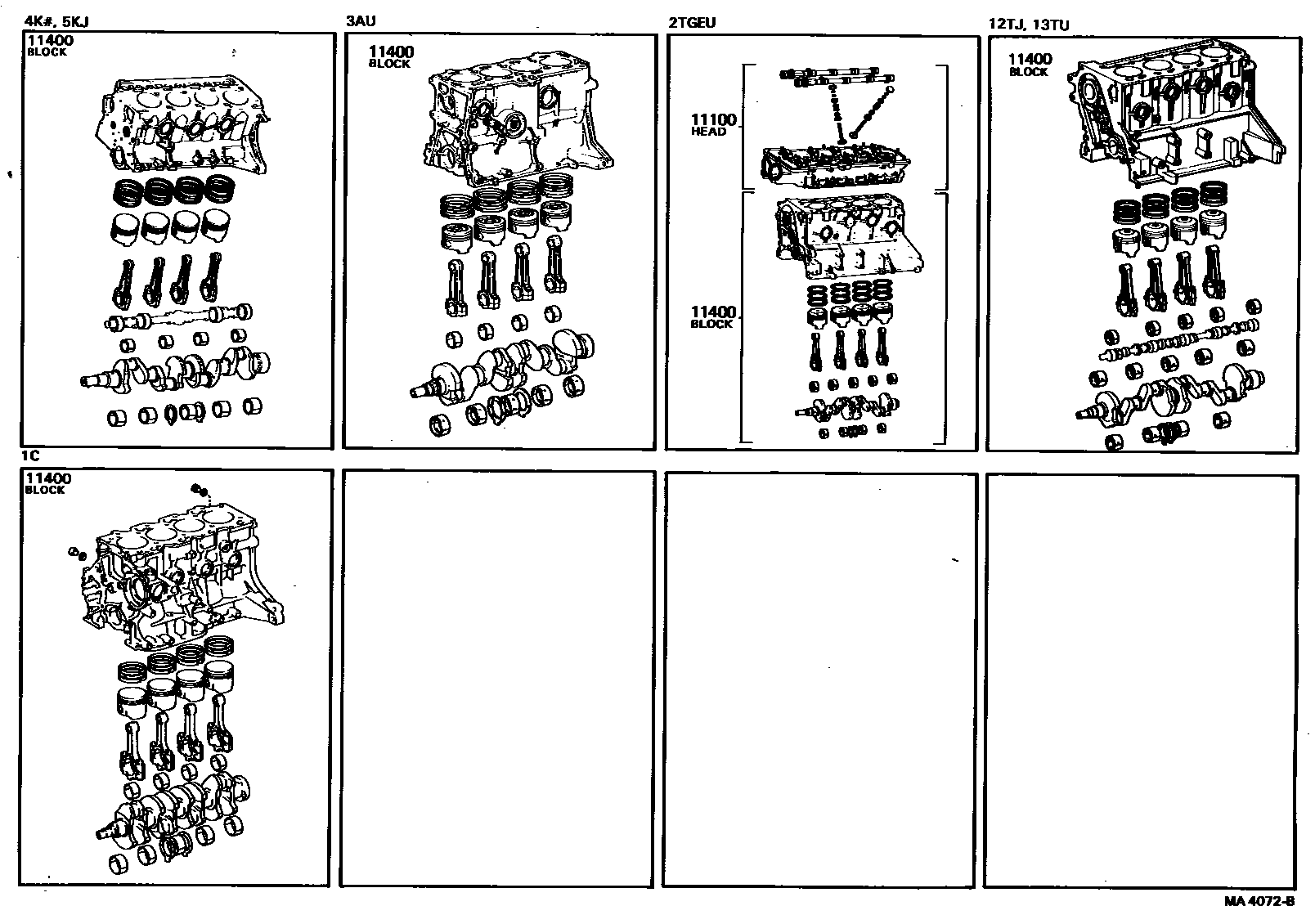

Toyota COROLLA Short Block Assembly EPC diagram — MA4072B
Short Block Assembly — MA4072B (197903 – 999999)

PNC and OE references

PNCPart nameOE numbers
11100Short Block Assembly11100-27031 · 11100-27040
11400Short Block Assembly11400-13010 · 11400-13020 · 11400-13030 · 11400-13031 · 11400-13040 · 11400-13041 · 11400-15020 · 11400-15040 · 11400-18011 · 11400-27051 · 11400-27070 · 11400-27080 · 11400-27081 · 11400-27090 · 11400-27091 · 11400-64020 · 11400-64021 · 11400-64022 · 11400-64100 · 11400-64101 · 11400-64110 · 11400-64111
