Toyota COROLLA 后视镜 — Figure 8701

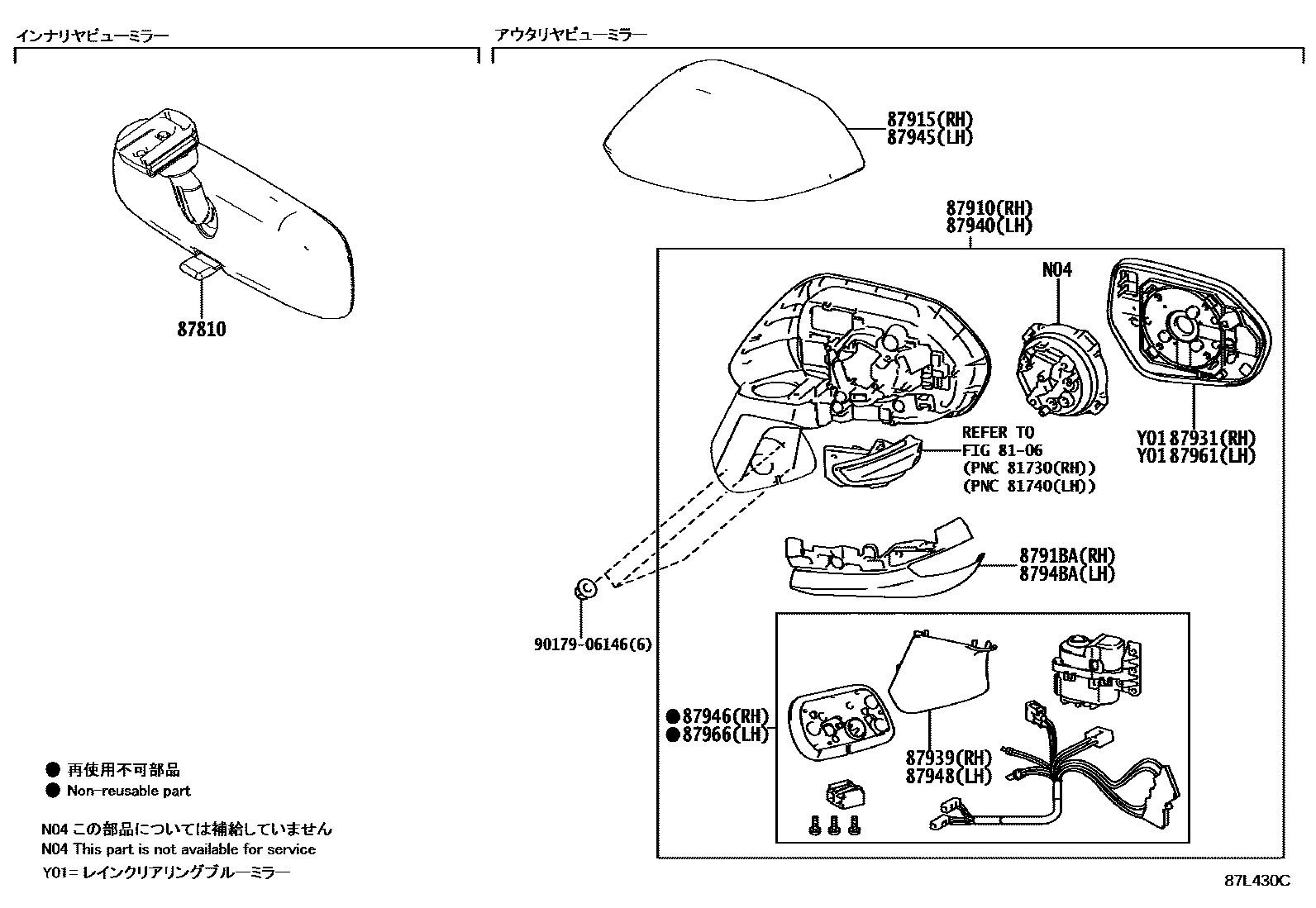

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-28140 |
| 87910 | Right exterior rearview mirror assembly | 87910-12G20 · 87910-12G40 |
| 8791BA | Toyota part | 8791B-12G30 |
| 87931 | Right exterior rearview mirror | 87902-12030 · 87902-12090 |
| 87939 | Right exterior rearview mirror hole cover | 87939-12G20 |
| 87940 | Left exterior rearview mirror assembly | 87940-12G40 · 87940-12K30 |
| 87946 | Right exterior rearview mirror retractor | 87946-12G20 · 87946-12G40 |
| 87948 | Left exterior rearview mirror hole cover | 87948-12G40 |
| 8794BA | Toyota part | 8794B-12G50 |
| 87961 | Left exterior rearview mirror | 87907-12020 · 87907-33170 |
| 87966 | Left exterior rearview mirror retractor | 87966-12G40 · 87966-12K30 |
