Toyota COROLLA 车载电话和呼救装置 — Figure 8615

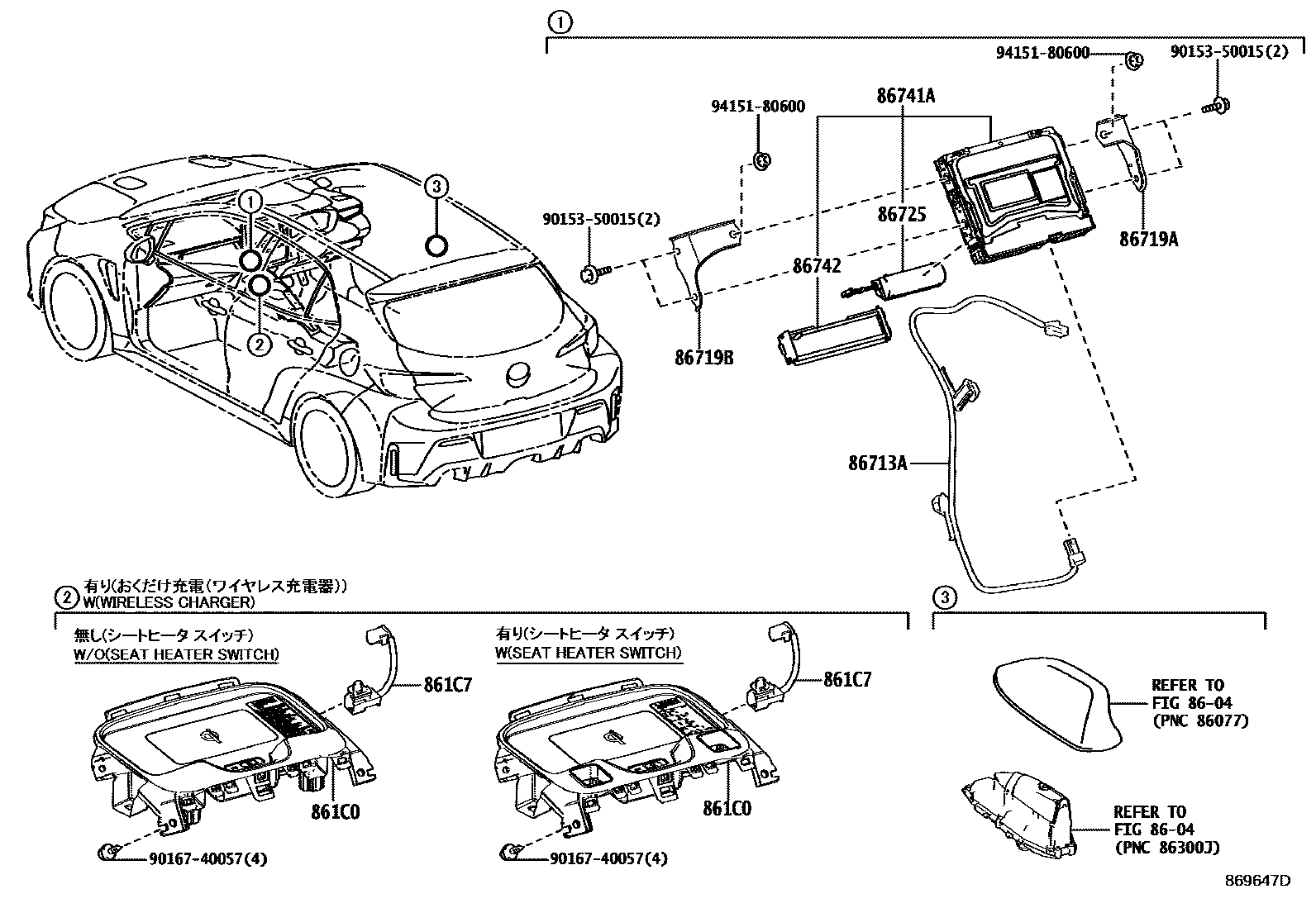

Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | Toyota part | 861C0-12040 · 861C0-12041 · 861C0-12050 · 861C0-12051 |
| 861C7 | Toyota part | 861C7-12010 |
| 86713A | Telephone ECU harness (to transceiver) | 86713-12100 |
| 86719A | Phone holder No. 1 | 86719-12010 |
| 86719B | Phone holder No. 2 | 86719-12020 |
| 86725 | mobile phone battery | 86725-78020 |
| 86741A | Telecommunications transceiver | 86741-42220 · 86741-42221 |
| 86742 | transceiver cover | 86742-26010 |
