Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 9 PNC and OE references.

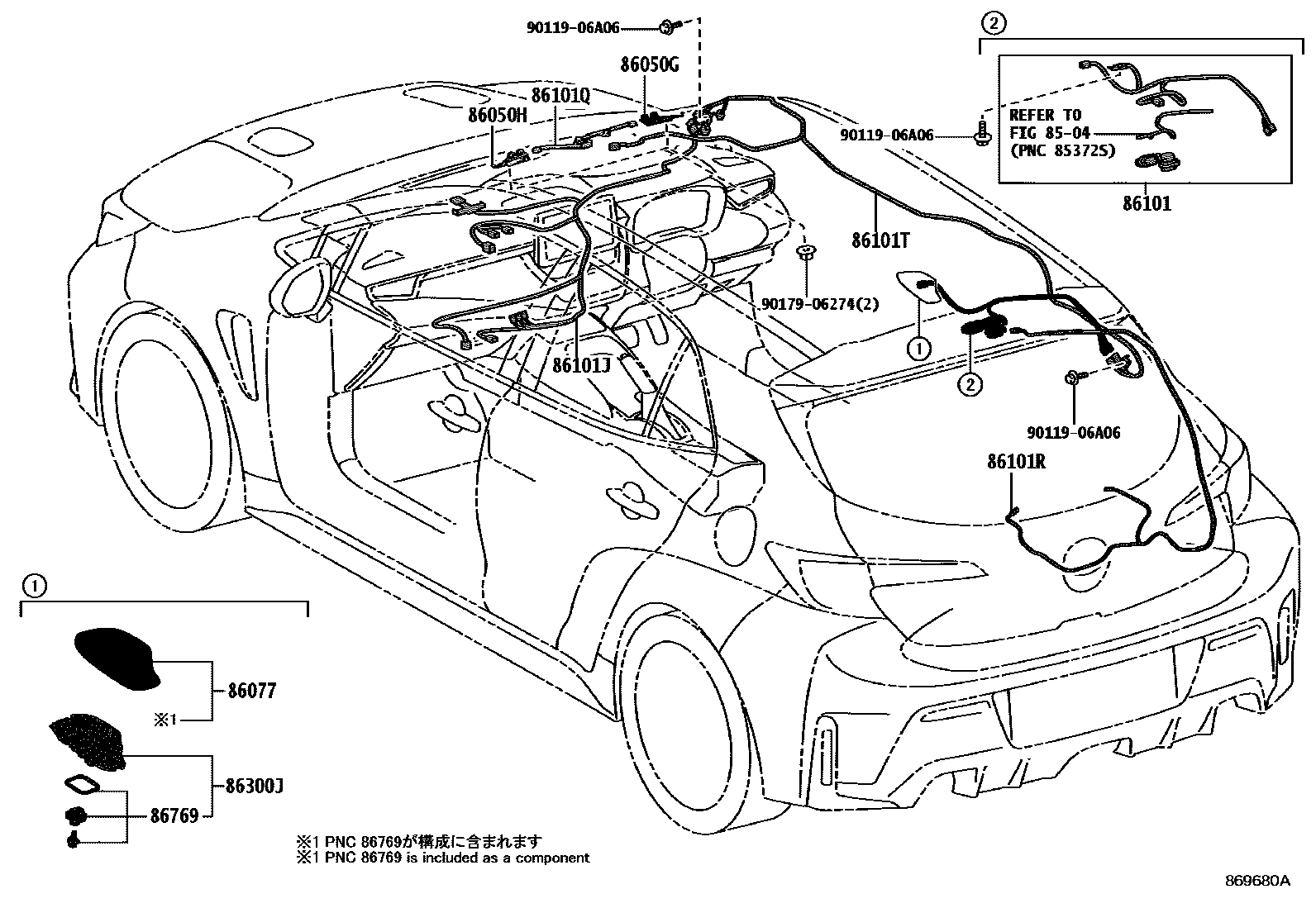

Toyota COROLLA antenna EPC diagram — 869680A
antenna — 869680A (202212 – 999999)

PNC and OE references

PNCPart nameOE numbers
86050GToyota part86050-53180
86050HToyota part86050-53190
86101Antenna wire sub-assembly86101-12N00
86101JNo. 2 antenna wire sub-assembly86101-12Q50
86101QNo. 4 antenna wire sub-assembly86101-12Q60
86101RNo. 5 antenna wire sub-assembly86101-12L30
86101TAntenna wire sub-assembly86101-12S20
86300JRoof antenna assembly86300-42250
86769Toyota part86769-K0010
