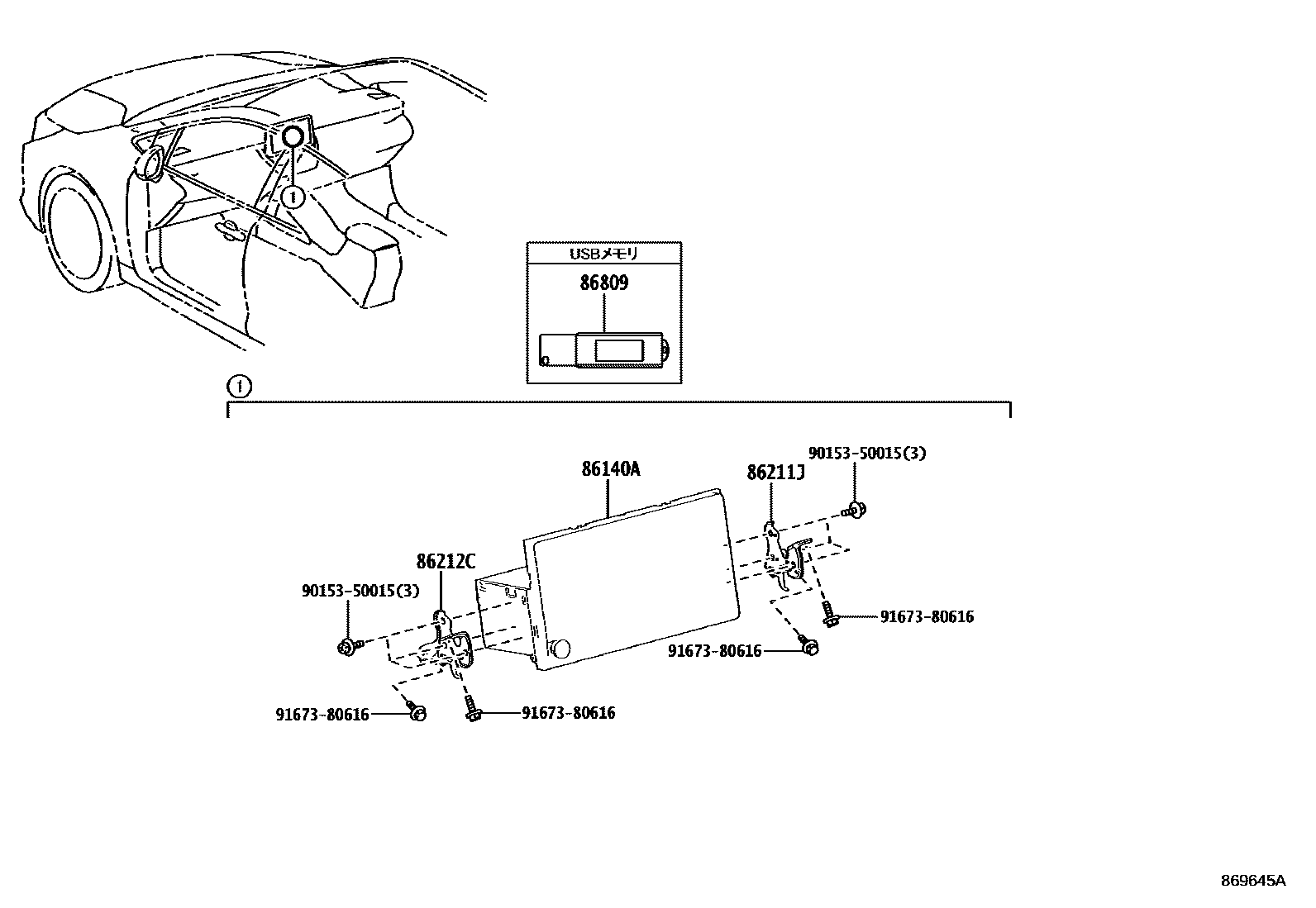

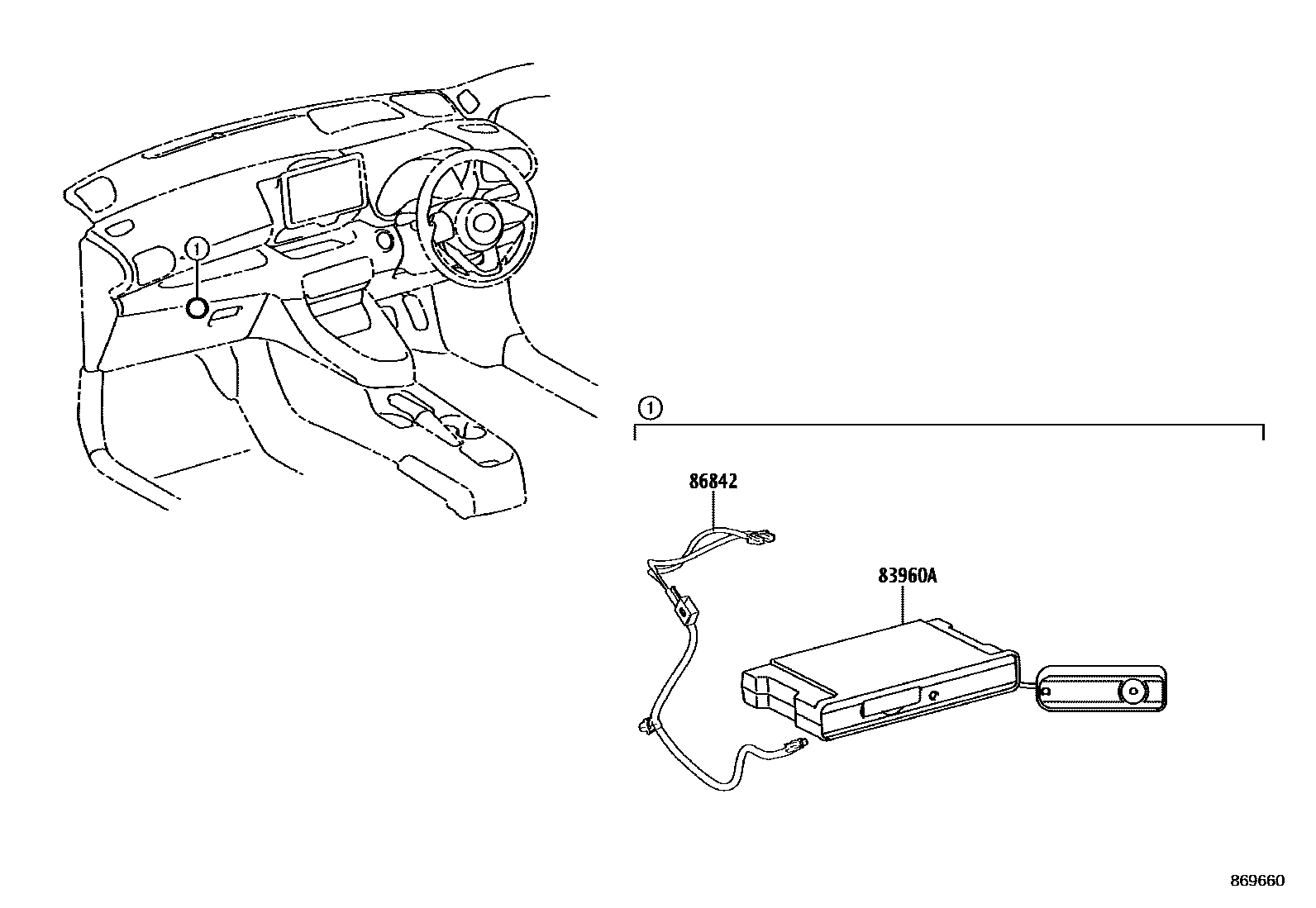

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83960A | Toyota part | 83960-52020 |
| 86140A | Radio and display receiver assembly | 86140-12E30 · 86140-12E31 · 86140-12E32 · 86140-12E33 · 86140-12E34 |
| 86211J | No. 1 radio bracket | 86211-12470 |
| 86212C | No. 2 radio bracket | 86212-12460 |
| 86730A | Telephone amplifier assembly | 86730-42100 |
| 86809 | Toyota part | 86809-78011 · 86809-78012 · 86809-78013 |
| 86842 | Navigation harness No. 1 | 86842-12050 |
| 86860 | Navigation antenna assembly | 86880-52030 |
| 86862 | Navigation antenna bracket | 86862-42010 |
