Toyota COROLLA 空气囊 — Figure 8421

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.

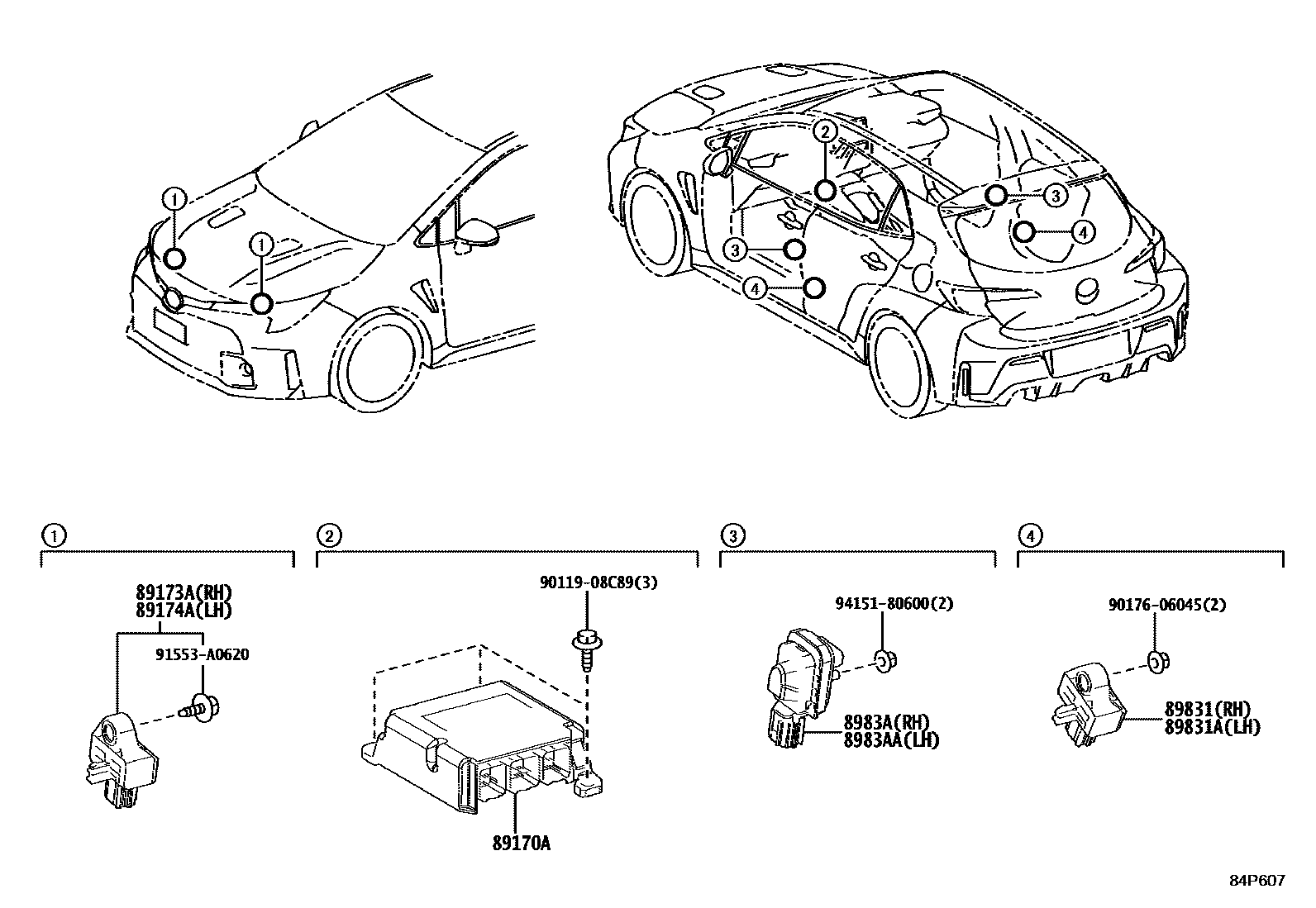

Toyota COROLLA 空气囊 EPC diagram — 84P607
空气囊 — 84P607 (202212 – 999999)

PNC and OE references

PNCPart nameOE numbers
89170AAir bag ECU assembly89170-12L70
89173ARight front air bag sensor89173-59335
89174ALeft front air bag sensor89173-59335
89831Toyota part89831-42020
89831AToyota part89831-42020
8983AToyota part8983A-12030
8983AAToyota part8983A-12030
