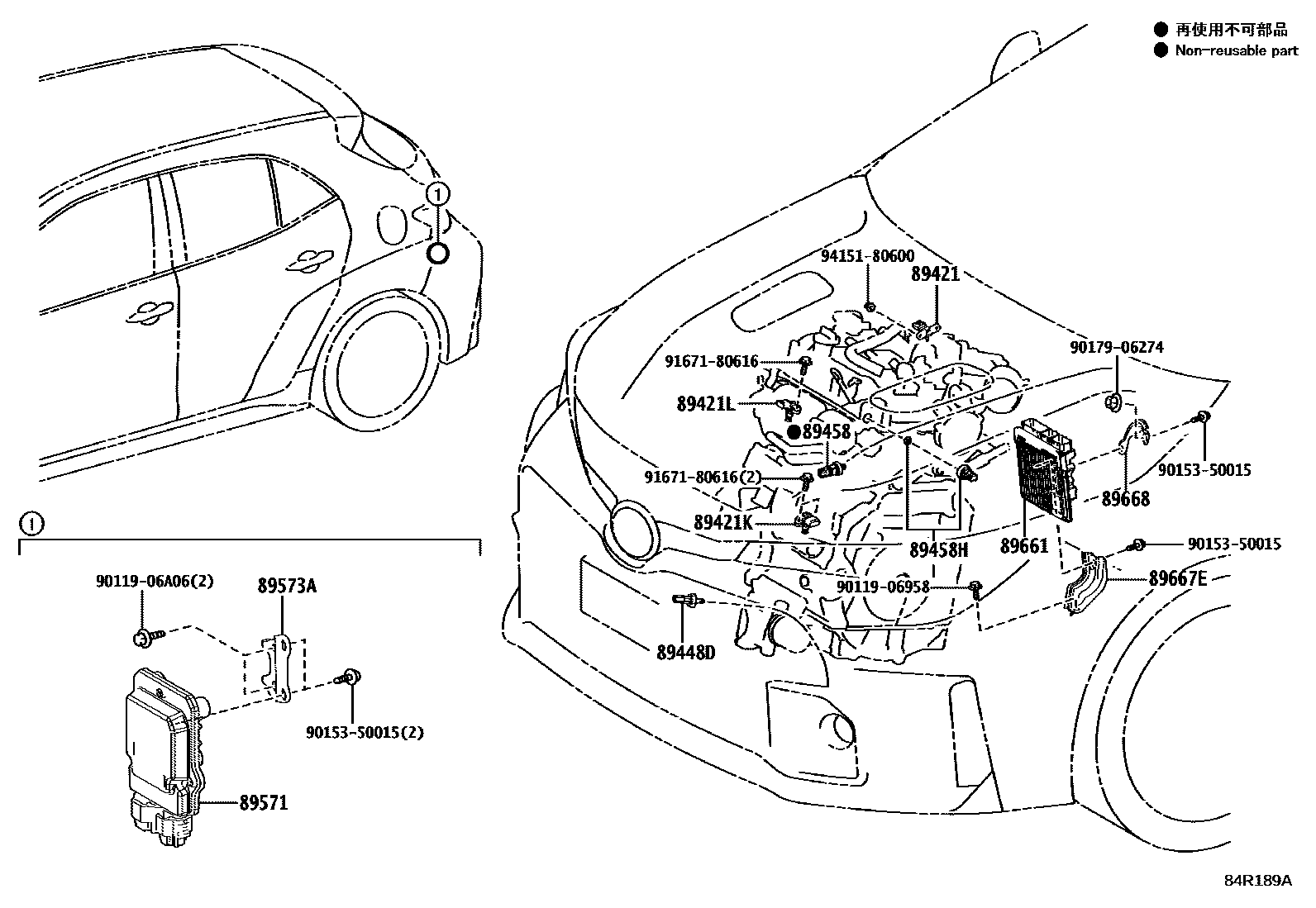

Toyota COROLLA 电子燃油喷射系统 — Figure 8404
Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-33010 |
| 89421K | Toyota part | 89421-12170 |
| 89421L | Toyota part | 89421-12170 |
| 89448D | Toyota part | 89448-33010 |
| 89458 | fuel pressure sensor | 89458-78030 |
| 89458H | Toyota part | 89458-33042 |
| 89571 | Fuel pump control ECU | 89571-58020 |
| 89573A | Toyota part | 89573-12160 |
| 89661 | Engine control ECU | 89661-1AE30 |
| 89667E | No. 1 engine control ECU bracket | 89667-52400 |
| 89668 | No. 2 engine control ECU bracket | 89668-12330 |
