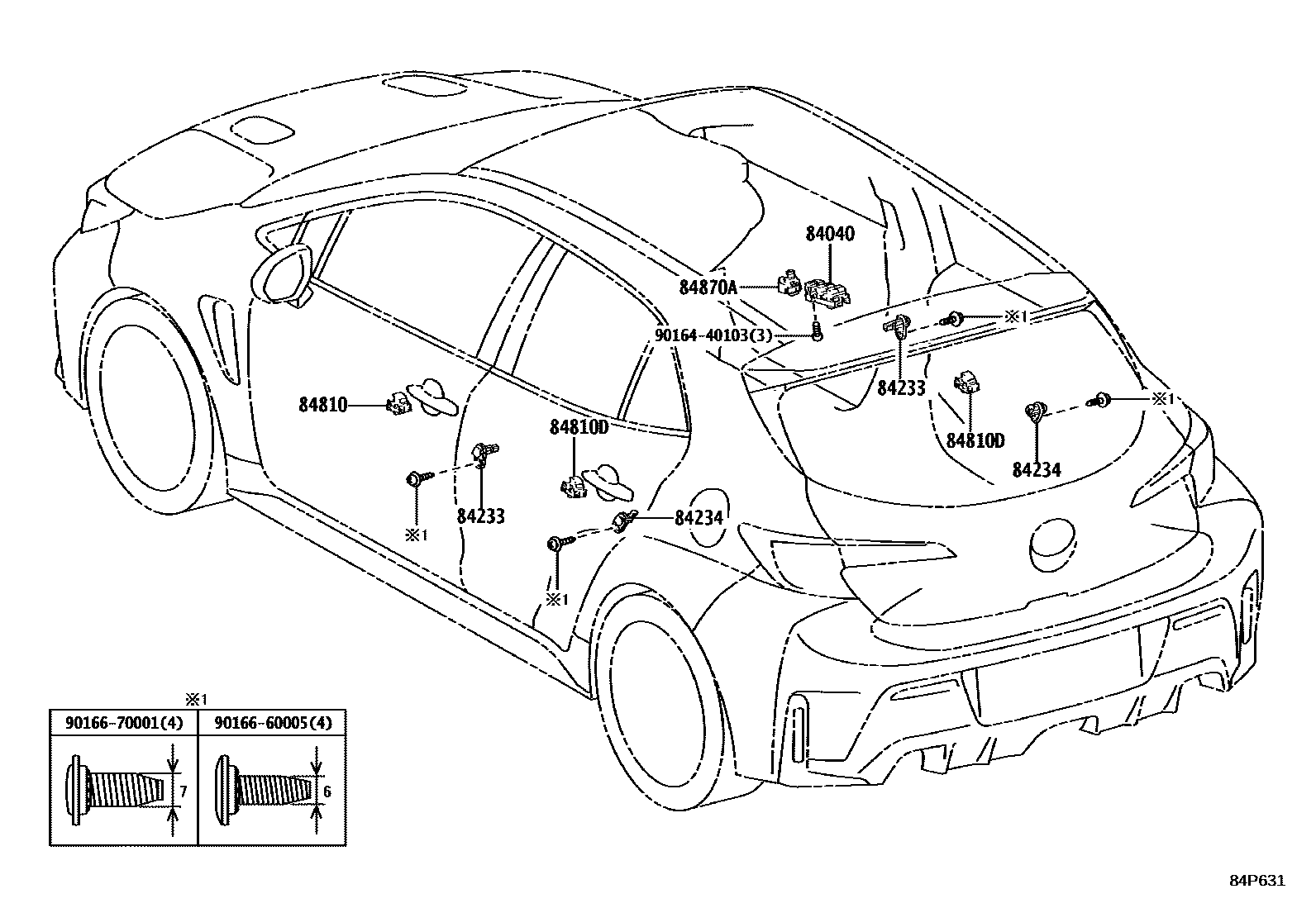

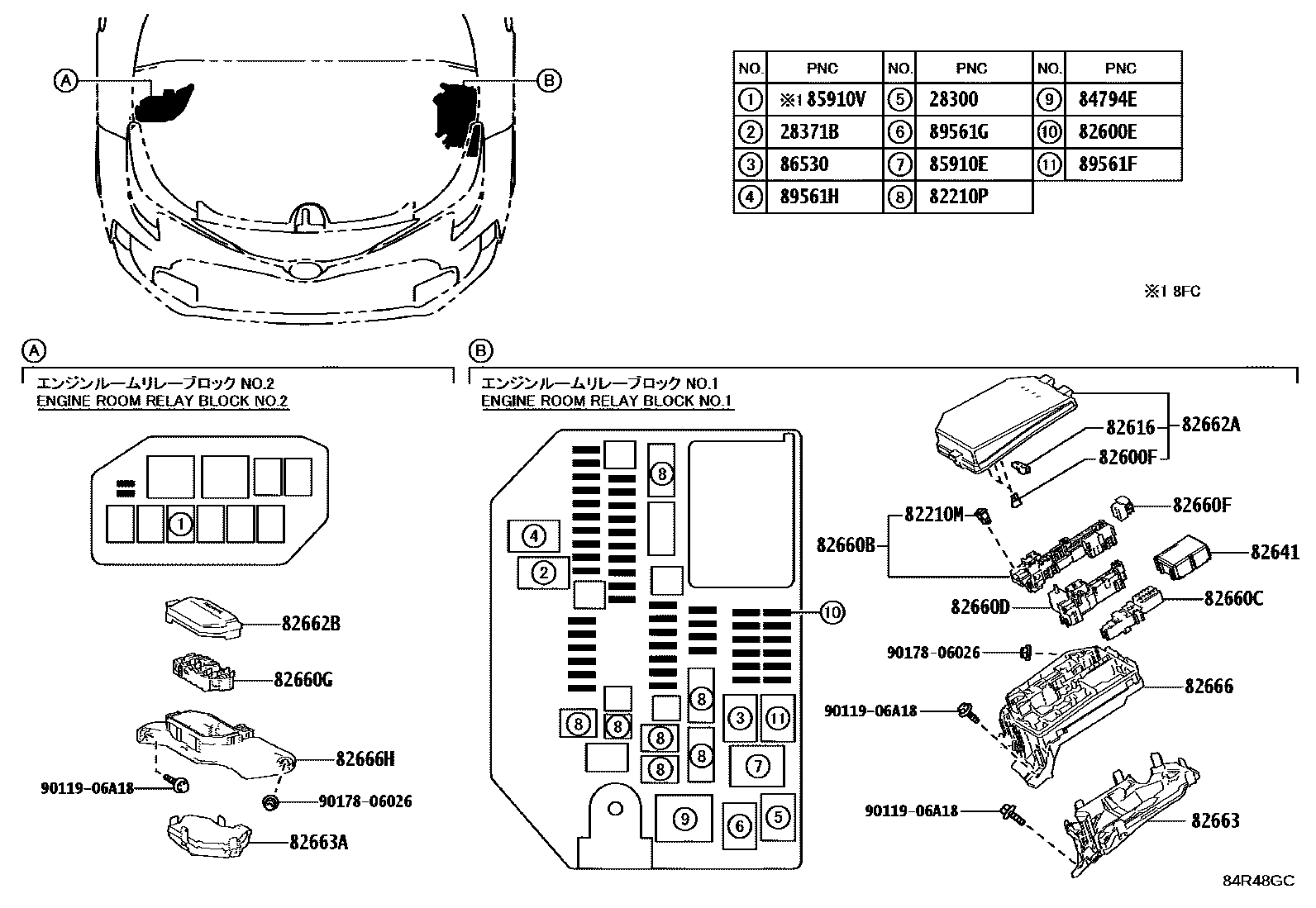

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 10 images and 82 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28371B | Toyota part | 90987-02027 |
| 28850C | Toyota part | 28850-K0010 · 28850-K0020 |
| 82210M | fuse | 90982-08286 |
| 82210N | Instrument panel fuse | 90982-08306 |

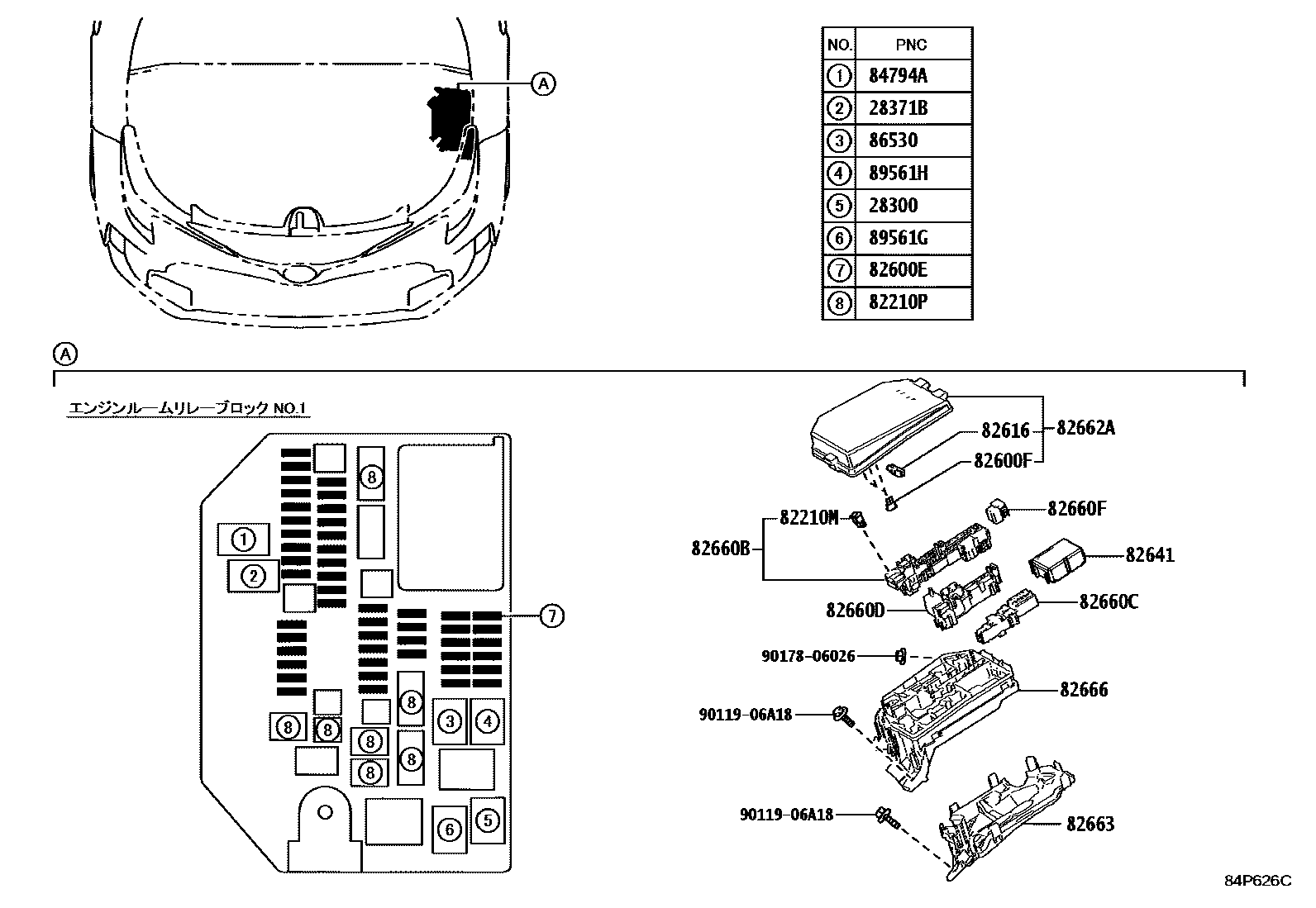

| 82210P | Engine room fuse | 90982-08294 · 90982-08301 · 90982-08302 · 90982-08304 · 90982-08305 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 · 90982-09026 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82641 | Integrated relay No. 1 | 82641-47050 |
| 82660B | Relay assembly | 82660-12370 |
| 82660C | Relay assembly | 82660-F4020 |
| 82660D | Relay assembly | 82660-76030 |
| 82660F | Relay assembly | 82660-52010 |
| 82662A | No. 1 relay box upper cover | 82662-12G70 |
| 82663 | Relay box lower cover | 82663-76030 |
| 82663B | No. 3 relay box lower cover | 82663-12150 |
| 82666 | Connector holder | 82666-12580 |
| 82672K | Toyota part | 82672-12650 |
| 82673A | Junction box bracket | 82673-47190 |
| 82673B | Junction box bracket | 82673-47210 |
| 82730G | Toyota part | 82730-12Z50 · 82730-1A060 |

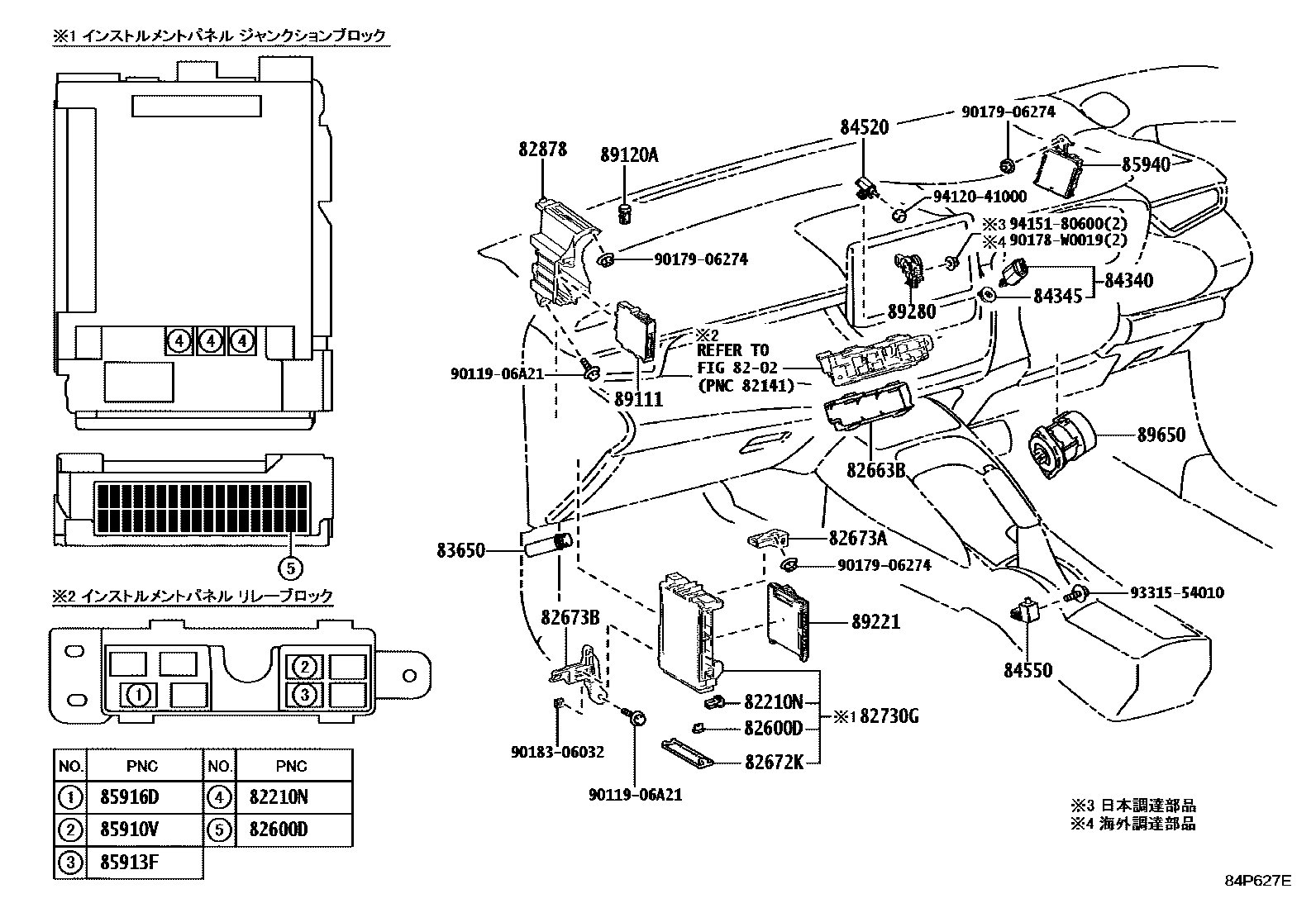

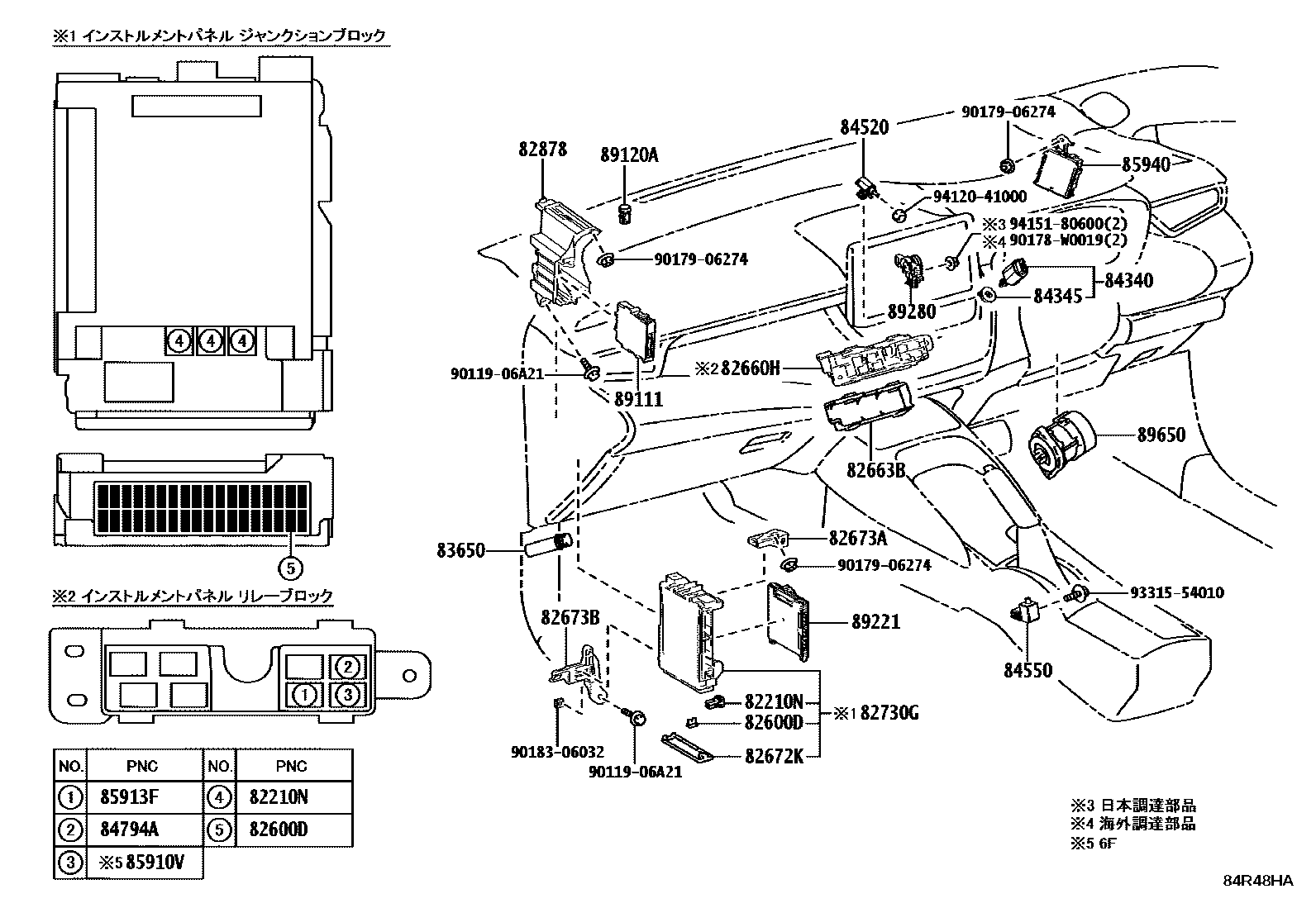

| 82878 | Left ECU integrated box | 82878-16010 |

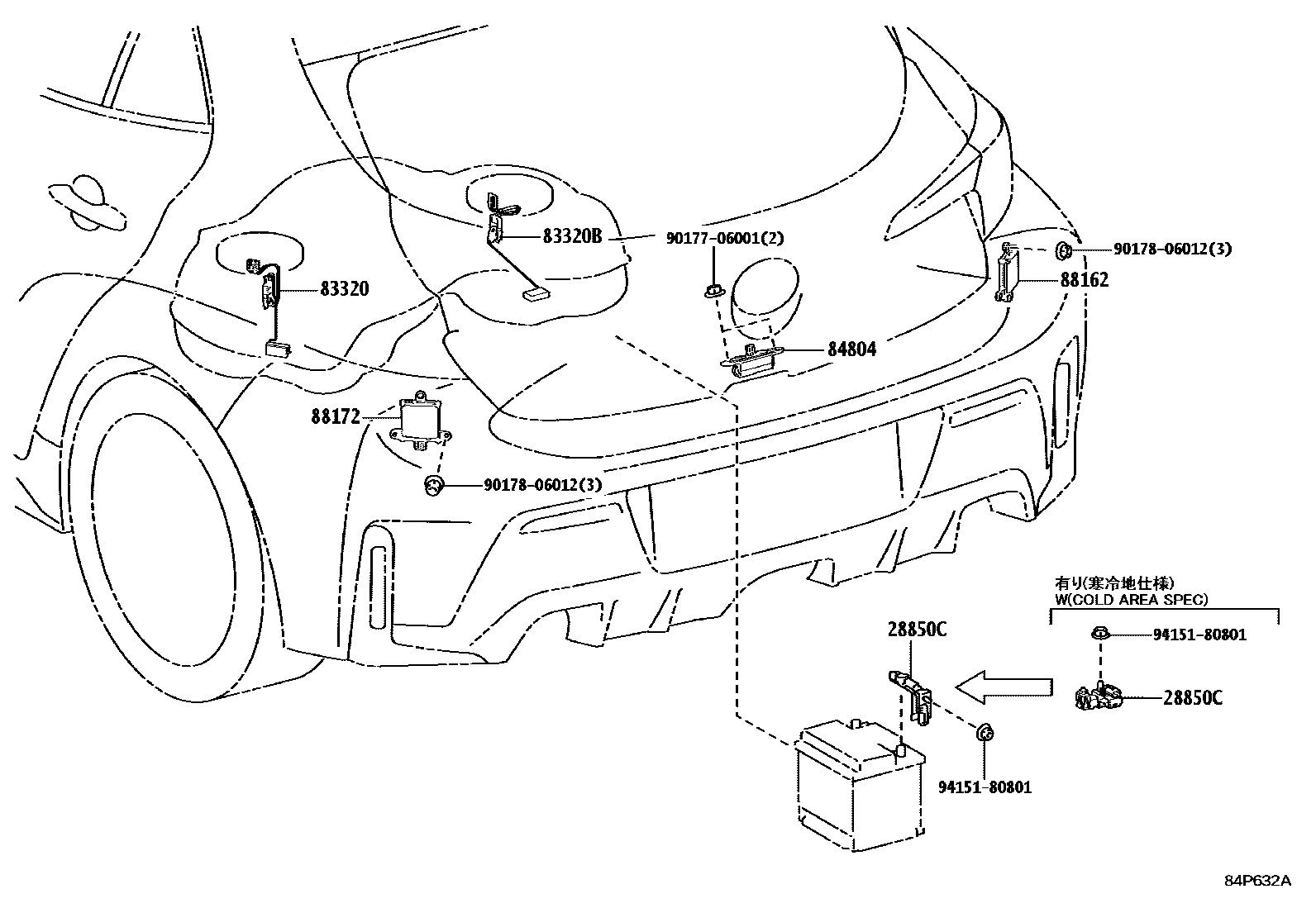

| 83320 | Fuel gauge sensor assembly | 83320-12A10 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-10290 |
| 83650 | fuse | 90986-01005 |
| 84040 | Multi-channel network main switch assembly | 84040-12350 · 84040-30330 |
| 84152 | Headlight beam height adjustment switch | 84152-16040 |
| 84153 | Automatic high beam switch | 84153-16010 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-53010 |
| 84255 | Steering heater switch | 84255-16010 |

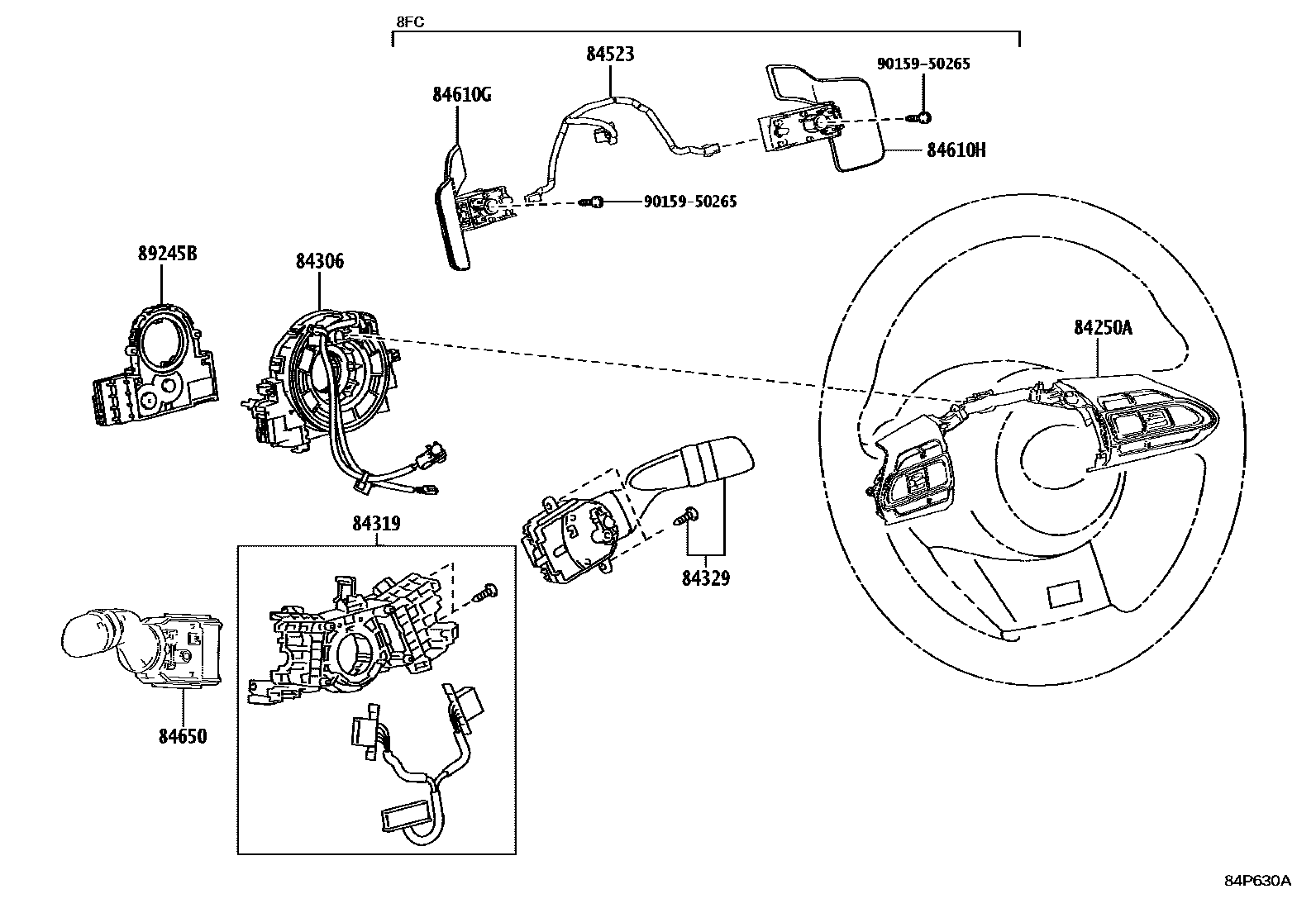

| 84306 | Spiral cable sub-assembly | 84308-52010 · 84308-78040 |
| 84319 | Steering wheel switch housing | 84319-33030 |
| 84329 | turn signal switch | 84329-K0010 · 84329-K0030 |

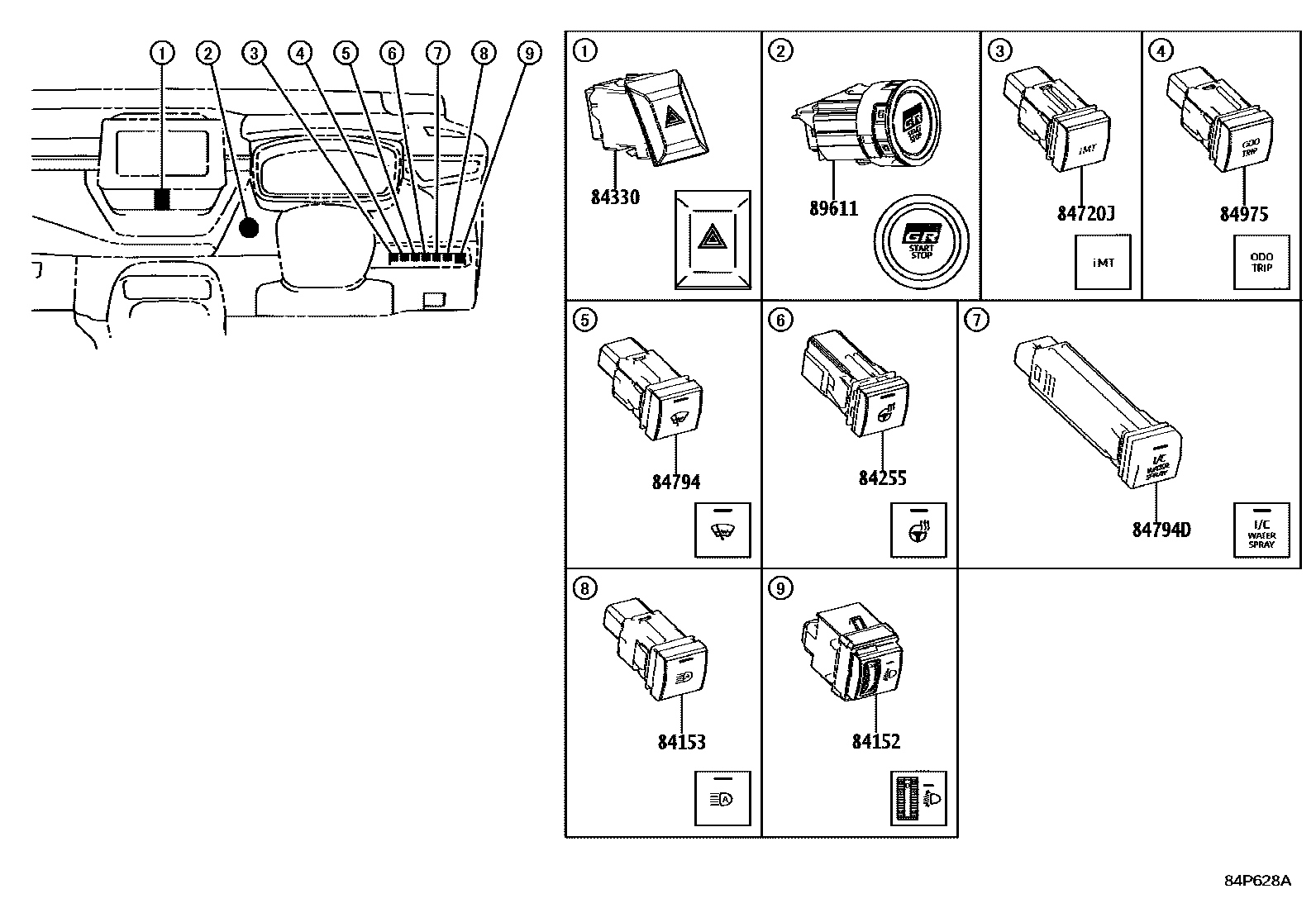

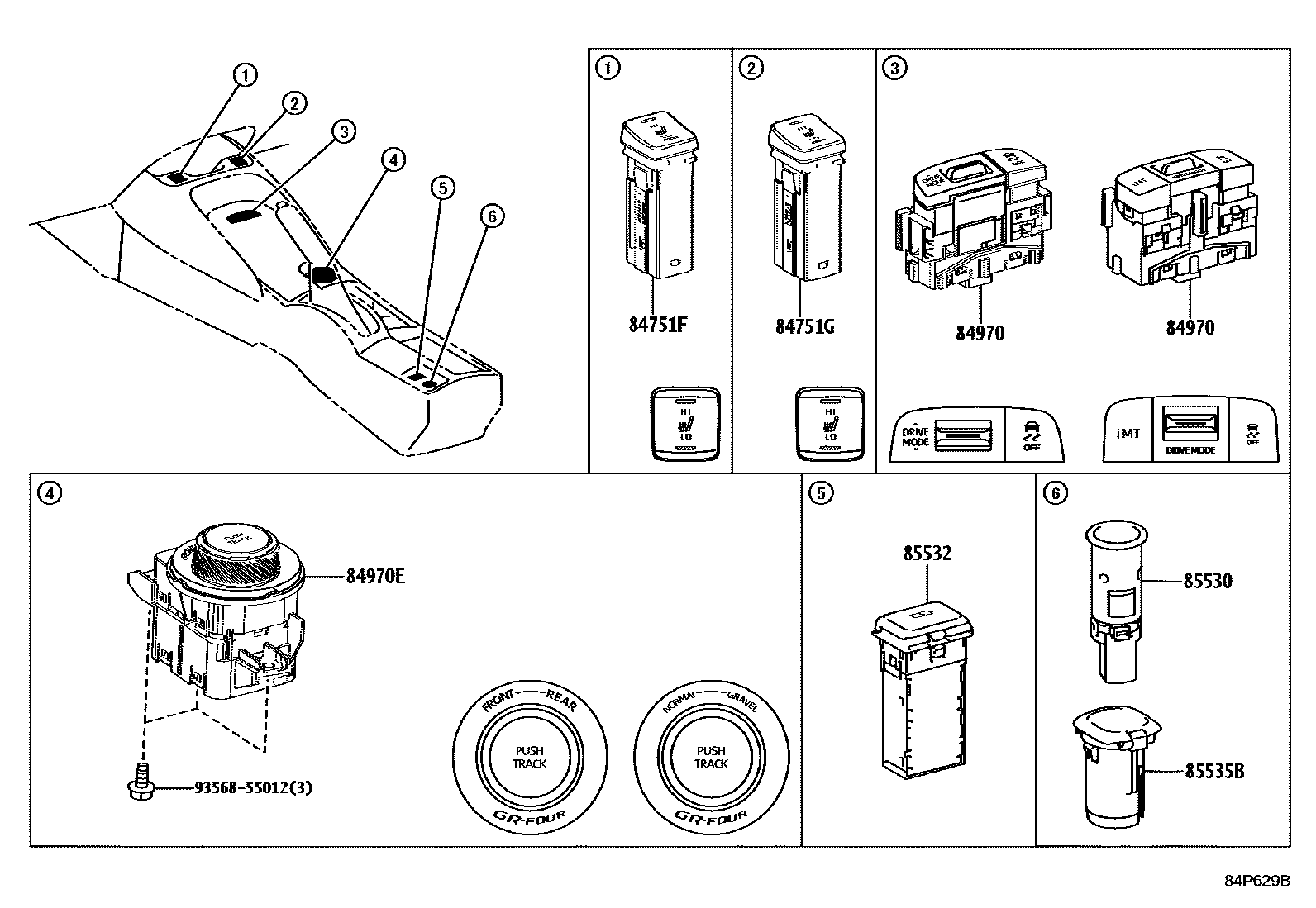

| 84330 | Hazard warning signal switch assembly | 84332-12600 |
| 84340 | brake light switch assembly | 84340-19095 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84520 | Clutch start switch assembly | 88280-70010 |
| 84545 | Toyota part | 84545-52010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-12B40 · 84652-33590 |
| 84720J | Mode selection switch assembly | 84720-12160 |
| 84751F | Seat heater switch | 84751-12130 |
| 84751G | Seat heater switch | 84751-12120 |
| 84794 | Front wiper de-icer switch | 84794-53020 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84804 | Toyota part | 84804-12050 |
| 84810 | Electric window lift switch assembly | 84810-12140 · 84810-30230 |
| 84810D | Rear electric window lift switch assembly | 84810-30230 |
| 84870A | Exterior rearview mirror switch assembly | 84872-16020 · 84872-30110 |
| 84970 | Combination switch assembly | 84970-12520 |
| 84970E | No. 2 combination switch assembly | 84970-12420 · 84970-12560 |
| 84975 | trip odometer switch | 84975-42030 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85532 | Toyota part | 85532-60050 |
| 85535B | No. 1 power outlet cover | 85535-78010 |
| 85910V | seat heater relay | 90987-02027 |
| 85913F | Steering heater relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12230 · 85940-12240 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 88162 | Blind spot monitor right sensor | 88162-12100 |
| 88172 | Blind spot monitor left sensor | 88162-12100 |
| 89111 | Network gateway ECU | 89111-12190 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-1AC30 · 89220-1AC31 · 89220-1AC40 |
| 89245B | steering sensor | 8924B-V1010 |
| 89280 | Clutch pedal stroke sensor assembly | 89280-10010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89437 | sensor cover | 89437-52020 |

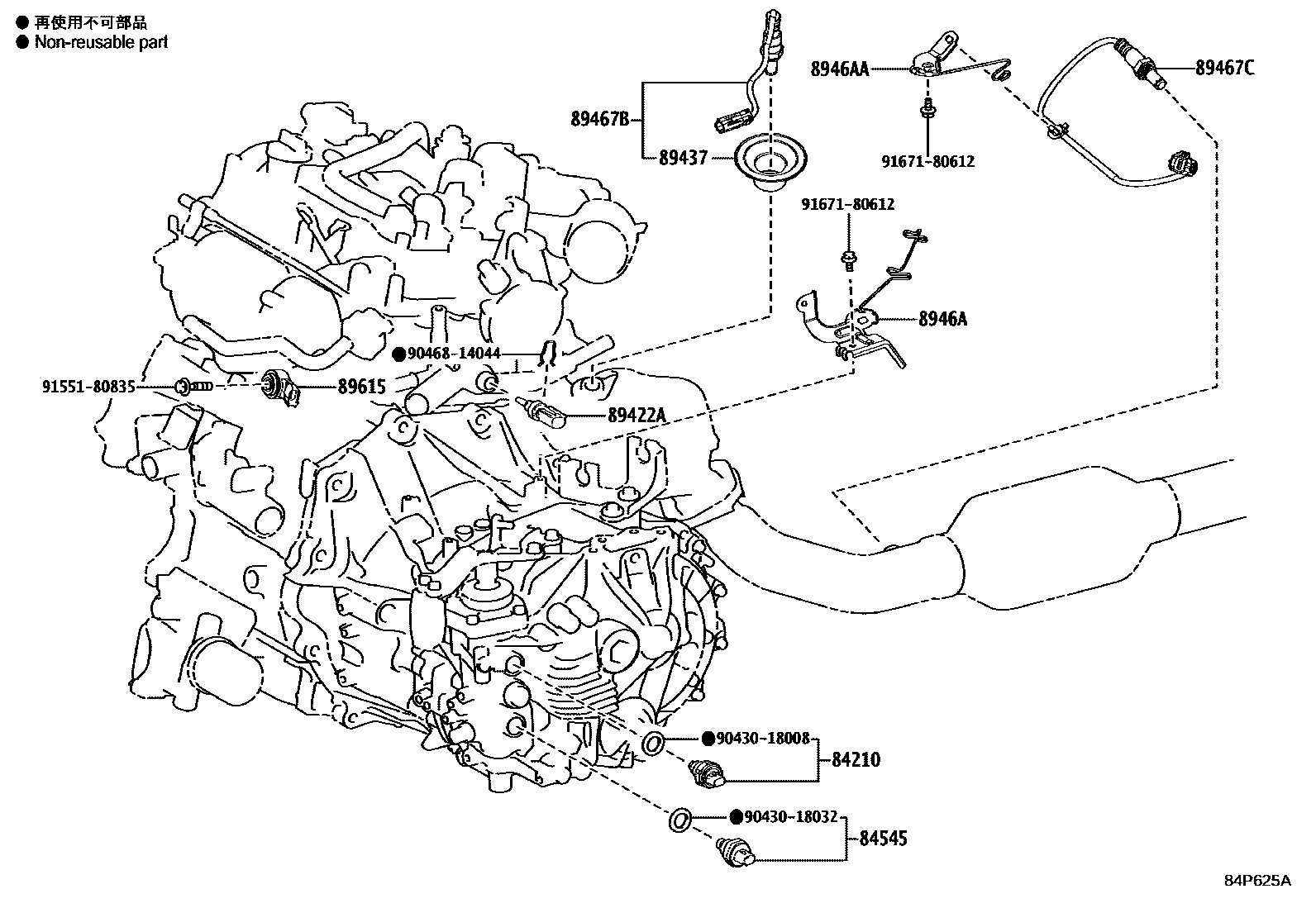

| 89467B | air fuel ratio sensor | 89467-52300 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-12360 |
| 8946A | Toyota part | 8946A-52050 |
| 8946AA | Toyota part | 8946A-12020 |
| 89561G | Toyota part | 90987-02027 |
| 89561H | Toyota part | 90987-02027 |
| 89611 | push button start switch | 89611-52050 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-12N30 |
