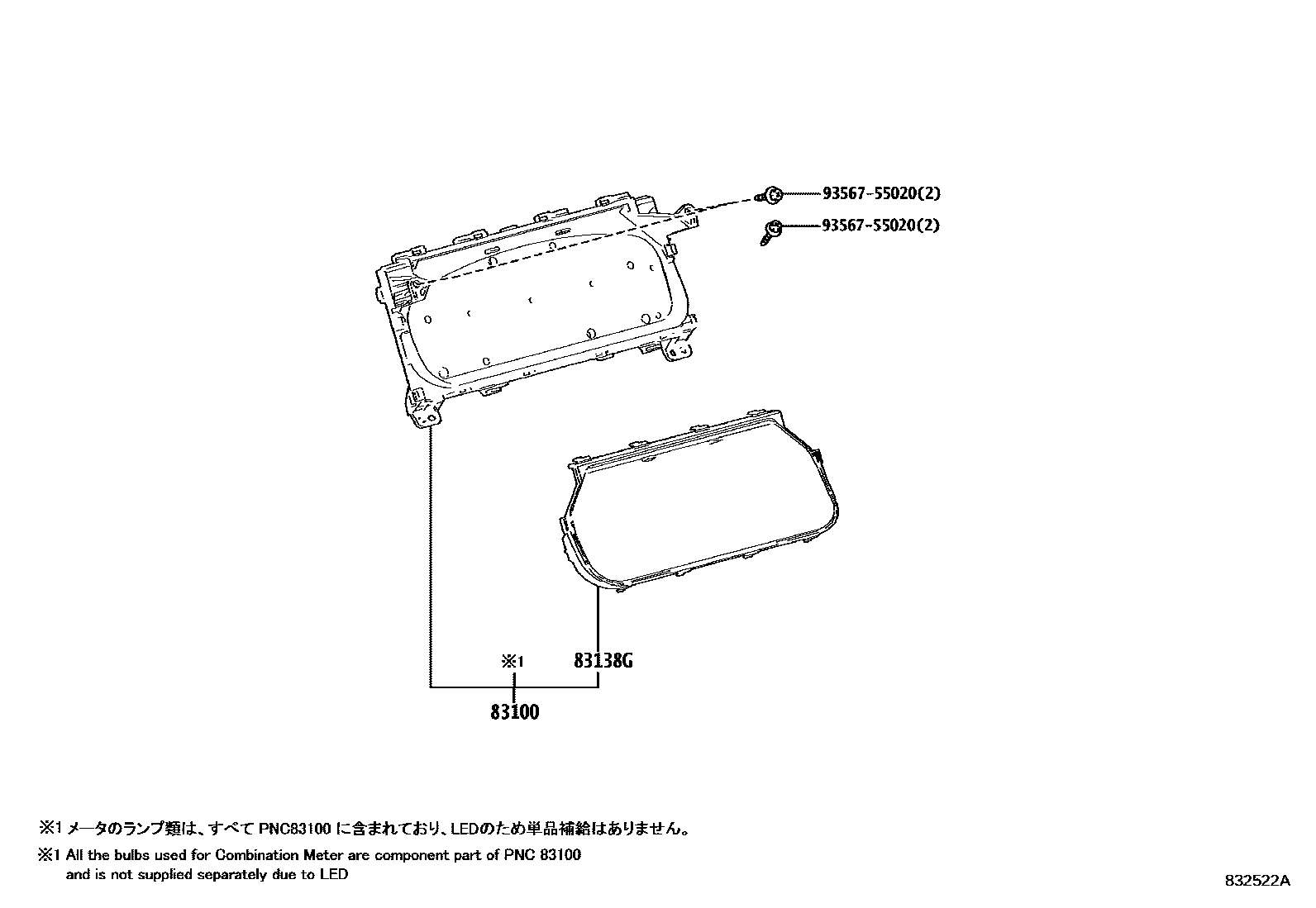

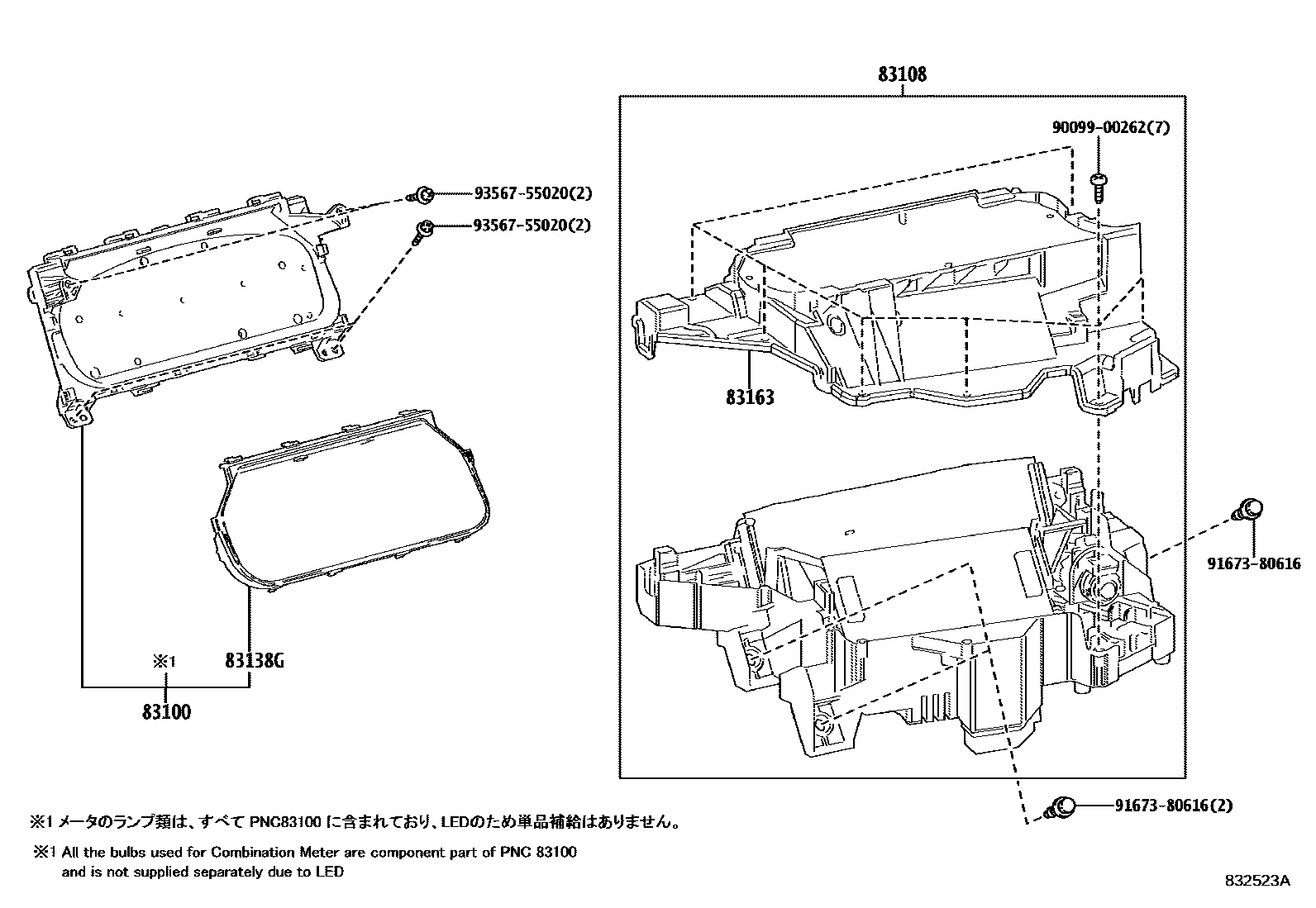

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-1AW00 · 83800-1AW01 · 83800-1AW02 · 83800-1AW03 · 83800-1AW10 · 83800-1AW11 · 83800-1AW12 · 83800-1AW13 |
| 83108 | Instrument rearview mirror sub-assembly | 83108-1E270 · 83108-1E271 |
| 83138G | Instrument cluster glass | 83852-16760 |
| 83163 | No. 1 instrument cluster rearview mirror panel | 83163-1E250 |
