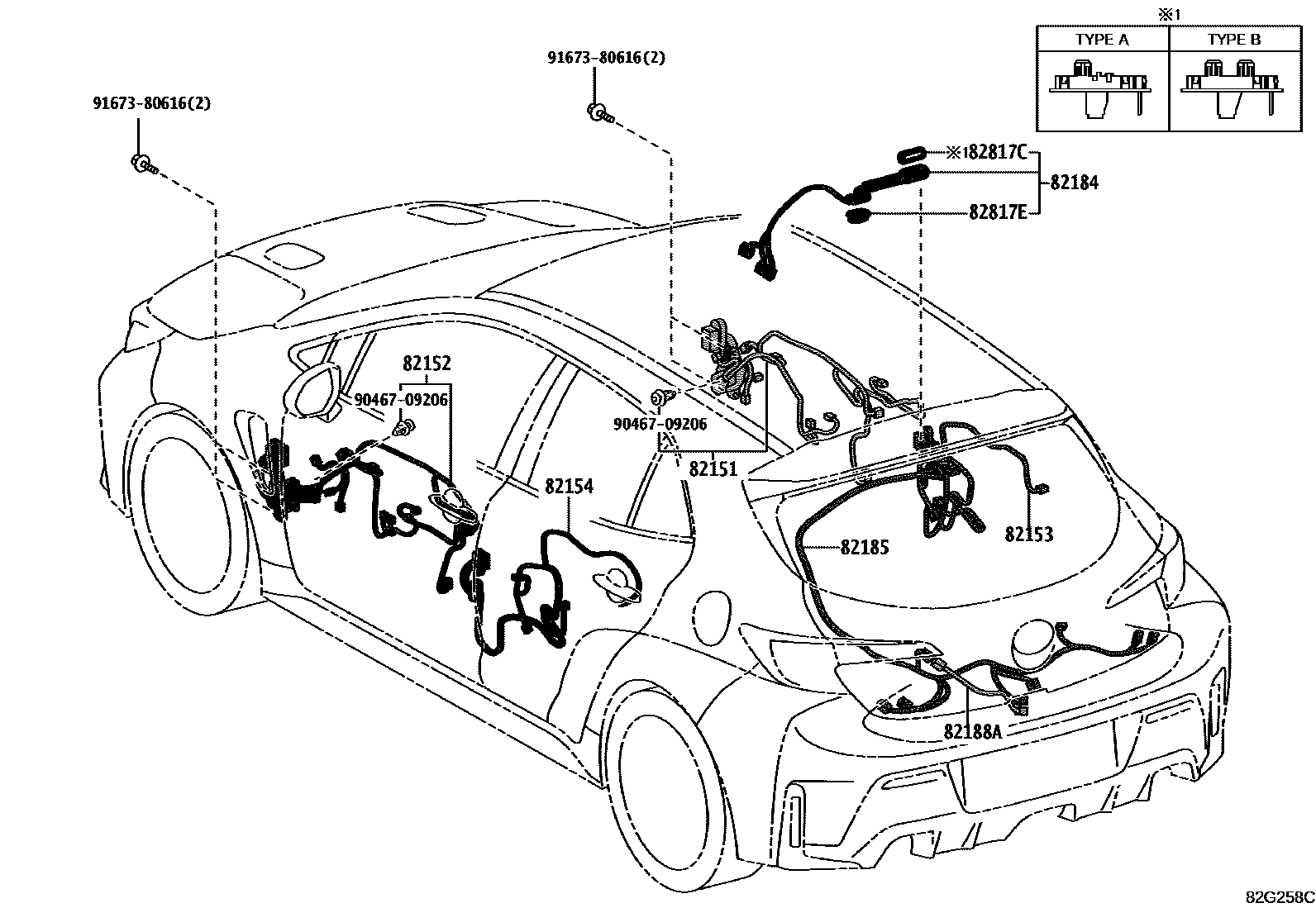

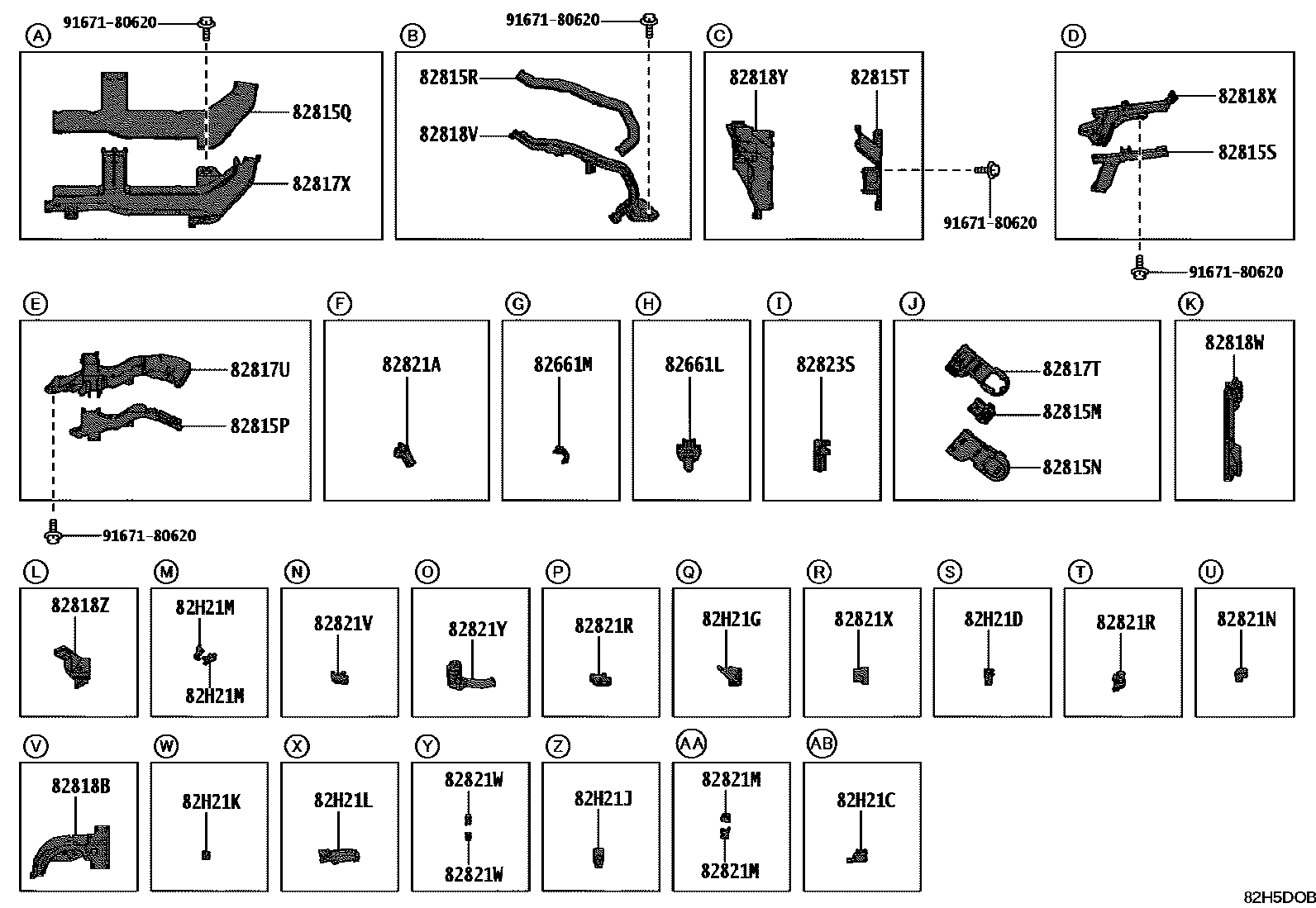

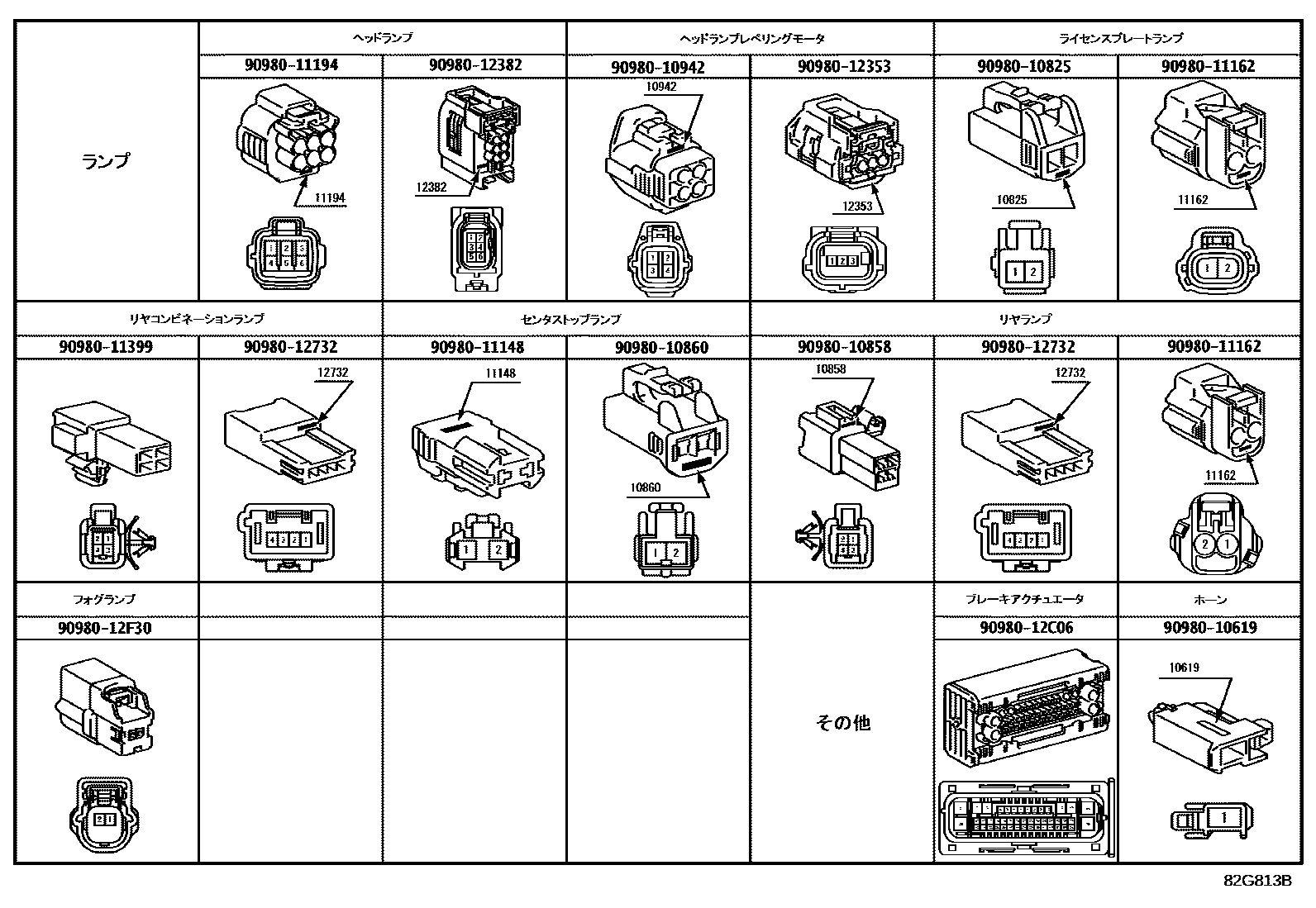

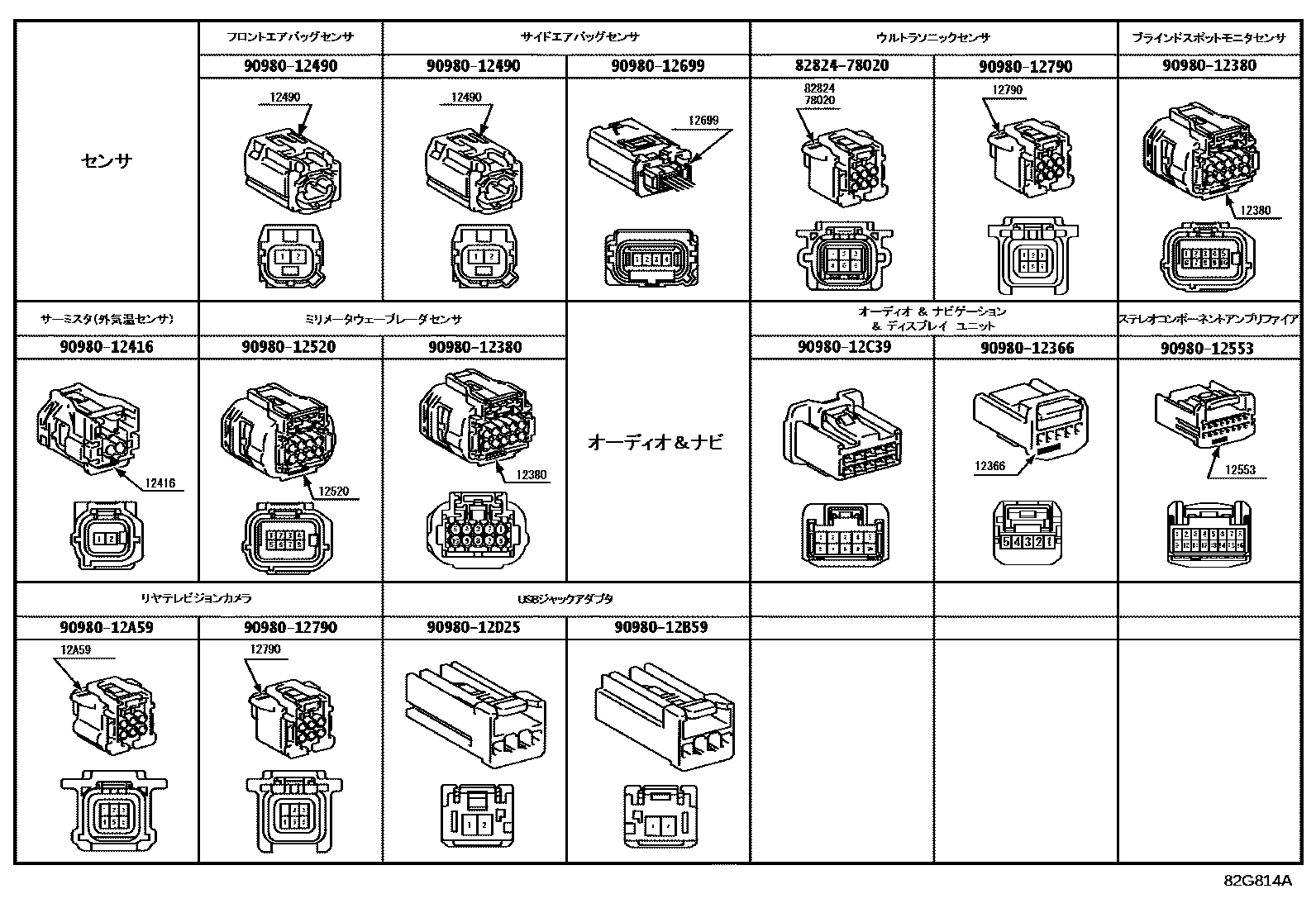

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 10 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

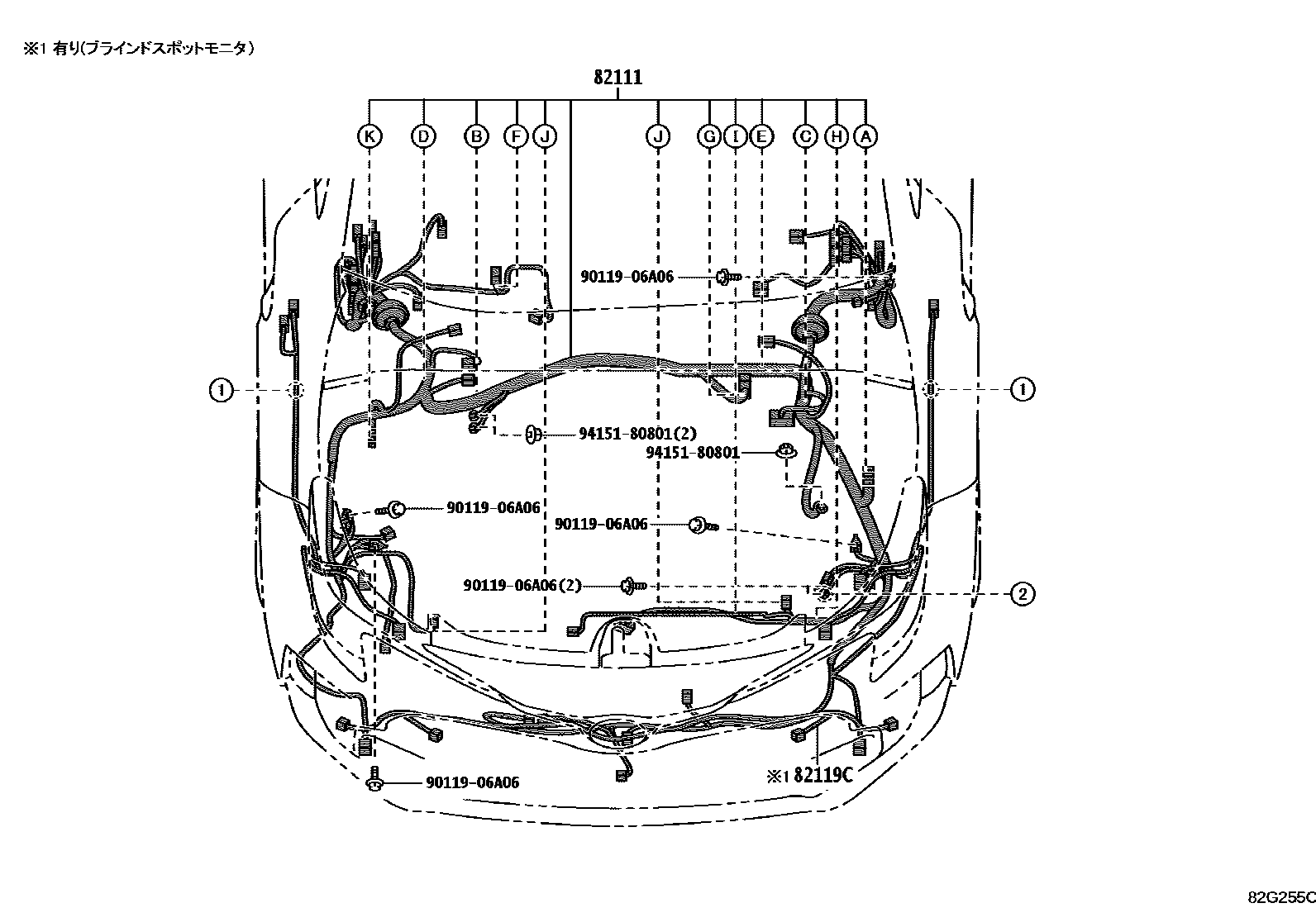

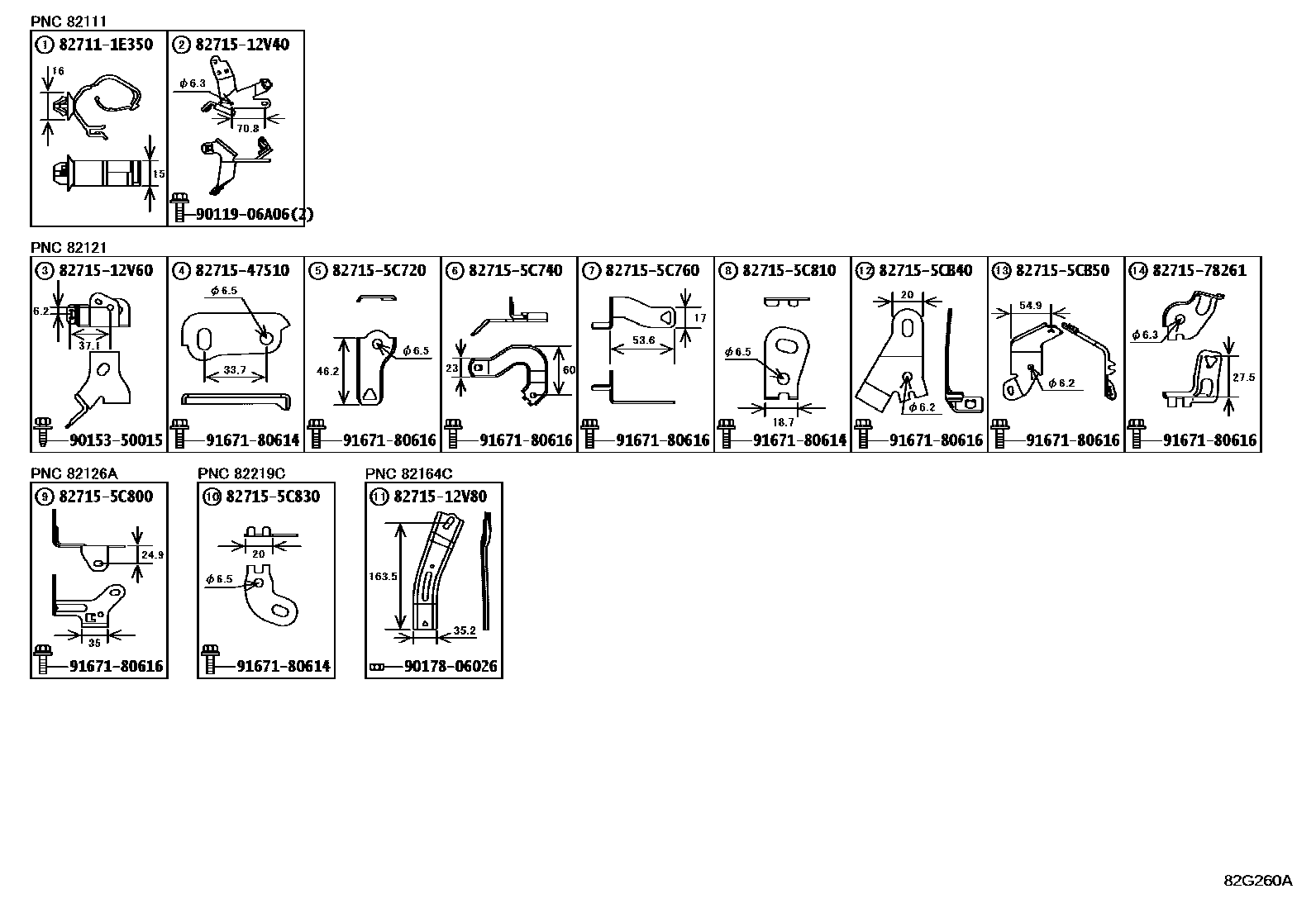

| 82111 | Engine room main wiring harness | 82111-1HQ00 · 82111-1LB30 |
| 82119C | Toyota part | 82119-12110 |

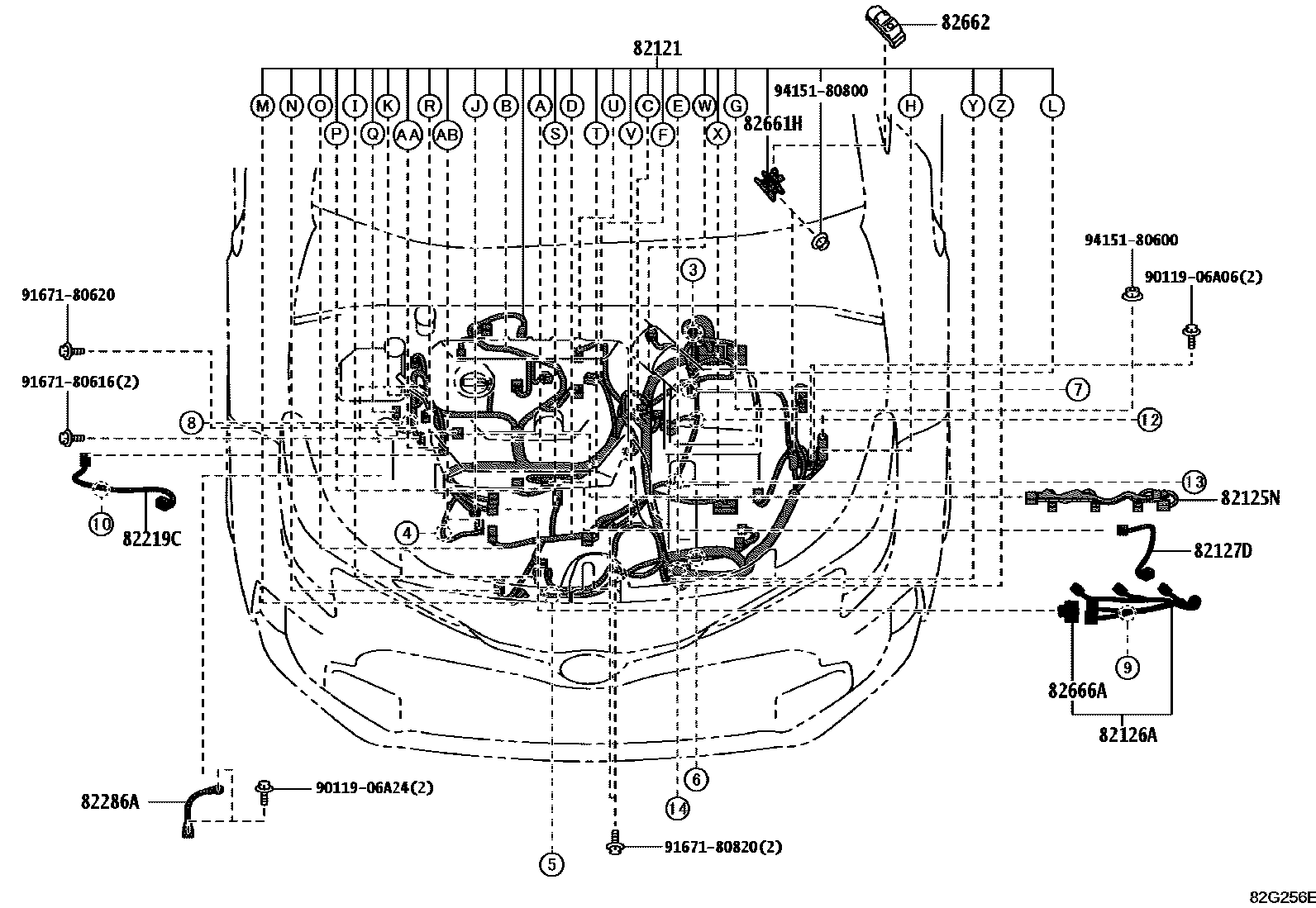

| 82121 | Engine wiring harness | 82121-12U90 |
| 82125N | Engine No. 5 wiring harness | 82125-52150 |
| 82126A | Toyota part | 82126-52020 |
| 82127D | Engine No. 7 wiring harness | 82127-12010 |

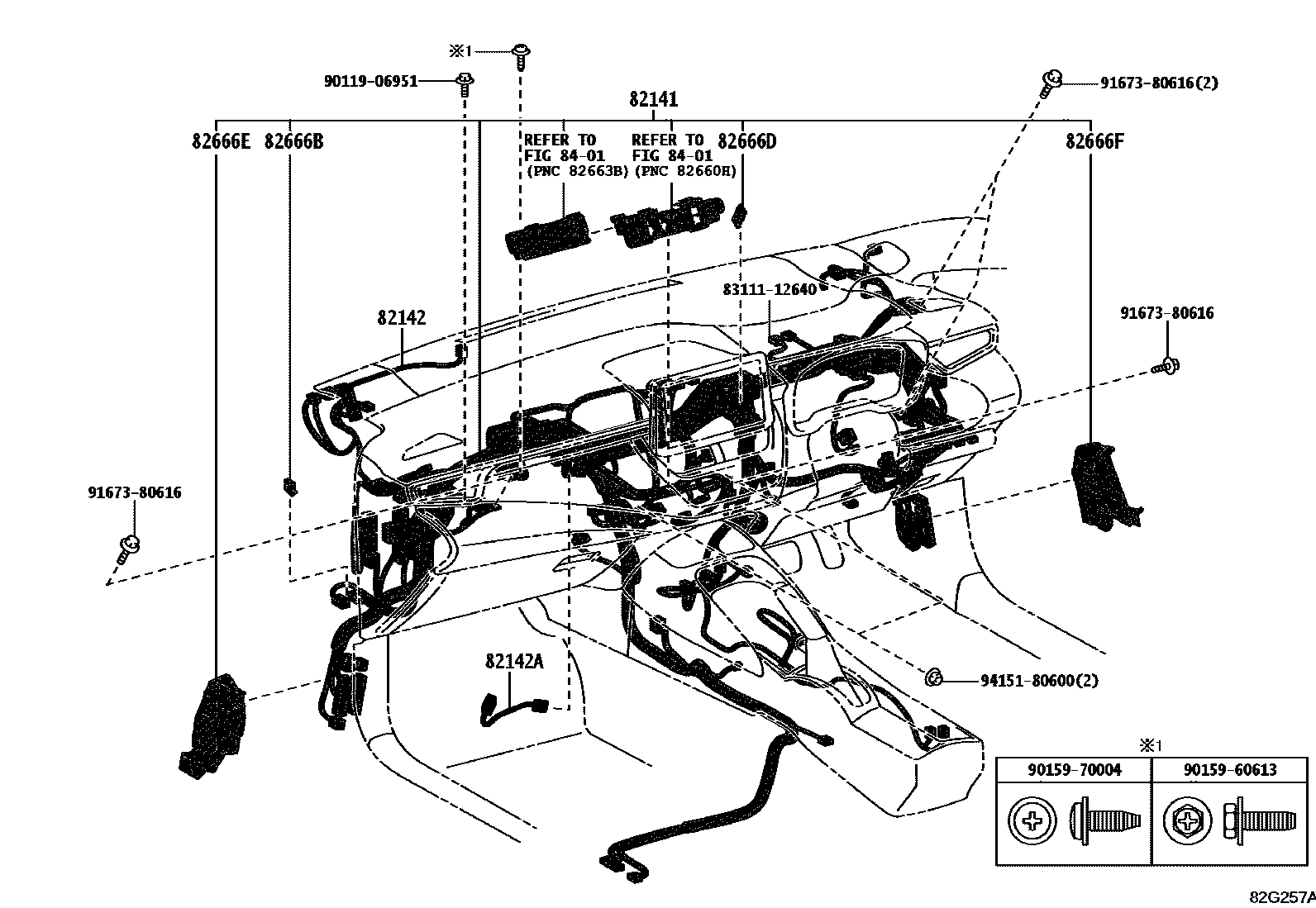

| 82141 | Dashboard wiring harness | 82141-1XQ00 · 82141-1XQ20 · 82145-12E60 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12670 · 82142-12680 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-12B80 |
| 82151 | Right front door wiring harness | 82151-1AJ10 |
| 82152 | Left front door wiring harness | 82152-1AF30 |
| 82153 | Rear door wiring harness No. 1 | 82153-12D40 · 82153-12D70 · 82153-12D80 |
| 82154 | Rear door wiring harness No. 2 | 82154-12C90 · 82154-12D20 · 82154-12D30 |

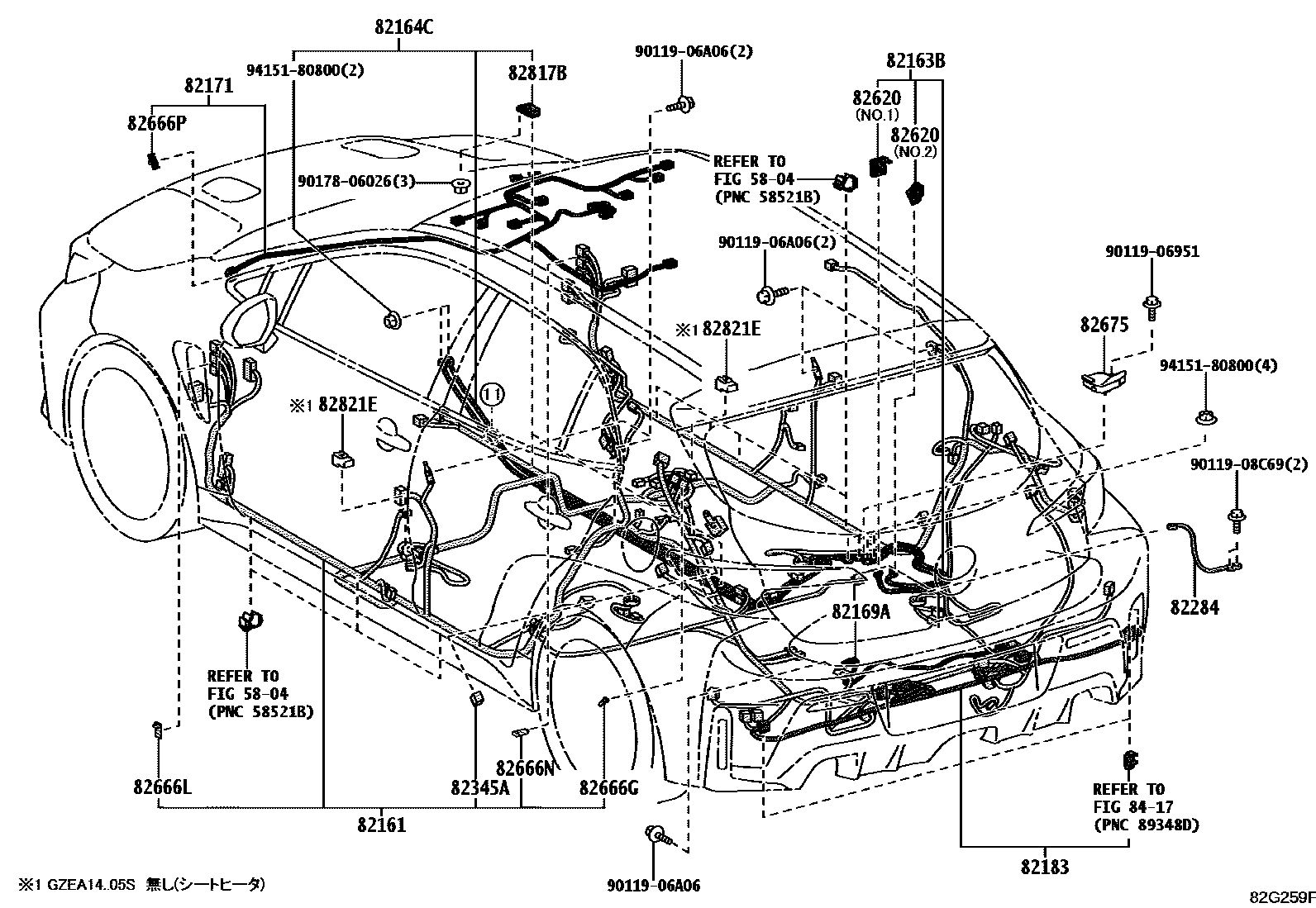

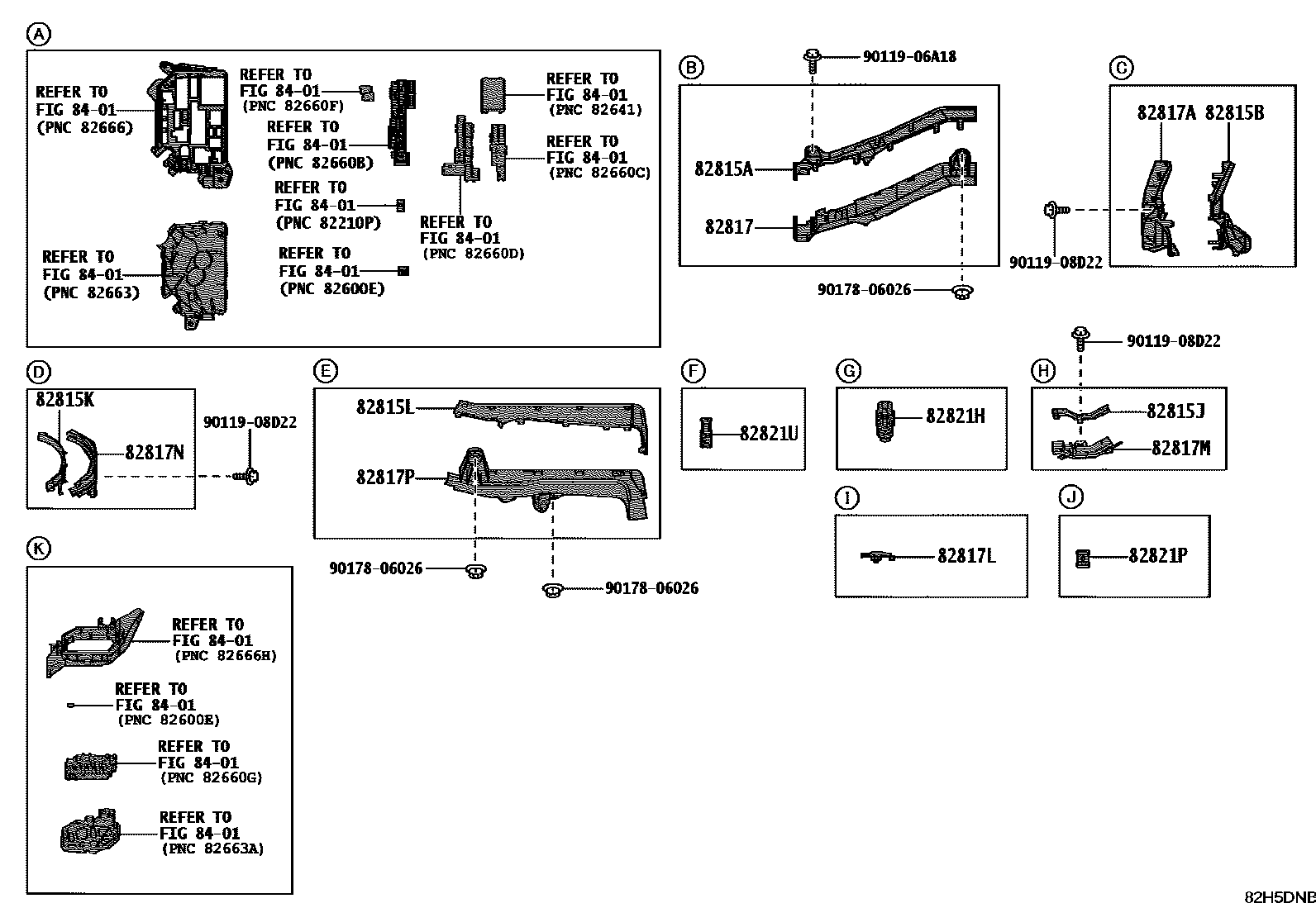

| 82161 | floor wiring harness | 82161-1HC80 · 82161-1HC90 |
| 82163B | No. 5 floor wiring harness | 82165-12060 |
| 82164C | No. 4 floor wiring harness | 82164-12190 |
| 82169A | Toyota part | 82169-52030 |
| 82171 | Roof No. 1 wiring harness | 82171-12W80 |
| 82183 | Luggage No. 3 wiring harness | 82169-12040 · 82183-12100 |
| 82184 | Rear door No. 1 wiring harness | 82184-12C30 · 82184-12C40 · 82184-12C70 |
| 82185 | Rear door wiring harness No. 2 | 82185-12A50 · 82185-12A90 |
| 82188A | Rear door No. 3 wiring harness | 82184-12A90 |
| 82219C | sensor harness | 82219-52100 |
| 82284 | Ground wire | 82284-12030 |
| 82286A | Line 2 | 82286-12050 |
| 82345A | diode | 82345-22051 |
| 82620 | Fuse box assembly | 82620-50230 · 82620-50260 |
| 82661H | Toyota part | 82661-12360 |
| 82661L | Toyota part | 82661-76010 |
| 82661M | Toyota part | 82661-76030 |
| 82662 | Relay box upper cover | 82662-12J10 |
| 82666A | Connector holder No. 2 | 82666-48130 |
| 82675 | Terminal block | 82675-12360 |
| 82815A | Wiring harness protector cover | 82815-12610 |
| 82815B | Wiring harness protector cover | 82815-12640 |
| 82815J | No. 7 wire harness protector cover | 82815-12L40 |
| 82815K | No. 8 wire harness protector cover | 82815-12J00 |
| 82815L | No. 9 wire harness protector cover | 82815-12L80 |
| 82815M | No. 10 wire harness protector cover | 82815-33J10 |
| 82815N | No. 11 wire harness protector cover | 82815-33L00 |
| 82815P | No. 12 wire harness protector cover | 82815-52600 |
| 82815Q | No. 13 wire harness protector cover | 82815-52620 |
| 82815R | No. 14 wire harness protector cover | 82815-52630 |
| 82815S | No. 15 wire harness protector cover | 82815-52650 |
| 82815T | No. 16 wire harness protector cover | 82815-52660 |
| 82817 | No. 1 wire harness protection device | 82817-12N30 |
| 82817A | No. 2 wire harness protection device | 82817-12N70 |
| 82817B | No. 3 wire harness protection device | 82817-52N50 |
| 82817C | No. 4 wire harness protection device | 82817-12Q00 · 82817-1AA90 |
| 82817E | No. 6 wire harness protection device | 82817-47L50 |
| 82817L | No. 11 wire harness protection device | 82817-12Z10 |
| 82817M | No. 12 wire harness protection device | 82817-12Z20 |
| 82817N | No. 13 wire harness protection device | 82817-12W50 |
| 82817P | No. 14 wire harness protection device | 82817-12Z70 |
| 82817T | No. 15 wire harness protection device | 82817-33S70 |
| 82817U | No. 16 wire harness protection device | 82817-52L90 |
| 82817X | No. 17 wire harness protection device | 82817-52M10 |
| 82818V | Toyota part | 82817-52M20 |
| 82818W | Toyota part | 82817-52M30 |
| 82818X | Toyota part | 82817-52M40 |
| 82818Y | Toyota part | 82817-52M50 |
| 82818Z | Toyota part | 82817-52M60 |
| 82821E | Connector cover | 90980-12373 |
| 82821H | Connector cover | 82821-48270 |
| 82821P | Toyota part | 82821-30650 |
| 82821U | Connector cover | 82821-50500 |
| 82823S | Toyota part | 82823-20080 |
