Toyota COROLLA 后组合灯 — Figure 8111

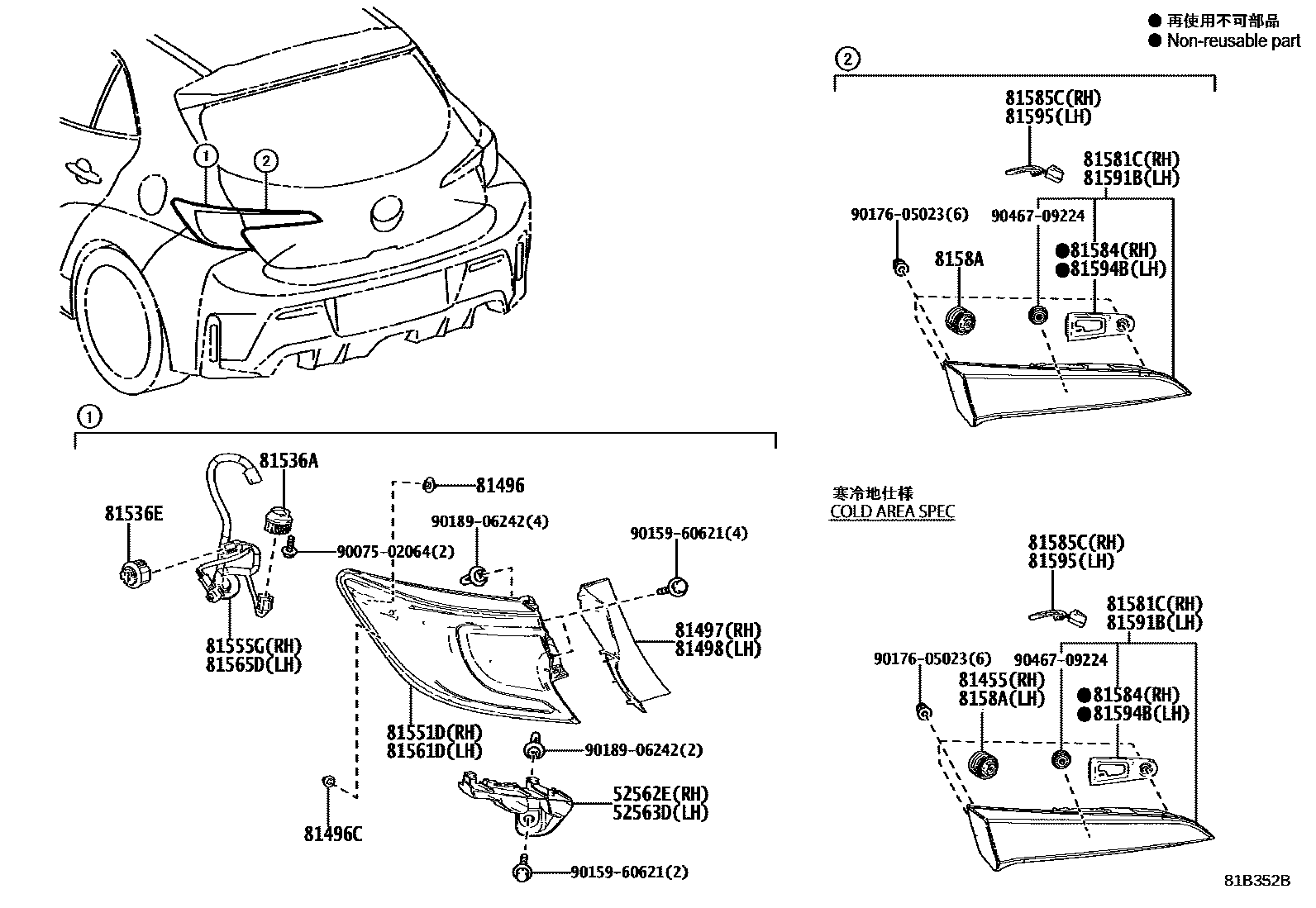

Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562E | Rear bumper upper right fixing bracket | 52562-12240 |
| 52563D | Rear bumper upper left fixing bracket | 52563-12240 |
| 81455 | Toyota part | 8158A-0D610 |
| 81496 | Rear combination light guide block | 81496-50010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-12020 |
| 81498 | Left rear combination lamp cover | 81498-12020 |
| 81536A | Rear LED combination light | 81536-12D20 |
| 81536E | Toyota part | 81965-70010 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-12E40 |
| 81555G | Toyota part | 81555-12D20 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-12E40 |
| 81565D | Toyota part | 81565-12D20 |
| 81581C | Right rear light lampshade and lamp body | 81581-12440 · 81581-12450 |
| 81584 | Right rear light seal | 81582-12260 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-12260 · 81585-12270 |
| 8158A | Toyota part | 8158A-12260 |
| 81591B | Left rear light shade and body | 81591-12440 |
| 81594B | Left rear light seal | 81582-12260 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-12260 |
