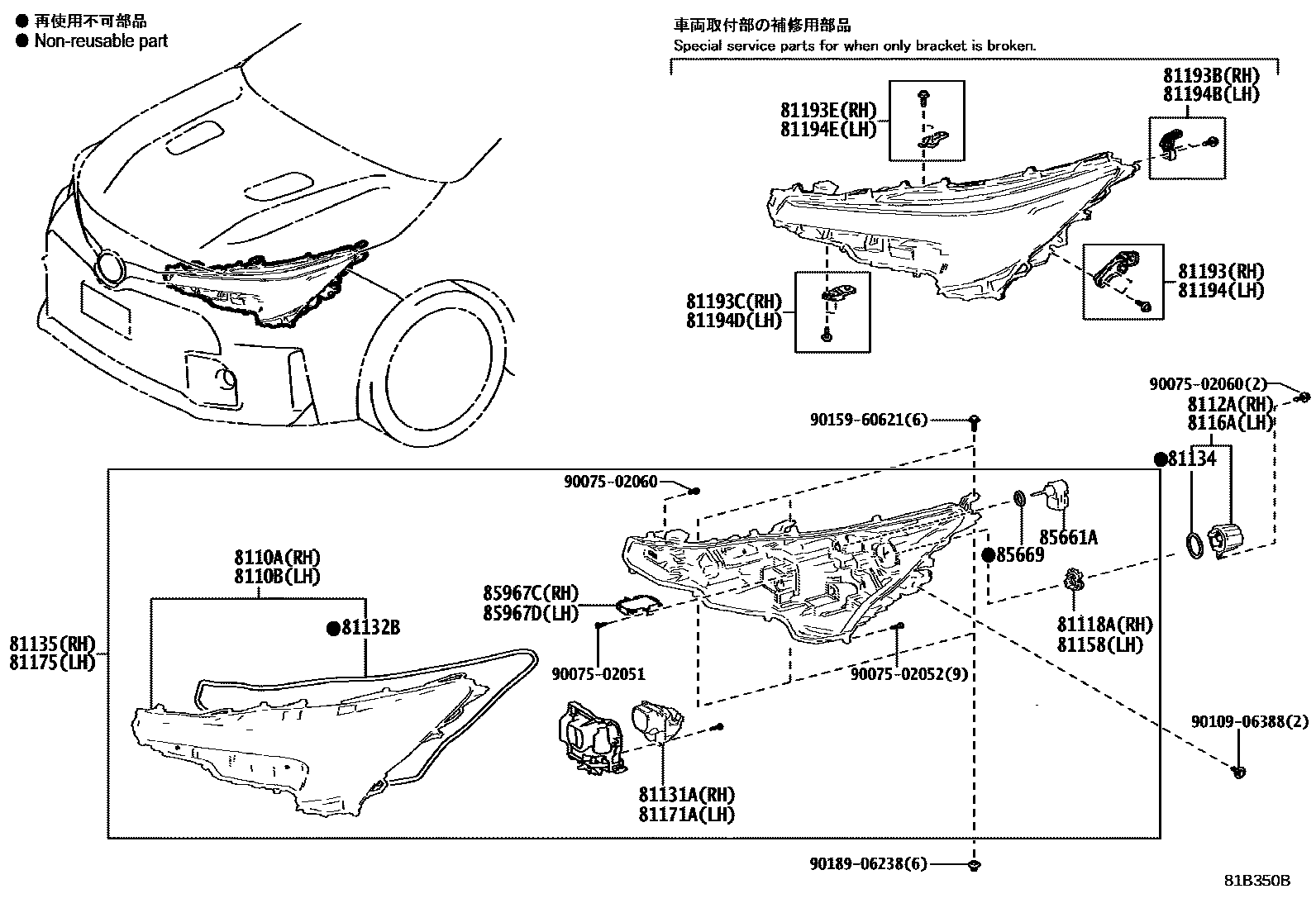

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Toyota part | 8110A-12N30 |
| 8110B | Toyota part | 8110B-12N30 |
| 81118A | Right headlight bracket | 81118-76310 |
| 8112A | Toyota part | 8112A-12N40 |
| 81131A | Right headlight assembly assembly | 81130-12N30 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81134 | headlight gasket | 90075-23006 |
| 81135 | Right headlight assembly | 81105-12N40 |
| 81158 | Left headlight bracket | 81158-76310 |
| 8116A | Toyota part | 8116A-12N40 |
| 81171A | Left headlight assembly assembly | 81170-12N30 |
| 81175 | Left headlight assembly | 81106-12N40 |
| 81193 | Right headlight upper protective ring | 81193-12250 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-12260 |
| 81193C | Right headlight upper right protection ring | 81193-12270 |
| 81193E | Toyota part | 81193-12280 |
| 81194 | Left headlight upper protective ring | 81194-12250 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-12260 |
| 81194D | Left headlight upper left protective ring | 81194-12270 |
| 81194E | Toyota part | 81194-12280 |
| 85661A | Headlight beam height adjustment motor | 85661-52030 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85967C | Toyota part | 8596A-12050 |
| 85967D | Toyota part | 8596A-12060 |
