Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 10 PNC and OE references.

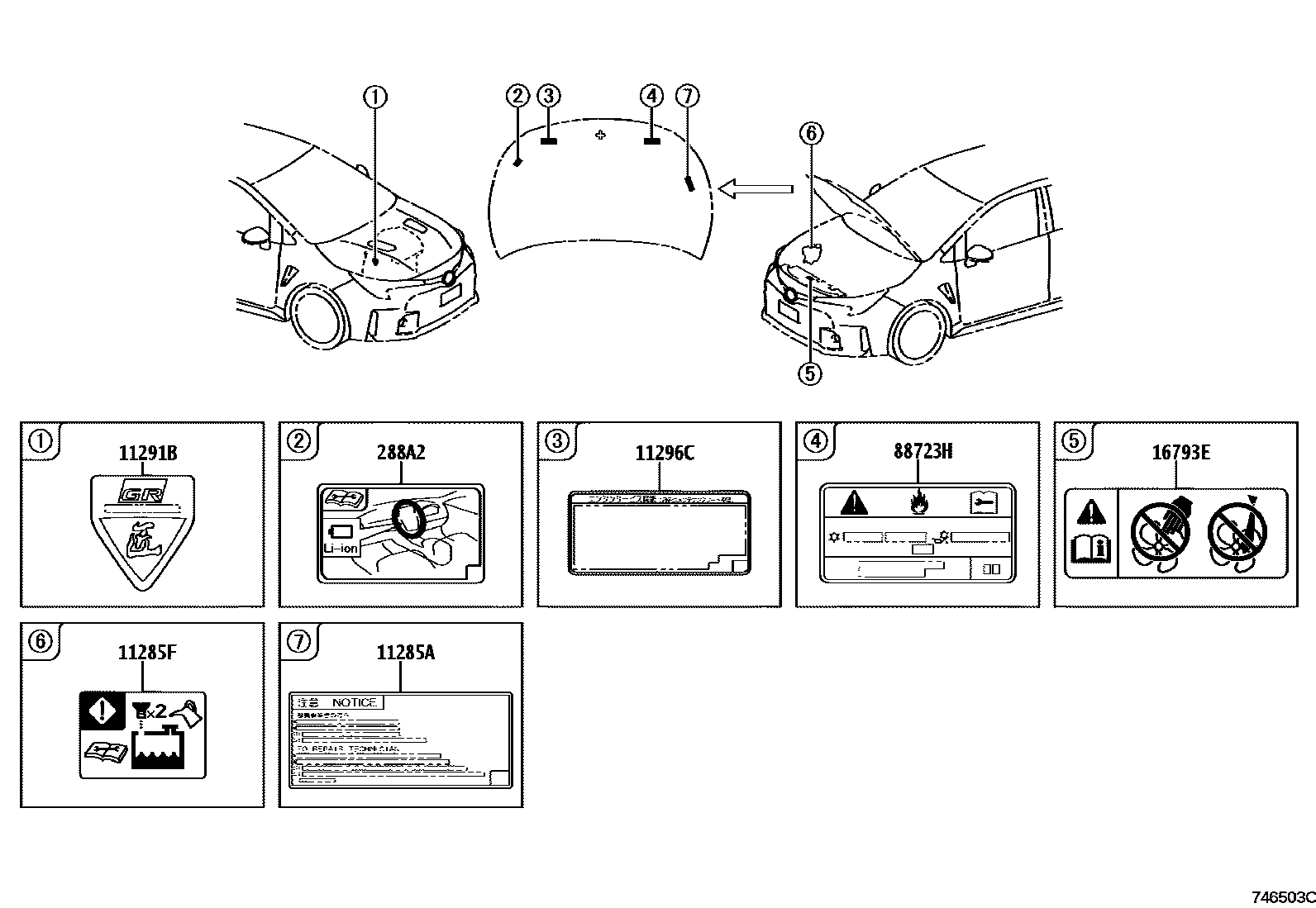

Toyota COROLLA 警示铭牌(车外和车内) EPC diagram — 746503C
警示铭牌(车外和车内) — 746503C (202212 – 999999)

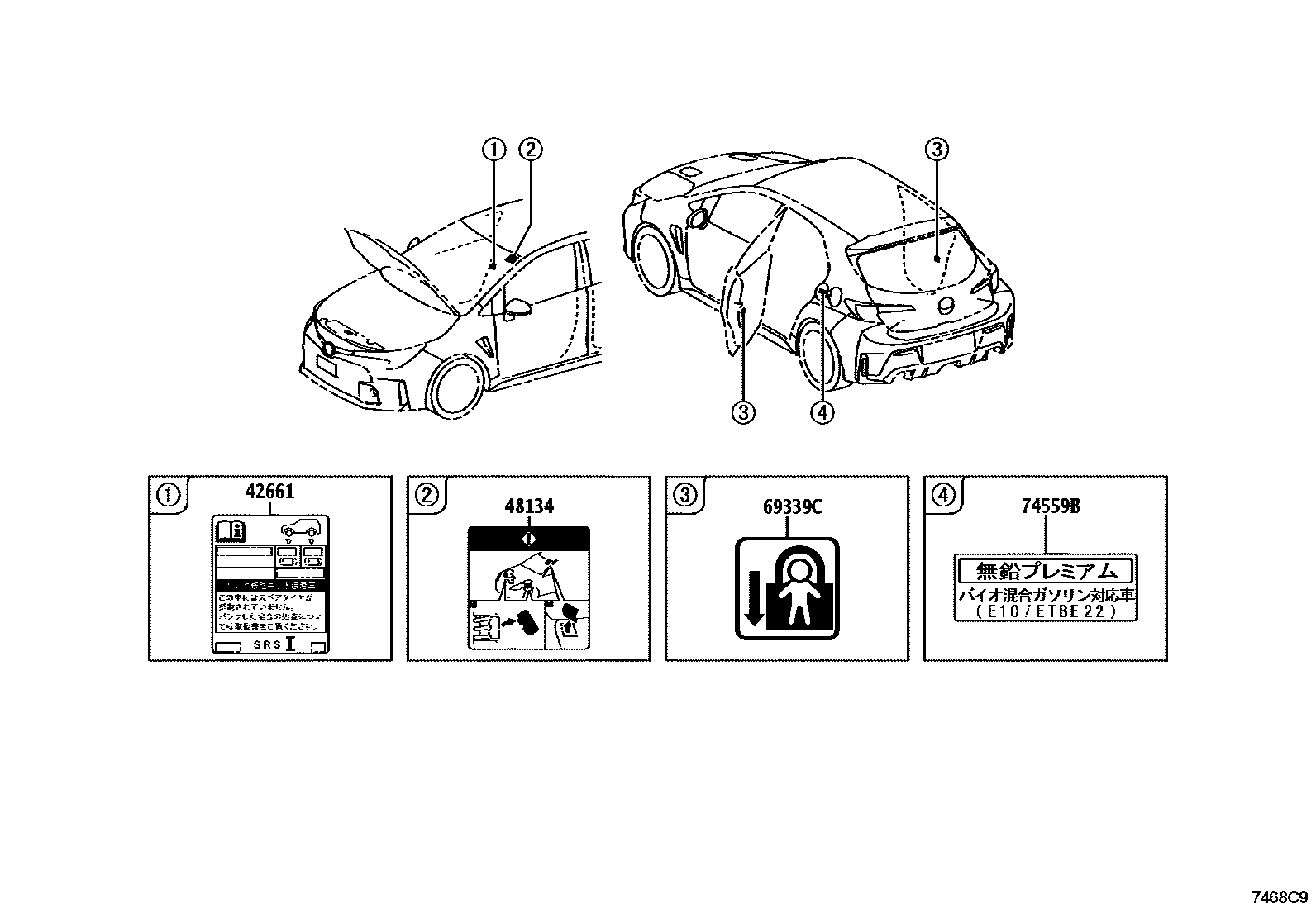

Toyota COROLLA 警示铭牌(车外和车内) EPC diagram — 7468C9
警示铭牌(车外和车内) — 7468C9 (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
11285ACoolant System Caution Labels11285-47010
11291BToyota part11291-18030 · 11291-18050
11296CEngine maintenance information label11296-18010
16793EToyota part16793-36030
288A2Toyota part288A2-15050
42661Toyota part42661-12T10 · 42661-12T70
48134Toyota part48134-12010
69339CChild Restraint Information Label69339-33040
74559Bfuel information label74559-78010
88723HCooler maintenance warning label88723-76130
