Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

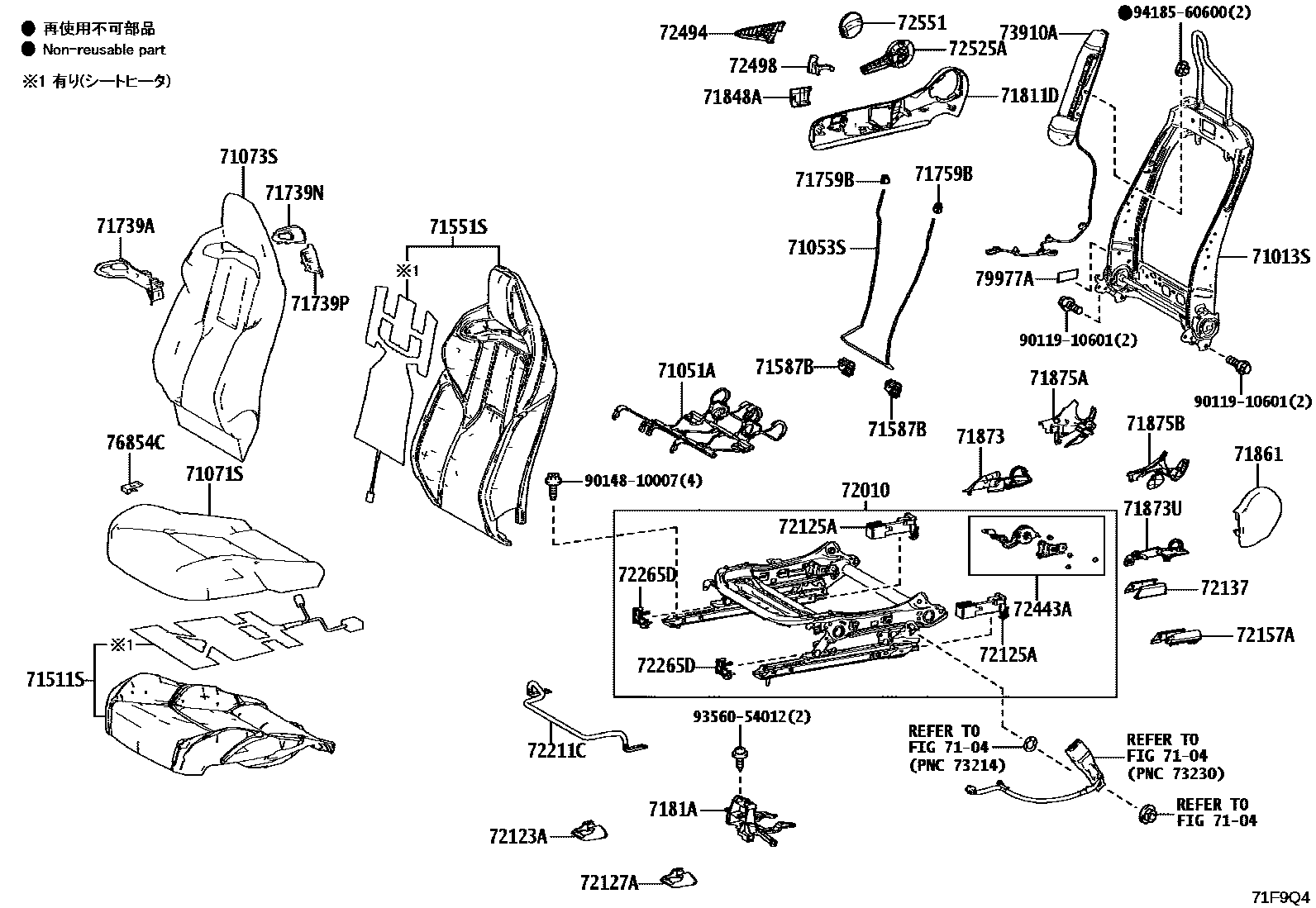

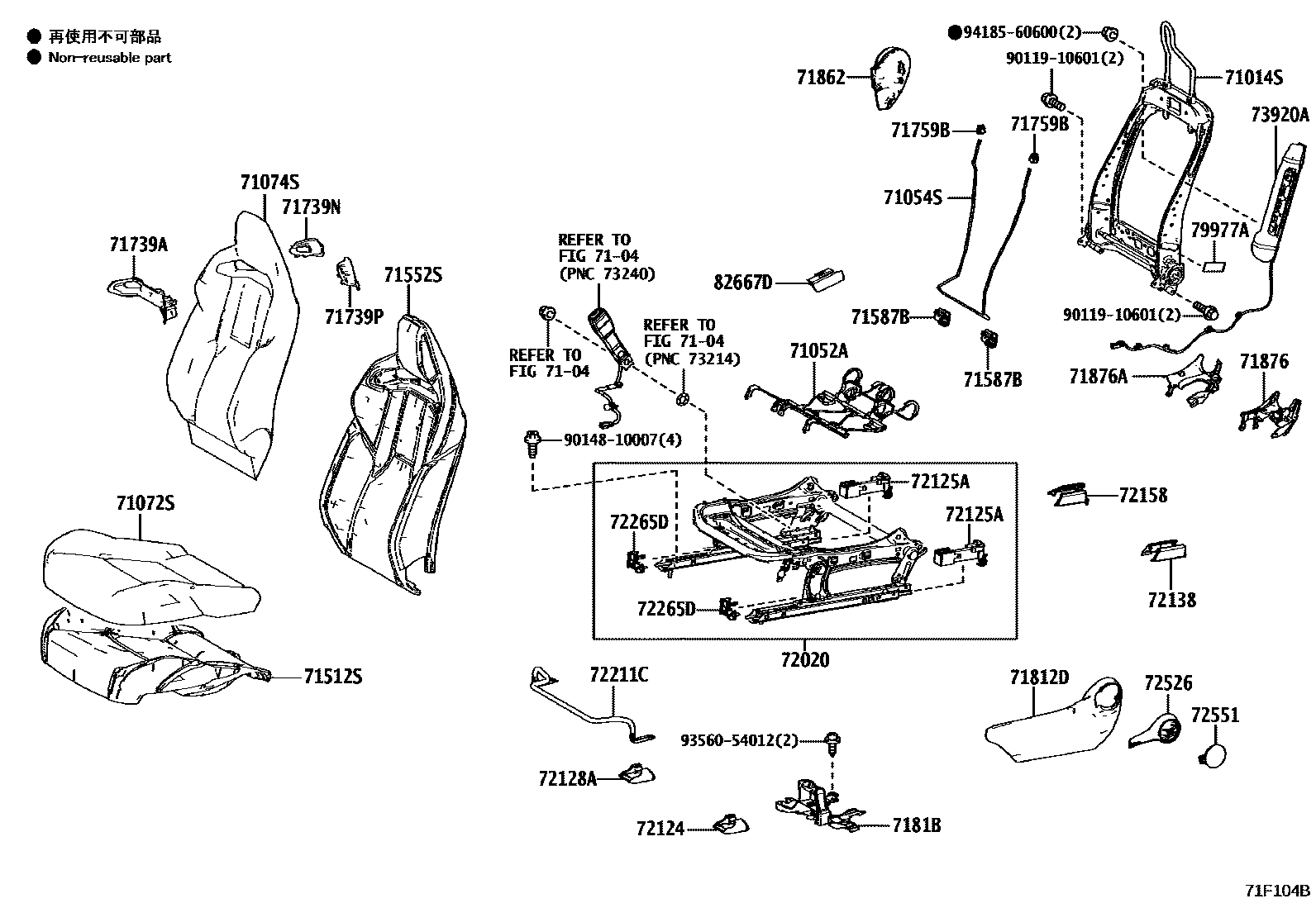

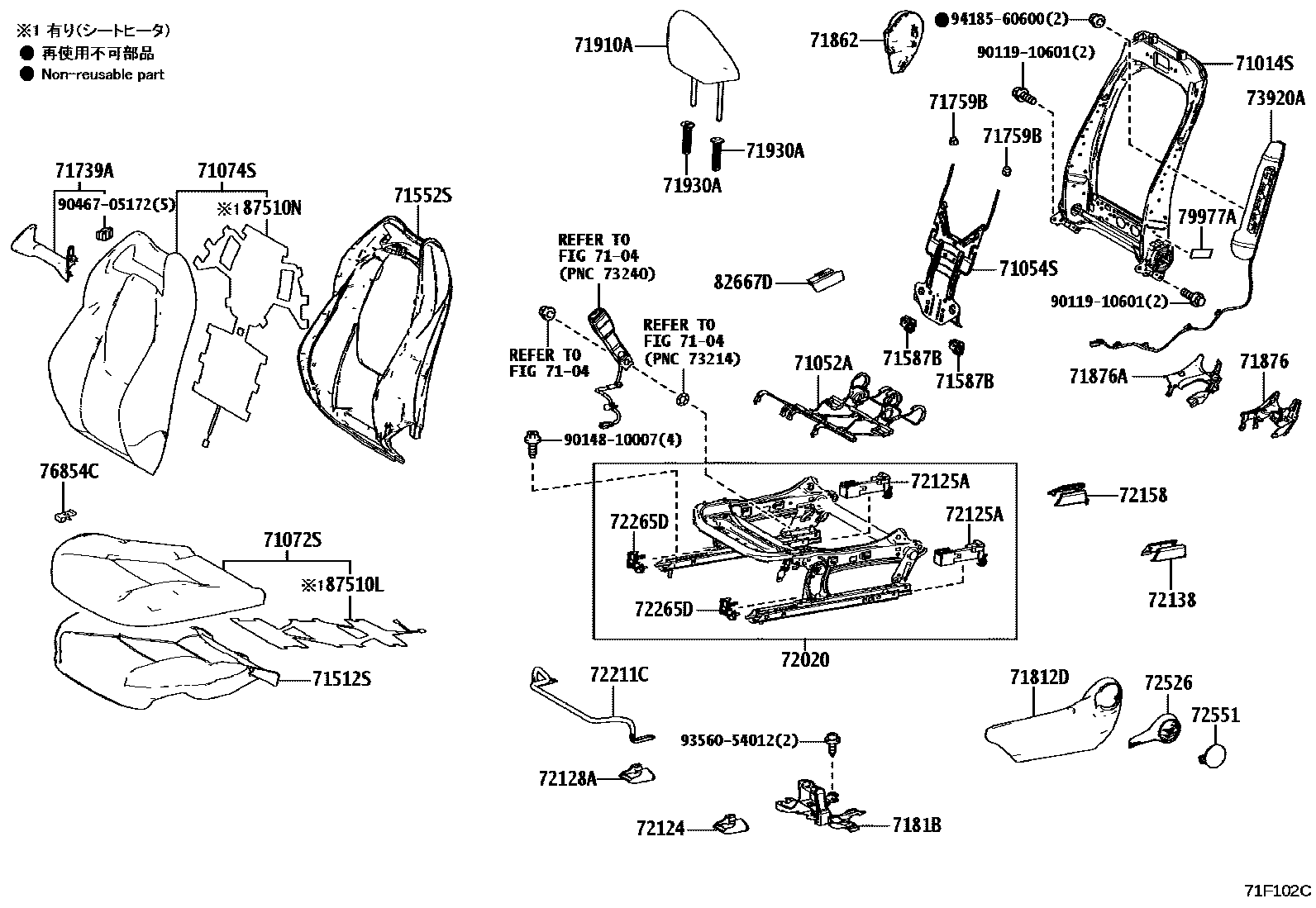

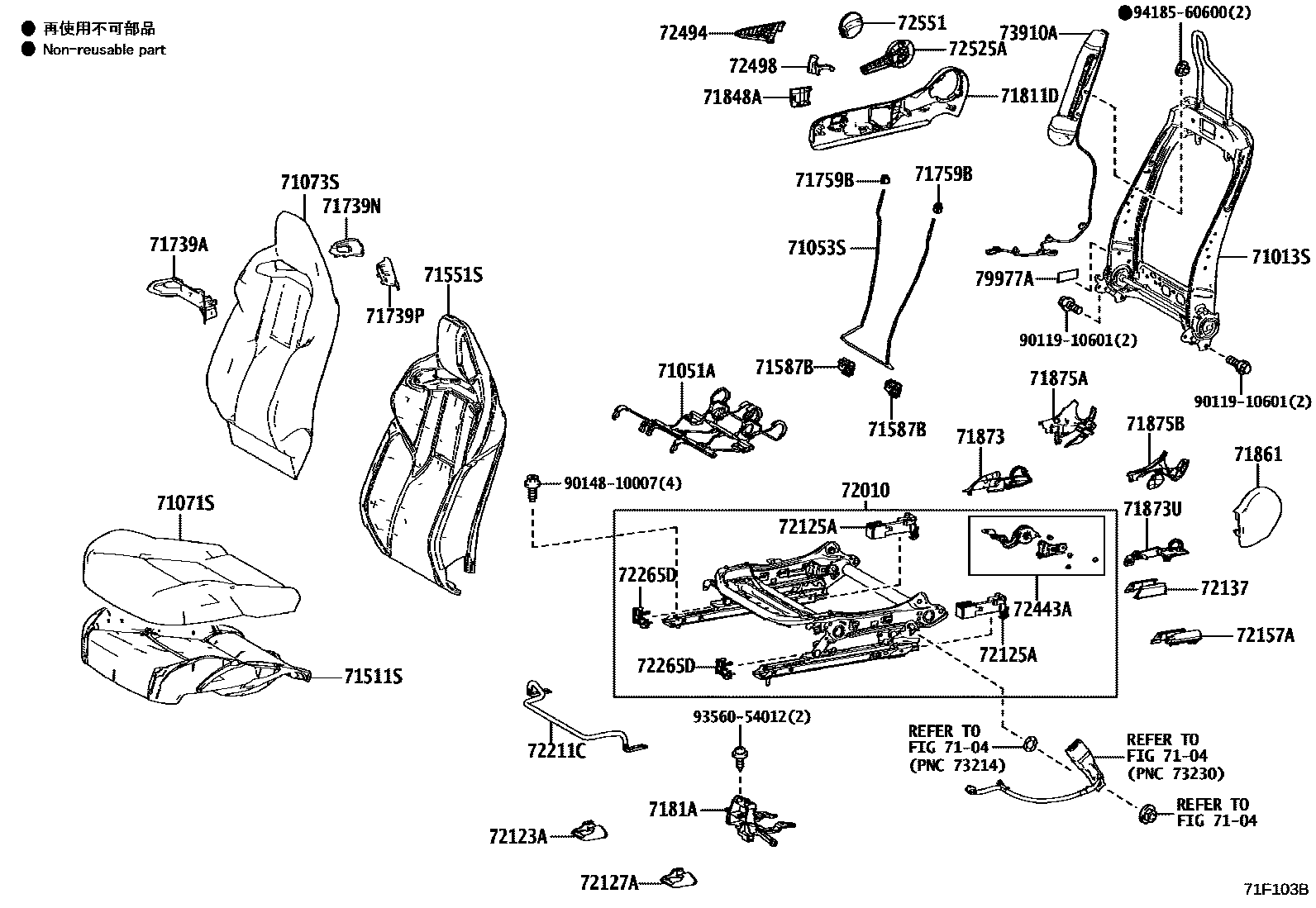

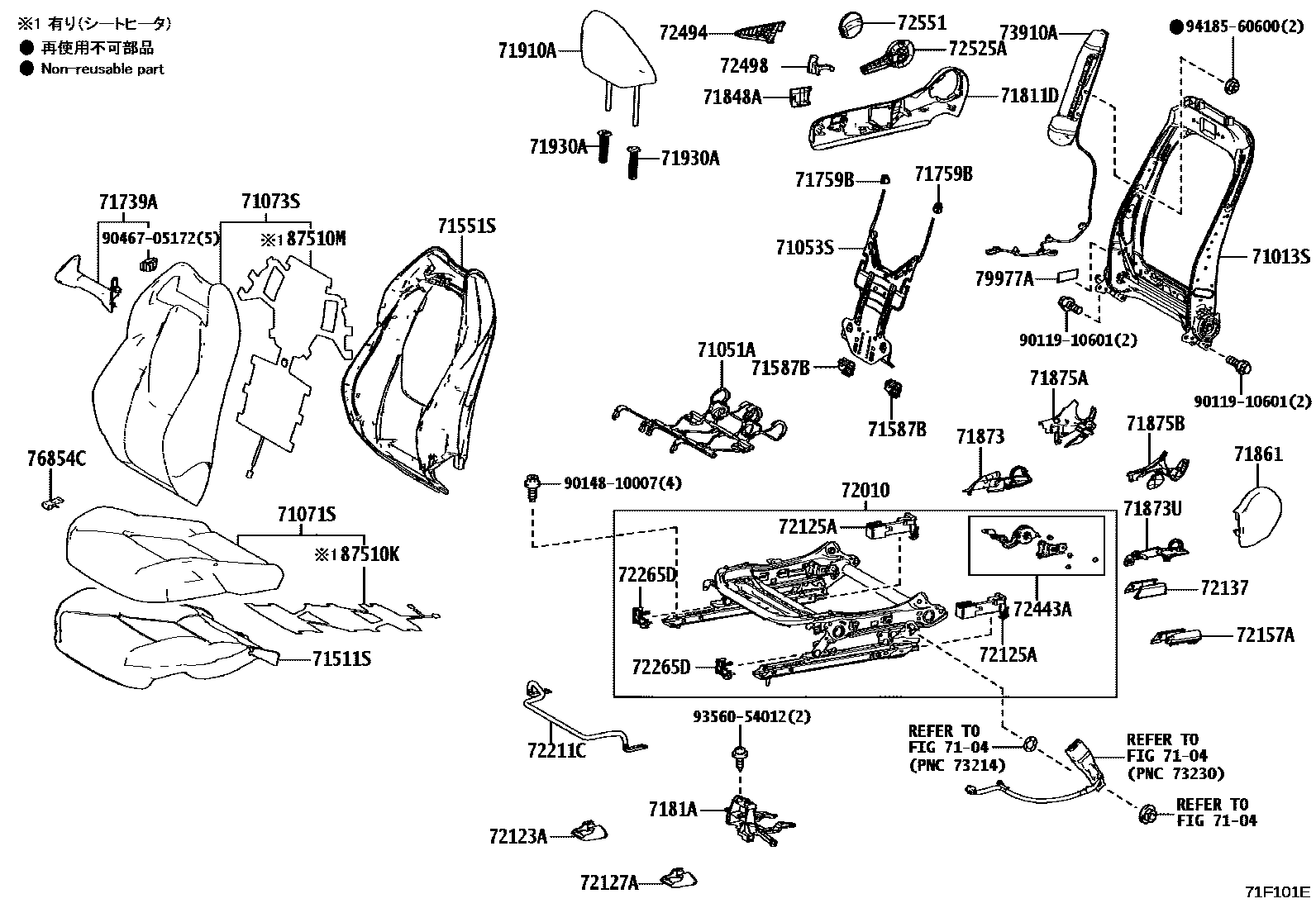

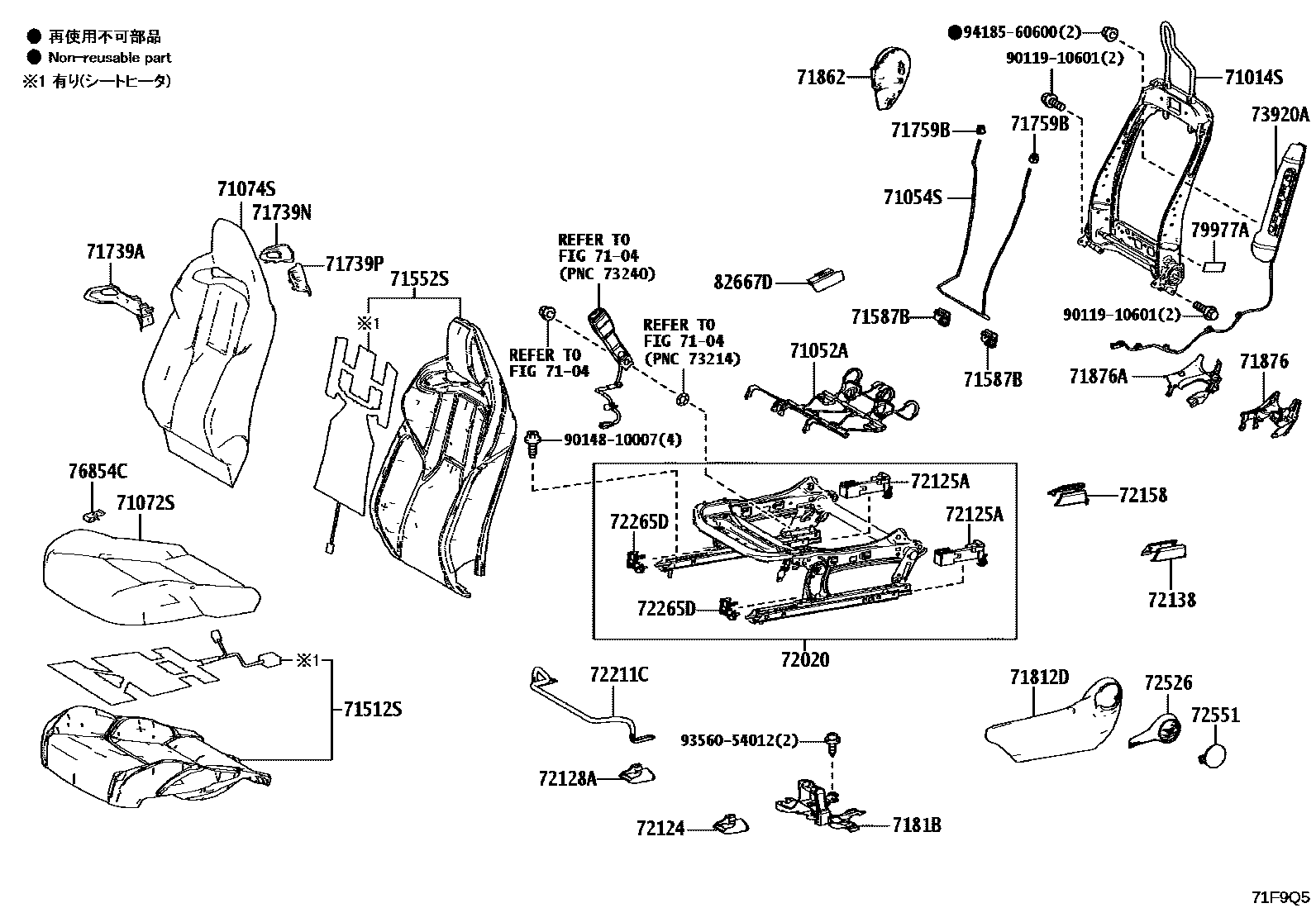

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-12820 · 71013-33390 |
| 71014S | Front left seat back frame sub-assembly | 71014-12730 · 71014-33210 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-12100 · 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-12100 · 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 · 71441-12110 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 · 71441-12110 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12C90 · 71511-12D60 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-12170 · 71502-12210 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12E30 · 71551-12E50 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12740 · 71552-12770 |
| 71587B | Front seat back edge protective cover | 71587-47010 |
| 71739A | Front seat back frame | 71739-12050 · 71739-52030 |
| 71739N | Toyota part | 71739-12060 |
| 71739P | Toyota part | 71739-12070 |
| 71759B | Front seat back hook | 71759-50040 |
| 7181A | Toyota part | 7181A-47010 |
| 7181B | Toyota part | 7181B-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71873U | Toyota part | 71873-47080 |
| 72010 | Front right seat adjuster assembly | 72010-12890 |
| 72020 | Front left seat adjuster assembly | 72020-12840 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-47060 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-47060 |
| 72125A | Rear seat upper slide rail cover | 72125-47010 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-47060 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-47060 |
| 72137 | Right seat outer slide rail cover | 72137-47060 |
| 72138 | Left seat outer slide rail cover | 72137-47060 |
| 72157A | Right seat inner slide rail bracket cover | 72157-47080 |
| 72158 | Left seat inner slide rail bracket cover | 72158-47080 |
| 72211C | Seat slide adjustment handle | 72211-47050 |
| 72265D | Toyota part | 72265-47010 |
| 72443A | Toyota part | 72443-47011 |
| 72498 | Height adjuster bracket cover | 72498-47010 |
| 73910A | Front right seat airbag assembly | 73910-52200 |
| 73920A | Front left seat airbag assembly | 73920-52260 |
| 76854C | Toyota part | 76854-44010 |
| 79977A | Seat back felt pad | 79977-12090 |
| 82667D | Connector holder | 82666-47630 |
| 87510K | Front right seat cushion heater assembly | 87510-12360 · 87510-12361 |
| 87510L | Front left seat cushion heater assembly | 87510-12380 · 87510-12381 |
| 87510M | Front right seat back heater assembly | 87530-52140 |
| 87510N | Front left seat back heater assembly | 87530-52140 |
