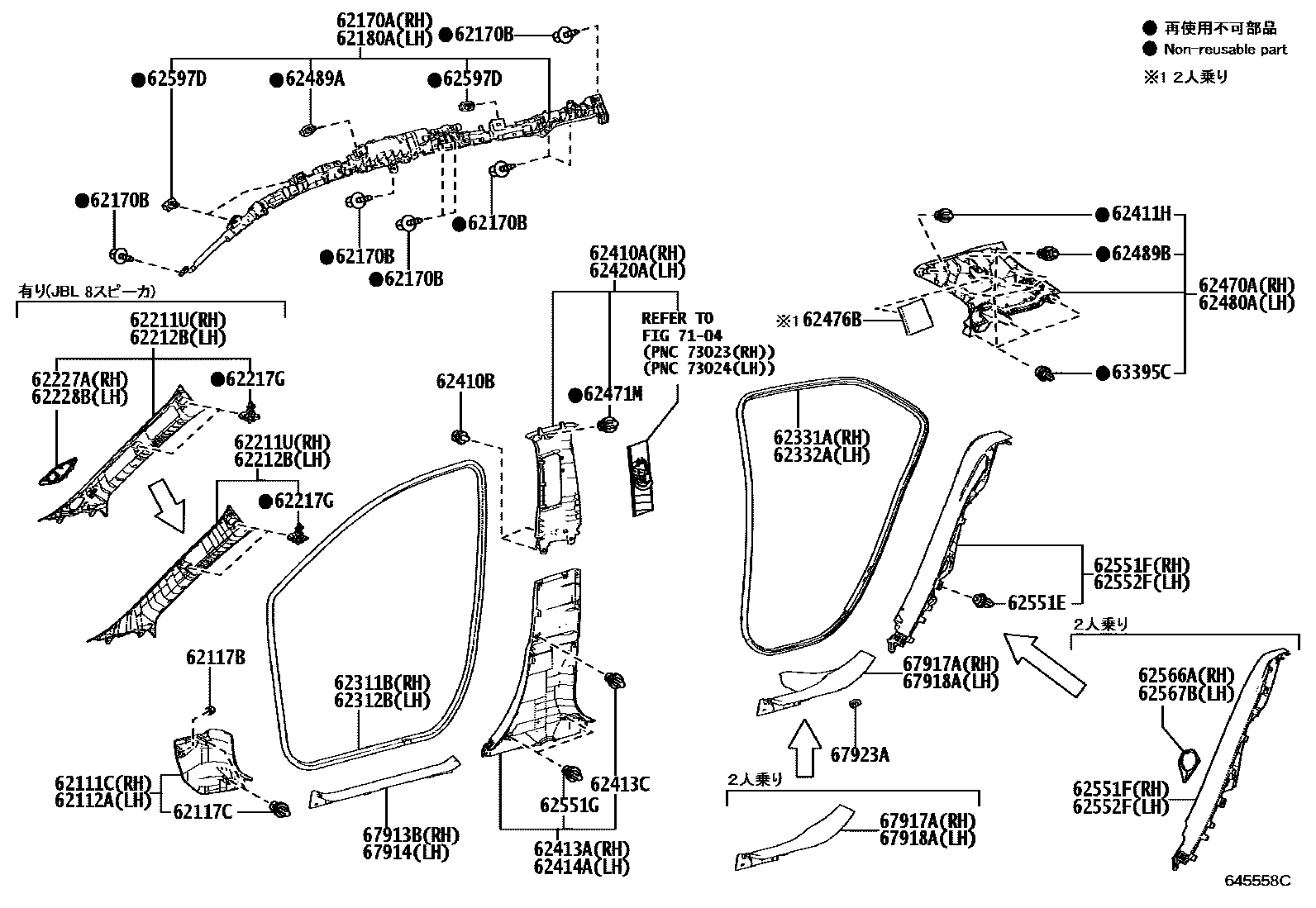

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-10167 |
| 62170A | Right curtain air bag assembly | 62170-12162 |
| 62170B | Bolts with washers | 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-12162 |
| 62217G | Front pillar decorative plate clip | 62217-42050 |
| 62227A | Right front pillar speaker decorative grille | 62227-12010 |
| 62228B | Left front pillar speaker decorative grille | 62228-12010 |
| 62311B | Right front door opening waterproof tape | 62311-12290 |
| 62312B | Left front door opening waterproof tape | 62312-12300 |
| 62331A | Right rear door opening waterproof tape | 62331-12300 |
| 62332A | Left rear door opening waterproof tape | 62332-12300 |
| 62410B | clip | 90467-10216 |
| 62411H | Right front side window upper frame | 90467-10188 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62471M | clip | 90467-10167 |
| 62476B | No. 1 roof side interior panel cover | 62476-12040 |
| 62489A | Roof side interior panel clips | 62489-28010 |
| 62489B | Roof side interior panel clips | 90467-09236 |
| 62551E | Clips (for rear seat side trim panels) | 62217-13010 |
| 62551G | clip | 90467-10161 |
| 62597D | clip | 90467-18017 |
| 63395C | Clips (for roof side interior panels) | 90467-09240 |
| 67923A | Car door No. 1 wear plate clip | 67923-20090 |
