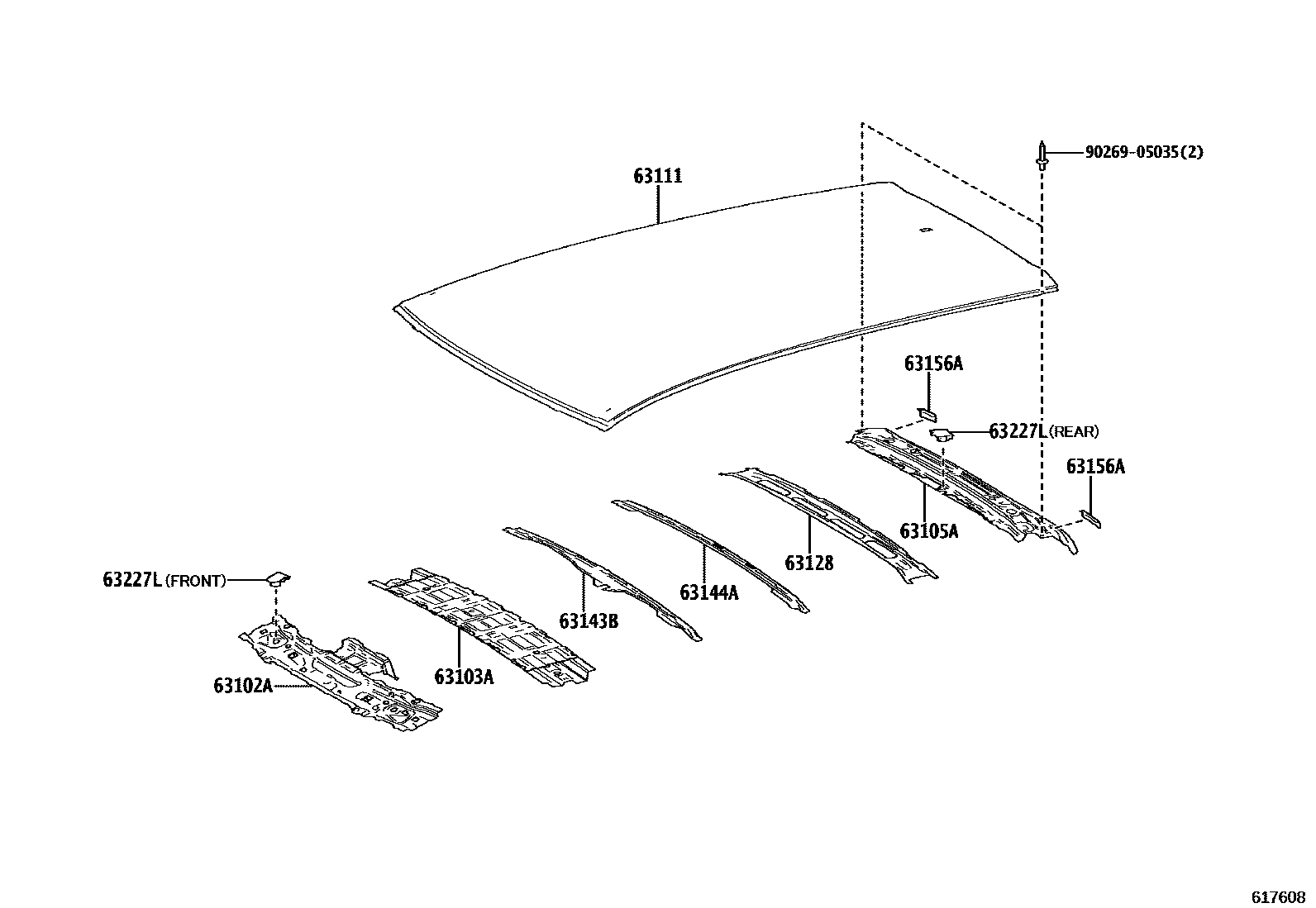

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-12911 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-02150 |
| 63105A | Back door opening frame sub-assembly | 63105-12340 |
| 63111 | roof panel | 63101-12D60 |
| 63128 | No. 6 roof panel reinforcement | 63128-12050 |
| 63143B | No. 3 roof panel reinforcement | 63143-12200 |
| 63144A | No. 4 roof panel reinforcement | 63144-12170 |
| 63156A | Roof panel reinforcement protection parts | 63156-12010 |
| 63227L | Skylight clip | 63227-12030 · 63227-12040 |
