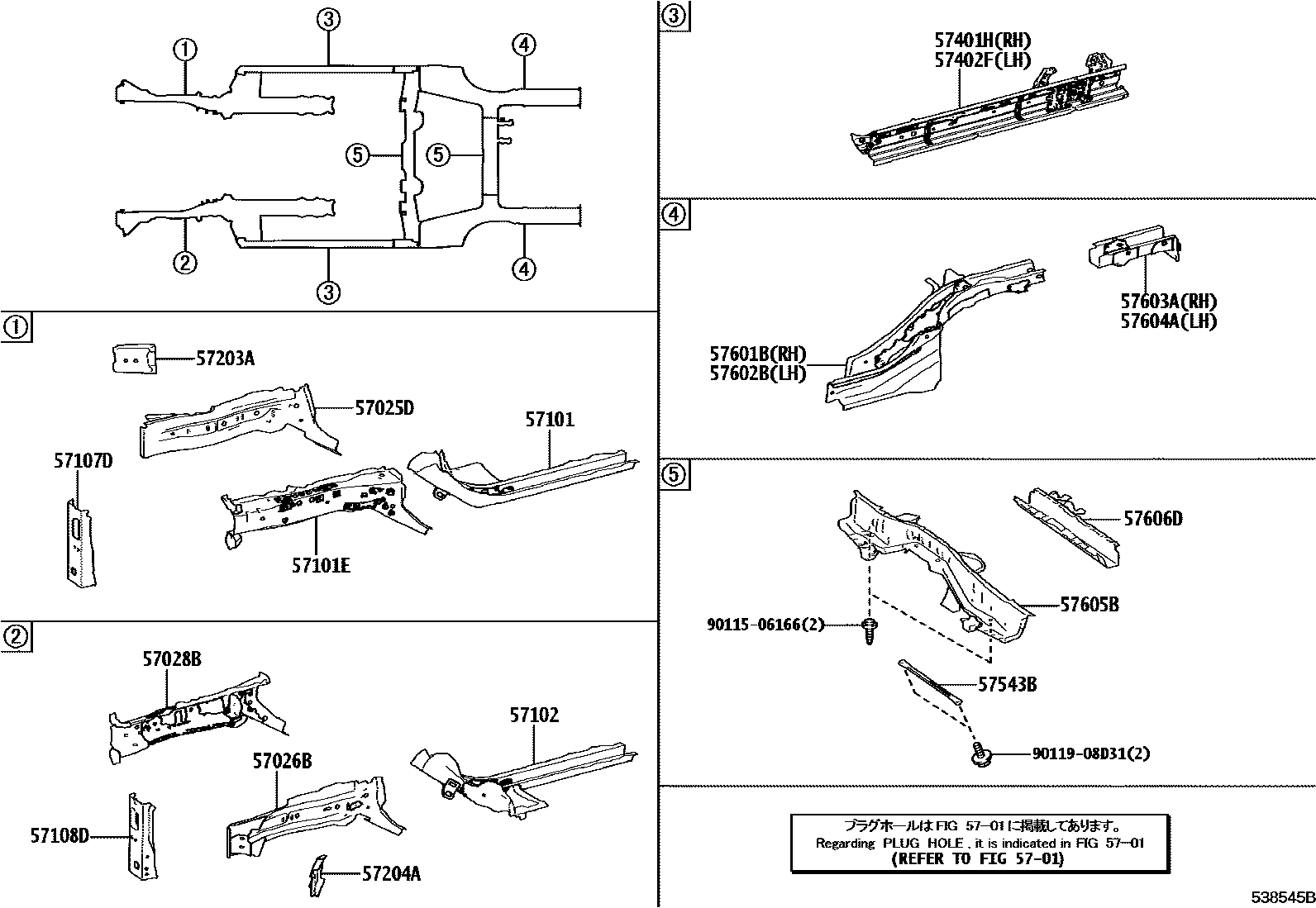

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-12020 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-47020 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-47040 |
| 57101 | Right front longitudinal beam sub-assembly | 57023-12020 |
| 57101E | Right front inner longitudinal beam sub-assembly | 57027-12020 |
| 57102 | Left front longitudinal beam sub-assembly | 57024-12020 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-47030 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-47030 |
| 57203A | No. 2 right front longitudinal beam extension sub-assembly | 57215-02070 |
| 57204A | No. 2 left front longitudinal beam extension sub-assembly | 57204-47011 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-12640 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-12640 |
| 57543B | Center Floor Bracket No. 1 | 57543-12030 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-12C50 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-12D30 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-10020 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-10020 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12340 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-12301 |
